Overview

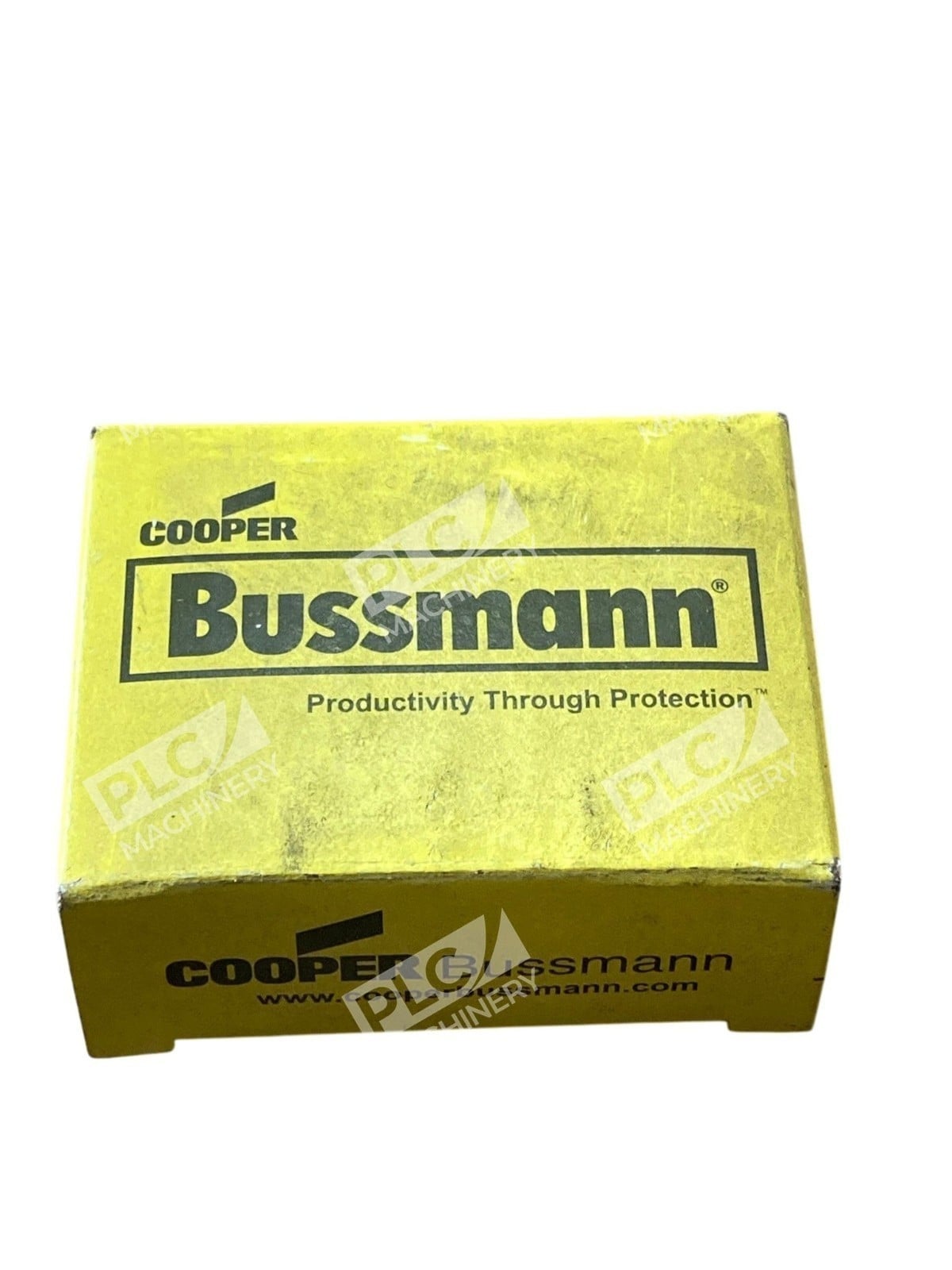

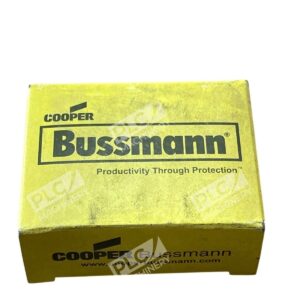

The Bussmann LP-CC-25 is a Class CC Low-Peak time-delay current-limiting fuse designed for branch circuit and control applications. This Bussmann series Ultimate protection Low-Peak Class CC current-limiting, time-delay fuse provides time delay and Class CC current limiting response to provide precise protection for small motors and relay circuits, while maximizing the short-circuit current rating protection of the components. The rejection-type design prevents insertion of lower-rated fuses into compatible holders.
Key Features
- Time-delay – 12 seconds (minimum) at 200% of rated current prevents nuisance trips from motor inrush
- Time delay coupled with Class CC current-limiting response provides close sizing on small motor and relay circuits, and maximum component short-circuit current rating protection
- 200kA interrupting rating provides high ratings for control circuit locations
- Class CC rejection feature, with appropriate fuse block, prevents inserting lesser-rated supplementary fuses
- Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Compact cylindrical design (13/32″ Dia × 1-1/2″ L) fits standard Class CC fuse holders
Technical Specifications
- Current Rating: 25A
- Voltage Rating: 600VAC / 300VDC
- Interrupting Rating (IR): 200kA at 600VAC; 20kA at 300VDC
- Dimensions: 13⁄32″ x 1 1⁄2″ (10.3 x 38.1mm)
- Fuse Type: Cartridge / Ferrule Terminal
- Class: CC
- Function: Time-Delay / Dual-Element
- Rejection Type: Yes
- Terminal Style: Ferrule
- UL Listed, CSA Certified, CE marked
- RoHS Compliant (20-30A ratings)
Typical Applications
Specialized Circuits, Industrial Control, Isolated, In-Line Fuse Holder applications benefit from the LP-CC-25’s protection characteristics. Common uses include:
- Small motor branch circuits with high starting current
- Control circuits and relay loads in industrial automation systems
- Transformer-fed loads requiring time-delay protection
- Machinery control centers and distribution panels
- Isolated fuse holders in specialized industrial equipment
Compatibility & Replacements
Compatible With
- Bussmann Class CC fuse holders and blocks (series OPM, CHCC, HPF, HPS, BC)
- Industrial control panels rated for Class CC cartridge fuses
- Motor starter circuits in manufacturing and process equipment
- Eaton/Bussmann Series fuse blocks and disconnect switches
- Any system requiring 600V 25A rejection-type fuses
Replaces / Drop-In Replacement For
- Littelfuse CCMR, Mersen ATDR equivalent rating fuses
- Other 25A Class CC time-delay fuses in comparable applications
- Older style LP-CC-25 units (full manufacturer cross-compatibility within series)
Works With
- UL 248-4 Class CC standard fuse blocks and holders
- CSA and CE-listed industrial control equipment
- 600V branch circuit protection systems
- Motor control centers (MCC) with Class CC cartridge fuse positions
- Selective coordination with other Low-Peak fuses in the LP-CC family
