Overview

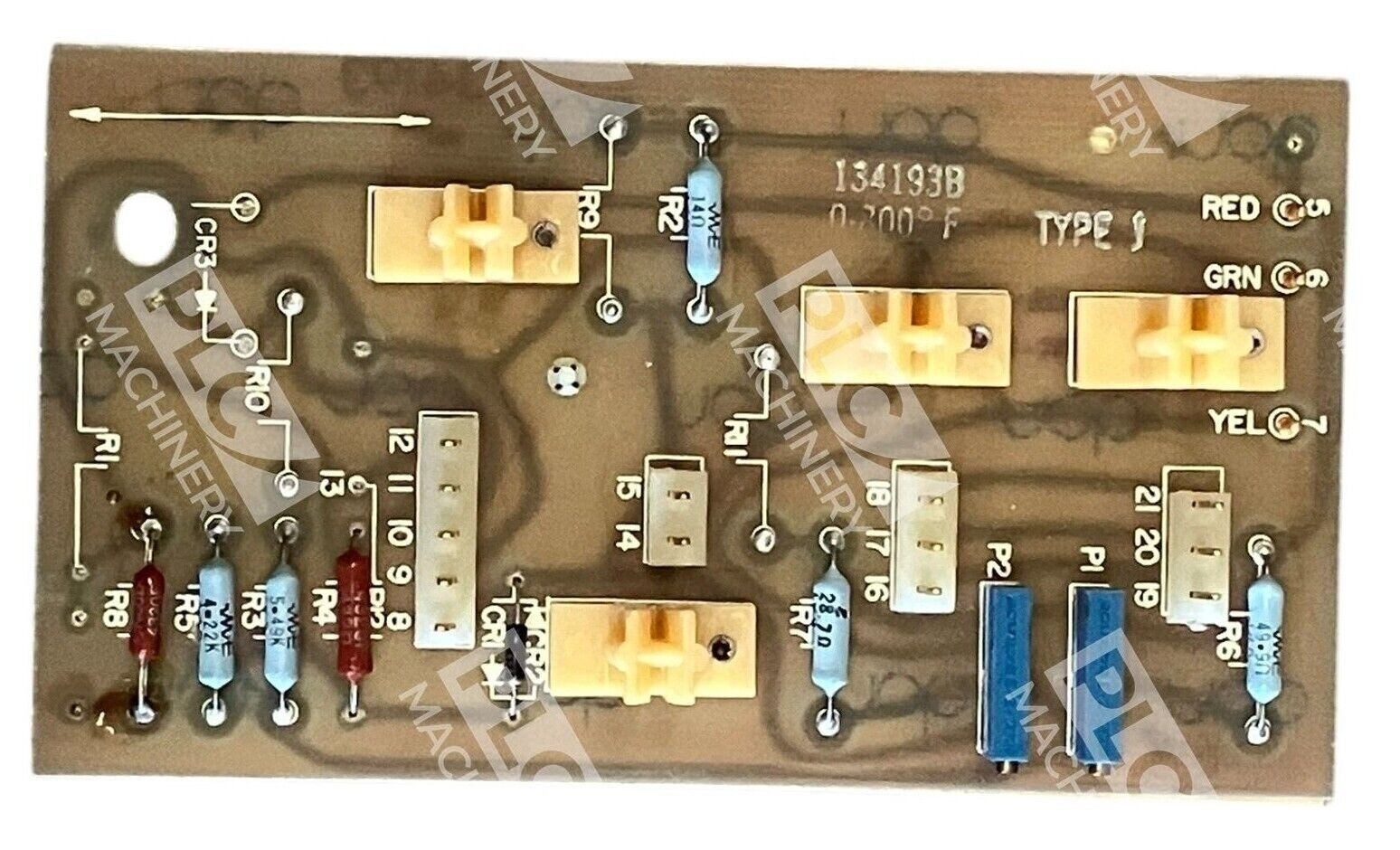

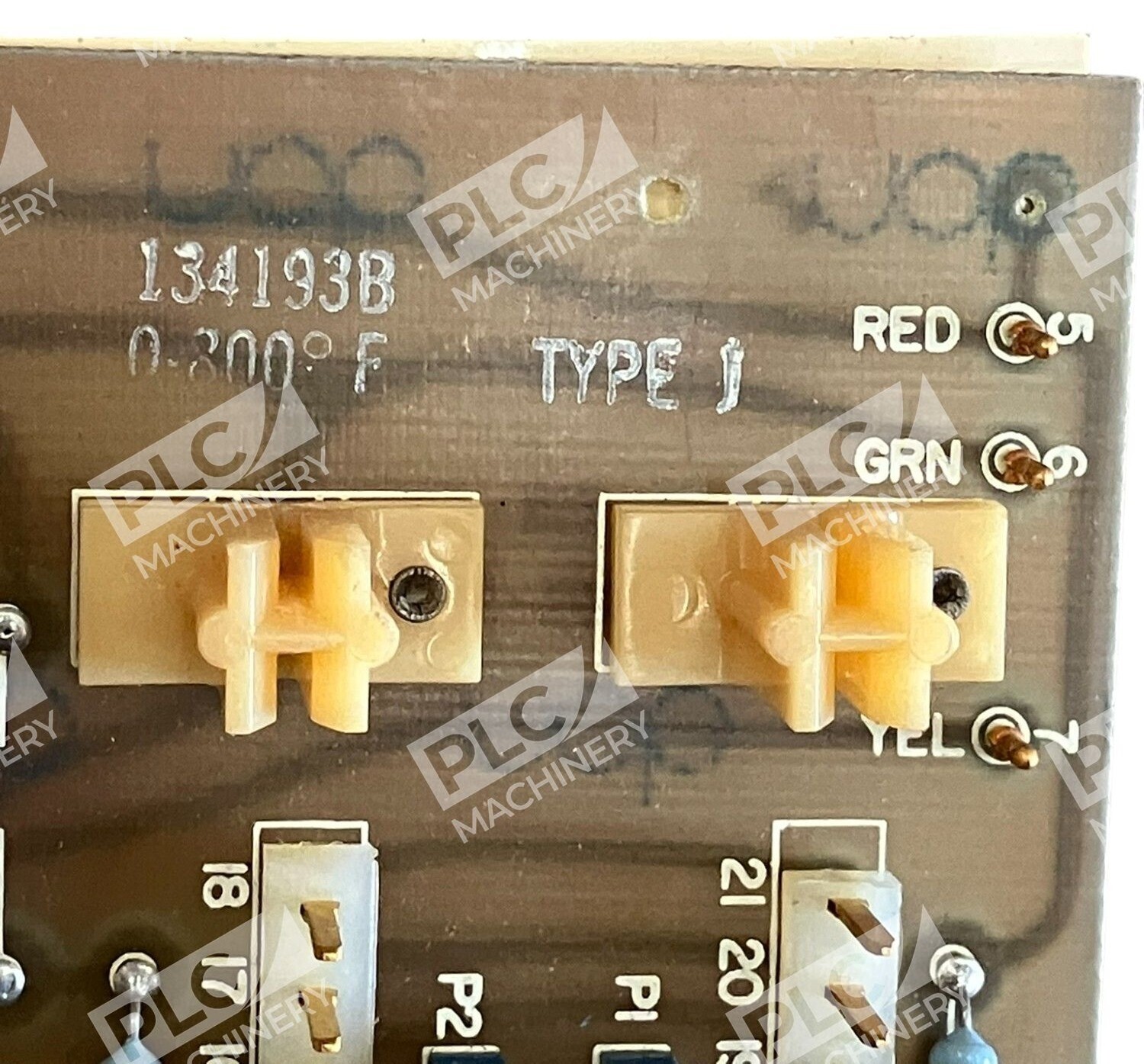

The Love Controls 134193B is a printed circuit board (PCB) for Type J thermocouple-based temperature control, operating across a 0–800°F temperature range. This board represents industrial-grade temperature management hardware from Love Controls, a division of Dwyer Instruments, providing cost-effective control functionality for legacy and retrofit installations.
Key Features
- Type J thermocouple input for broad temperature measurement range
- Operating range: 0–800°F (−18–427°C)
- Single printed circuit board design suitable for OEM and retrofit applications
- Standard industrial reliability with proven field performance
- Compact form factor for integration into control enclosures
Technical Specifications
See specifications table for detailed parameters. This board is designed for direct integration into temperature control systems requiring thermocouple signal conditioning and switching logic.
Typical Applications
- HVAC heating and cooling system control
- Refrigeration unit temperature management
- Industrial process heating and cooling loops
- Thermal equipment monitoring and setpoint regulation
Compatibility & Replacements
Compatible With
- Type J thermocouple sensors and assemblies
- Standard industrial control enclosures
- HVAC and refrigeration equipment using thermocouple inputs
- Process control systems requiring discrete temperature switching
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or controls engineer before ordering. Love Controls 134193B may replace earlier revisions of the same board; consult original equipment documentation.
Works With
- Type J thermocouple wiring and sensor terminals
- Standard 24 VDC and line voltage control circuits
- Mechanical and electromechanical relay output systems
