Overview

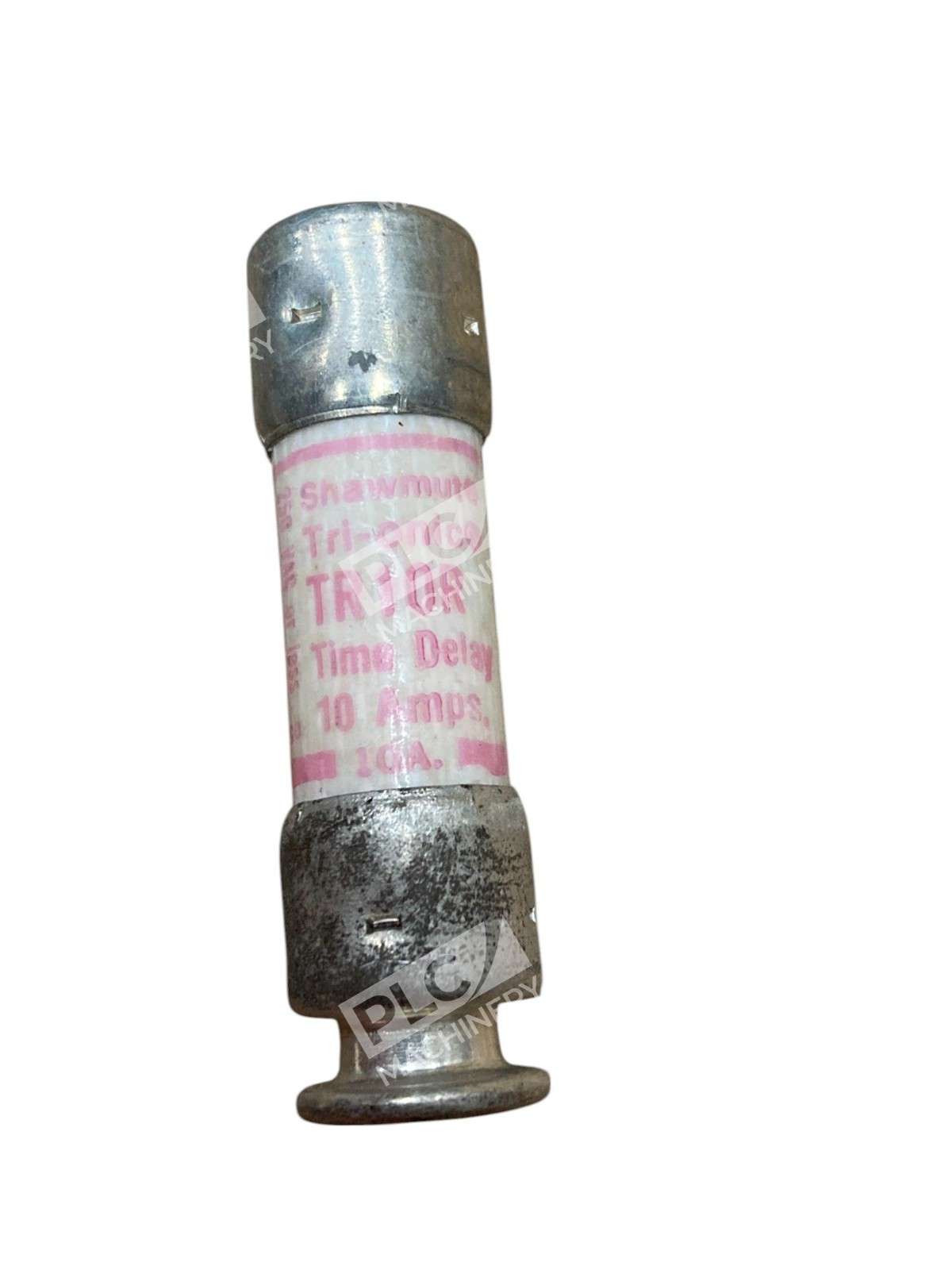

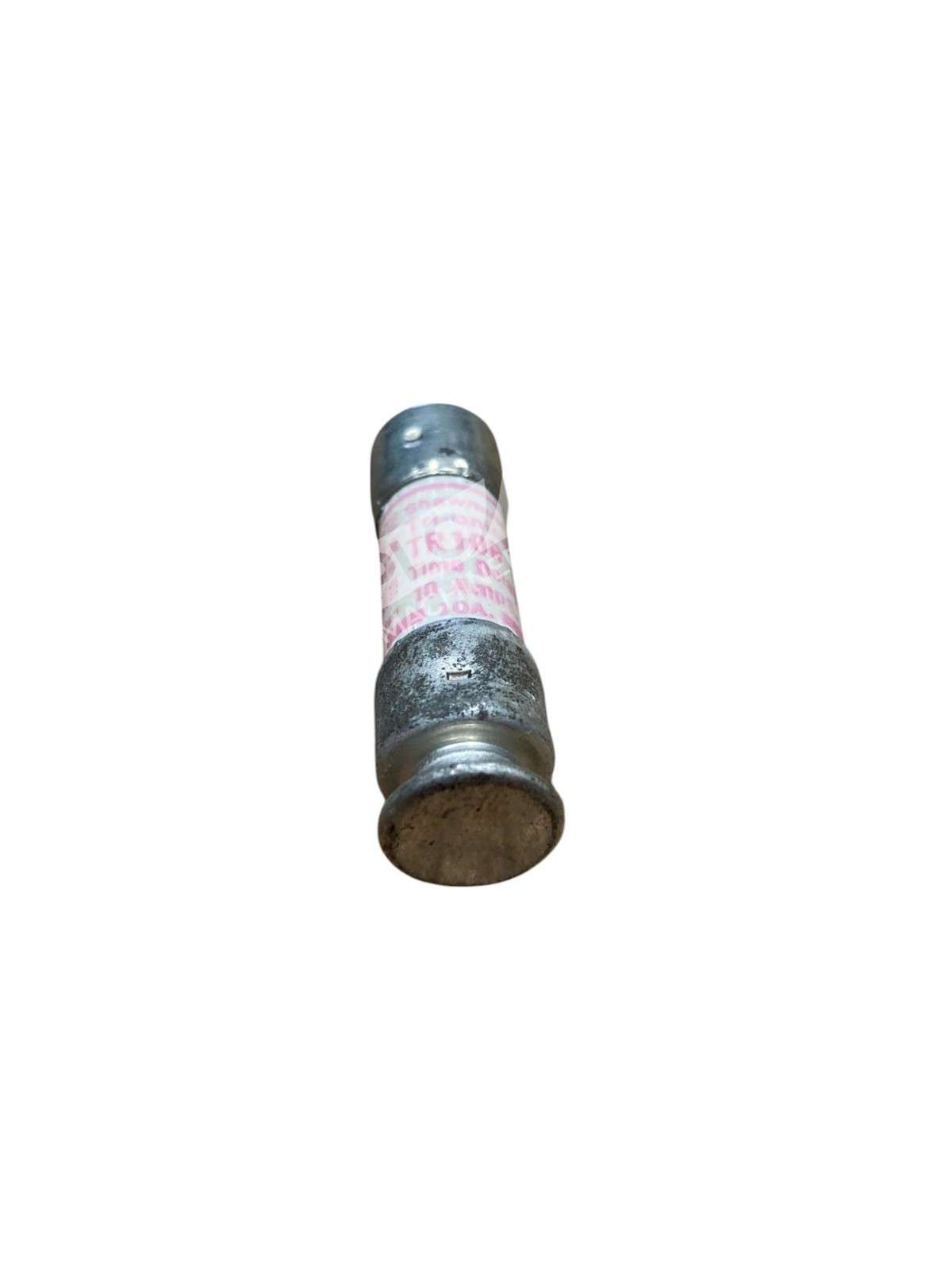

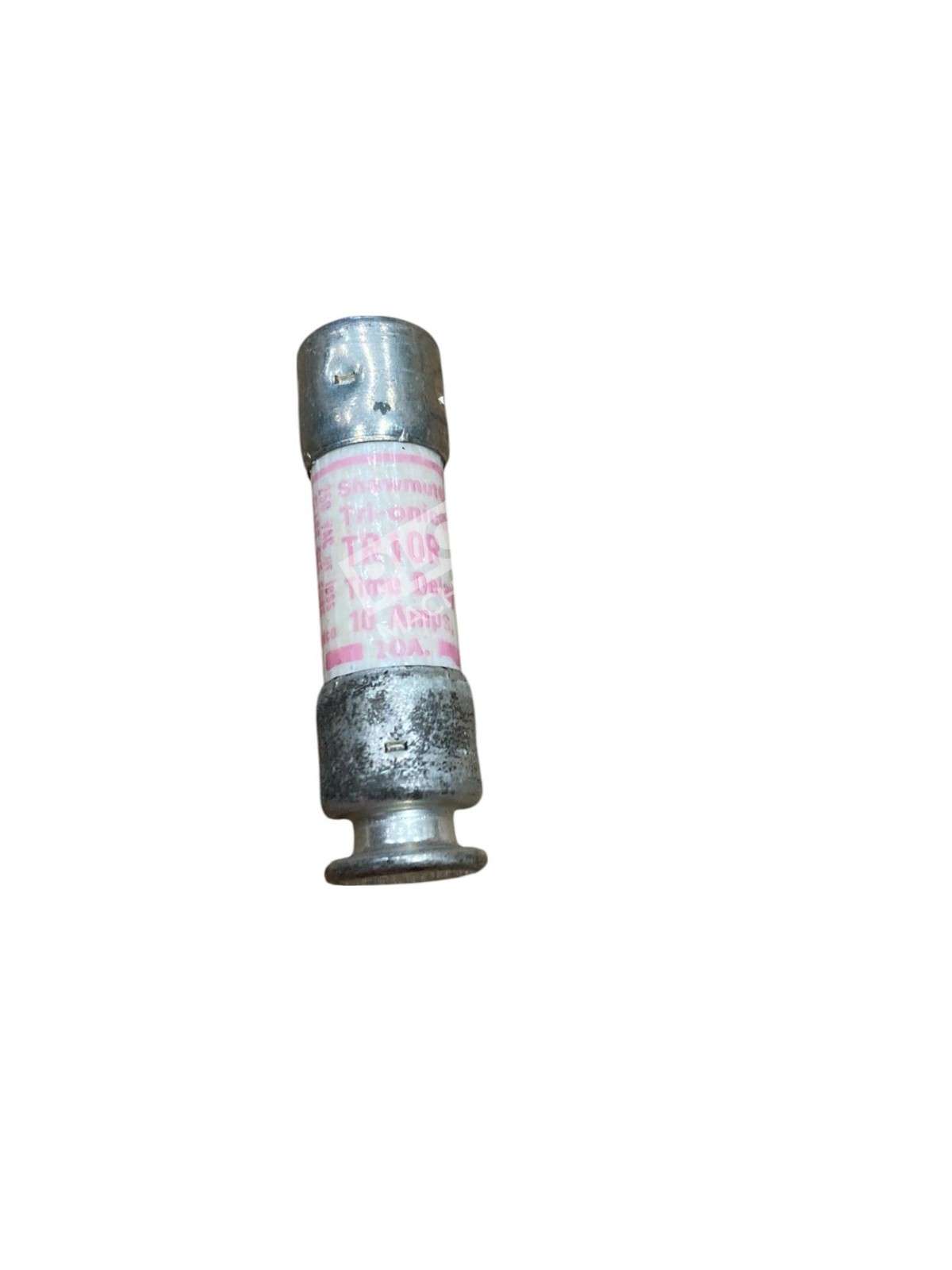

The Gould Shawmut Ferraz Trionic TR10R time-delay fuse is a Class RK5 current-limiting cartridge fuse engineered for overcurrent protection in motor and transformer circuits. This lot includes 4 individual TR10R fuses rated at 10 amperes and 250VAC/160VDC, each measuring 2 inches in length with a 9/16-inch diameter ferrule terminal. The TR10R fuse features time-delay characteristics that safely accommodate harmless inrush currents typical of motor starting and transformer energization, making it ideal for branch circuits, feeders, and service entrance equipment.
Key Features
- Current-limiting design reduces fault damage and system downtime
- Time-delay (slow-blow) characteristics tolerate harmless inrush currents from motors and transformers
- Class RK5 rating provides superior protection for modern electrical systems
- Ferrule terminal design for reliable clip-mount installation
- Fiberglass tube construction for durability and heat dissipation
- 200 kA interrupt rating (AC); 20 kA interrupt rating (DC)
Technical Specifications
- Amperage Rating: 10 Amperes
- Voltage Rating: 250VAC / 160VDC
- Interrupting Rating: 200 kA (AC), 20 kA (DC)
- Fuse Class: RK5 (Time Delay / Current Limiting)
- Body Type: Cylindrical cartridge
- Terminal Type: Ferrule
- Length: 2 inches
- Diameter: 9/16 inch
- Material: Fiberglass tube with silver-alloy elements
- Certification: UL 198L, UL 248-12, CSA C22.2
- Frequency: 50/60 Hz
- Quantity per Lot: 4 fuses
Typical Applications
- Motor branch circuits and feeders
- Transformer protection and primary/secondary circuits
- Service entrance equipment protection
- Industrial control panel protection
- HVAC equipment circuits
- General-purpose electrical distribution systems
Compatibility & Replacements
Compatible With
- Standard clip-mount fuse holders rated for RK5 cartridge fuses
- Electrical panels and switchboards with ferrule-style fuse receptacles
- Motor starters and transformer primary circuits
- NEMA-compliant distribution equipment
Replaces / Drop-In Replacement For
- Other TR10R cartridge fuses from equivalent manufacturers
- Standard time-delay 10A 250V Class RK5 fuses with matching ferrule dimensions
Works With
- UL-listed and CSA-certified electrical distribution systems
- Motor control centers and IEC-rated electrical equipment
- Standard North American electrical infrastructure (50/60 Hz)
