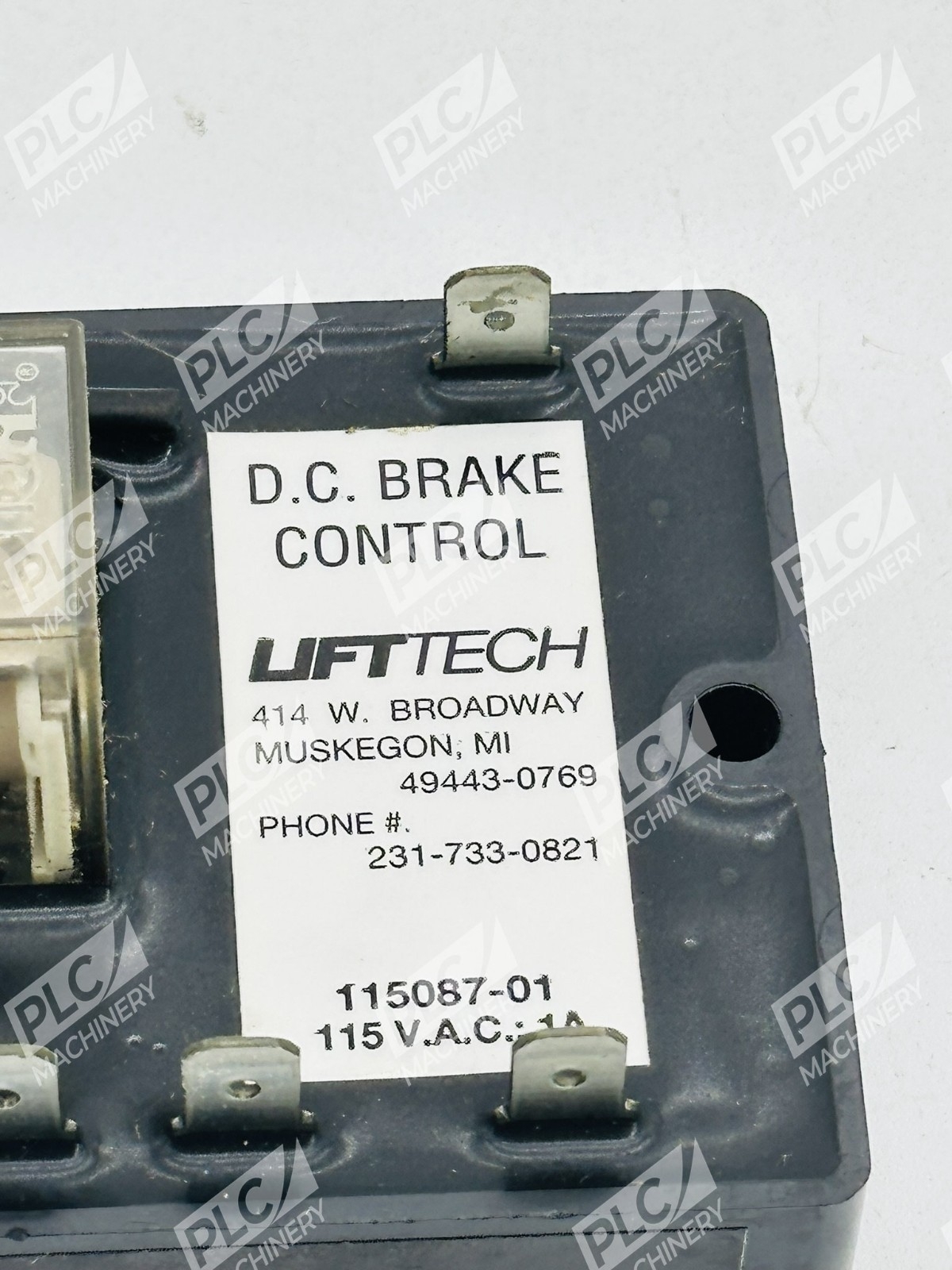

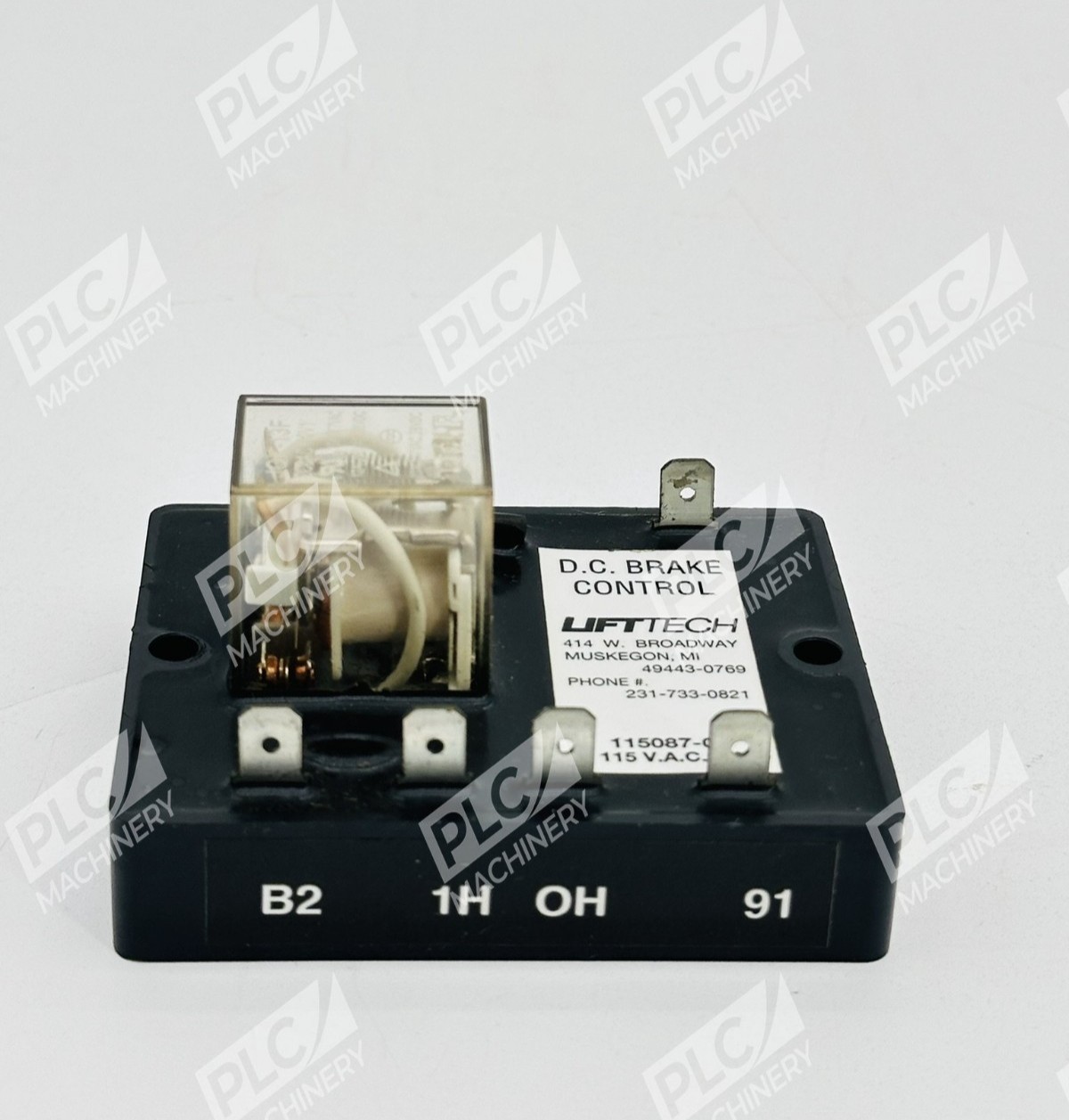

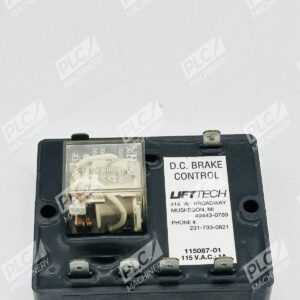

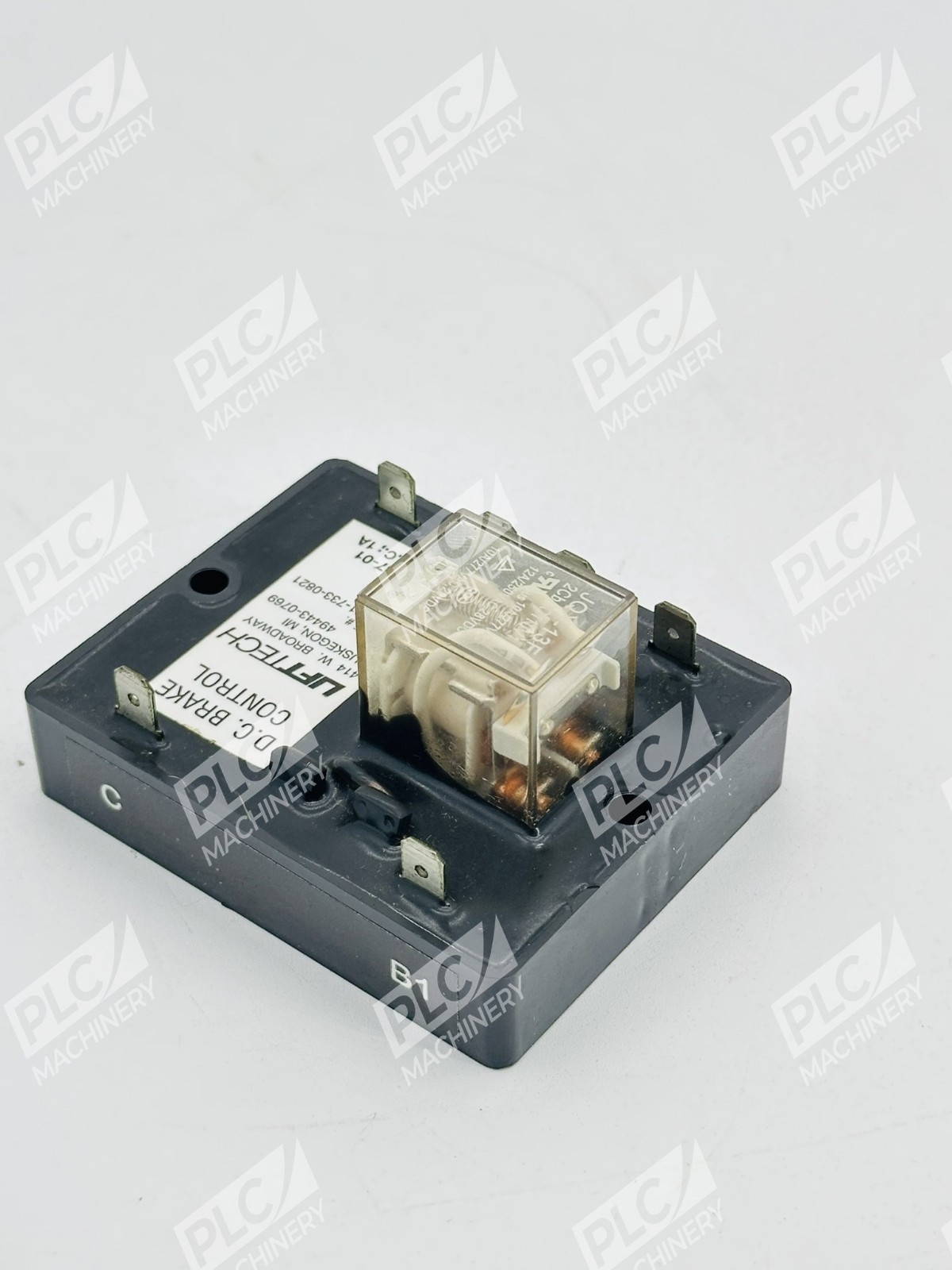

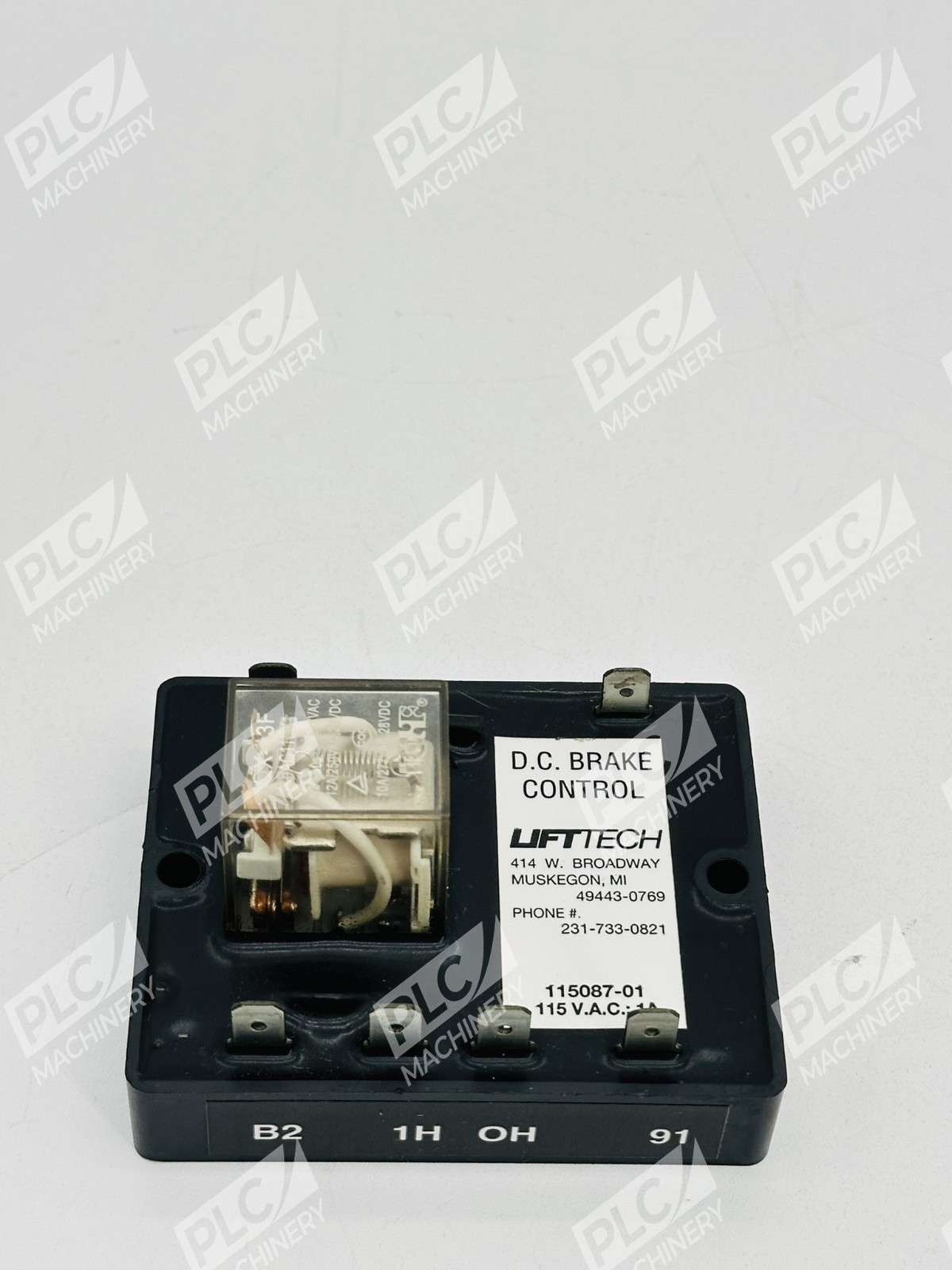

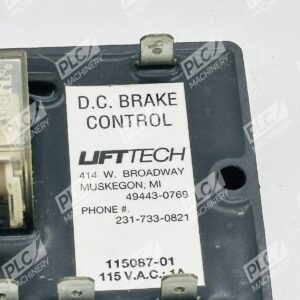

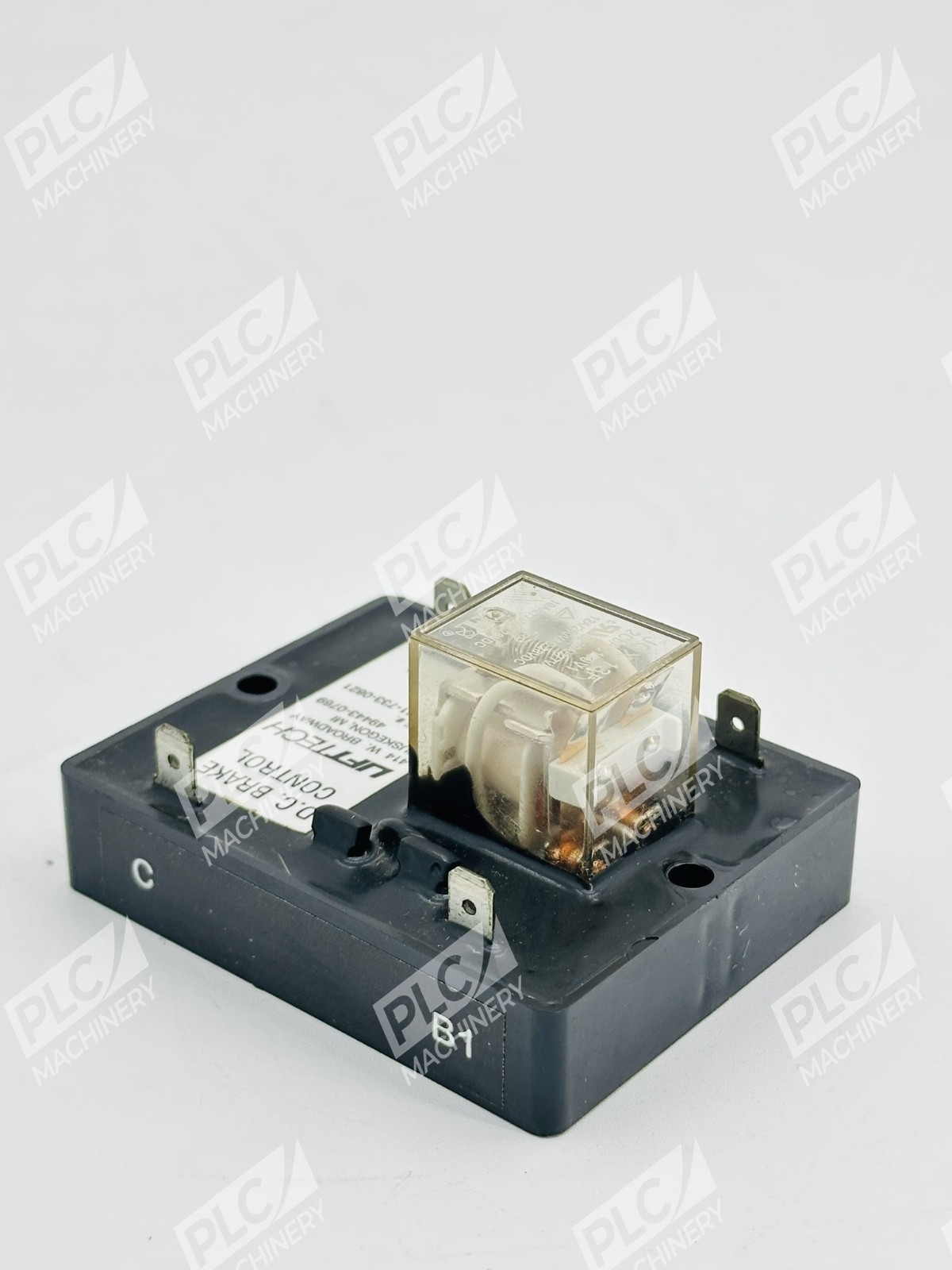

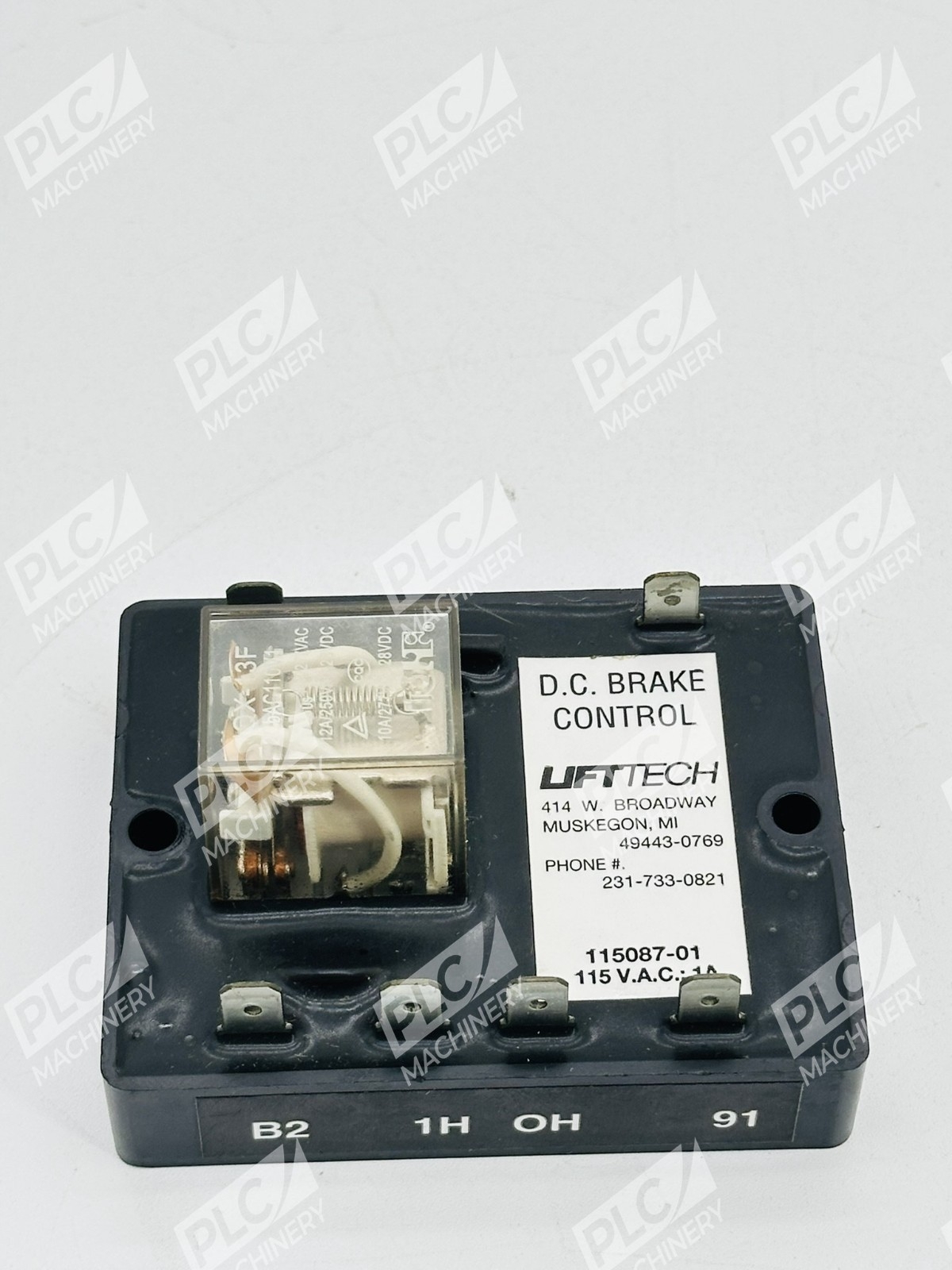

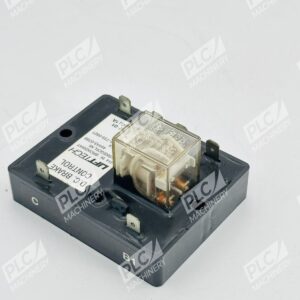

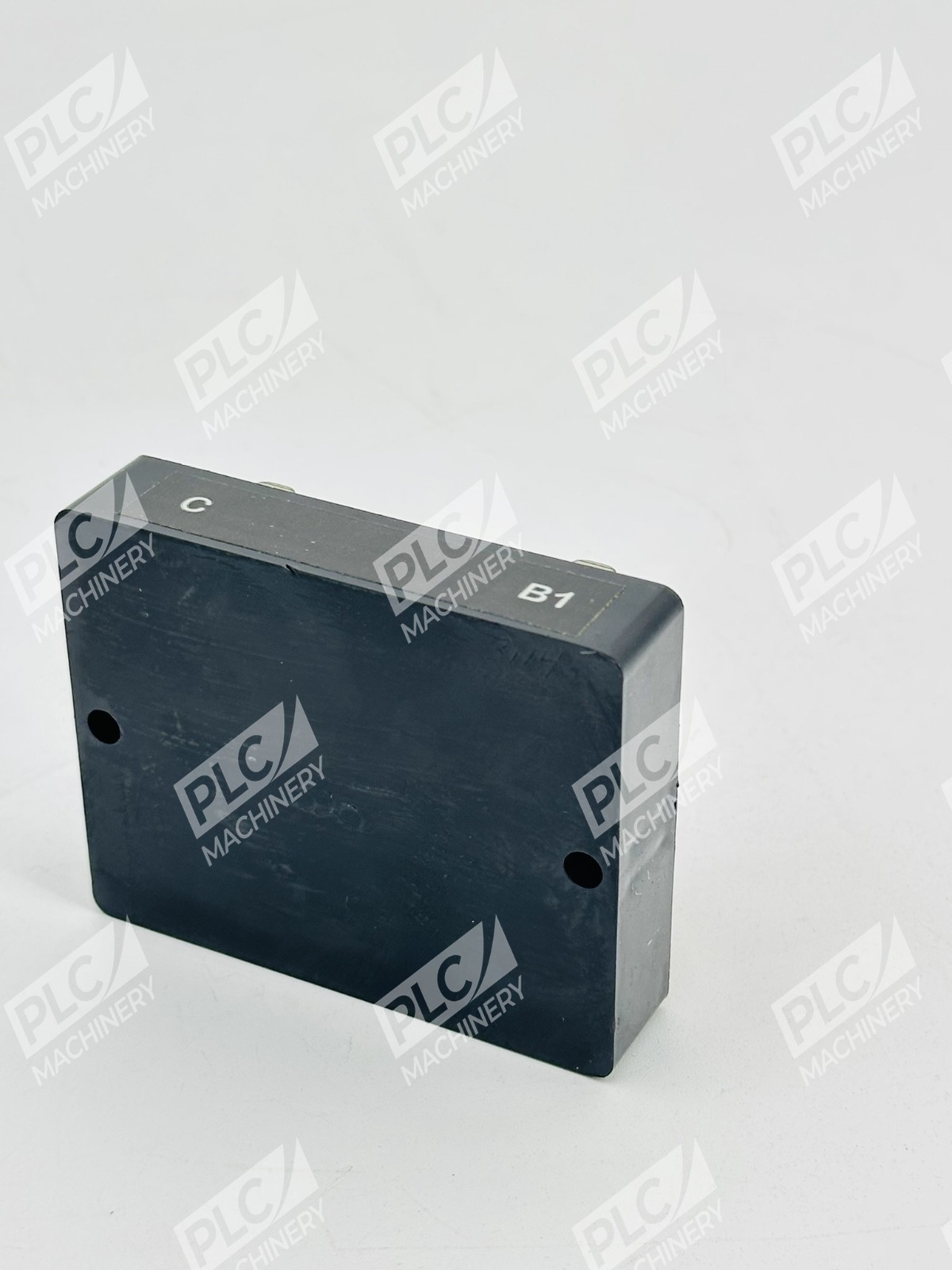

The Lift Tech 115087-01 is a specialized DC brake control module designed for industrial automation and motion control systems requiring precision braking. This encapsulated mechanical relay provides straightforward, dependable control of DC brakes across various lift and material handling applications.
Overview
The Lift Tech 115087-01 DC brake control module serves as a core component in systems that demand rapid, precise brake engagement and release. Rated for 115VAC input with 1A power output, this unit integrates seamlessly into existing automation control architectures. Its encapsulated design protects internal components from dust and environmental interference, ensuring consistent performance in demanding industrial environments.
Key Features
- Encapsulated mechanical relay construction for durability and environmental protection
- 115VAC input with 1A output rating
- Compact form factor suitable for panel mounting and OEM integration
- Direct DC brake control without external interface boards
- Proven reliability in lift systems and material handling equipment
Technical Specifications
The module delivers consistent performance with the following verified specifications:
Typical Applications
The Lift Tech 115087-01 is widely deployed in:
- Freight and passenger lift brake control systems
- Material handling equipment requiring fail-safe braking
- Hoist and rigging systems with electromagnetic brake actuation
- Industrial automation motion control subsystems
- Vertical transport machinery requiring dynamic brake management
Compatibility & Replacements
Compatible With
- 115VAC single-phase power distribution systems
- DC brake coils rated 12V–48V (consult system documentation for coil specifications)
- Industrial automation control panels with relay-based logic
- Lift and elevator control systems manufactured from 1990–2020
- Standard DIN rail and panel mounting infrastructure
Replaces / Drop-In Replacement For
The Lift Tech 115087-01 is a direct replacement for OEM brake control modules in systems originally equipped with this part number. Verify compatibility with your system integrator or equipment documentation before ordering, as brake coil voltage and current ratings must match.
Works With
- 115VAC control circuit power supplies
- Electromechanical relay logic and PLC-based control systems
- Standard industrial DC brake solenoids
- Safety-rated braking circuits (consult safety documentation for compliance)
