Overview
The Leviton 013-13654-TNP is a professional-grade T5 bi-pin fluorescent lampholder designed for industrial and commercial lighting applications. This lampholder accommodates miniature base T5 fluorescent lamps and is supplied in bulk (box of 500), making it ideal for facility maintenance, equipment rebuilds, and large-scale lighting projects. The thermoplastic white housing combines durability with standard electrical performance in demanding environments.
Key Features
- Miniature bi-pin T5 base compatibility with standard fluorescent lamps
- Quick-connect terminal design for rapid installation and reliable connections
- Tall profile, snap-in or slide-on mounting options for flexible installation
- Lamp-lock mechanism prevents accidental lamp ejection
- 18AWG quickwire terminal accepts solid or tinned wire
- White thermoplastic construction resists corrosion and vibration

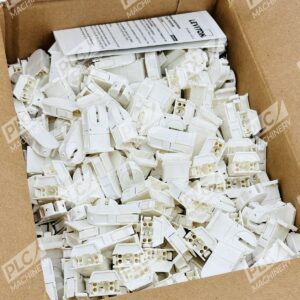

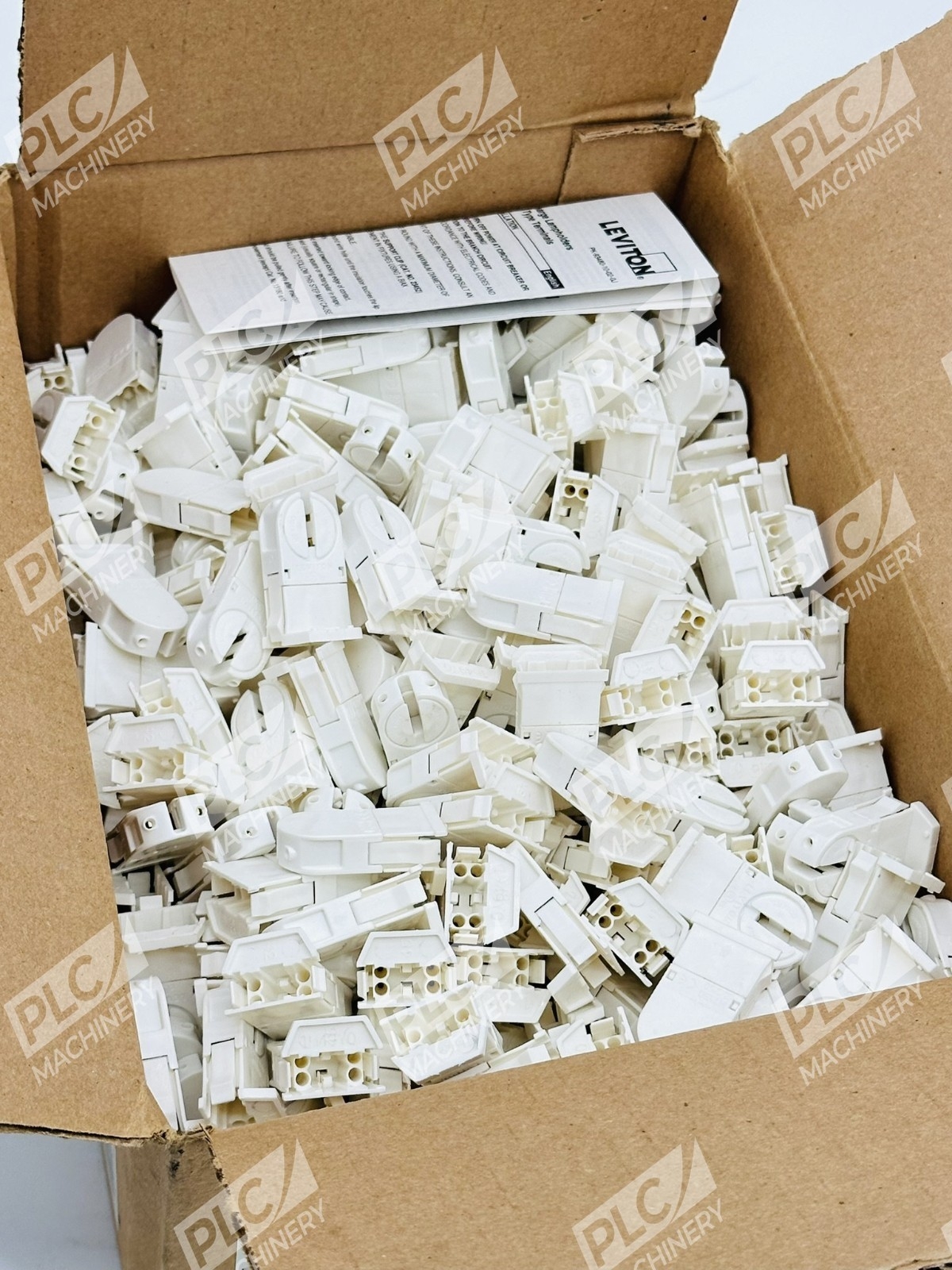

- Bulk packaging (box of 500 units) for cost-efficient stocking
Technical Specifications
| Lamp Type | T5 Fluorescent, Miniature Bi-Pin |
| Voltage Rating | 600 VAC |
| Lamp Wattage | 120W Maximum |
| Connection Type | Quick-Connect (Quickwire) |
| Wire Gauge | 18 AWG (solid or tinned) |
| Mounting Style | Snap-In or Slide-On |
| Profile | Tall |
| Housing Material | Thermoplastic |
| Color | White |
| UL File Number | E5833 |
| CSA Certification | Yes |
| Part Number | 013-13654-TNP |

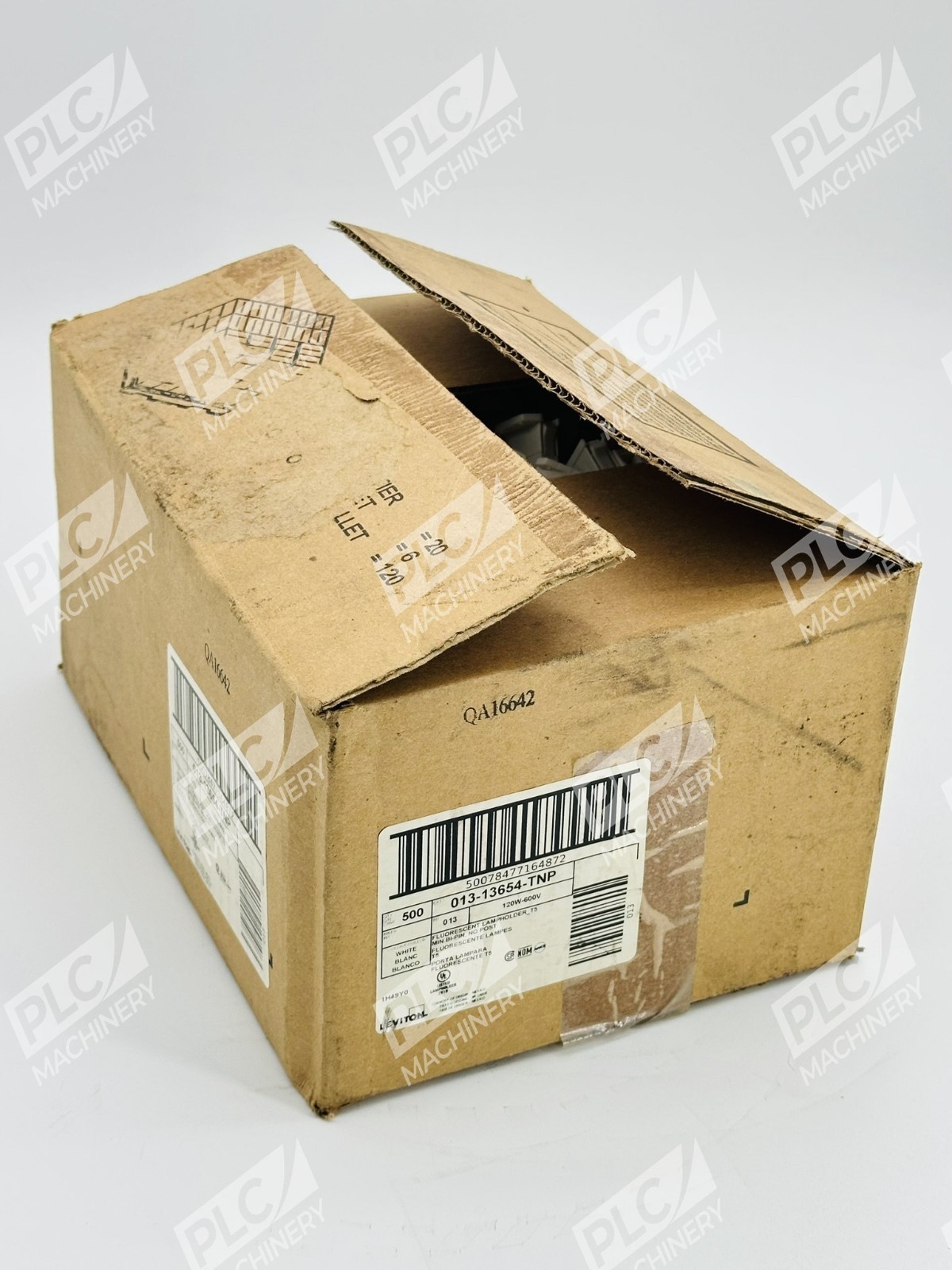

| Packaging | Box of 500 Units |
Typical Applications
- Industrial facility lighting maintenance and replacement
- Commercial HVAC and refrigeration lighting fixtures
- Emergency and exit lighting systems
- Machinery and workstation task lighting
- OEM equipment assembly and retrofit projects
- Facility bulk stock replenishment programs
Compatibility & Replacements
Compatible With
- T5 linear fluorescent lamp fixtures with miniature bi-pin sockets
- Standard 600V industrial lighting circuits
- Snap-in or slide-on mounting footprint systems
- 18 AWG quickwire and push-terminal wiring systems
Replaces / Drop-In Replacement For
The Leviton 013-13654-TNP serves as a standard replacement for existing miniature bi-pin T5 lampholders in tall profile configurations. Verify mounting style (snap-in vs. slide-on) and terminal type compatibility with your specific fixture design before installation.
Works With
- T5 fluorescent lamps (all wattages up to 120W)
- Standard 600VAC industrial electrical circuits
- Quickwire push-in terminal wiring (18 AWG)
- Snap-in or slide-on mounting systems
- Lamp-lock mechanical retention systems
