Overview

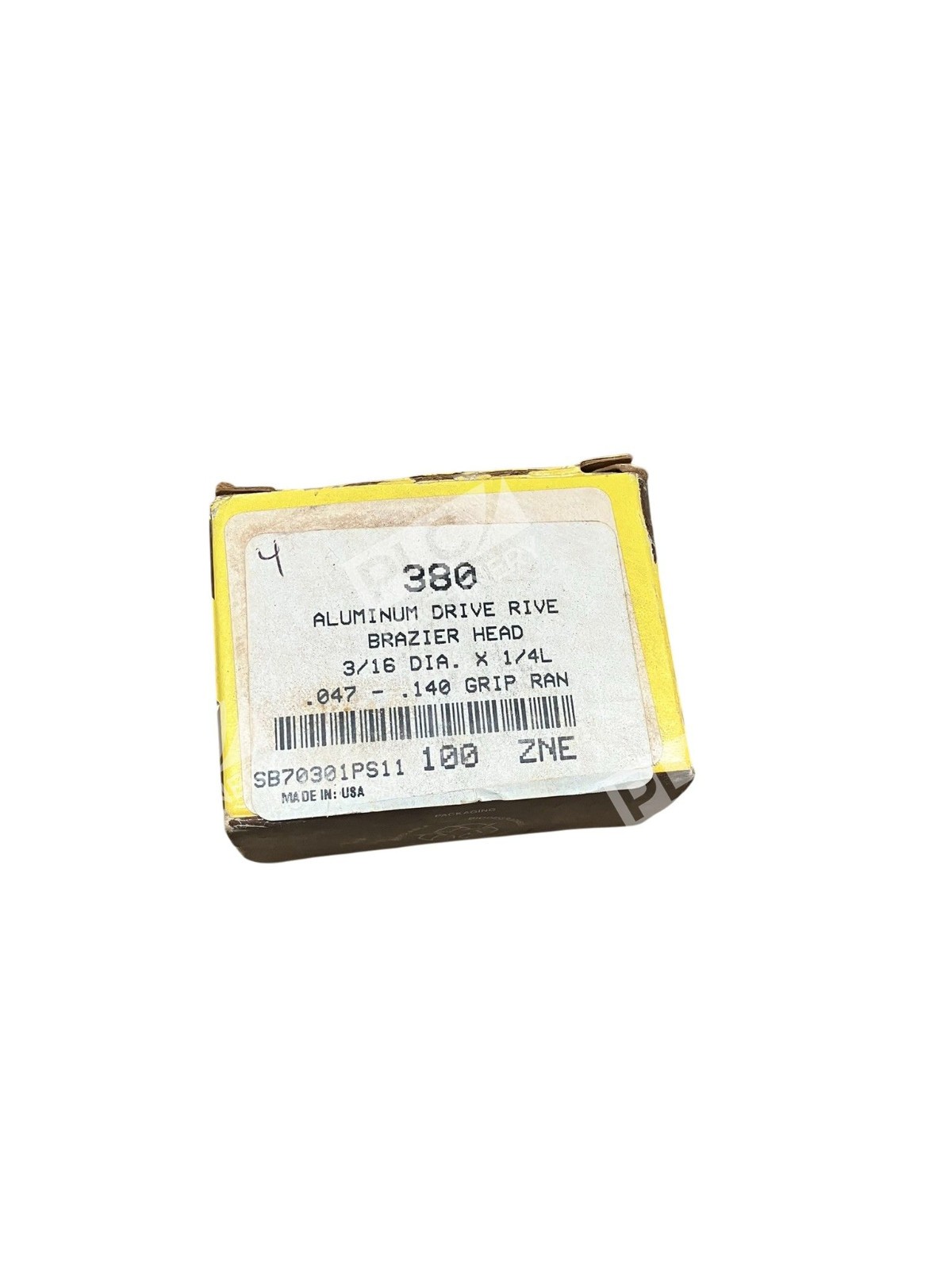

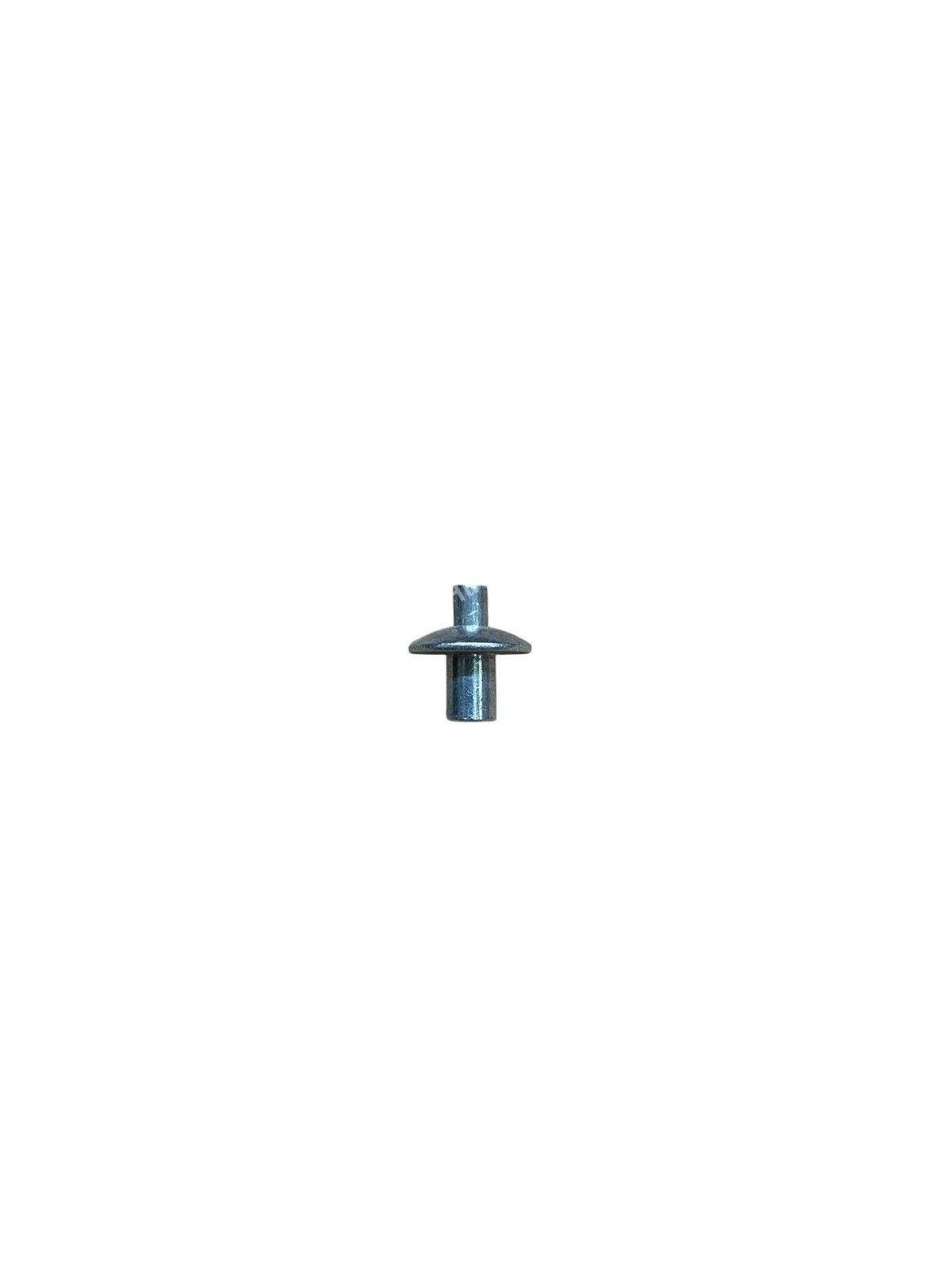

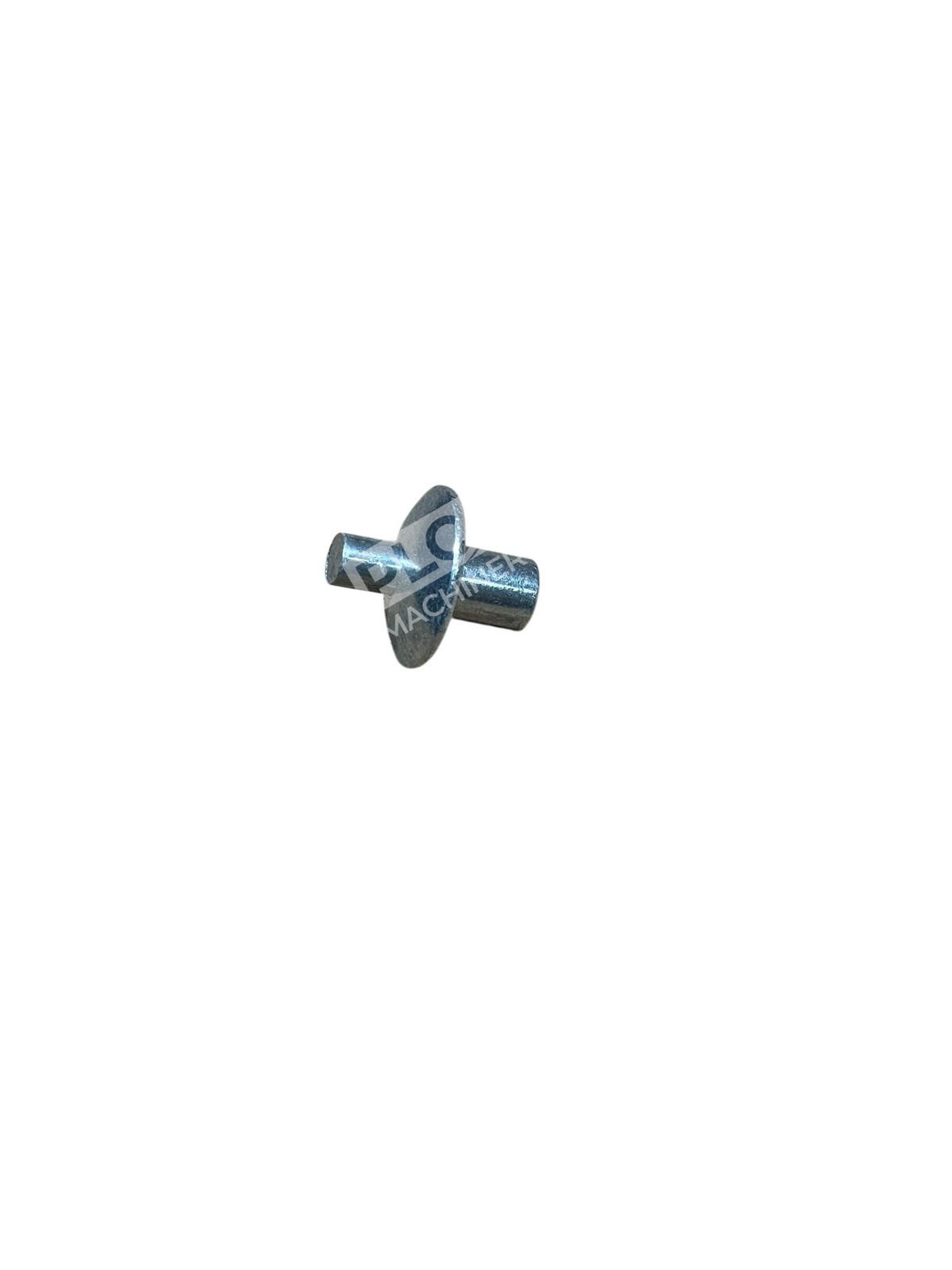

The Lawson 380 aluminum drive rivets are engineered for reliable fastening across industrial and commercial applications. With a 3/16″ diameter and full brazier head design, these rivets deliver consistent performance for blind or through-fastening of metal-to-metal joints and expansion in low-density materials. This convenient box contains 100 units, ensuring adequate supply for assembly lines, maintenance, and field repairs.
Key Features
- Aluminum drive pin with automatic expansion and pull-up action
- Full brazier head for high load-bearing surface area
- Suitable for blind fastening, through-fastening, and low-density material expansion
- Simple hammer-drive installation—no special tools required
- 0.047″ to 0.141″ grip range accommodates varied material thicknesses
Technical Specifications
- Diameter: 3/16″
- Head Style: Full Brazier
- Material: Aluminum
- Pin Material: Aluminum drive pin
- Grip Range: 0.047″ to 0.141″

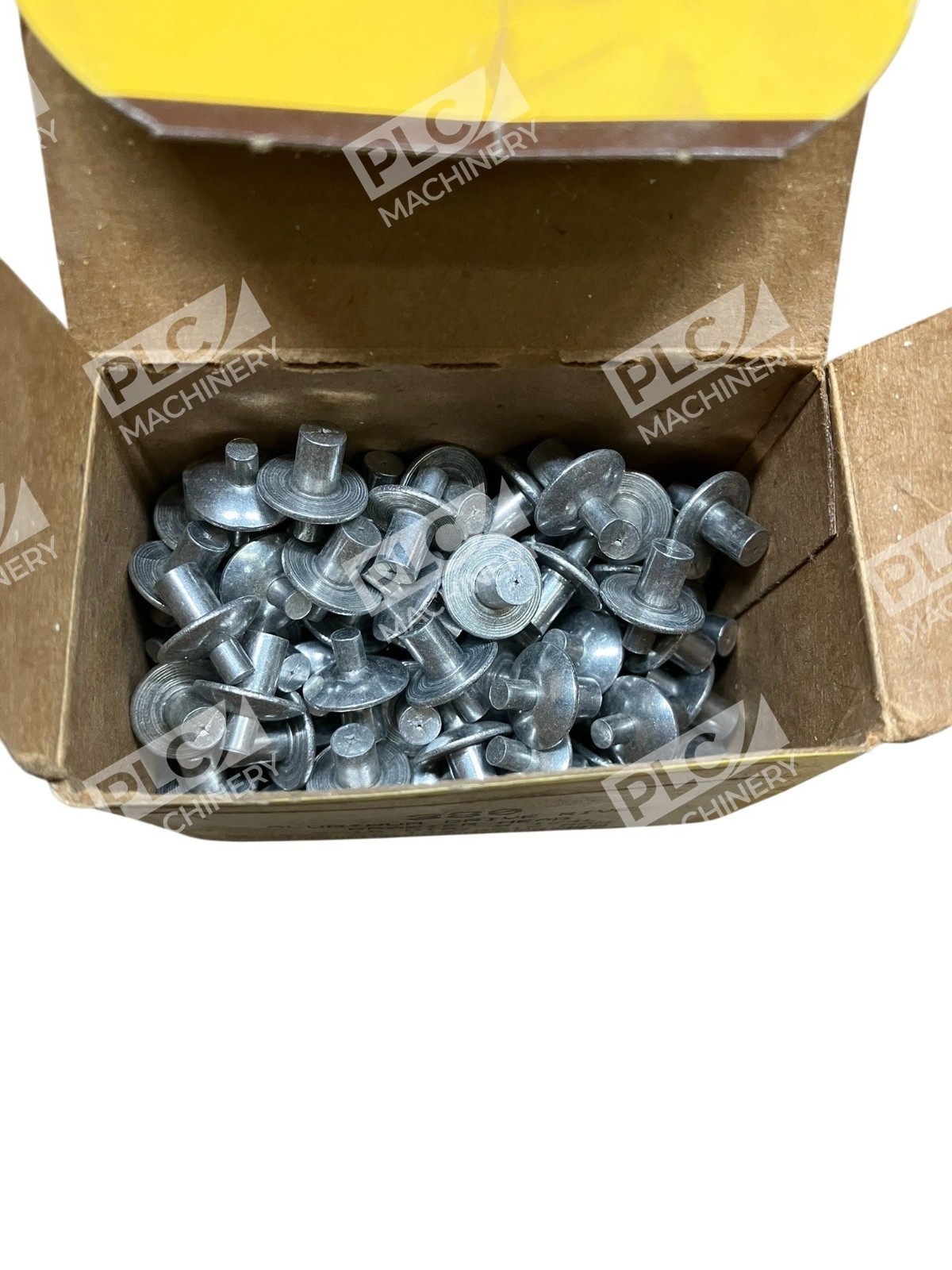

- Quantity: 100 rivets per box
- Installation Method: Hammer-drive
Typical Applications
- Metal-to-metal structural fastening
- Aircraft fuselage and panel assembly
- Automotive sheet metal attachment
- Appliance and equipment body assembly
- Lightweight composite and wood expansion fastening
- Field repairs on machinery and structures
Compatibility & Replacements
Compatible With
- Metal sheets and plates (aluminum, steel, copper)
- Composite panels and laminates
- Low-density materials (wood, plastic)
- General fastening applications requiring 3/16″ hole diameter
Replaces / Drop-In Replacement For
- Star brand 3/16″ brazier head drive rivets
- Southco equivalent 3/16″ aluminum drive rivets
- Other OEM 3/16″ full brazier head aluminum rivets with matching grip range
Works With
- Standard 3/16″ diameter rivet guns and manual tools
- Industrial rivet installation equipment
- Hand hammer and dolly assembly methods
