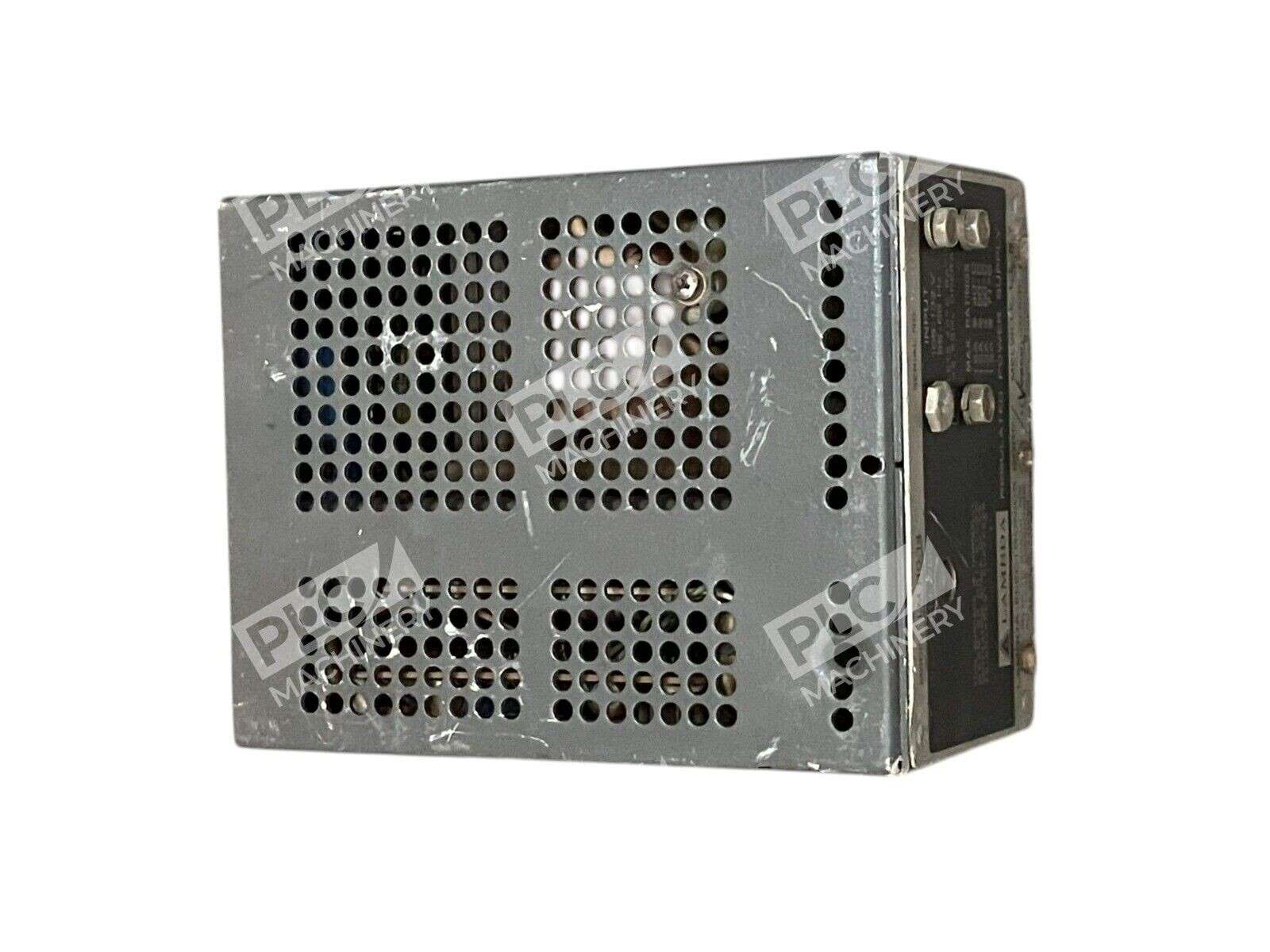

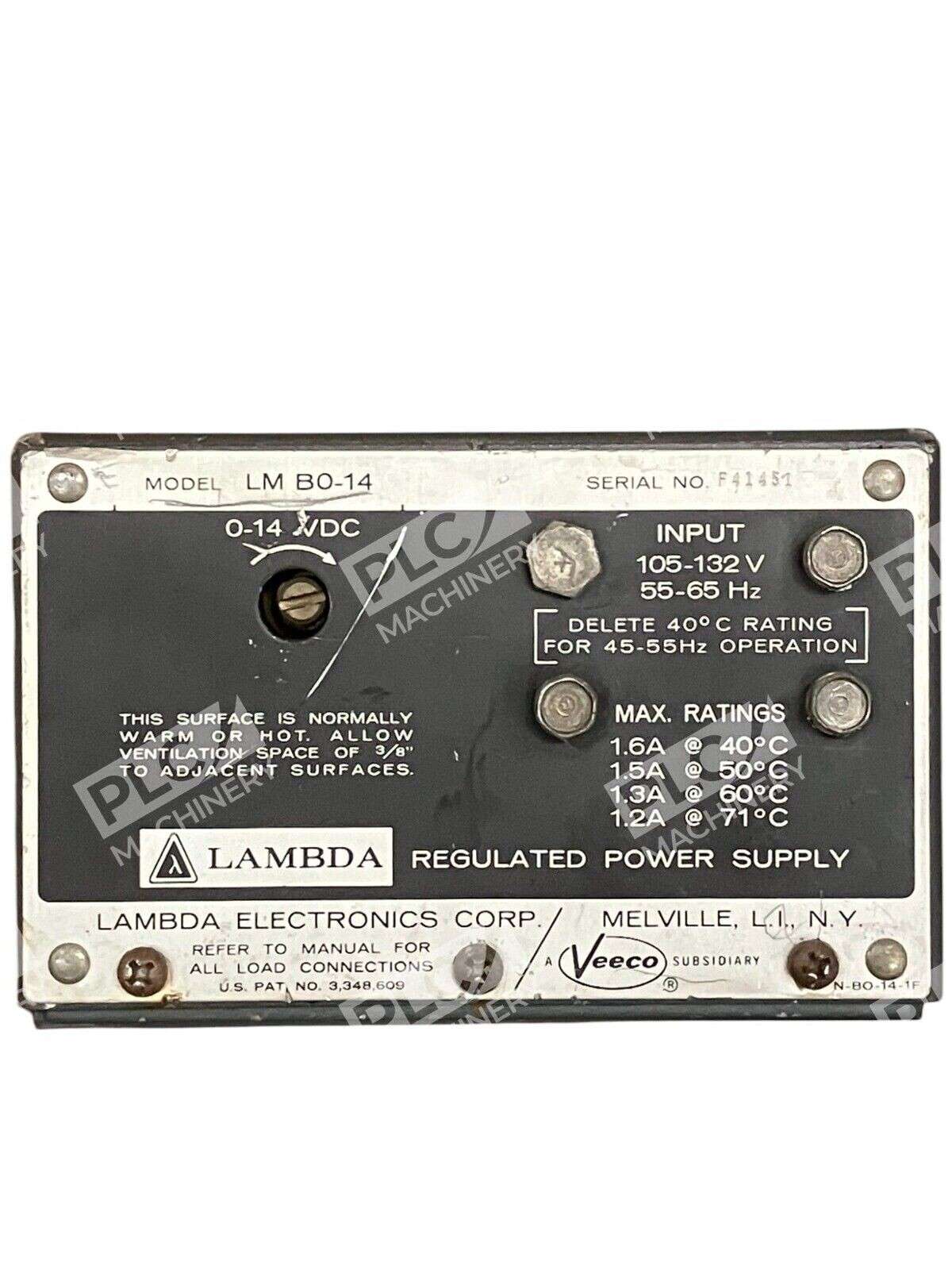

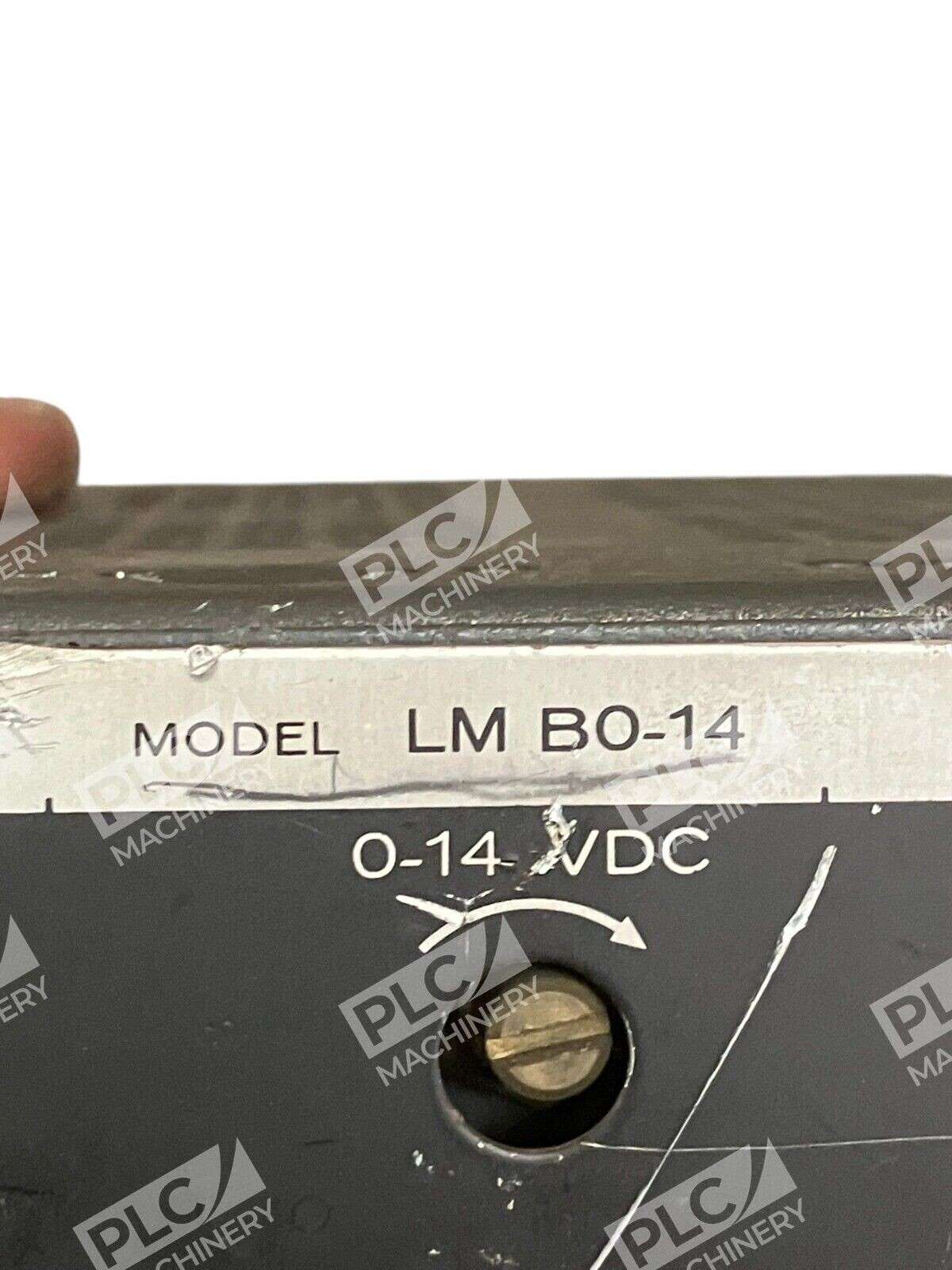

Lambda LM B0-14 is a compact, linear regulated DC power supply built for reliable performance in measurement and control applications. This unit delivers continuously adjustable output from 0 to 14 volts at up to 1.6 amperes, making it suitable for signal sources, lab equipment, and industrial control circuits requiring stable power delivery.
Overview
The Lambda LM B0-14 power supply is designed for precision power distribution in test, measurement, inspection, and signal conditioning processes. Its linear regulation design ensures clean, stable output suitable for sensitive analog circuits and instrumentation. The adjustable output voltage allows operators to dial in exact voltage requirements for their application.
Key Features
- Continuously adjustable output voltage from 0 to 14 volts DC
- Output current rating of 1.6 amperes at rated voltage
- Linear regulated design for low noise and ripple
- Compact chassis mount or bench-top configuration
- Built-in electronic current-limiting circuit for overload protection
Technical Specifications
- Output Voltage Range: 0–14 VDC, continuously adjustable
- Output Current: 1.6 A (at 40°C ambient, full range)
- Input Voltage: 105–132 VAC
- Input Frequency: 55–65 Hz
- Regulation: Linear (±5% typical)
- Protection: Electronic current limiting (~110% of rated current)
- Dimensions: 6.5″ W × 5″ H × 3.25″ D
- Mounting: Chassis mount with tapped holes
- Finish: Grey industrial enamel
- Series: Lambda LM (Veeco/Lambda legacy line)
Typical Applications
- Laboratory power source for instrumentation and test equipment
- Signal conditioning and measurement circuit power
- Industrial control system DC supply
- Prototype development and circuit testing
- Servo drive auxiliary power and control circuits
Compatibility & Replacements
Compatible With
- Standard 120 VAC industrial power systems (105–132V input)
- Analog measurement and test instrumentation
- Industrial control circuits requiring 0–14 VDC supplies
- Laboratory and educational electronics workbenches
Replaces / Drop-In Replacement For
The Lambda LM B0-14 may be interchanged with other Lambda LM-series units rated for 0–14V, 1.6A output. Verify part number, panel configuration, and connector type with original equipment documentation before ordering as a replacement. Common variant designations include LM-BO-14 and LM B0-14-Y-R.
Works With
- Legacy Lambda/Veeco LM-series modular power supply ecosystems
- Standard industrial AC mains (50/60 Hz nominal operation at 55–65 Hz)
- Any circuit requiring stable, adjustable 0–14 VDC low-current power
- Analog and digital control systems accepting standard DC supplies
