Overview

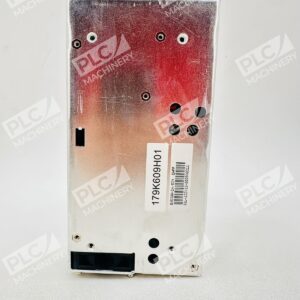

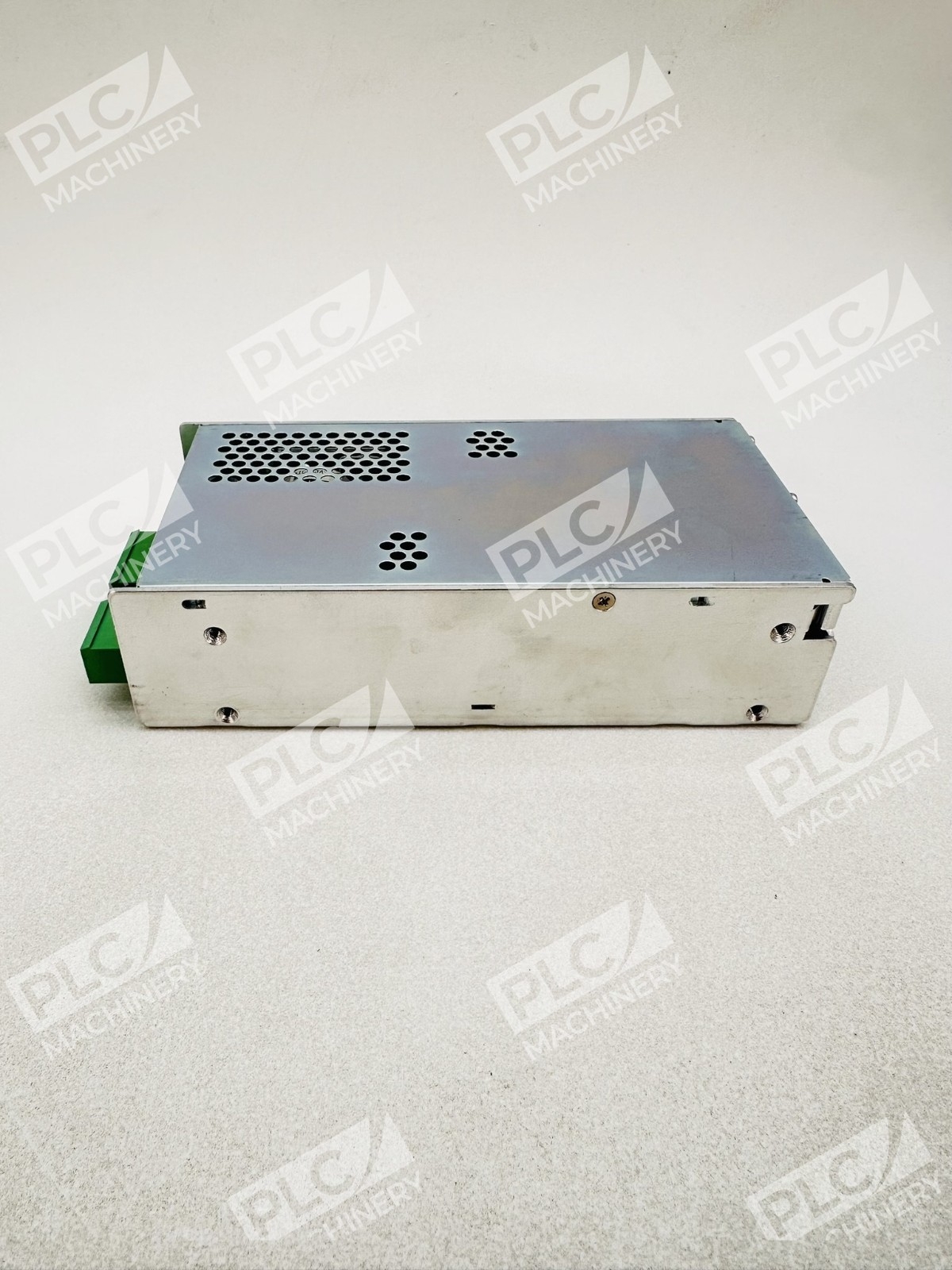

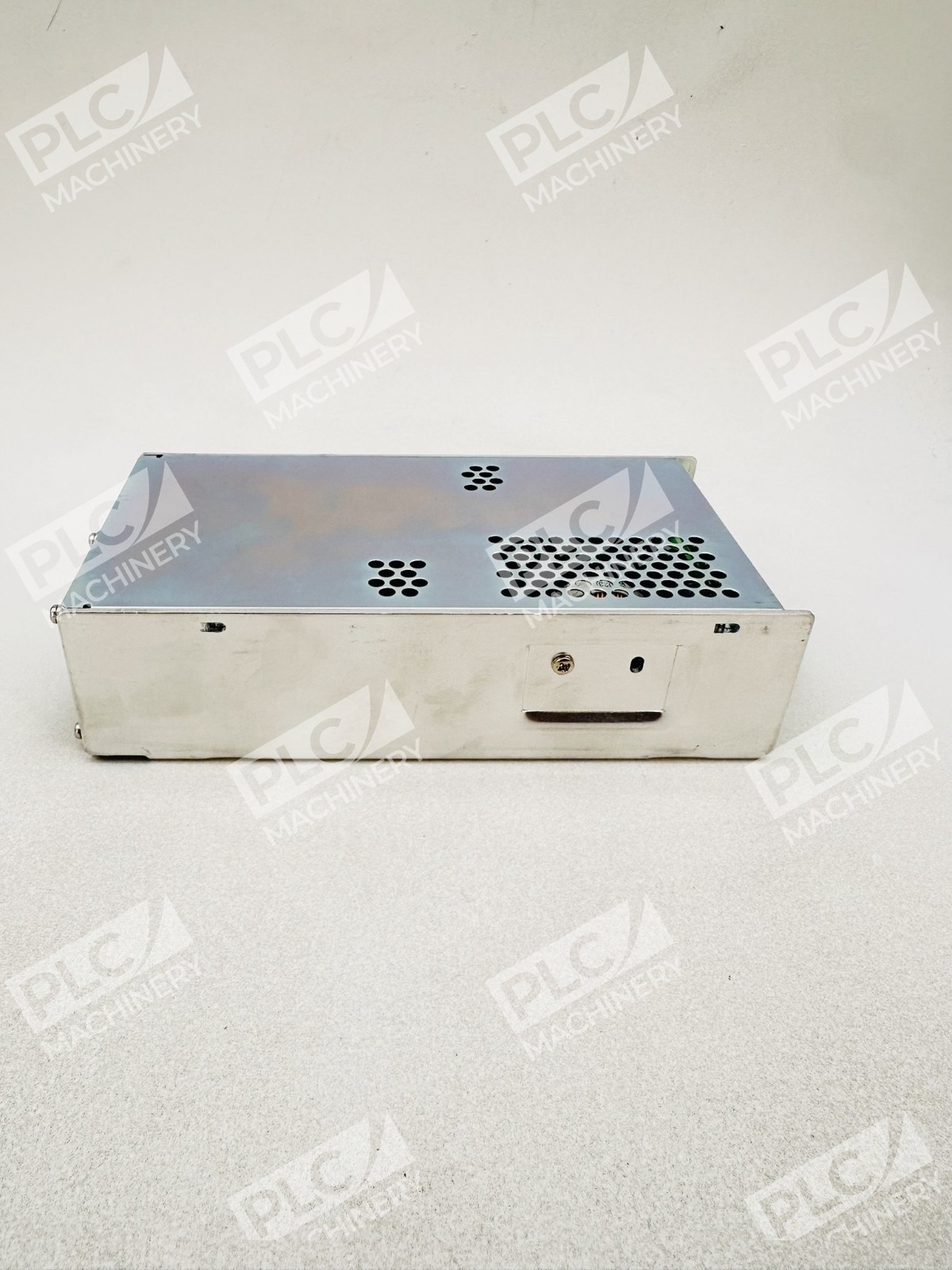

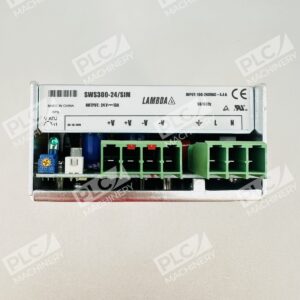

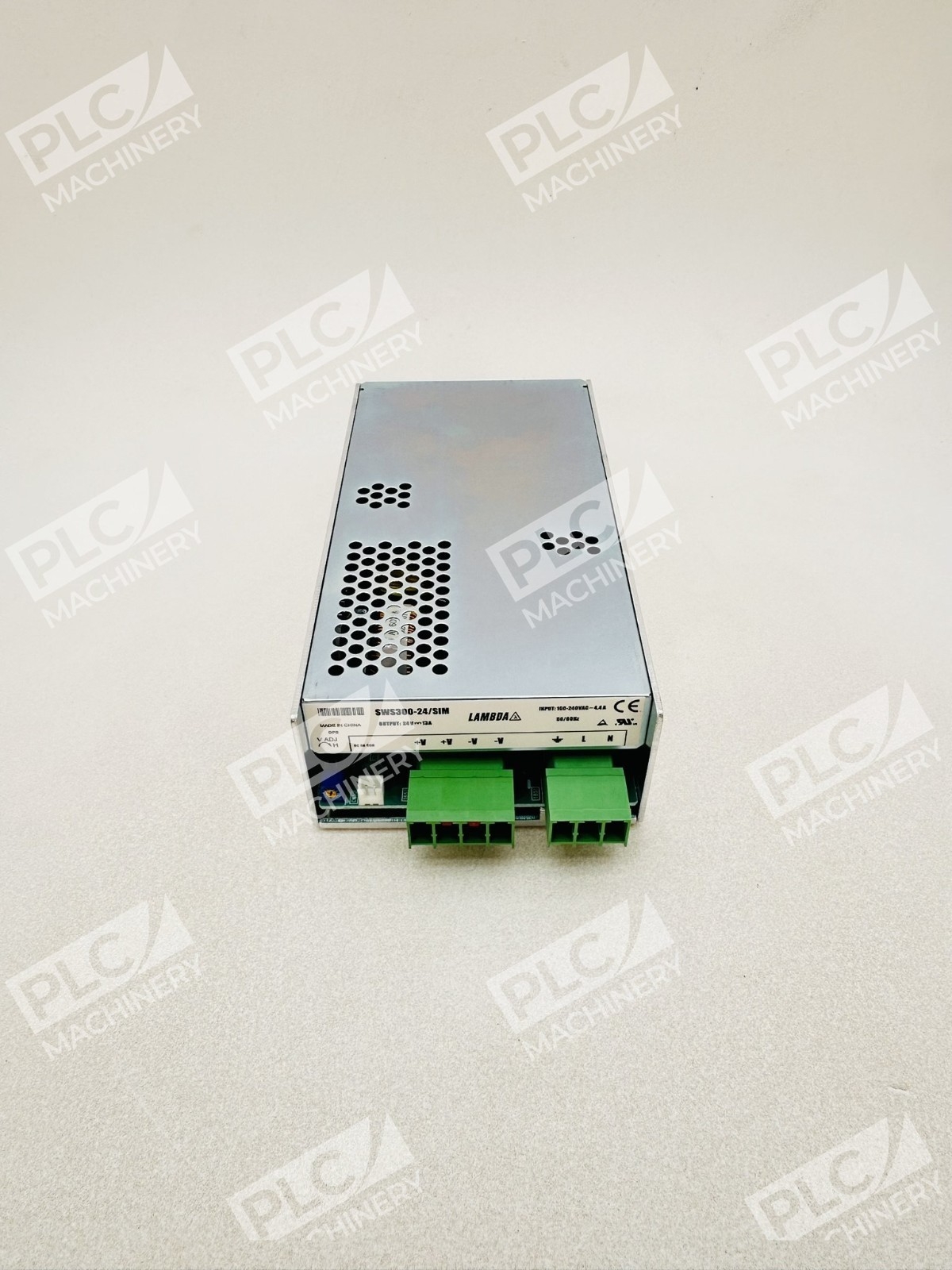

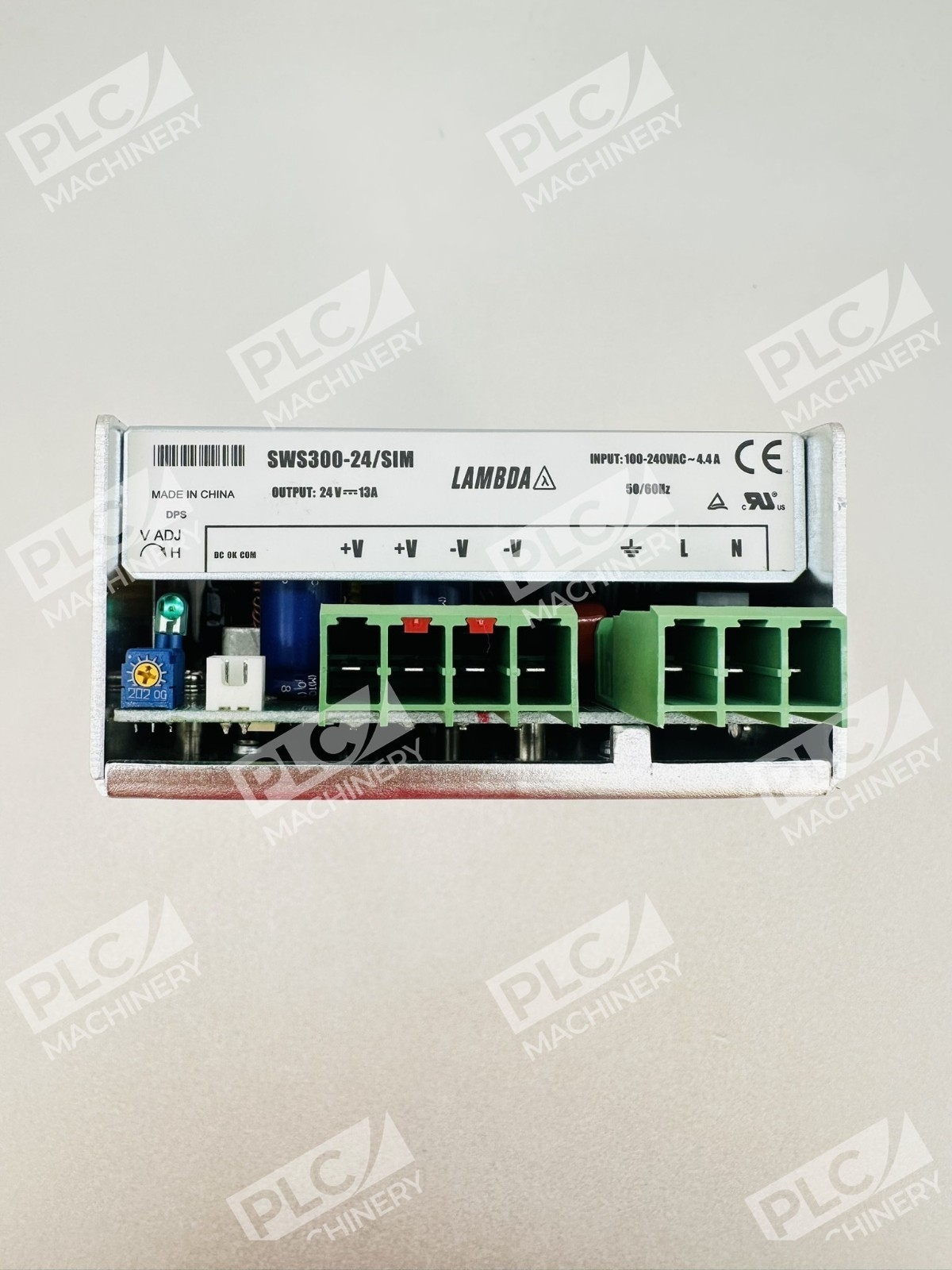

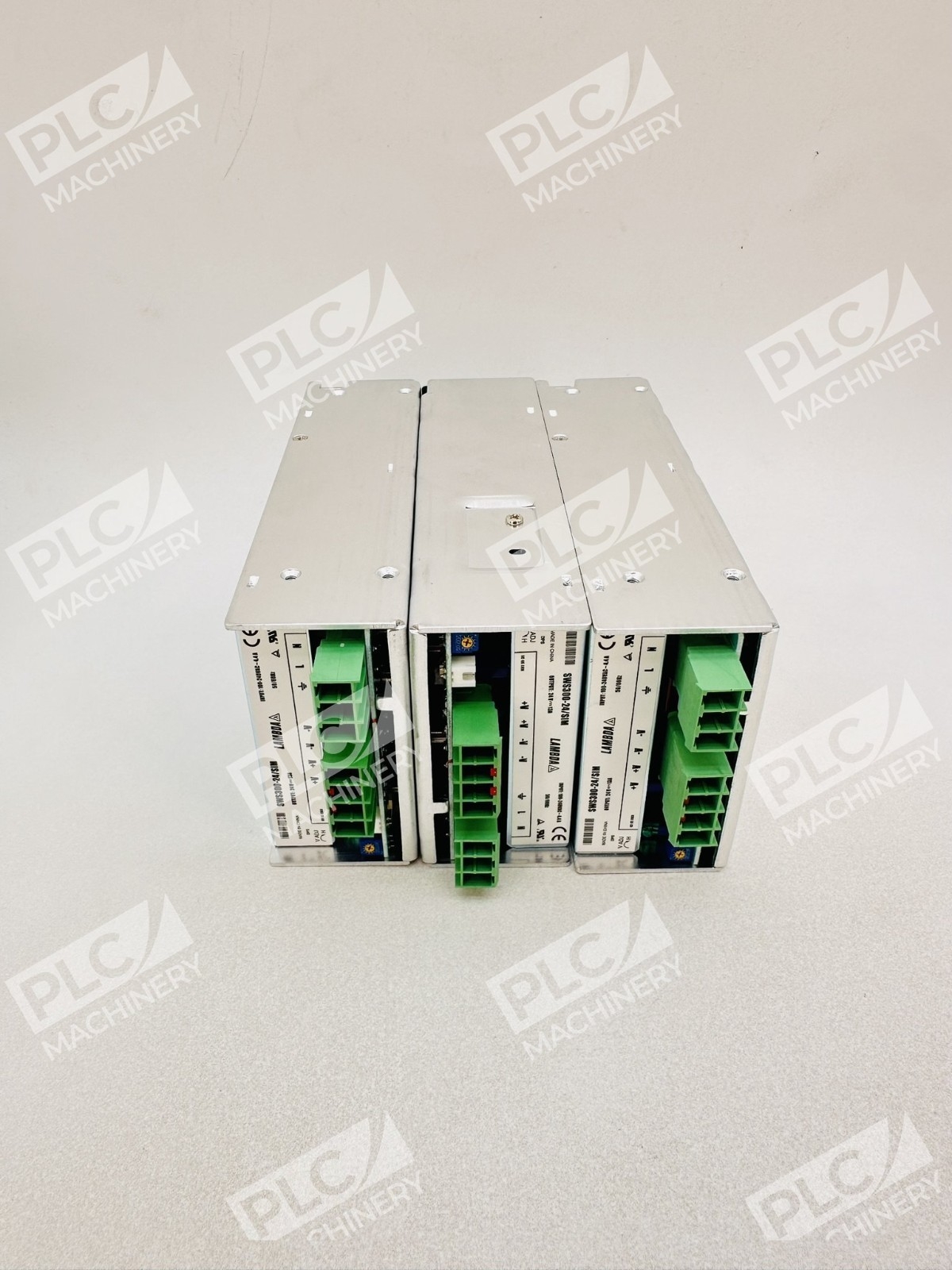

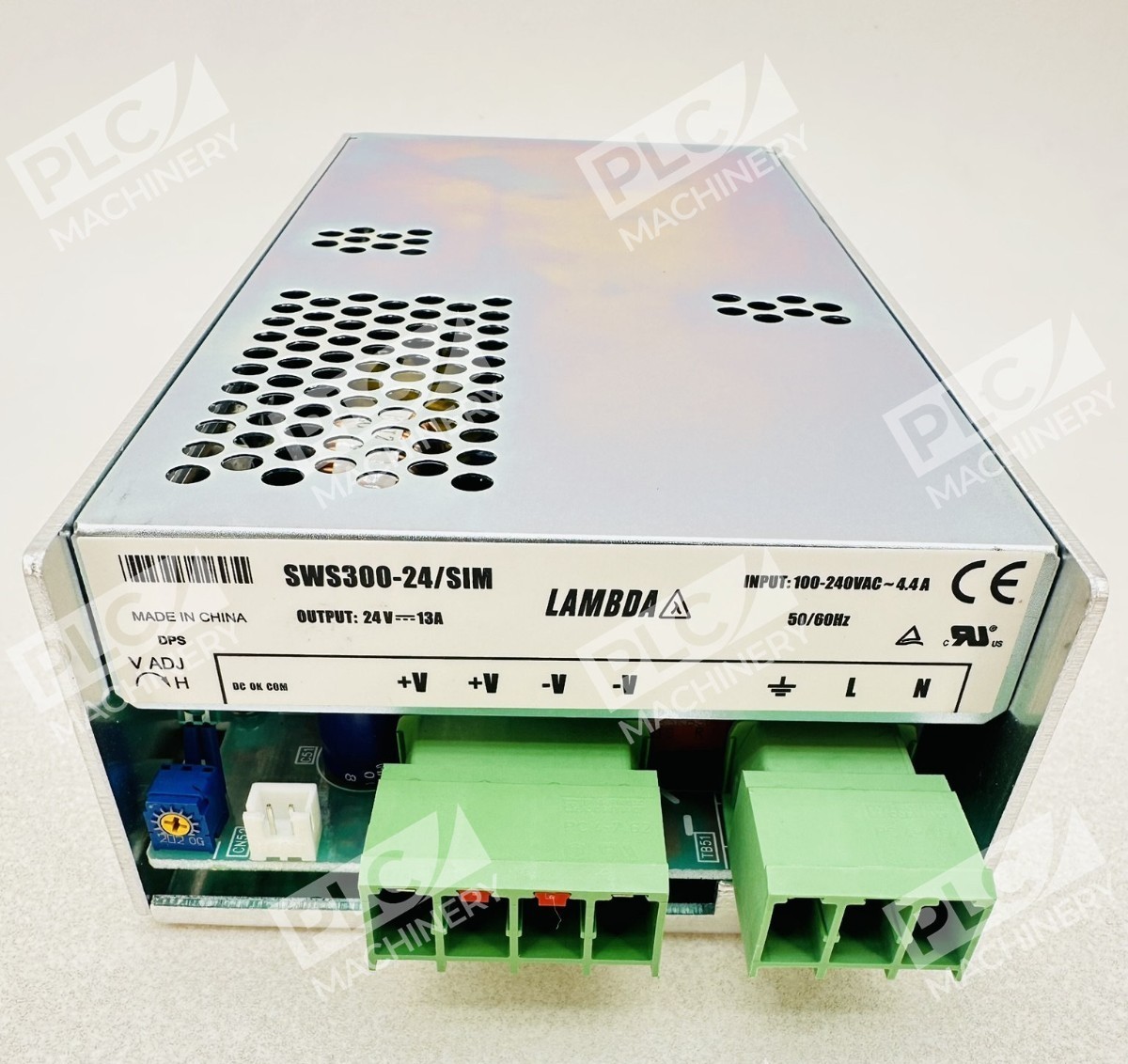

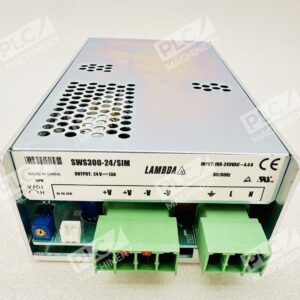

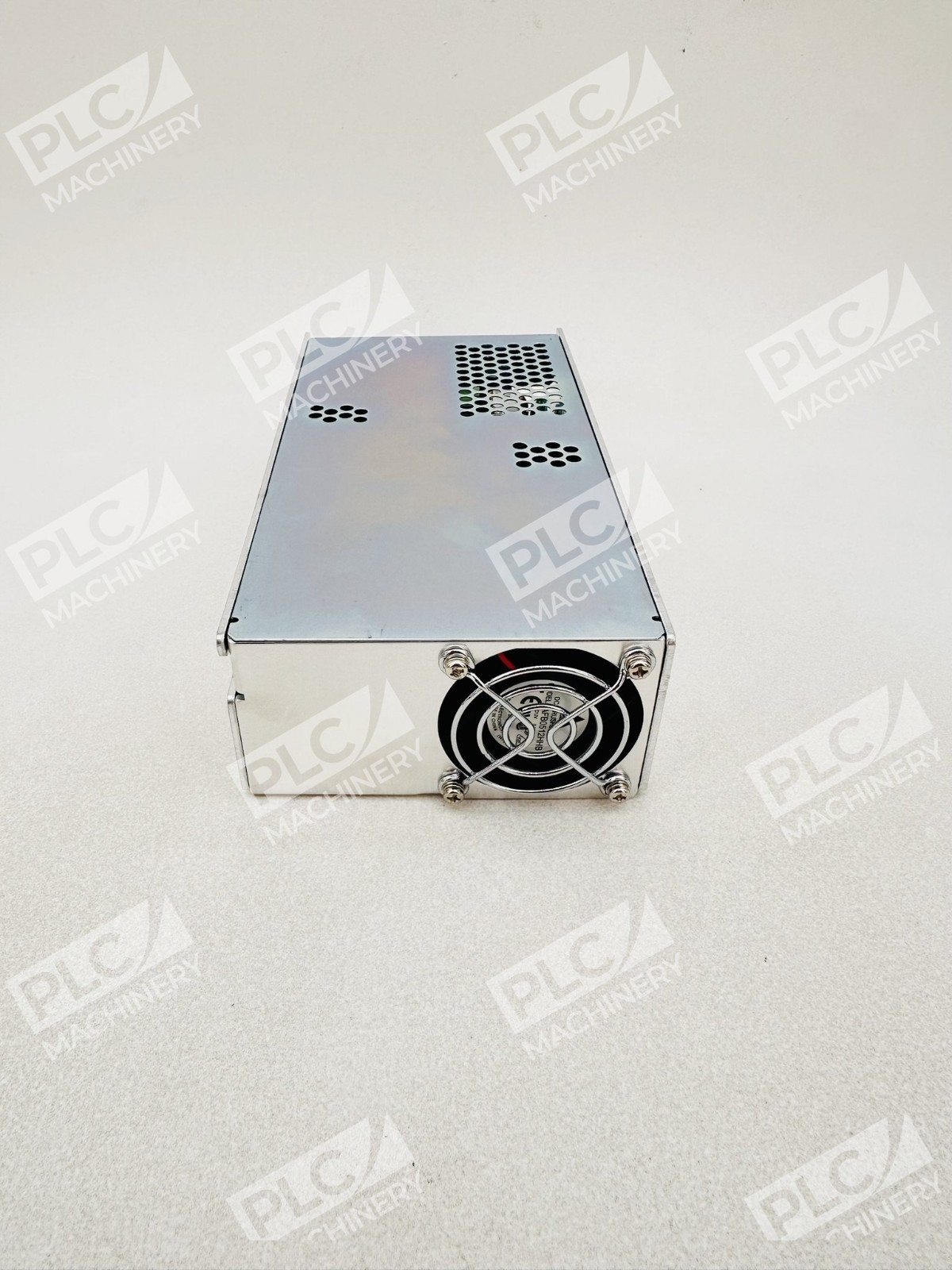

The Lambda SWS300-24 is a compact switching-mode power supply engineered for reliable 24VDC power delivery in industrial automation, control systems, and factory environments. Manufactured by TDK-Lambda (formerly Nemic-Lambda), this 300W unit accepts universal 100–240VAC input and provides 13A continuous output at 24VDC. Its active power factor correction (PFC) design minimizes inrush current and meets IEC61000-4 input transient protection standards.
Key Features
- Single 24VDC output rated at 13A nominal (300W total power)
- Wide-range input: 100–240VAC, 50/60Hz, 4.4A max input current
- Active power factor correction (PFC) for improved efficiency
- Output regulation: 48mV line, 120mV load
- Low ripple and noise: 150mV peak-to-peak
- Adjustable output voltage range: 20–28.8VDC
- IEC61000-4 input transient protection and global UL/CSA approvals
- Compact enclosed chassis: 198mm × 102mm × 52mm (L × W × H)
Technical Specifications
- Output Voltage: 24VDC nominal (adjustable 20–28.8VDC)
- Output Current: 13A maximum
- Output Power: 300W
- Input Voltage: 100–240VAC
- Input Current: 4.4A maximum at 240VAC
- Input Frequency: 50/60Hz
- Line Regulation: 48mV
- Load Regulation: 120mV
- Ripple & Noise: 150mV peak-to-peak
- Efficiency: 82%
- Dimensions: 198mm L × 102mm W × 52mm H
- Weight: 950g (2.1 lbs)
- Safety Approvals: UL, CSA; IEC61000-4 compliant
- RoHS Compliant: Yes
Typical Applications
- PLC and controller power backup in industrial plants
- Process control and machine automation systems
- Factory instrumentation and sensor power supplies
- Discrete automation equipment and control cabinets
- OEM integrations requiring compact, single-rail 24VDC
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLCs (24VDC supply)
- Siemens S7-1200, S7-1500 series controllers
- Mitsubishi FX and Q-series PLCs
- Omron CJ-series controllers
- Standard 24VDC control circuits and sensor networks
- Industrial solenoids, relays, and discrete outputs
Replaces / Drop-In Replacement For
- Nemic-Lambda SWS300-24 (original model designation)
- Direct equivalent to SWS300-24 without /SIM suffix variants
- Verify dimensions and terminal compatibility before substitution in tight enclosure spaces
Works With
- Industrial power distribution panels and DIN-rail assemblies
- Factory UPS and backup power systems
- Wide-input voltage AC/DC supply chains requiring 24VDC rail consolidation
- Systems requiring IEC61000-4 input transient immunity
