<h2>Overview</h2>

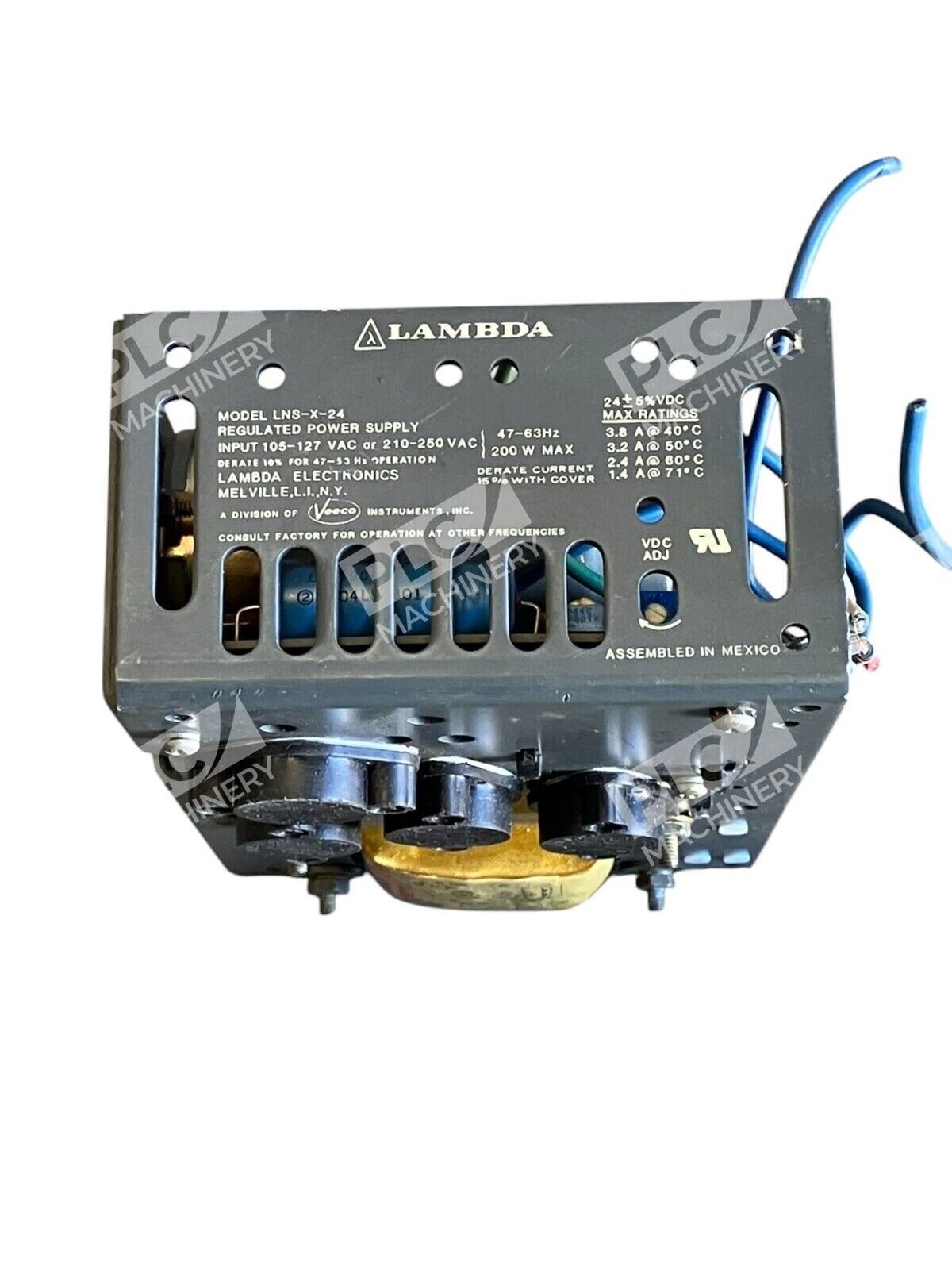

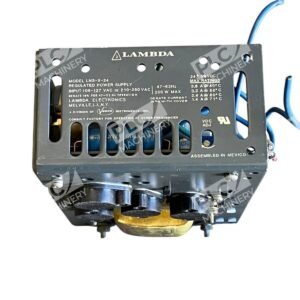

<p>The <strong>Lambda LNS-X-24</strong> is a linear regulated power supply that delivers stable, low-noise 24V DC power for industrial automation, test equipment, and sensitive analog applications. Part of Lambda’s proven LN/LD series, this unit combines convection cooling with precision voltage regulation to minimize output ripple and noise—critical for medical instruments, laboratory equipment, and industrial controls where signal integrity matters.</p>
<h2>Key Features</h2>
<ul>
<li>Linear regulation design with extremely low output ripple and noise</li>
<li>24V DC output, 3.8A maximum at 40°C with thermal derating</li>
<li>Input voltage: 105–127V AC or 210–250V AC (selectable)</li>
<li>Convection cooled—no moving parts or fan noise</li>
<li>Precision voltage control with automatic overtemperature protection</li>
<li>Suitable for continuous operation 0°C to +71°C with derating above 40°C</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Output Voltage:</strong> 24V DC</li>
<li><strong>Maximum Current @ 40°C:</strong> 3.8A</li>
<li><strong>Maximum Current @ 50°C:</strong> 3.2A</li>
<li><strong>Maximum Current @ 60°C:</strong> 2.4A</li>
<li><strong>Maximum Current @ 71°C:</strong> 1.4A</li>
<li><strong>Input Voltage:</strong> 105–127V AC or 210–250V AC</li>
<li><strong>Power Output:</strong> Approximately 90W (at rated current and voltage)</li>
<li><strong>Cooling Method:</strong> Convection cooled</li>
<li><strong>Operating Temperature Range:</strong> 0°C to +71°C (with derating above 40°C)</li>
<li><strong>Protection:</strong> Automatic overtemperature shutdown, output ripple & noise minimized</li>
<li><strong>Terminals:</strong> Heavy-duty screw terminals on printed circuit board</li>
<li><strong>Ground Options:</strong> Negative or positive output terminal grounded</li>
</ul>
<h2>Typical Applications</h2>
<p>The Lambda LNS-X-24 is well-suited for:</p>
<ul>
<li>Precision test and measurement equipment</li>
<li>Medical device power supply</li>
<li>Industrial automation and PLC auxiliary power</li>
<li>Laboratory instrumentation requiring low-noise DC</li>
<li>Sensitive analog circuit excitation and biasing</li>
<li>Security and telecommunications systems</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Industrial control systems requiring 24V auxiliary power</li>
<li>Test benches and measurement equipment</li>
<li>Medical instrumentation and analytical equipment</li>
<li>Any application requiring low-noise linear DC power at 24V</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The Lambda LNS-X-24 may be compatible with other Lambda LN/LD 24V models of similar current rating. Verify compatibility with your system integrator before ordering, as connector types and mounting may vary across the series.</p>
<h3>Works With</h3>
<ul>
<li>Standard industrial 110–120V AC or 220–240V AC mains supply</li>
<li>Any 24V DC circuit or controller accepting standard linear power supply outputs</li>
<li>Series and parallel operation (with appropriate blocking diodes, per manual)</li>
<li>Both positive and negative ground configurations</li>
</ul>
