Overview

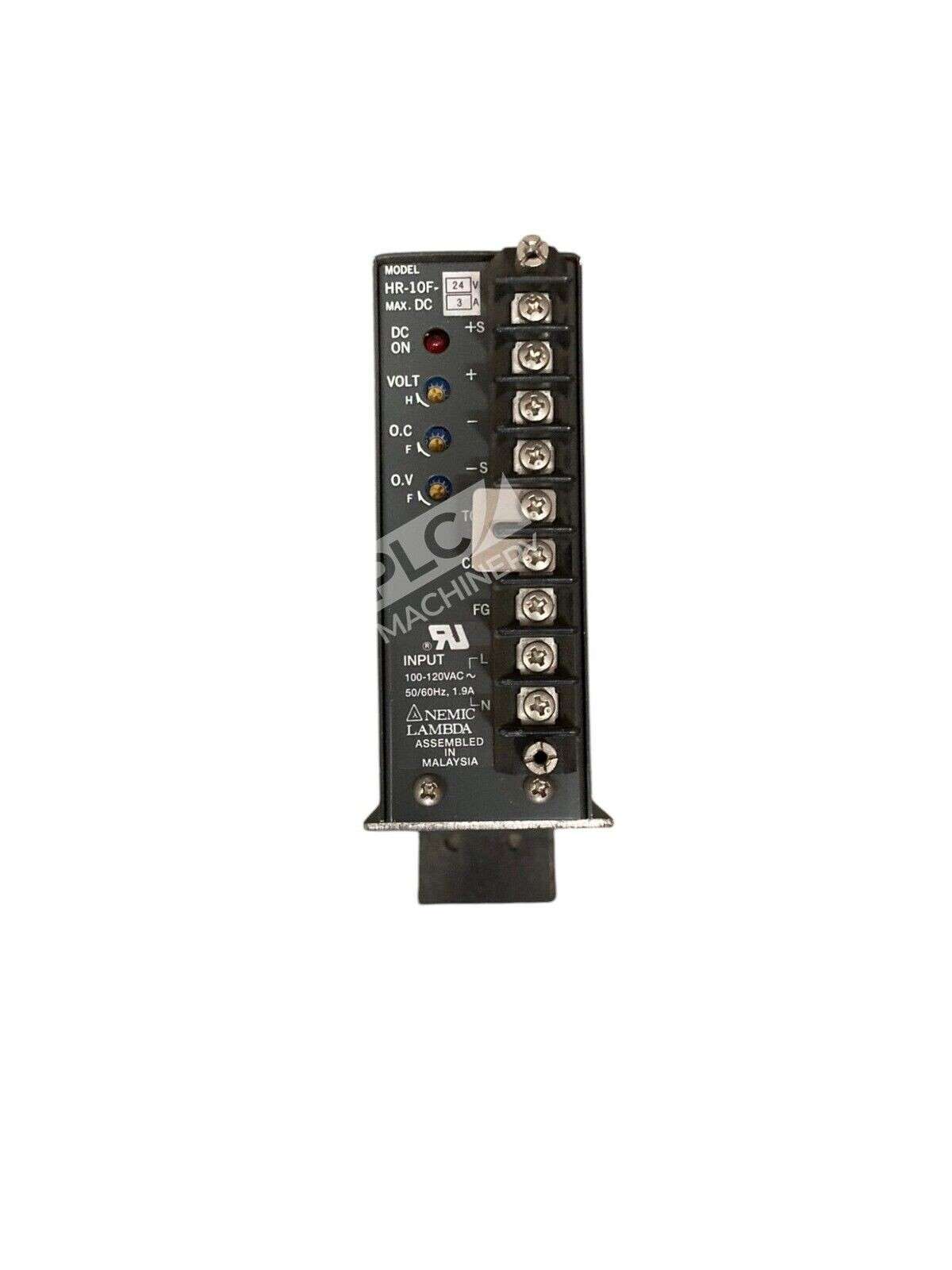

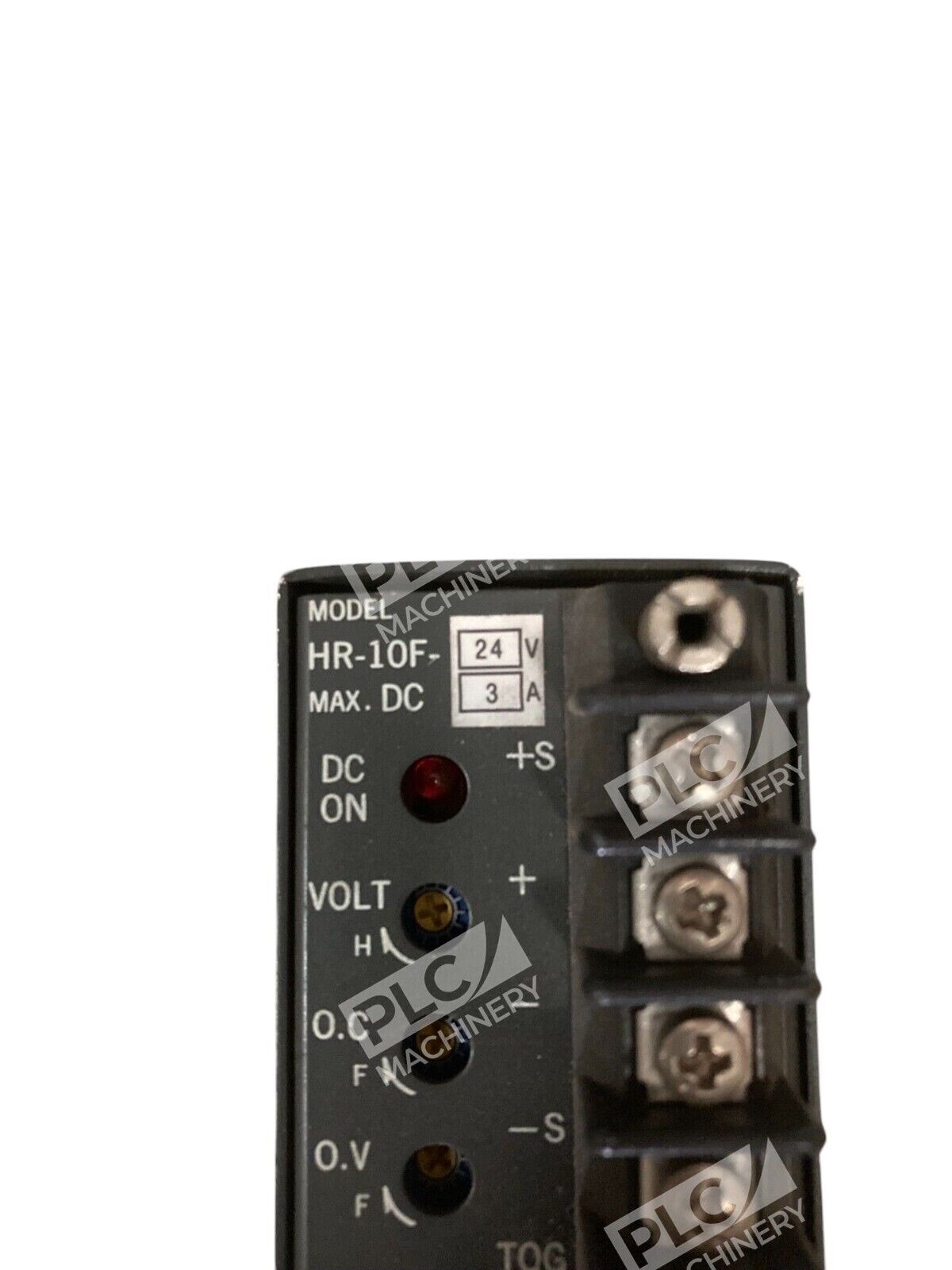

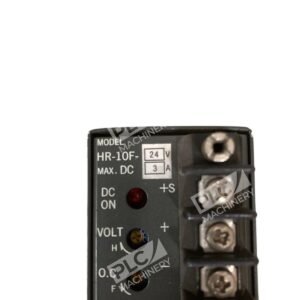

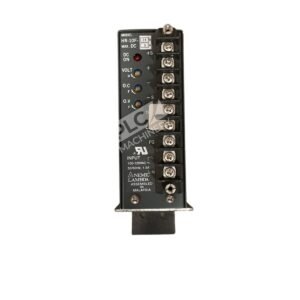

The Lambda HR-10F-24 is a regulated switching power supply manufactured by Nemic Lambda, a trusted supplier of industrial-grade power conversion equipment. This compact unit outputs 24VDC at 3A and is designed for switching-mode applications in controls, PLCs, and servo drive amplifiers. The HR-10F-24 accepts wide-range AC or DC input and provides stable, filtered 24V output suitable for field-mounted and panel-mounted installations.
Key Features
- Regulated 24VDC output at 3A continuous
- Wide input voltage range: 90–132VAC or 115–165VDC
- Compact form factor for panel or DIN-rail mounting
- Switching-mode design for high efficiency
- Suitable for PLC, servo amplifier, and industrial control applications
Technical Specifications
Output Voltage: 24VDC
Output Current: 3A continuous
Input Voltage (AC): 90–132VAC
Input Voltage (DC): 115–165VDC
Switching Frequency: Typical industrial switching-mode range
Operating Temperature: Standard industrial (-10°C to +70°C typical for this series)
Regulation: ±5% typical at nominal load
Typical Applications
- PLC and programmable controller power
- Servo drive amplifier auxiliary power
- Industrial automation and control panel power
- Field I/O module and sensor power supplies
- Legacy and retrofit system upgrades
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLC power inputs
- Siemens S7-1200 and S7-1500 auxiliary power rails
- Mitsubishi FX and Q-series PLC control power
- Omron CJ-series and CP-series PLC auxiliary supplies
- Rockwell Automation servo amplifiers (auxiliary 24V rail)
- Standard industrial 24VDC control circuits and solenoid loads
Replaces / Drop-In Replacement For
- Lambda HR-10-24 (earlier non-F variant)
- Nemic Lambda HR-10-24V standard output unit
Works With
- 24VDC relay logic and hardwired controls
- DIN-rail mounted I/O and terminal blocks
- EtherNet/IP and PROFIBUS auxiliary power networks
- Studio 5000 and RSLogix PLC systems requiring 24V aux power
- All standard industrial 24VDC control loads and sensors
