Overview

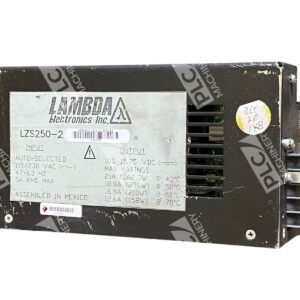

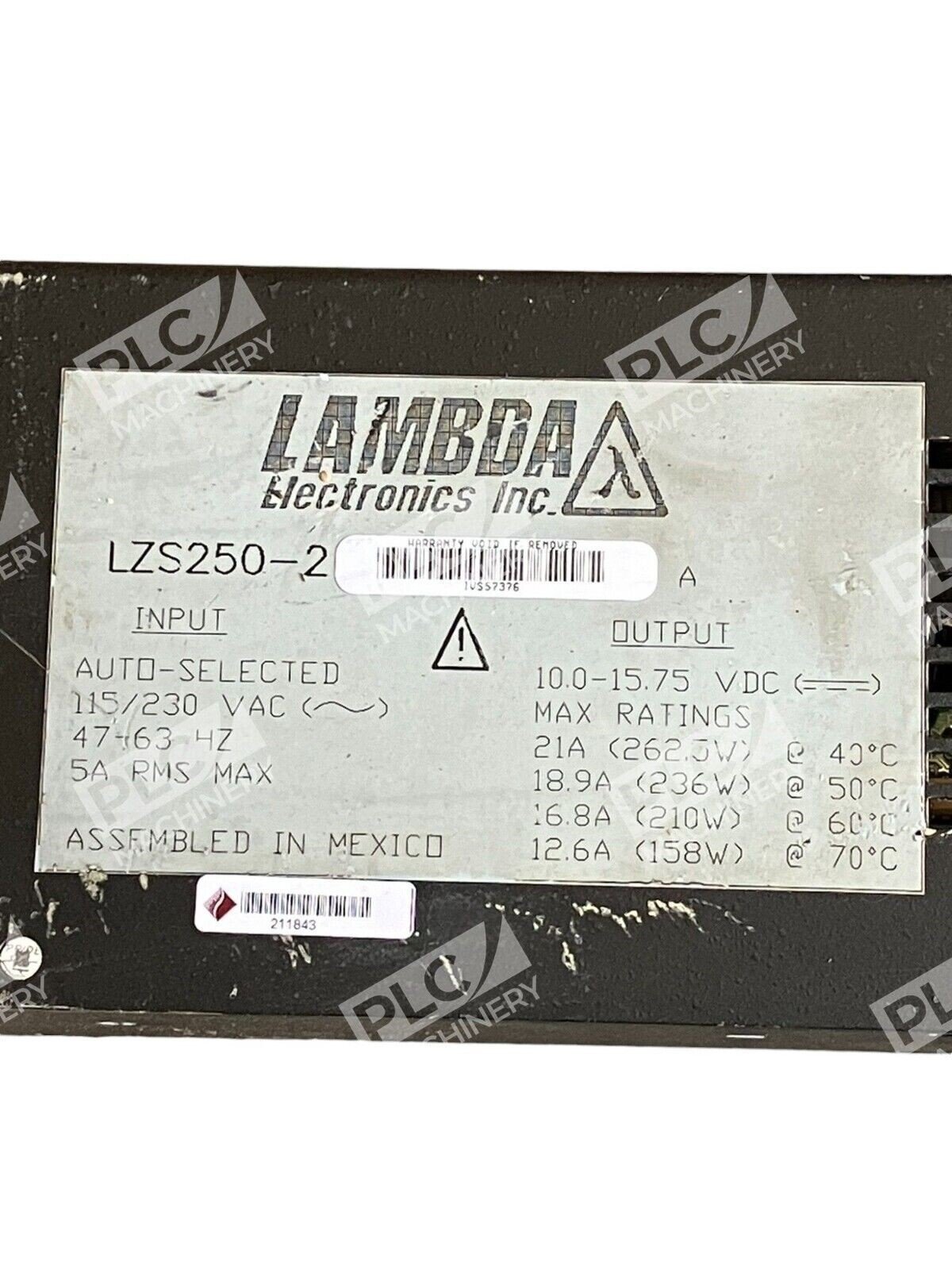

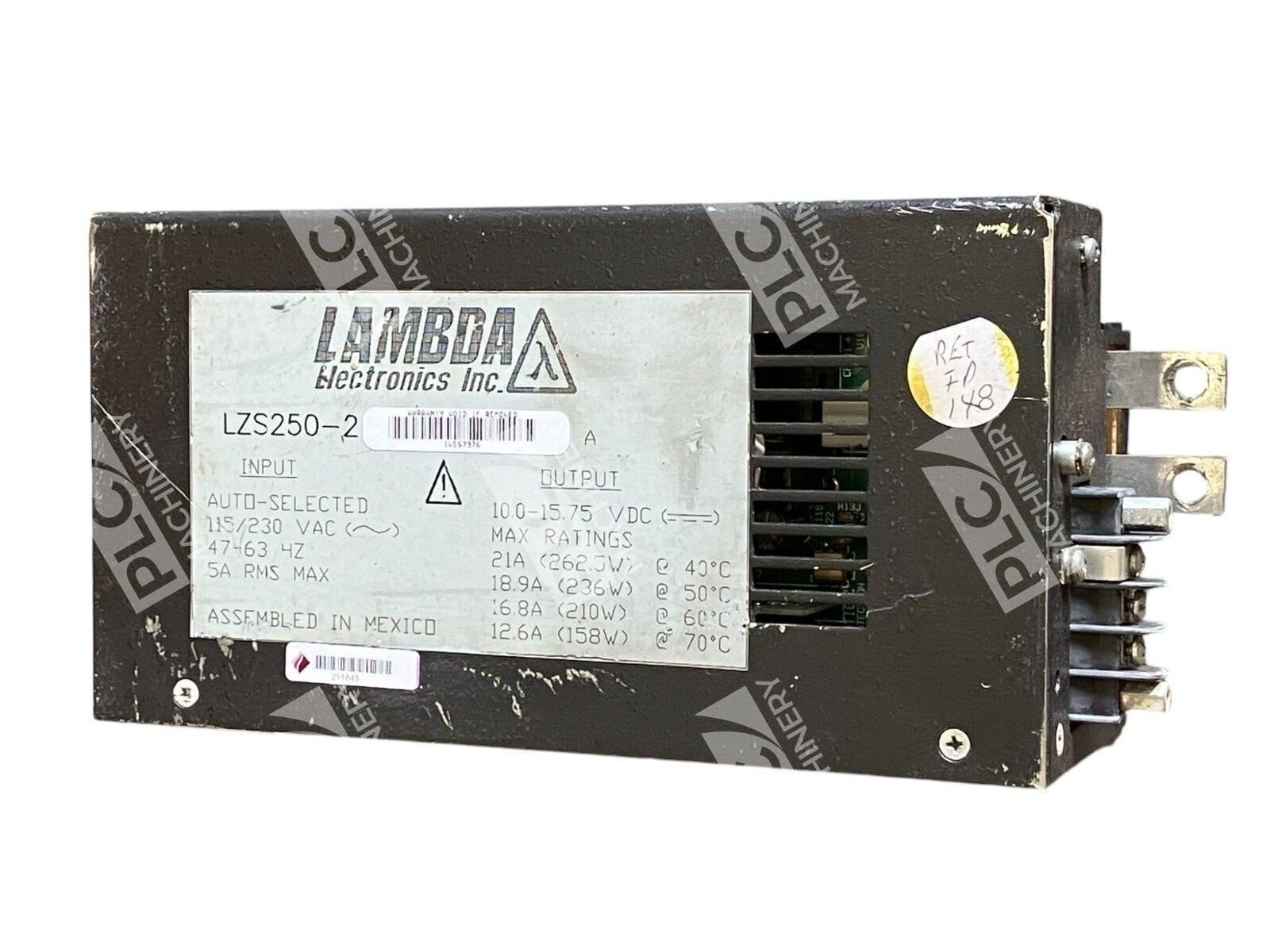

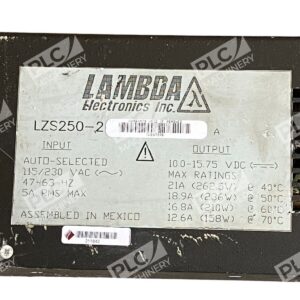

The LZS-250-2 is a regulated, single-output industrial power supply manufactured by TDK Lambda. This enclosed AC-DC converter accepts dual input voltage ranges (85–132 VAC and 170–265 VAC) and delivers stable 12V DC output, making it suitable for instrumentation, test equipment, and industrial control applications that require reliable, regulated power. Although discontinued by the manufacturer, fully functional used units remain in service across maintenance and retrofit projects.
Key Features
- Regulated 12V DC output at 5A continuous current
- Dual input voltage compatibility: 115/230VAC selectable or auto-ranging
- Single-output design for straightforward integration
- Industrial-grade enclosed construction
- Operates at 47–63 Hz input frequency
- Compact form factor for bench and rack mounting
Technical Specifications
- Output Voltage: 12V DC
- Output Current: 5A
- Output Power: 60W nominal
- Input Voltage (Selectable): 115VAC or 230VAC
- Input Frequency: 47–63 Hz
- Weight: 7.37 lbs (3.34 kg)
- Type: Enclosed AC-DC Converter
- Regulation: Regulated output
- Manufacturer Status: Discontinued
- Series: LZS-250 / SE-250
Typical Applications
- Industrial control system power
- Test and measurement equipment
- Signal conditioning and instrumentation
- PLC and automation module backup/auxiliary supply
- Laboratory and diagnostic equipment
- Retrofit and maintenance applications
Compatibility & Replacements
Compatible With
- Industrial automation control systems requiring 12V regulated supply
- Instrumentation racks and test benches
- Equipment designed for dual 115/230VAC input supplies
- Standard DIN-rail or shelf mounting configurations
Replaces / Drop-In Replacement For
- Other TDK Lambda LZS-250 series models where 12V, 5A output is specified
- Verify exact pin-out and mounting before substitution
Works With
- Standard industrial 115VAC or 230VAC single-phase AC mains
- Equipment with IEC connector or terminal-block power input
- Any load rated for 12V DC regulated power up to 5A continuous
