Overview

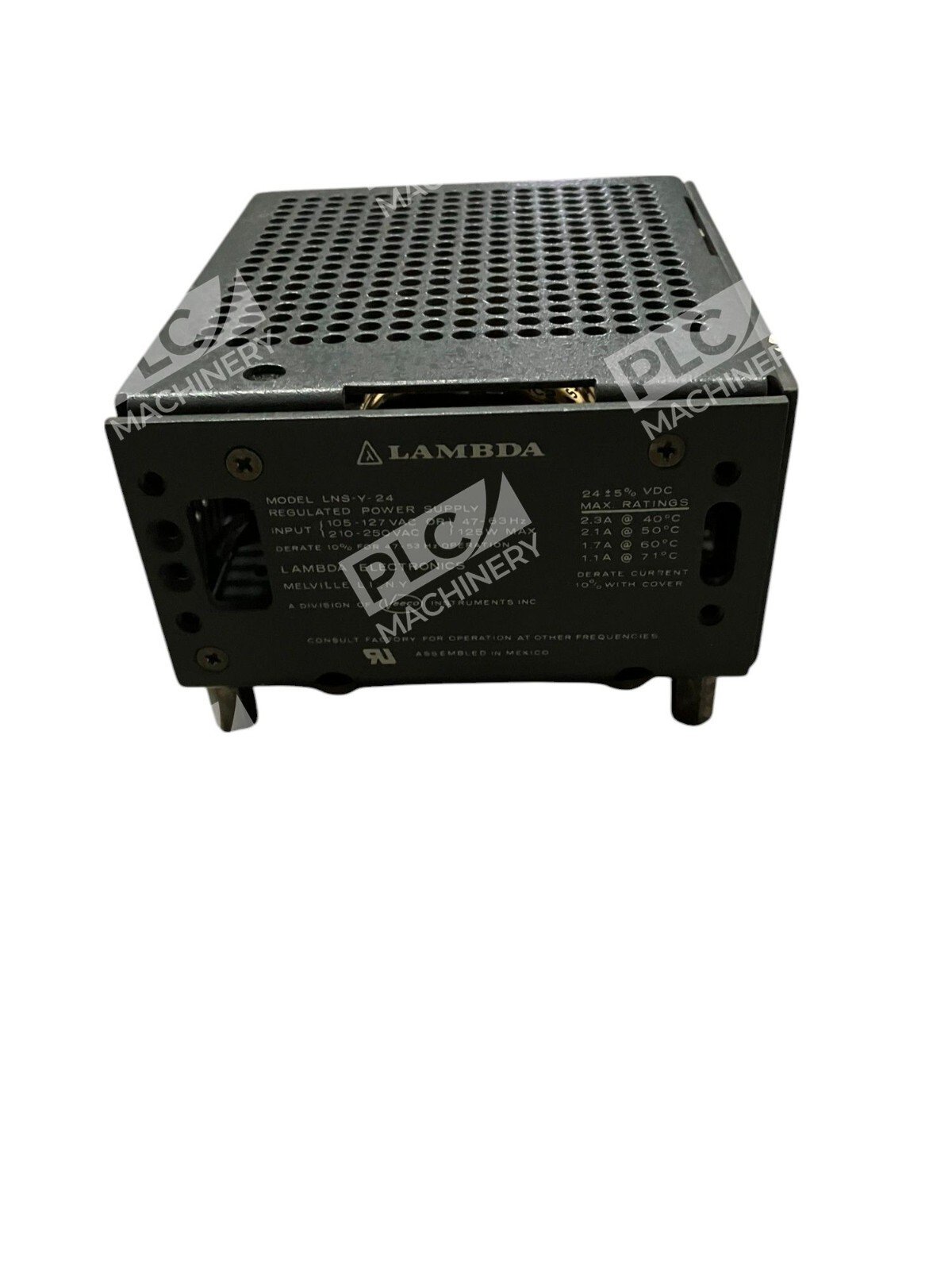

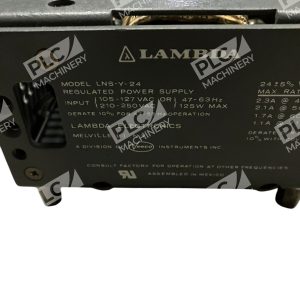

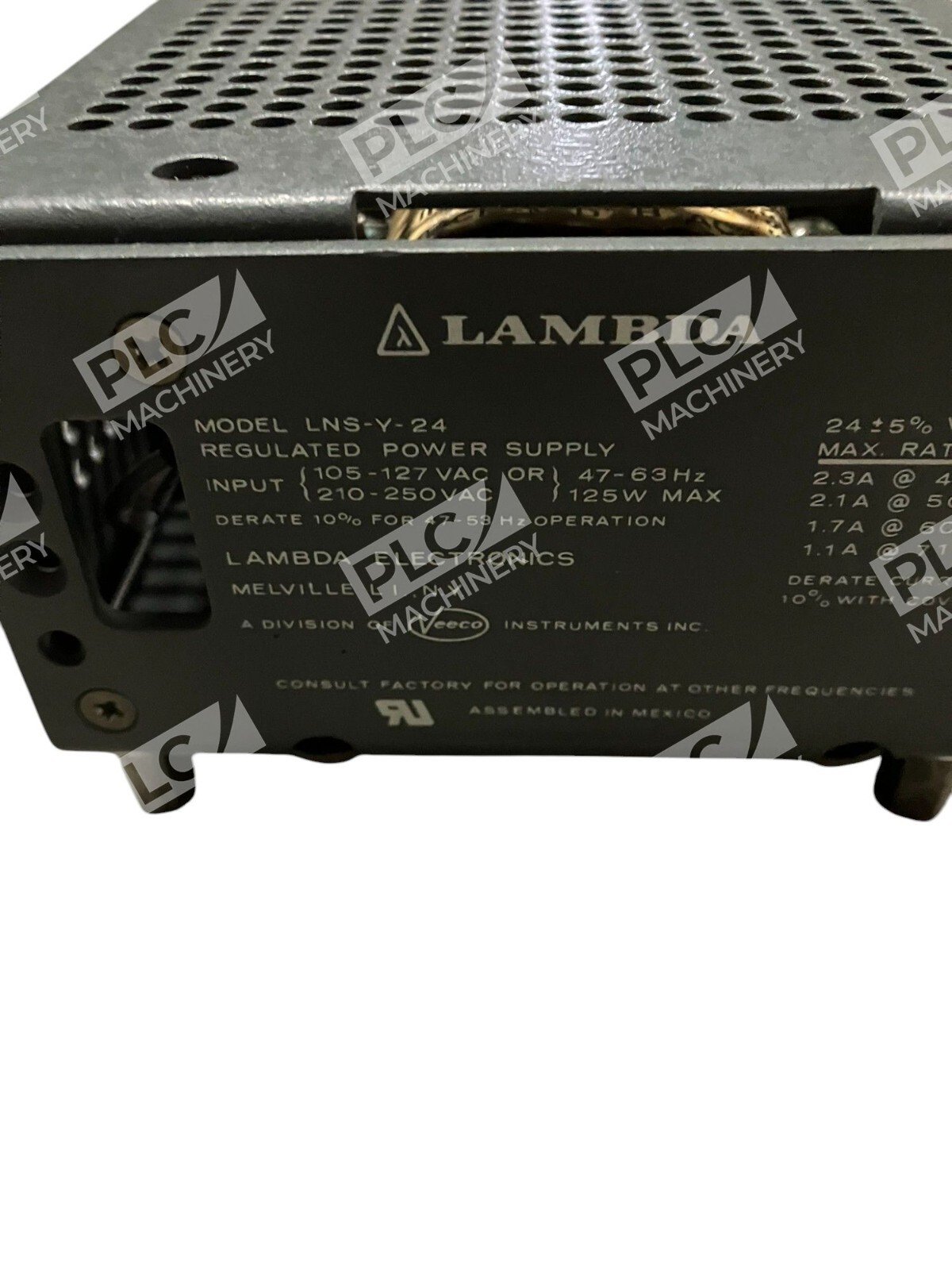

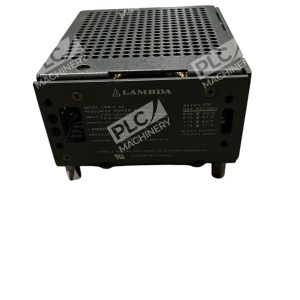

The Lambda LNS-Y-24 is a 125W regulated linear power supply designed for servo drives, amplifiers, and industrial control systems requiring stable 24VDC output. Manufactured by TDK-Lambda, this unit features dual input voltage selection, making it suitable for global installations. The LNS-Y-24 is discontinued by the manufacturer but remains a reliable choice for maintenance, replacement, and retrofit applications where low-noise, regulated DC power is critical.
Key Features
- 125W regulated output—sufficient for mid-range servo amplifiers and multi-axis control systems
- Dual AC input selection: 105–127 VAC or 210–250 VAC, 47–63 Hz
- Fixed 24VDC output with tight regulation and low ripple (≤50 mV)
- Chassis-mount screw terminal construction—robust, field-serviceable design
- Temperature-compensated output stability from 0°C to +71°C continuous operation
- Thermostat-protected overheat shutdown with automatic reset
Technical Specifications
- Input Voltage: 105–127 VAC or 210–250 VAC, selectable
- Input Frequency: 47–63 Hz
- Output Voltage: 24 VDC (fixed, regulated)
- Output Power: 125W maximum
- Output Ripple & Noise: ≤50 mV peak-to-peak
- Operating Temperature: 0°C to +71°C continuous (with derating above +40°C)
- Storage Temperature: −35°C to +85°C
- Mounting Style: Chassis mount
- Weight: 4.93 lbs (2.24 kg)
- Output Connector: Heavy-duty screw terminals
- Protection: Thermostat-controlled overheat cutout, automatic reset
- Isolation: ≥10 MΩ DC-to-ground isolation at 750VDC
- Part Number (Alternate): LNSY24
Typical Applications
- Servo drive and amplifier power conditioning
- Industrial automation control systems and PLC accessories
- Laboratory test and measurement equipment
- Process control and monitoring instrumentation
- Military ground support and ruggedized field installations
- Retrofit and replacement applications for legacy machinery
Compatibility & Replacements
Compatible With
- Allen-Bradley servo drives and motion controllers requiring 24VDC auxiliary power
- Siemens and Beckhoff industrial automation systems
- Mitsubishi and Omron servo amplifiers with 24VDC input
- General-purpose industrial control racks and enclosures
- Systems with dual AC input voltage switchover capability
Replaces / Drop-In Replacement For
- Lambda LNS-Y-24 units in repair or preventive maintenance cycles
- Similar 125W, 24VDC linear supplies (verify pinout and connector before substitution)
Works With
- Standard IEC/Din-rail mounted servo amplifier systems
- 24VDC logic circuits and sensor field power distribution
- Industrial Power Distribution Units (PDUs)
- AC mains protection and conditioning devices (UPS, line reactors)
