Overview

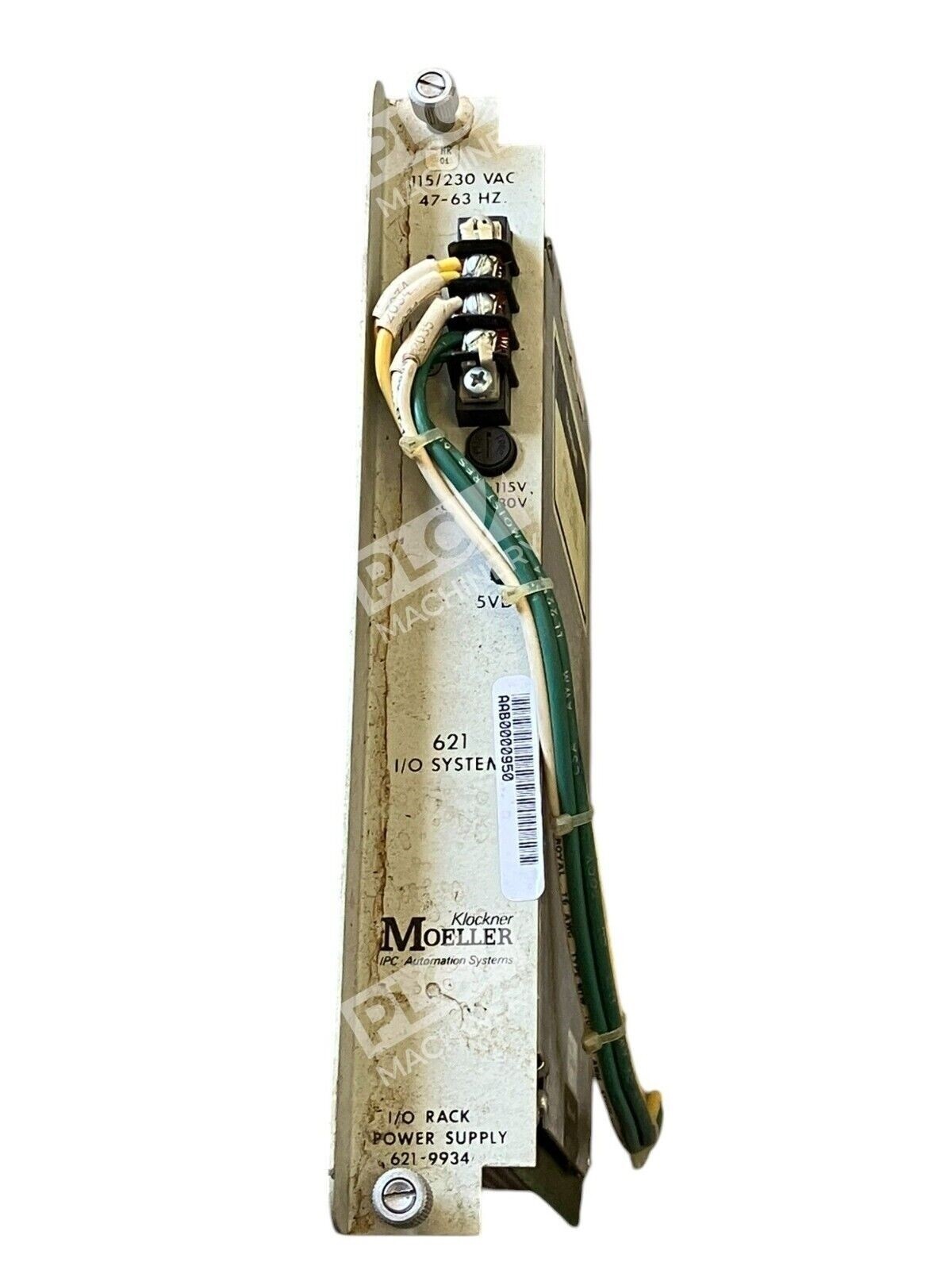

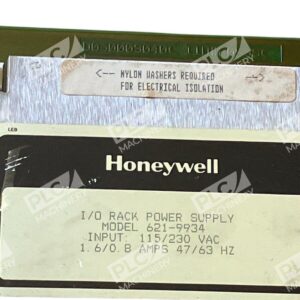

The Honeywell 621-9934 is an industrial-grade I/O rack power supply module engineered for Honeywell IPC 620 and IPC 621 distributed control platforms. This module converts standard 115/230VAC input into regulated +5VDC and ±15VDC outputs, providing stable power distribution to both digital and analog I/O modules in harsh industrial environments. Its fanless design and compact form factor simplify integration into existing rack configurations while maintaining consistent voltage regulation across all output channels.
Key Features
- Dual regulated output voltages: +5VDC for digital modules and ±15VDC for analog signal conditioning
- Universal input voltage: 115/230VAC selectable, 47–63 Hz operation
- High current capacity: supports up to 8A at +5VDC for multiple I/O modules
- Built-in overcurrent and thermal protection circuits
- Diagnostic status LEDs for operational monitoring
- Fanless design ensures silent, maintenance-free operation
- Channel-to-channel isolation protects I/O circuits from transient faults
- Noise suppression and EMI filtering for stable 4–20 mA loop performance
Technical Specifications
The Honeywell 621-9934 delivers reliable power distribution in environments requiring high availability and signal integrity:

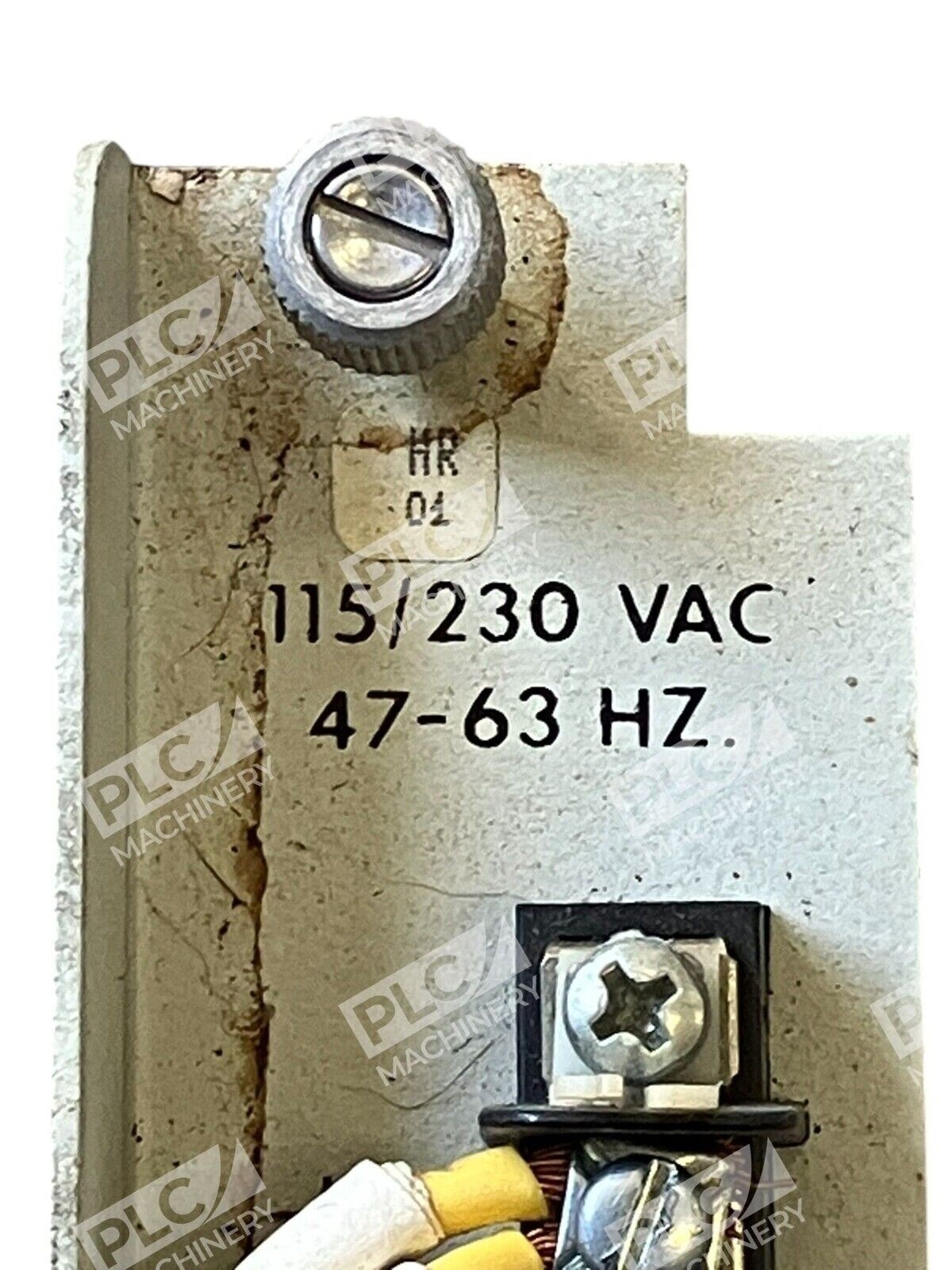

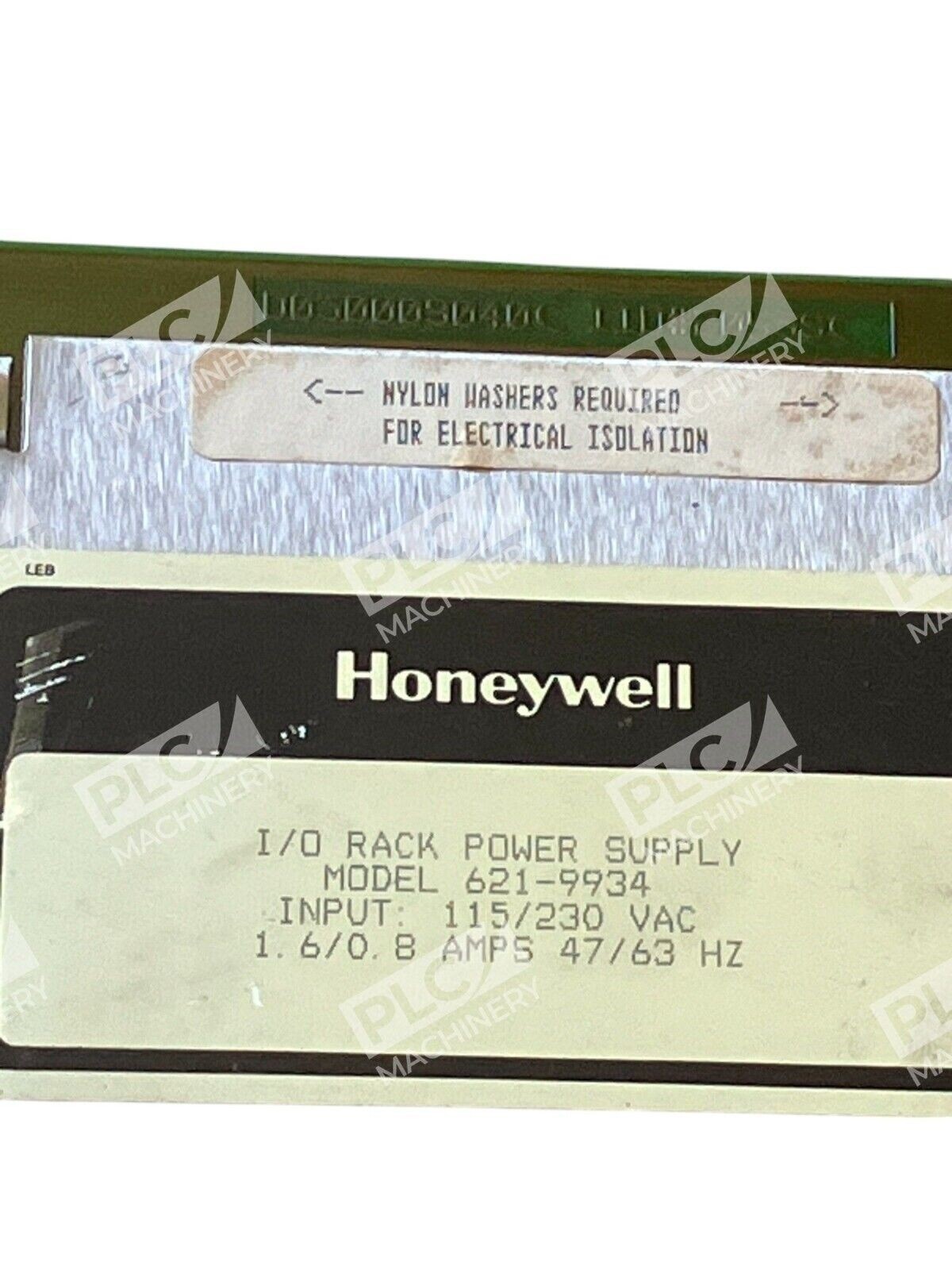

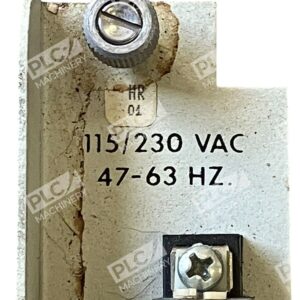

- Input Voltage: 115/230VAC (selectable)
- Input Frequency: 47–63 Hz
- Output 1: +5VDC, up to 8A
- Output 2: +15VDC, up to 2A
- Output 3: –15VDC, up to 2A
- Power Capacity: 180 VA typical
- Protection: Overcurrent limiting, thermal shutdown
- Mounting: Rack-mount (vertical orientation)
- Operating Temperature Range: 0°C to 60°C
- Storage Temperature: –20°C to +75°C
- Cooling: Fanless (convection)
- Certifications: UL/CSA recognized
Typical Applications
The 621-9934 is widely deployed in:
- Discrete I/O Systems: Powering 24VDC logic inputs and relay outputs in PLC racks
- Analog Signal Modules: Supplying ±15VDC to instrumentation amplifiers, signal conditioners, and 4–20 mA transmitter interfaces
- Distributed Control Systems: Central power source for IPC 620/621 I/O racks in process control and motion applications
- Industrial Plant Environments: Chemical plants, refineries, food processing, power generation facilities where high-reliability power is mission-critical
- Legacy System Upgrades: Direct replacement for older single-output power supplies in working IPC installations
Compatibility & Replacements
Compatible With
- Honeywell IPC 620 distributed I/O rack systems
- Honeywell IPC 621 distributed control platforms

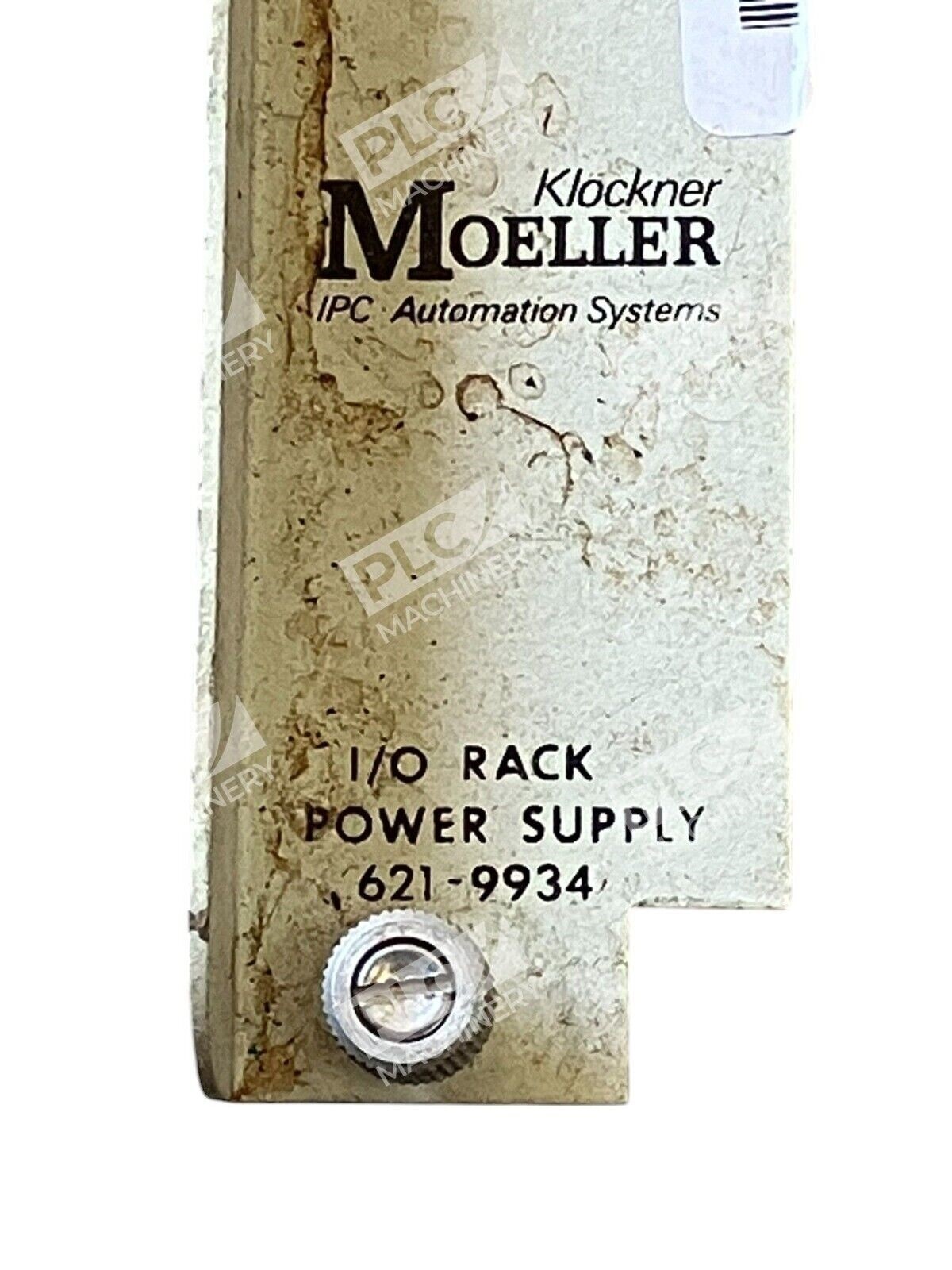

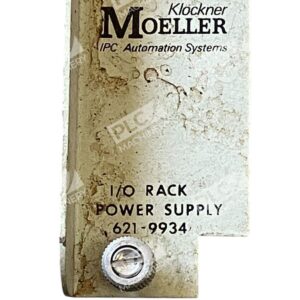

- Klockner Moeller / Honeywell 621 Series I/O modules
- Standard DIN-rail or rack-mount chassis (vertical mounting orientation)
- Industrial AC power supplies: 115V or 230V single-phase, 47–63 Hz
Replaces / Drop-In Replacement For
- Honeywell 621-9933 (verify output current requirements; 621-9934 supports higher +5VDC current)
- Other single-output I/O power supplies in IPC 620/621 systems requiring +5VDC and ±15VDC rails
- Legacy dual-voltage supplies in existing Honeywell distributed control installations
Works With
- Control Platforms: Honeywell Experion®, Honeywell DCS systems, Honeywell IPC 600/620/621 architecture
- I/O Module Types: Analog input modules, analog output modules, thermocouple conditioners, 4–20 mA signal interfaces, discrete input/output cards
- Communication Protocols: Local backplane power distribution (does not handle network protocols directly; supports systems running Ethernet, Modbus, Profibus, etc.)
- Diagnostic & Monitoring: LED status indicators for power, fault, and overload conditions
- System Design: Requires system shutdown before installation/removal (no hot-swap capability)
