Overview
The Eaton Moeller P1-32 is a 32A, 3-pole switch-disconnector engineered for reliable main circuit isolation and motor disconnect applications. Rated up to 690 V AC and 32 A, it supports up to 18.5 kW at 500 V (AC-23A) and 13 kW at 400 V (AC-3), providing dependable performance for motor disconnect and branch circuit isolation. Rated for 690 V AC with a 6 kV impulse withstand voltage, the switch complies with IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL, and CSA standards. This unit is well-suited for both new installations and replacement applications in industrial control panels.
Key Features
- 3 pole main switch for emergency-stop function

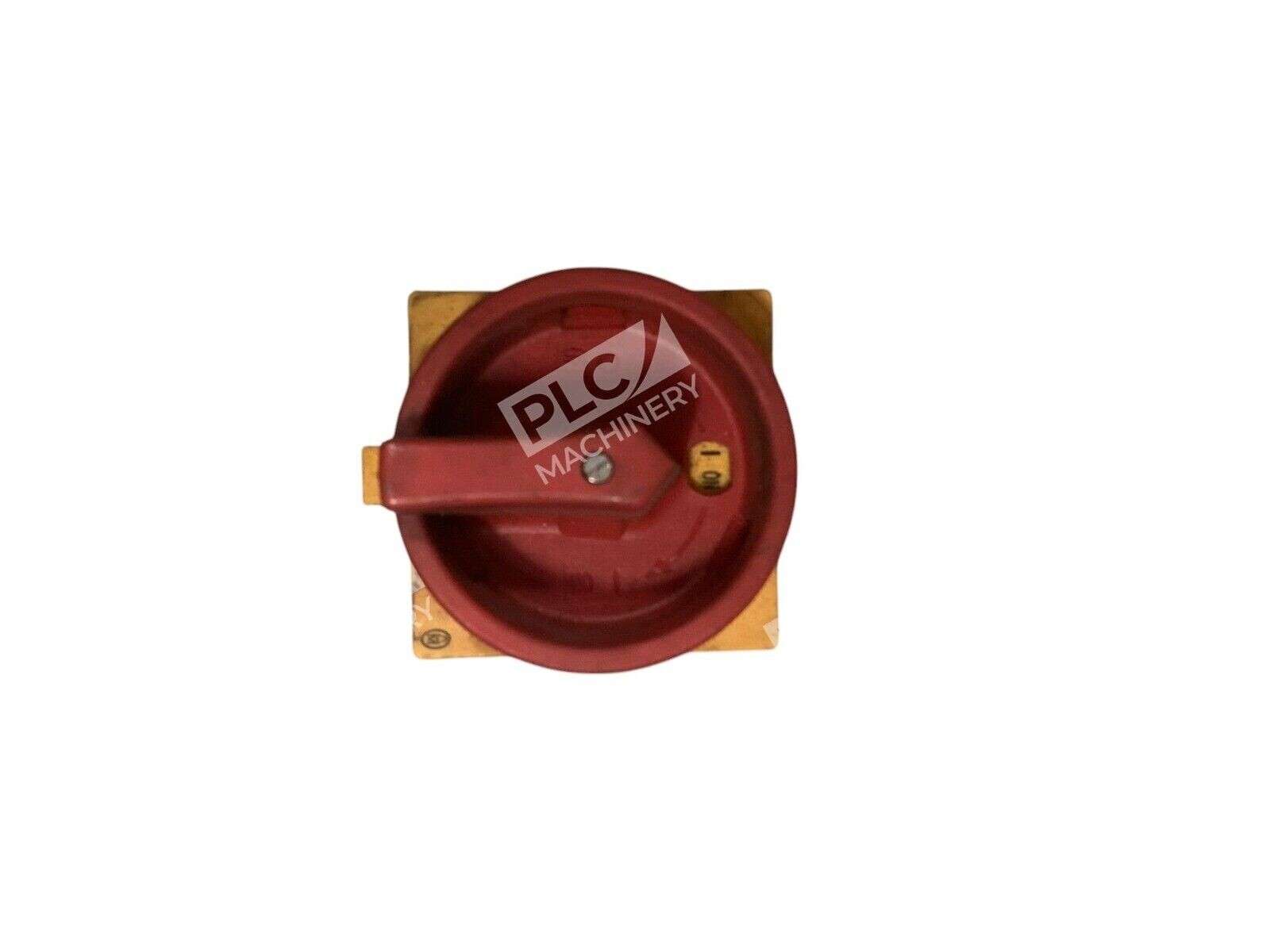

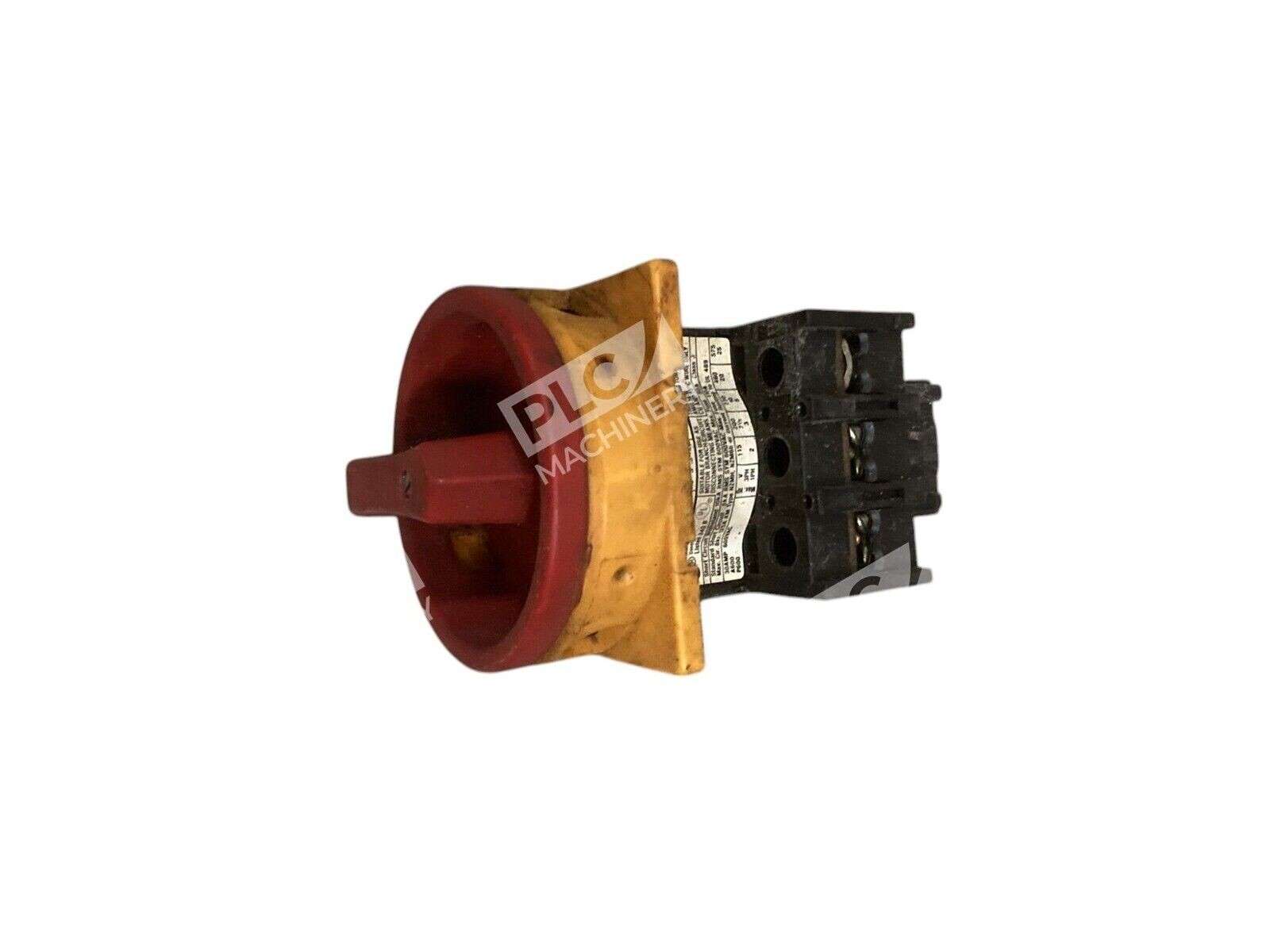

- Red rotary handle with a yellow locking ring, lockable in the 0 (OFF) position for maintenance and emergency shutdown applications
- IP65/NEMA 12 protection, 300,000 mechanical operations
- Robust mechanical endurance exceeding 300,000 operations for extended service life
- Compliant with international safety standards (IEC, EN, UL, CSA, VDE)
- Suitable for front-mount or surface-mount panel configurations
Technical Specifications

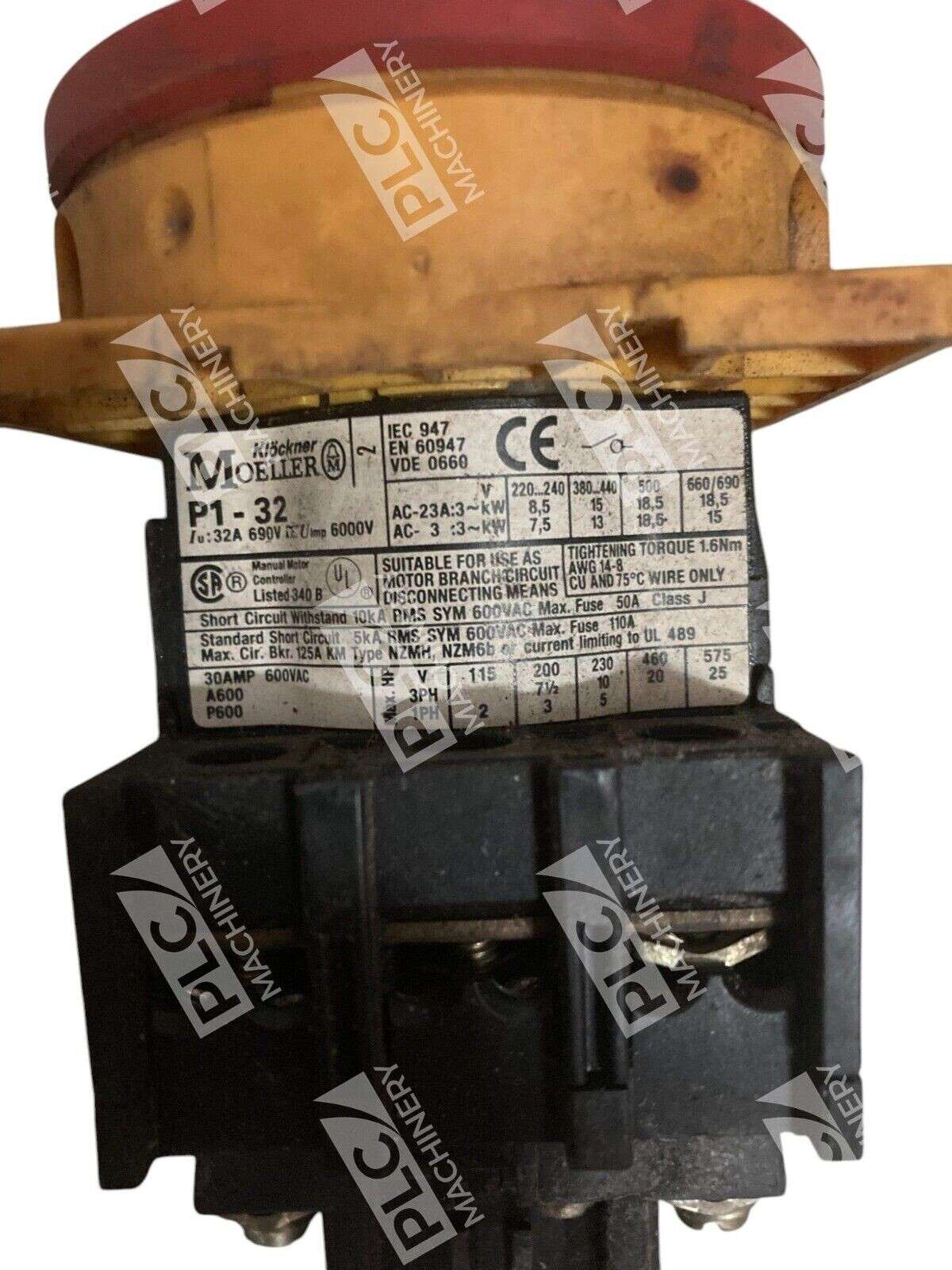

- Rated Voltage: 690V AC
- Impulse Withstand: 6 kV
- Continuous Current: 32A
- Poles: 3-pole
- Motor Power Rating (AC-3): 15 kW @ 400/415V
- Motor Power Rating (AC-23A): 18.5 kW @ 500V
- Mechanical Endurance: 300,000+ operations
- Protection Rating: IP65/NEMA 12
- Standards: IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL, CSA
- Handle Type: Red rotary with yellow locking ring
- Locking Position: 0 (OFF)
Typical Applications
- Motor main disconnect and branch circuit isolation
- Emergency stop and shutdown applications
- Industrial control panel integration
- Machine tool and production equipment control
- Machinery safety compliance (lockable OFF position)
- Panel-mounted isolation in AC-3 and AC-23A duty cycles
Compatibility & Replacements
Compatible With
- Industrial control panels and enclosures (front/surface mount)
- Motor control circuits and branch circuit breaker applications
- Machinery and production equipment requiring reliable main disconnection
- Systems requiring IEC 60947-3 compliance
Replaces / Drop-In Replacement For
- P1-32/E (flush-mount, black thumb-grip variant)
- P1-32/E-RT (emergency-only variant)
- P1-32/V/SVB (rear-mount interlock variant)
- P1-32/EA/SVB (flush-mount user-configurable variant)
- Other Eaton Moeller P1-32 series configurations with matching voltage and current ratings
Works With
- Motor control centers (MCCs) and soft starters
- Variable frequency drives (VFDs) and frequency converters
- Programmable logic controllers (PLCs) in safety-rated circuits
- Industrial automation systems (Siemens, Allen-Bradley, Schneider, etc.)
- Control systems requiring manual main disconnection with locking
