Overview

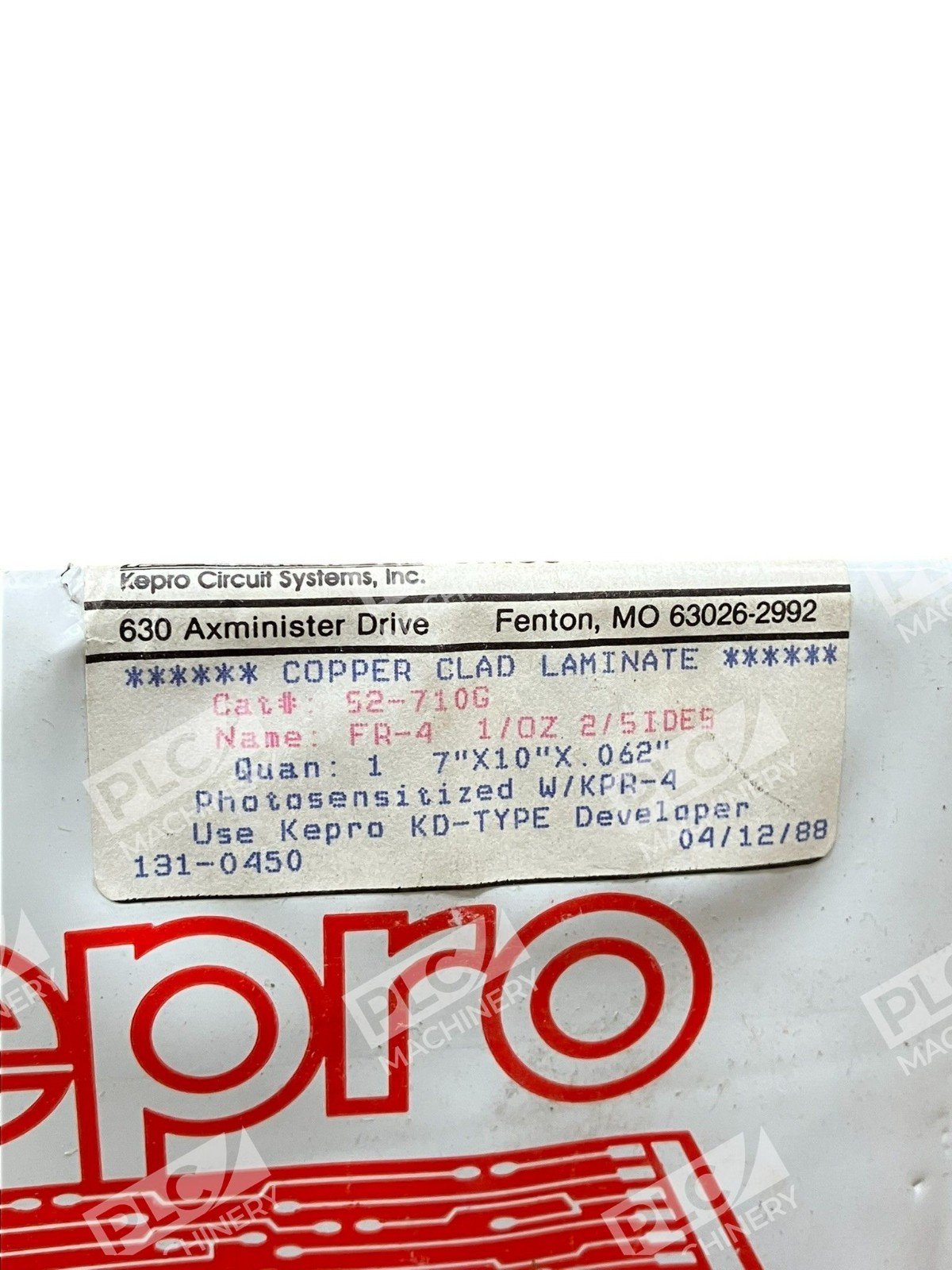

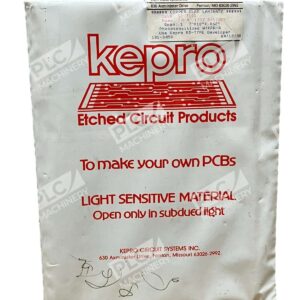

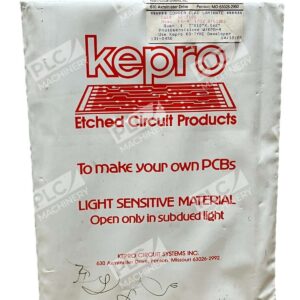

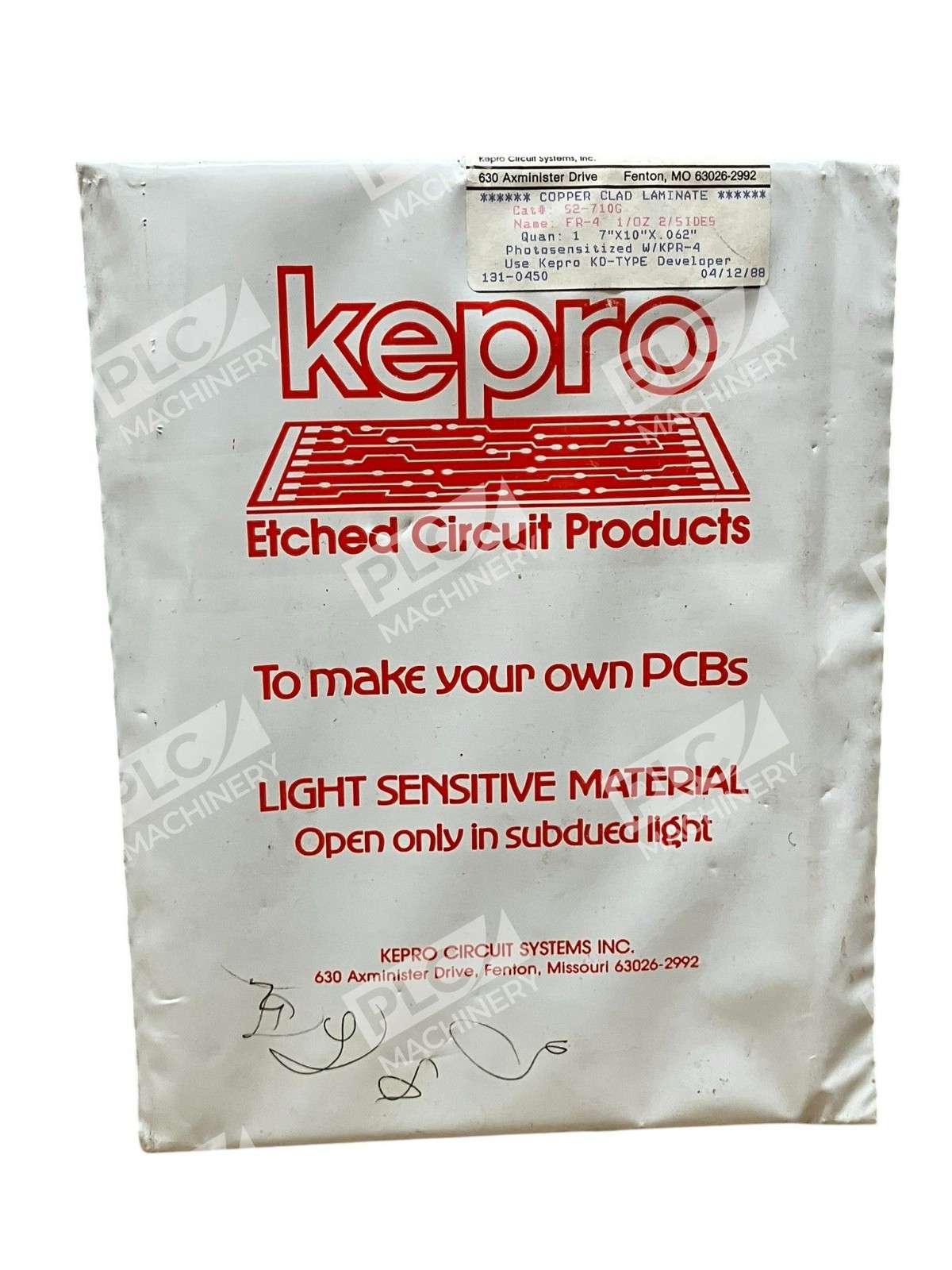

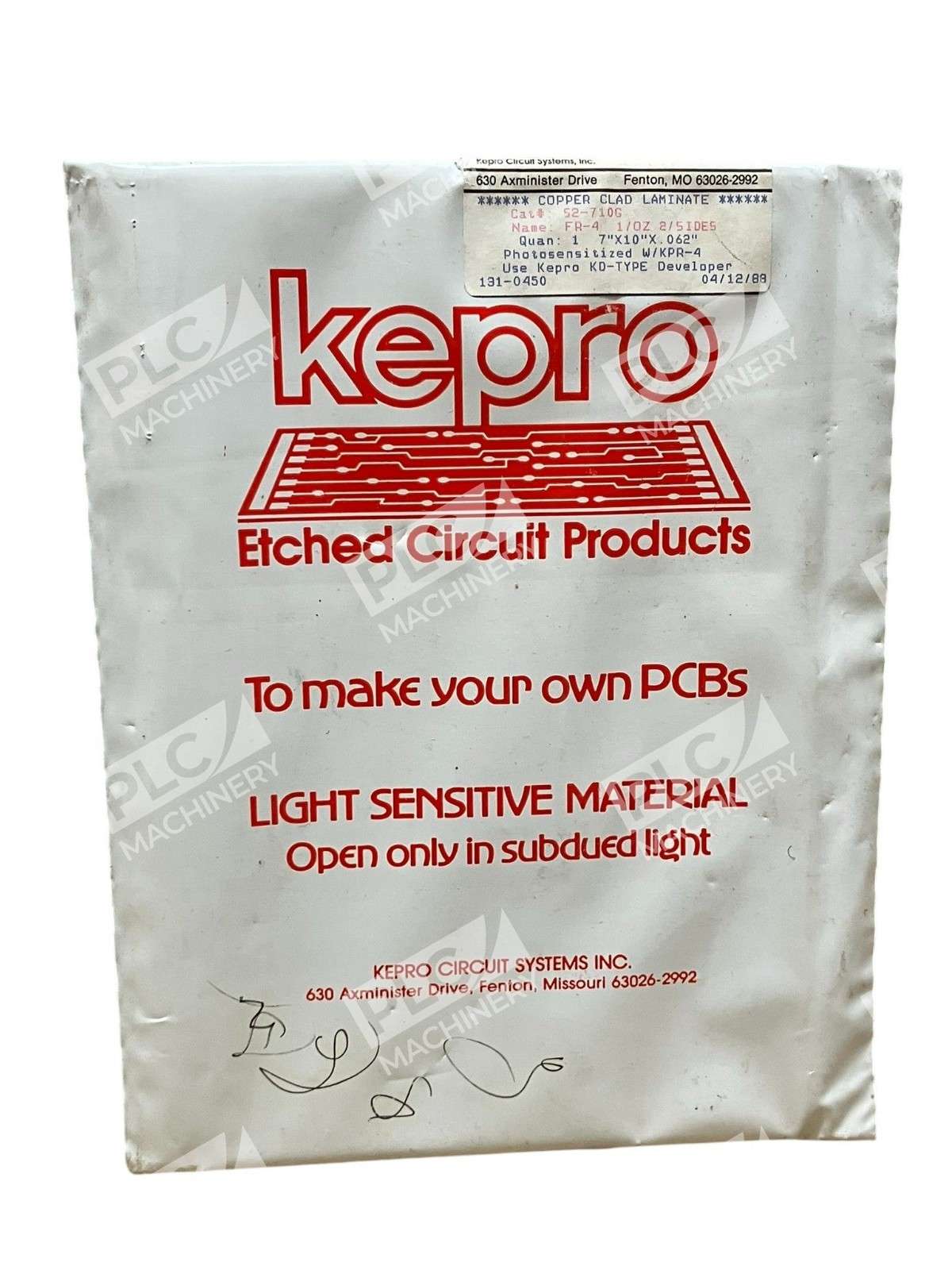

The Kepro S2-710G is a photosensitized FR-4 copper clad laminate engineered for in-house circuit board manufacturing and rapid prototyping. Measuring 7×10 inches with a thickness of 0.062 inches, this dual-sided board features 1 oz copper on both surfaces and comes pre-coated with dry-film photoresist. Kepro’s photosensitized laminates are industry-standard blanks for hobbyists, prototypers, and small-batch PCB fabricators who need ready-to-etch stock without delay.
Key Features
- Photosensitized coating — pre-applied dry-film photoresist eliminates the need for manual resist application
- Dual-sided copper — 1 oz copper on both sides for two-layer circuit designs
- FR-4 substrate — flame-resistant, rigid fiberglass reinforcement for reliable mechanical and electrical properties
- Ready-to-use blank — no additional preparation; expose and etch immediately
- Compact size — 7″×10″ footprint fits most prototype and small-production batches

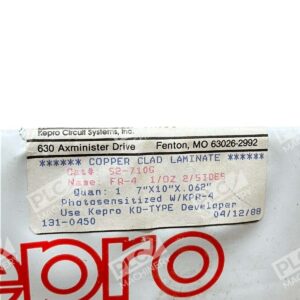

Technical Specifications
- Material: FR-4 (epoxy glass reinforced)
- Copper weight: 1 oz on each side
- Thickness: 0.062 inches (≈ 1.57 mm)
- Dimensions: 7″ × 10″
- Finish: Photosensitized (dry-film photoresist pre-coated)
- Sides: 2 (dual-sided copper)
- Application: PCB prototyping, small-batch fabrication, in-house etching
Typical Applications
- Rapid PCB prototyping and development
- Small-volume production runs for electronic circuits
- Amateur radio and hobbyist circuit design
- Educational laboratory PCB fabrication
- Signal processing and analog/digital circuit boards
- In-house manufacturing where turnaround speed is critical
Compatibility & Replacements
Compatible With
- Kepro photoresist etchants and developing systems
- Standard UV exposure units for photoresist imaging
- Ferric chloride, ammonium persulfate, and other commercial etchants
- Existing Kepro PCB fabrication benchtop systems
Replaces / Drop-In Replacement For
- Similar Kepro photosensitized blank laminates in the 7×10 size class
- Generic FR-4 photoresist-coated blanks of equivalent dimensions
Works With
- UV light sources (standard mercury or LED UV exposure equipment)
- Dry-film photoresist development chemistry (standard alkaline developers)
- Chemical etching systems (ferric chloride, ammonium persulfate, copper chloride)
- Standard PCB drilling and routing equipment
