Overview

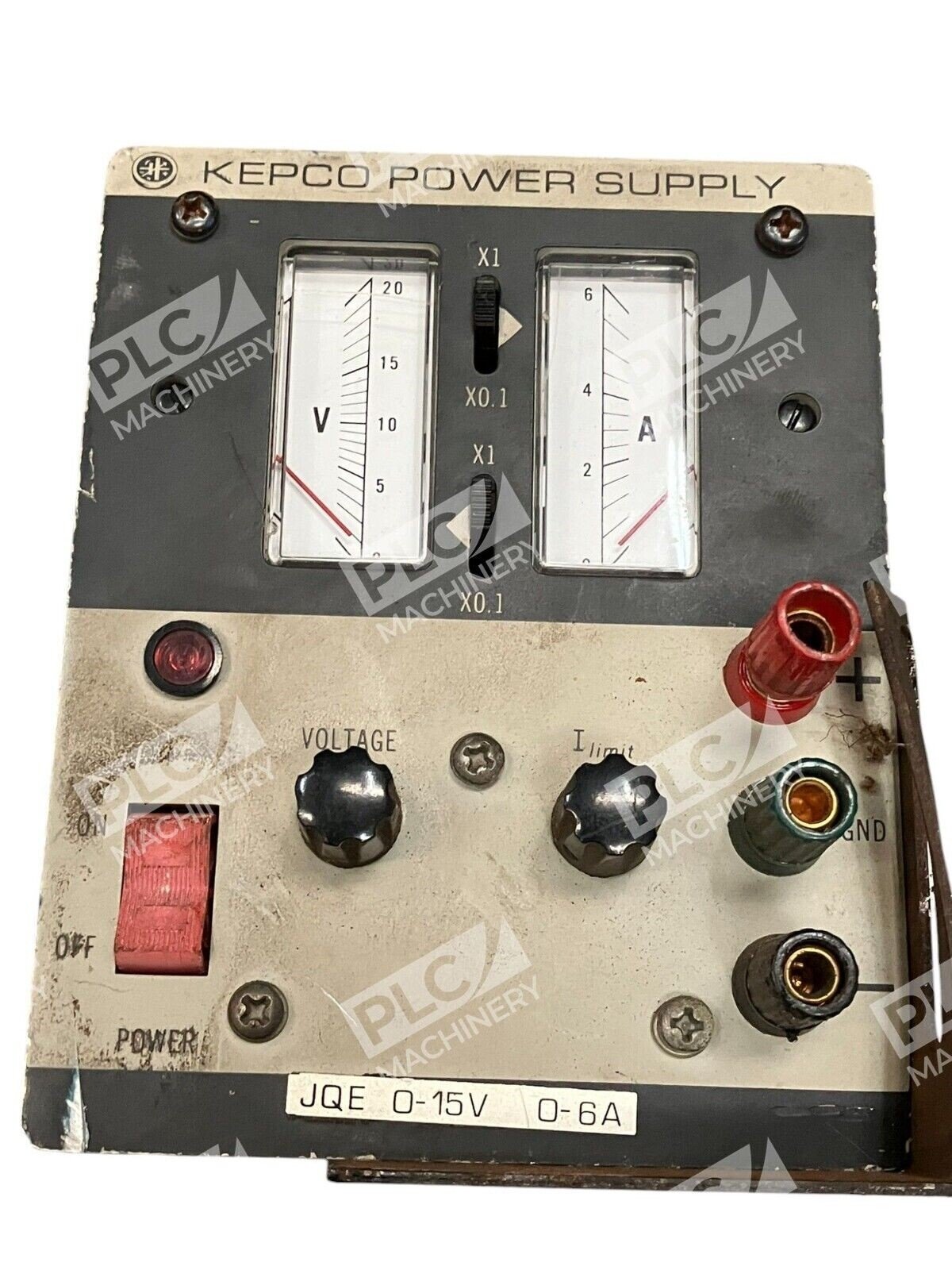

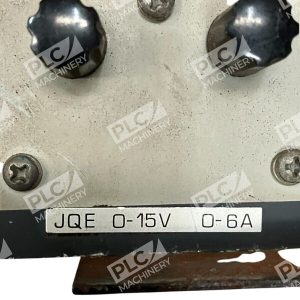

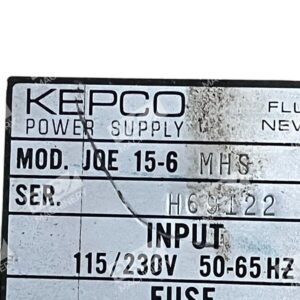

The Kepco JQE 15-6 MHS is a 100W, 1/4-rack linear DC power supply engineered as a voltage stabilizer with integrated current limiting. This compact bench/rack-mount instrument accepts dual-voltage AC input (115/230V, 50-65Hz) and delivers continuously adjustable 0-15V DC output with 0-6A maximum current—ideal for calibration, prototyping, testing, and field troubleshooting where precision and low noise are critical.
Key Features
- Linear DC Output: 0-15V adjustable, 0-6A maximum current; 90W output power
- Ultra-Low Noise & Ripple: Precision output with minimal ripple for sensitive circuits and precision instruments

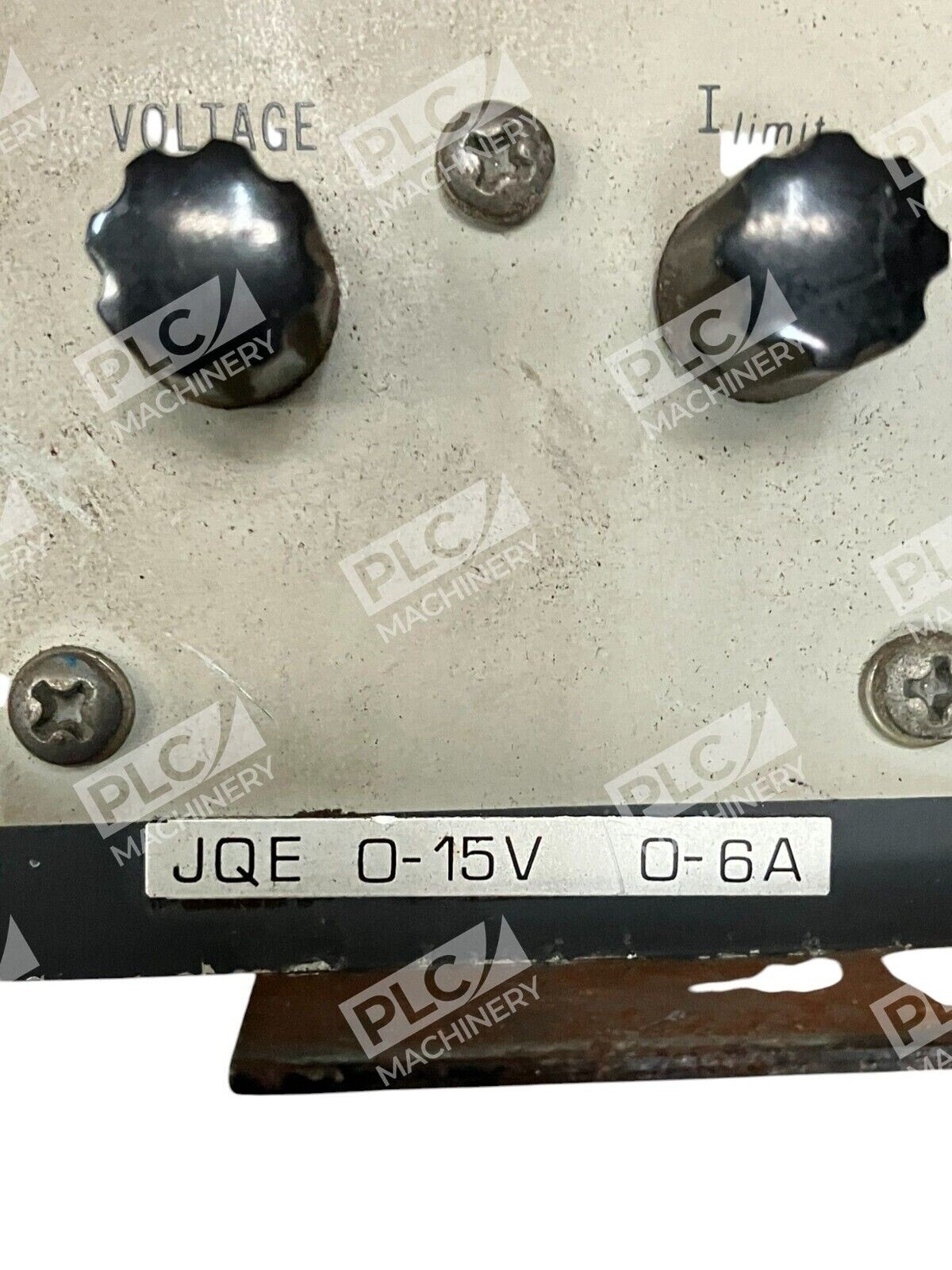

- 10-Turn Voltage Control: High-resolution front-panel potentiometer for exact voltage setting
- Current Limiting: Front-panel current limit adjustment (10%-105% Io max); protects loads from overstress
- Dual Voltage Input: 115/230V AC, 50-65Hz (jumper-selectable configuration)
- Analog Remote Programming: Optional external resistance (1000Ω/Volt) or voltage (0-1mA) control
Technical Specifications
- Output Voltage Range: 0–15V DC
- Output Current: 0–6A max
- Output Power: 90W

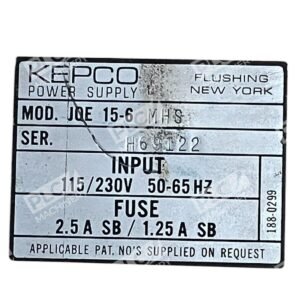

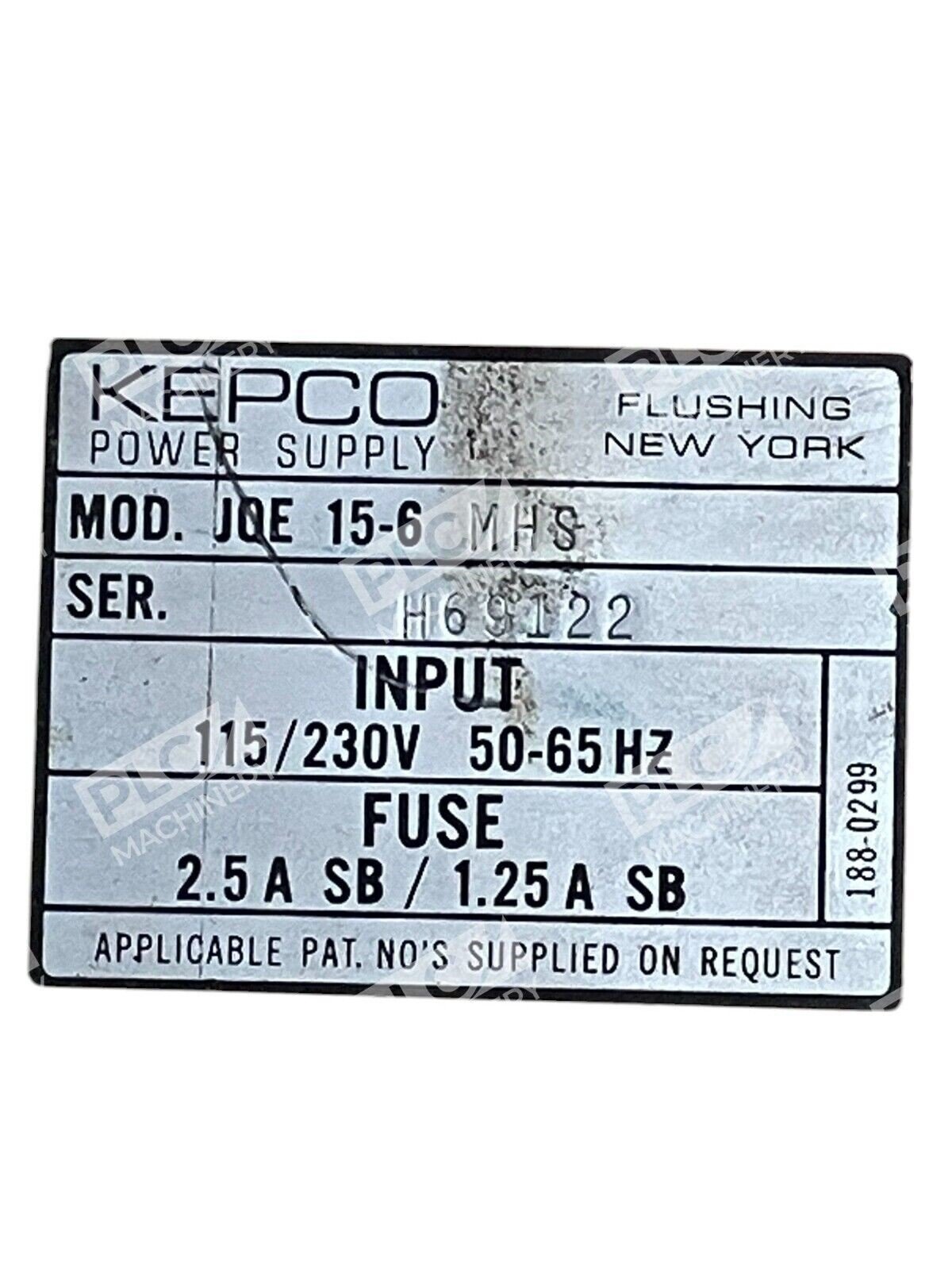

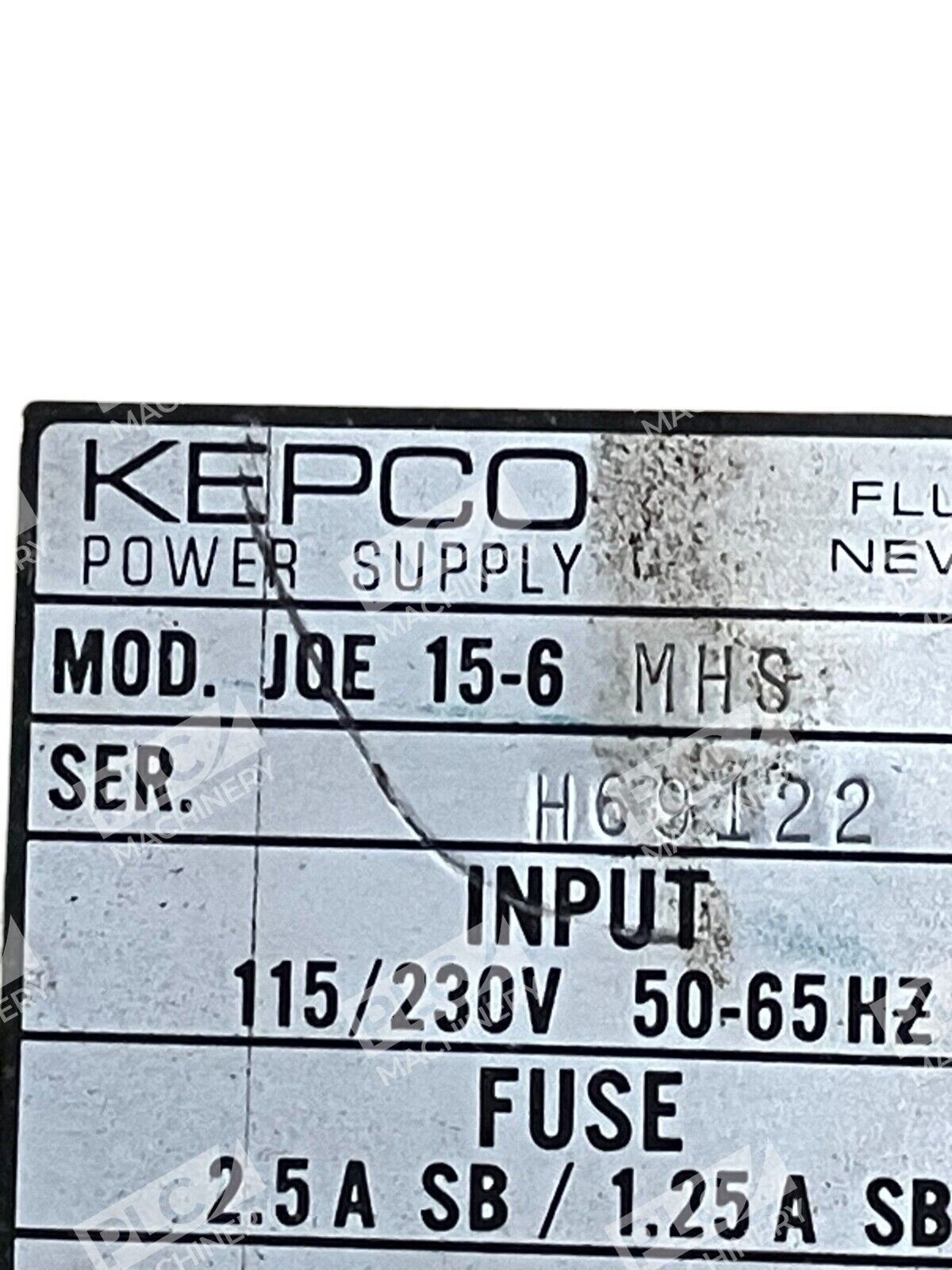

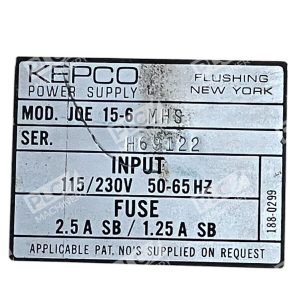

- Input Voltage: 115/230V AC (jumper-selectable)
- Input Frequency: 50–65Hz
- Line Regulation: ±0.01% (typical)
- Load Regulation: ±0.01% (typical)
- Output Impedance: 125µΩ series resistance, 1µH series inductance (voltage mode); 84kΩ shunt resistance (current mode)

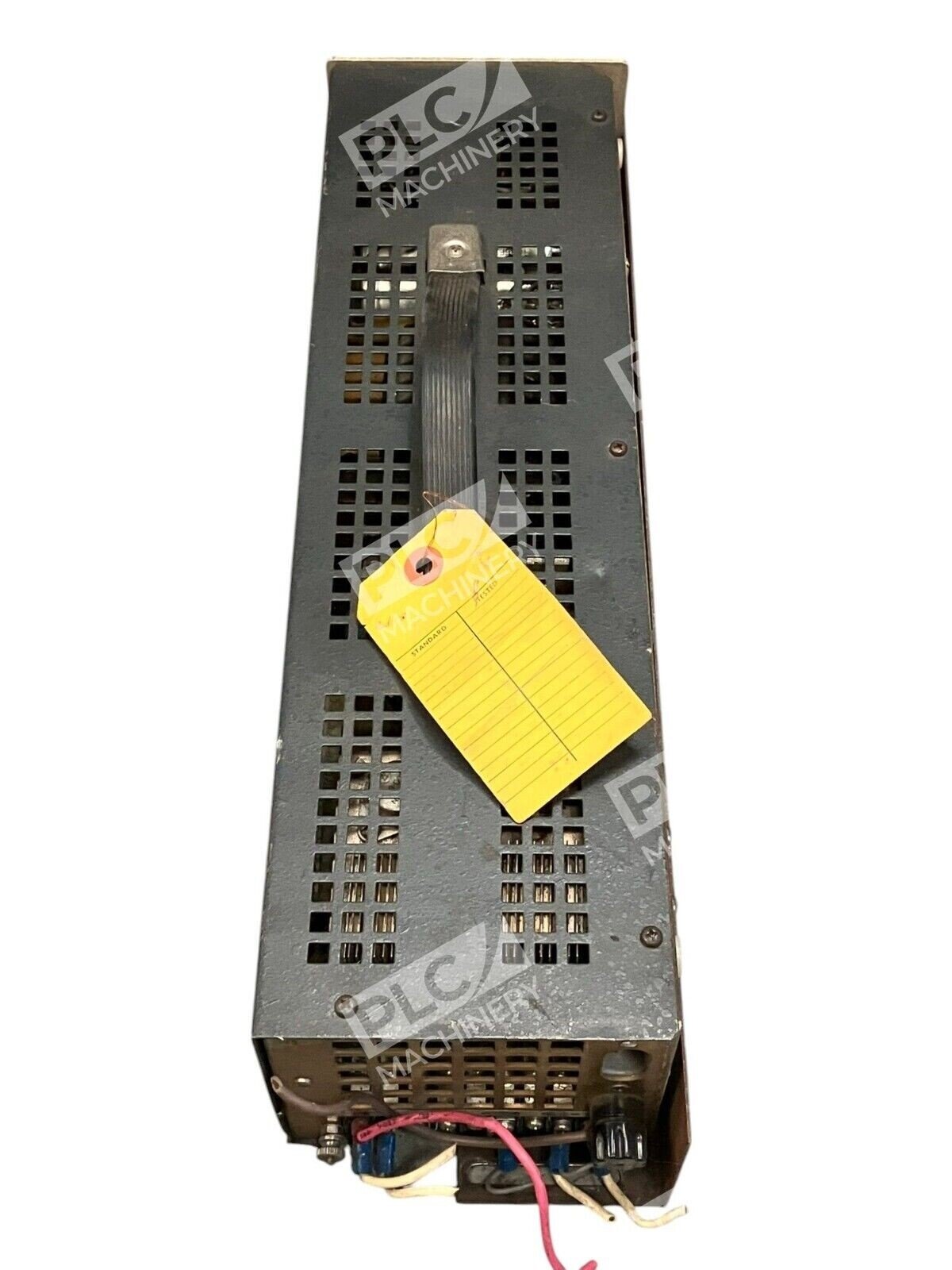

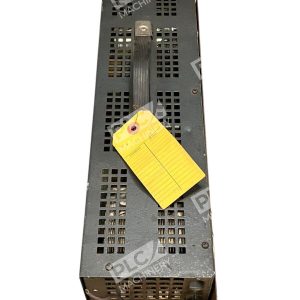

- Package: 1/4-rack bench/rackmount enclosure
- Compliance: EN 61010-1, UL 3101, Installation Category 2, Pollution Degree 2
Typical Applications
- Laboratory power source for testing and troubleshooting electronics
- Precision voltage supply for instrumentation calibration and verification
- Field service and repair work requiring adjustable regulated power
- Development and prototyping of DC-powered circuits and modules
- Backup or standby supply in test setups where low ripple is essential
Compatibility & Replacements
Compatible With
- Any 115V AC or 230V AC, 50–65Hz facility power
- Load devices requiring 0–15V DC at up to 6A
- External analog voltage/resistance programming interfaces
- Bench test setups and rack-mount systems
Replaces / Drop-In Replacement For
- Other Kepco JQE 15-6 variants (without MHS suffix)
- Verify specific mounting/connector configuration with your system integrator before ordering
Works With
- Standard AC mains power distribution (115V/230V, 50–65Hz)
- Manual analog programming via potentiometer or external resistor network
- Bench multimeters and load testers for output verification
- Existing lab rack infrastructure supporting 1/4-rack package format
