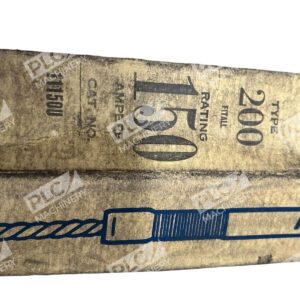

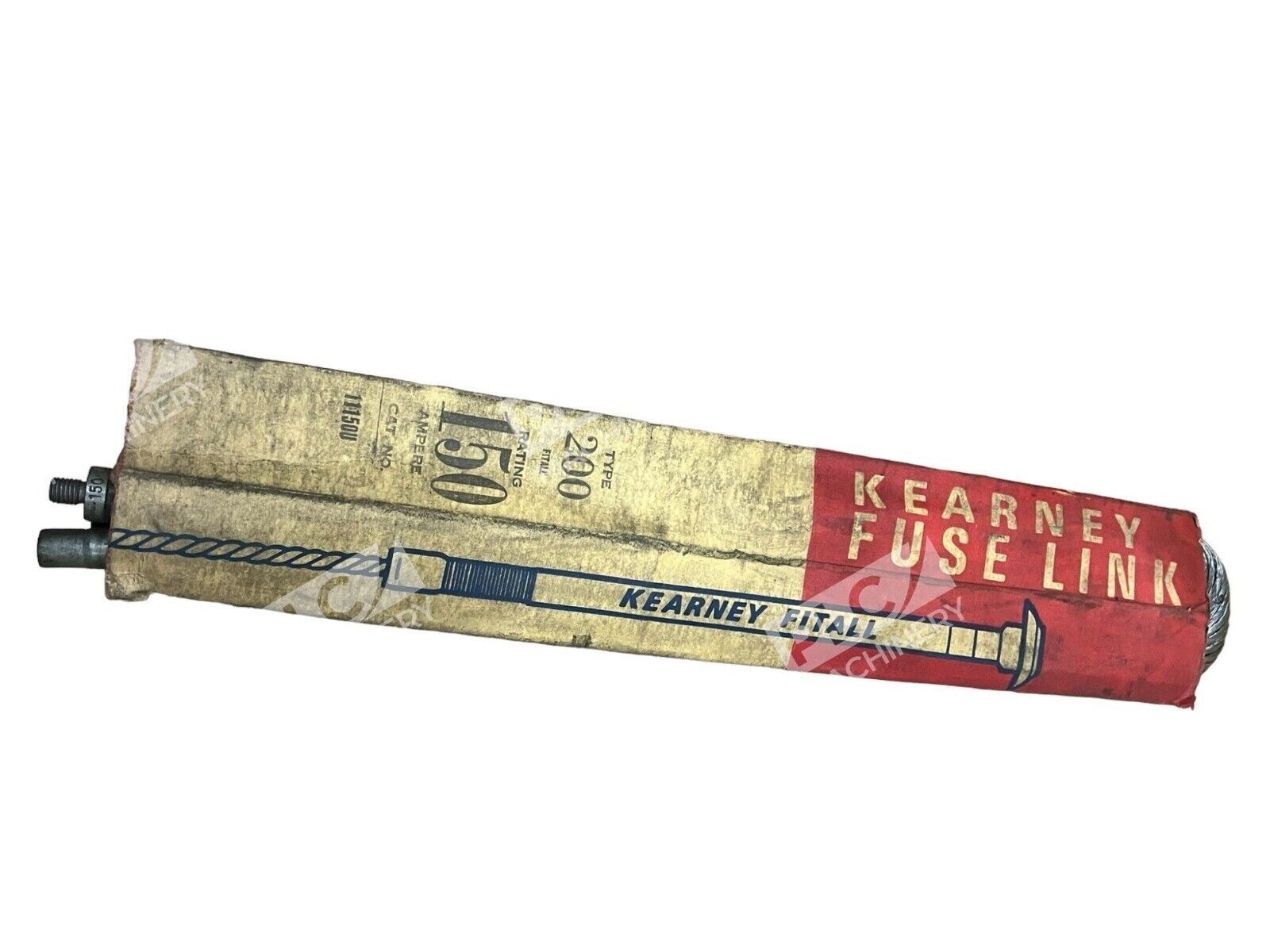

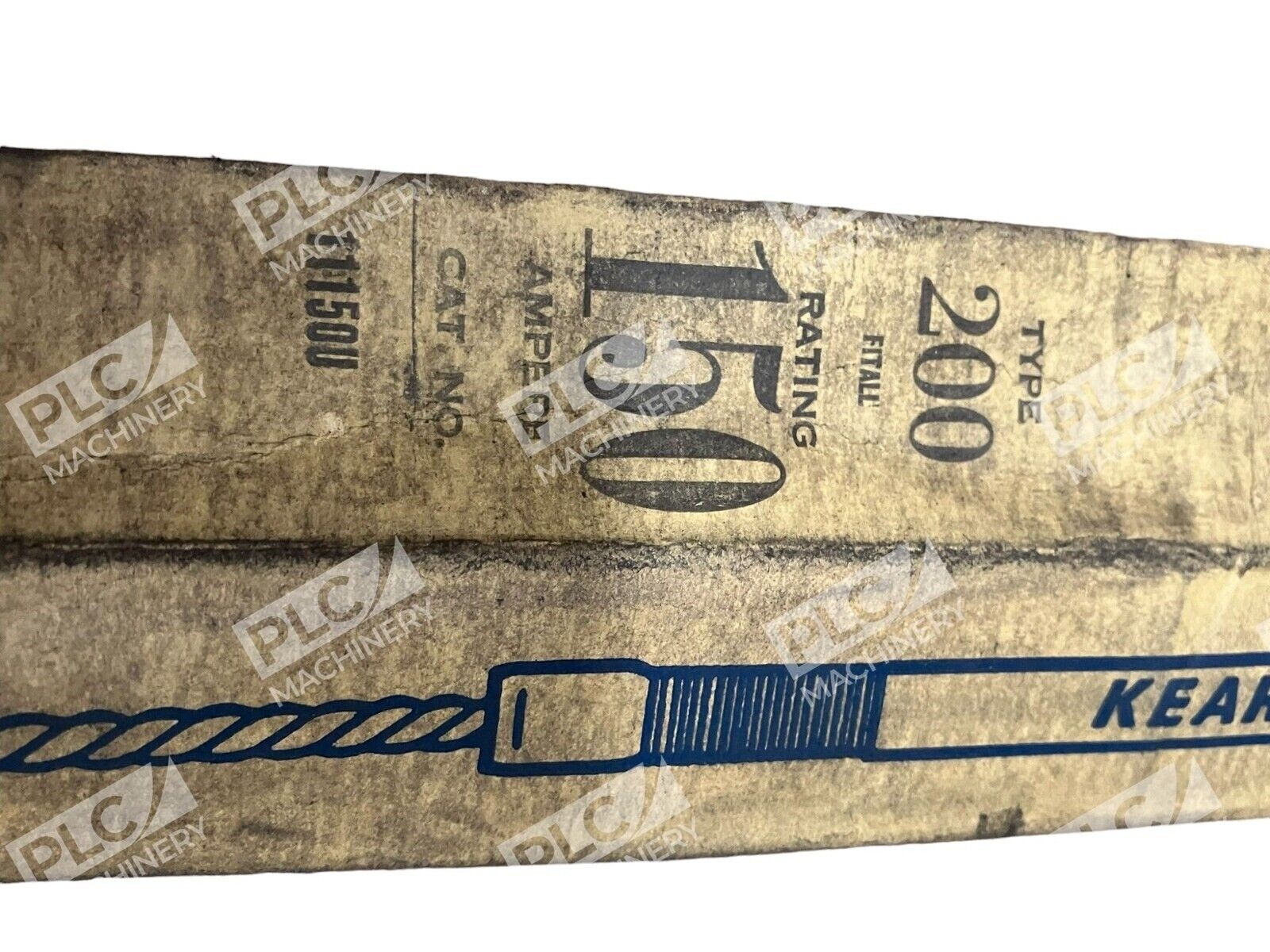

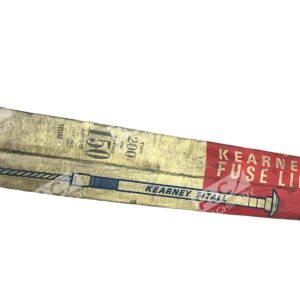

Kearney Fitall 11150U Type 200 150A

Kearney Fit-All 11150U Type 200 150A Fuse Link

The Kearney Fit-All 11150U Type 200 150A fuse link is a medium-speed fuse designed to provide reliable overcurrent protection for electrical distribution systems and equipment. With a nominal speed ratio of 10, it offers enhanced surge withstand capability compared to Type K links, ensuring effective coordination with relays and reclosers.

Key Features

• Removable Button Head: Allows for versatile application in both open and enclosed cutouts, including those with arc-shortening rods.
• Single End Expulsion: The swaged ferrule extends around the fuse link tube to ensure single end expulsion during low fault currents.
• Clear Identification: The fuse link tube is color-coded green and marked along its length to aid in easy identification of the fuse type and ampere rating.
• Spring Mechanism: Equipped with a spring on all fuse links up to 25A to assist in clearing low-level faults by ejecting the fuse cable and creating a positive element separation.

Specifications

• Amperage Rating: 150A
• Type: 200
• Length: 23 inches
• Color: Green
• Certifications: ANSI/IEEE Std C37.42

Designed for utility applications, the Kearney Fit-All 11150U Type 200 150A fuse link ensures dependable performance and protection in various electrical distribution scenarios.
