Overview

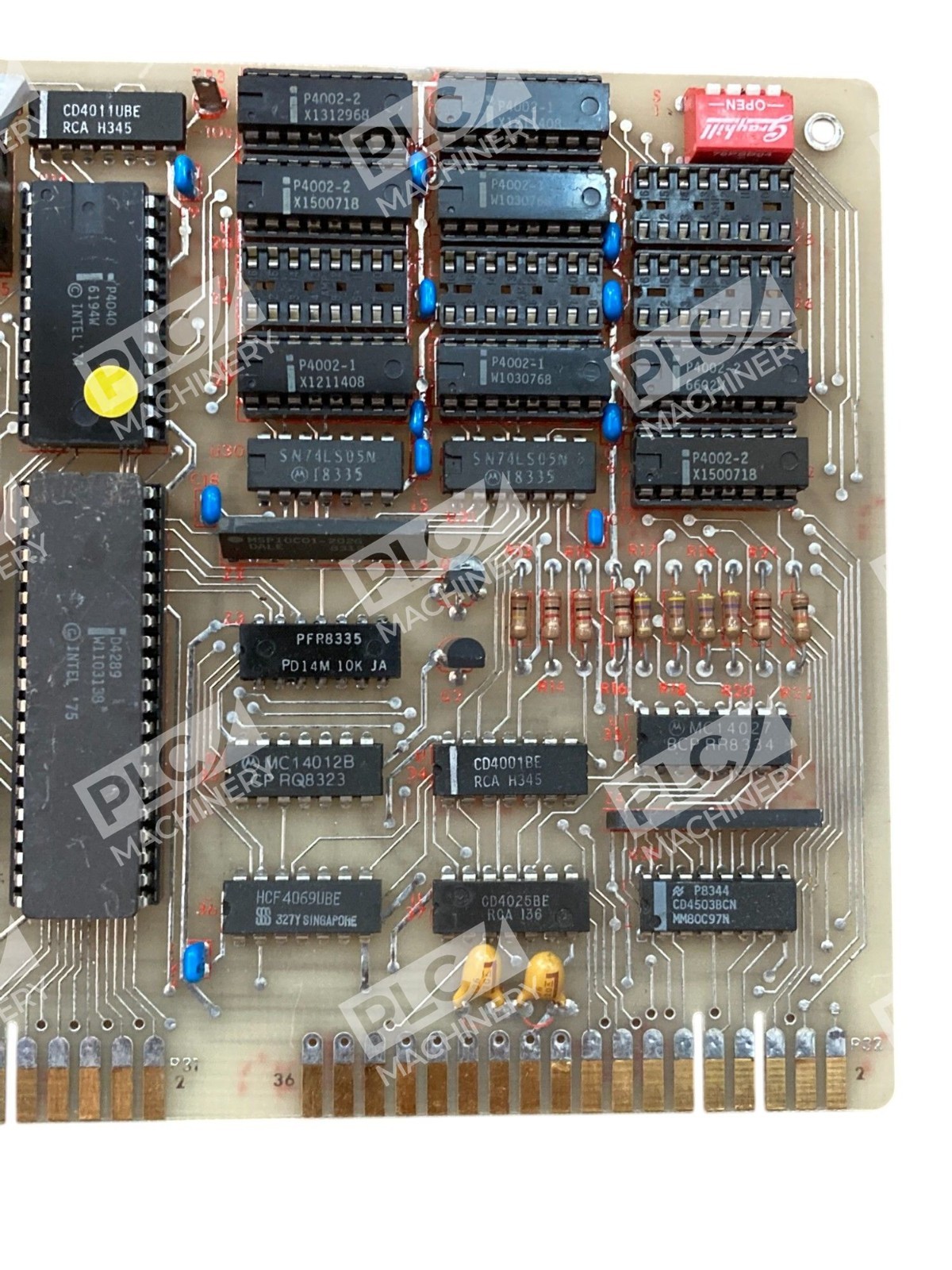

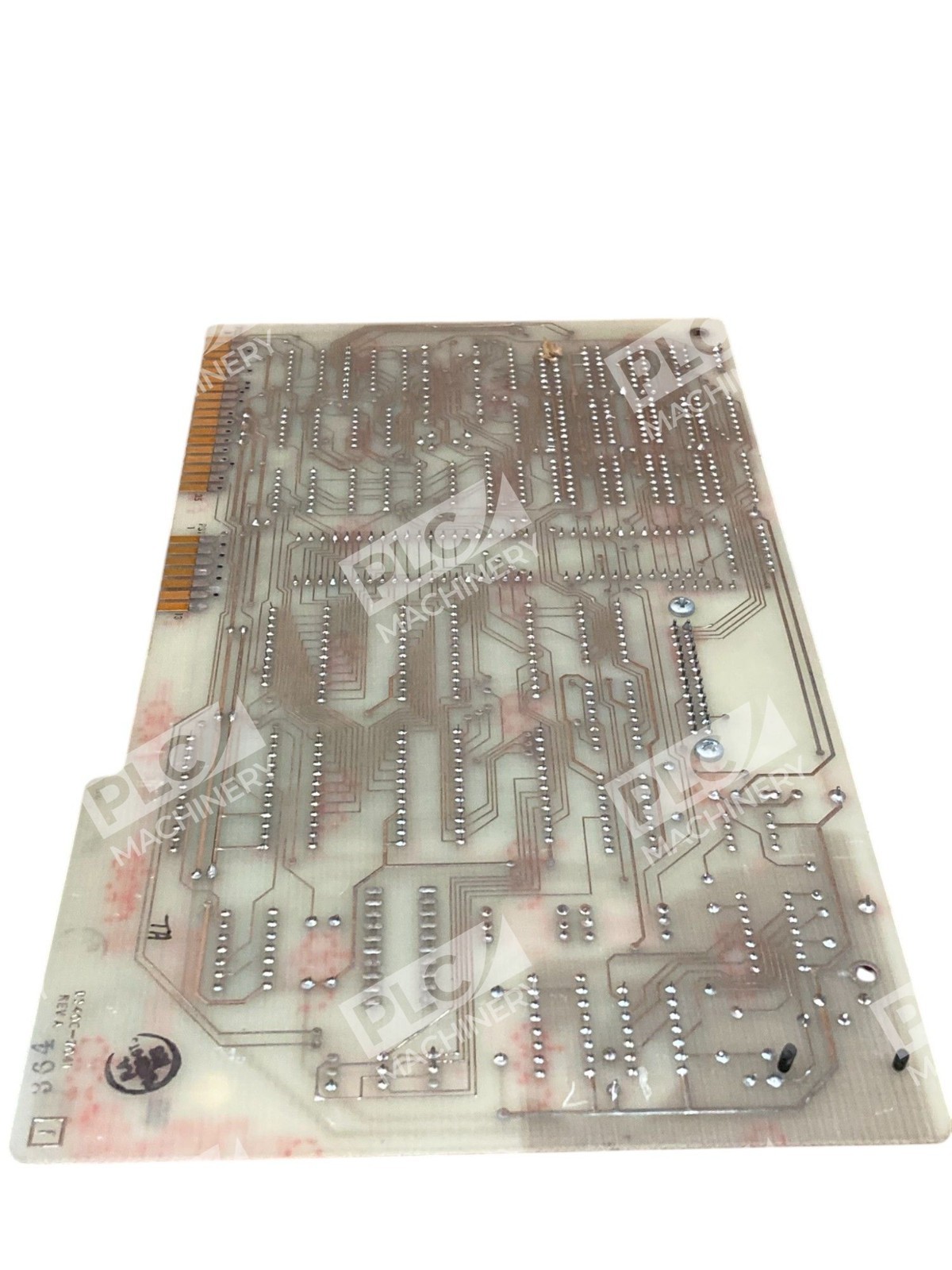

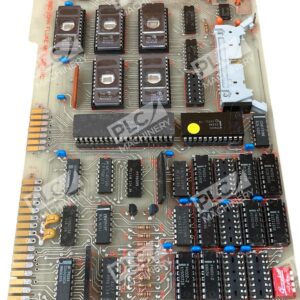

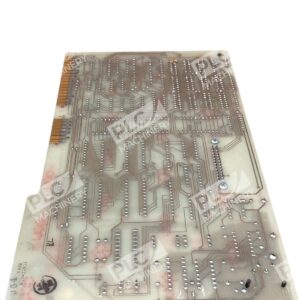

The Fluke 2240C-2041 Controller PCB 580746 Rev B is an internal printed circuit board assembly designed for the Fluke 2240C data analyzer system. This controller PCB handles the front-panel control logic and signal routing required to operate the 2240C with its full complement of input scanner modules and peripheral options. As a component from a discontinued system, this board is valuable for equipment restoration, repair, and system maintenance in legacy laboratory and field measurement environments.
Key Features
- Controller PCB for Fluke 2240C data analyzer platform
- Handles front-panel control logic and signal routing
- Supports 6 slots for modular input options
- Compatible with analog measurement and data acquisition configurations
- Revision B specification, replacement for earlier revisions
- Used condition, inspected for functionality
Technical Specifications
- Manufacturer: Fluke Corporation
- Model: 2240C-2041 (controller PCB assembly)
- Part Number: 580746 (PCB)
- Revision: Rev B
- Product Type: Printed Circuit Board (PCB)
- Application: Internal control and signal routing for data analyzer
- Input Module Slots: 6 available
- Condition: Used, tested
Typical Applications
- Fluke 2240C data analyzer system repair and restoration
- Laboratory equipment maintenance and component replacement
- Multi-channel analog data acquisition and logging systems
- Legacy test and measurement equipment refurbishment
- Educational institutions maintaining vintage laboratory equipment
Compatibility & Replacements
Compatible With
- Fluke 2240C data analyzer main chassis
- Fluke 2240C scanner modules (Option -05, -06, -33)
- Fluke 2240C input connector options (Option -03, -07, -08)
- Fluke 2200 series peripherals and modules
Replaces / Drop-In Replacement For
- Fluke 580746 Rev A (earlier revision)
- Fluke 2240C-2041 controller boards with earlier revisions
Works With
- Fluke 2240C system architecture and front-panel interface
- Analog measurement scanners and data logging modules
- External printer and data recording devices
- LED panel data display and control functions
