Overview

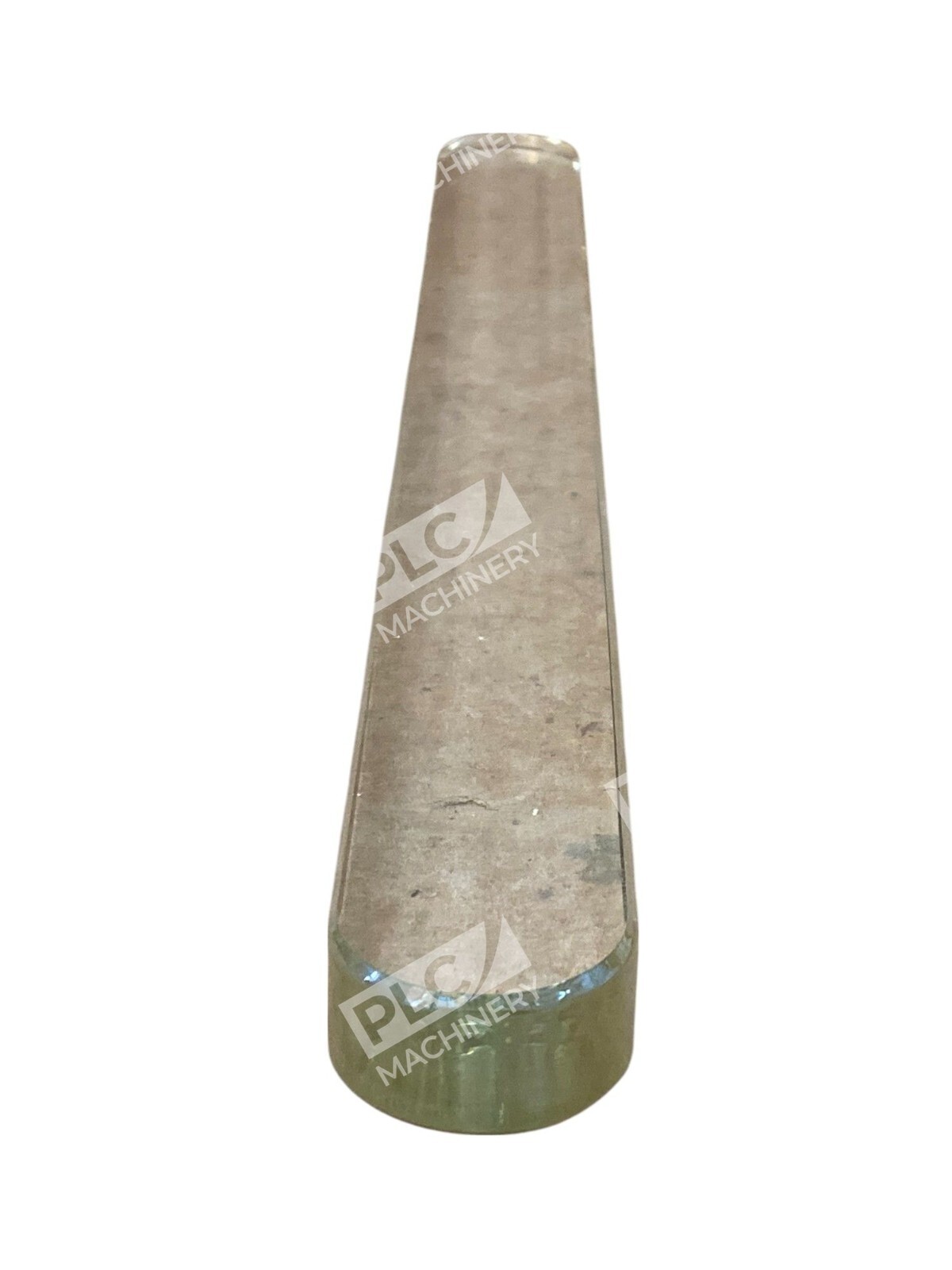

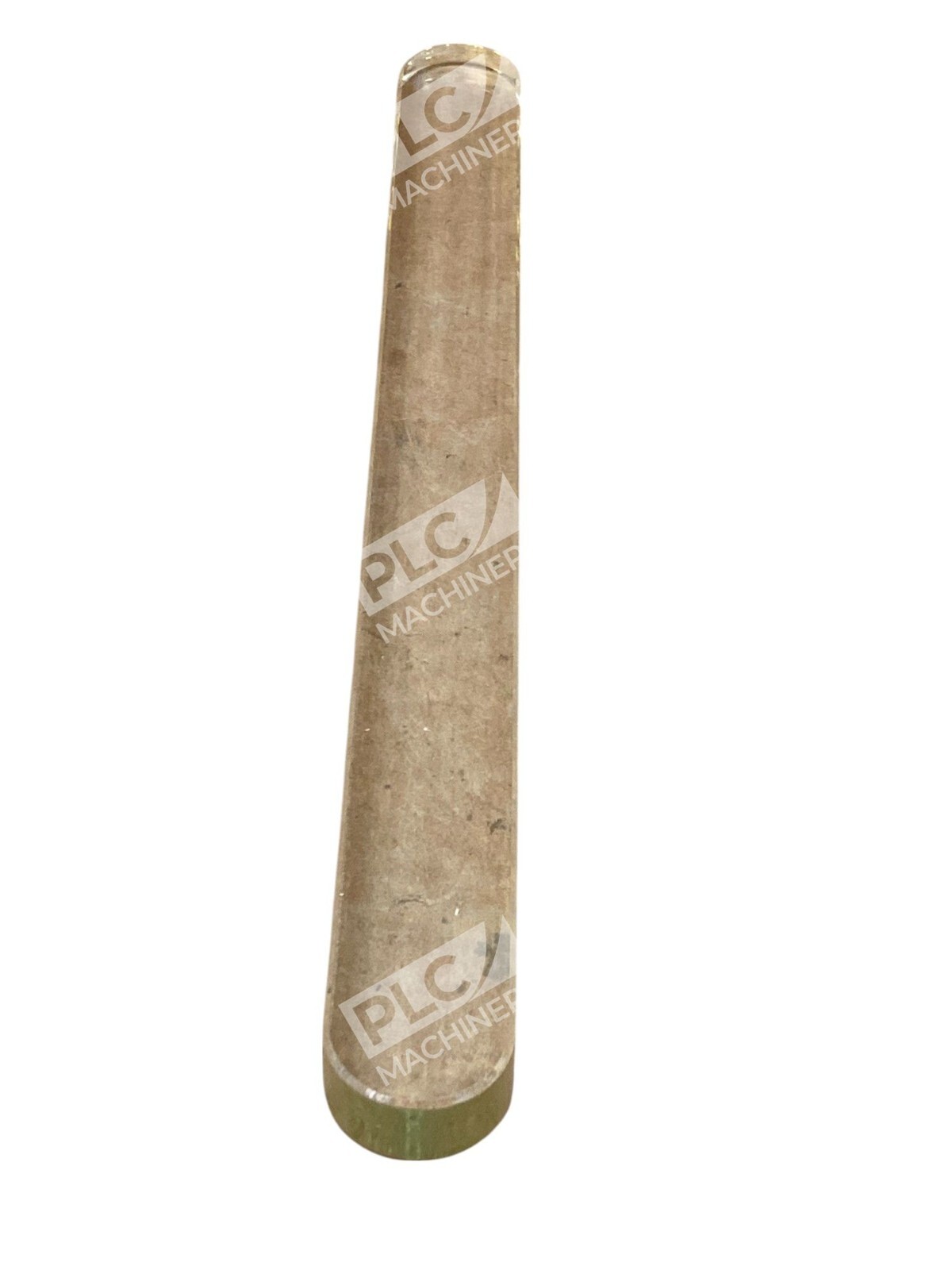

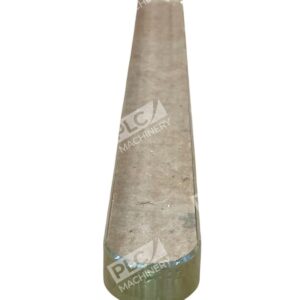

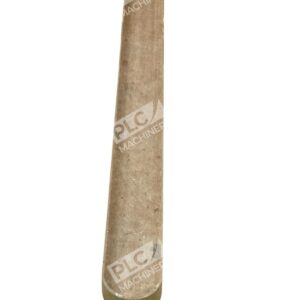

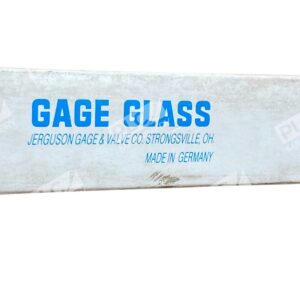

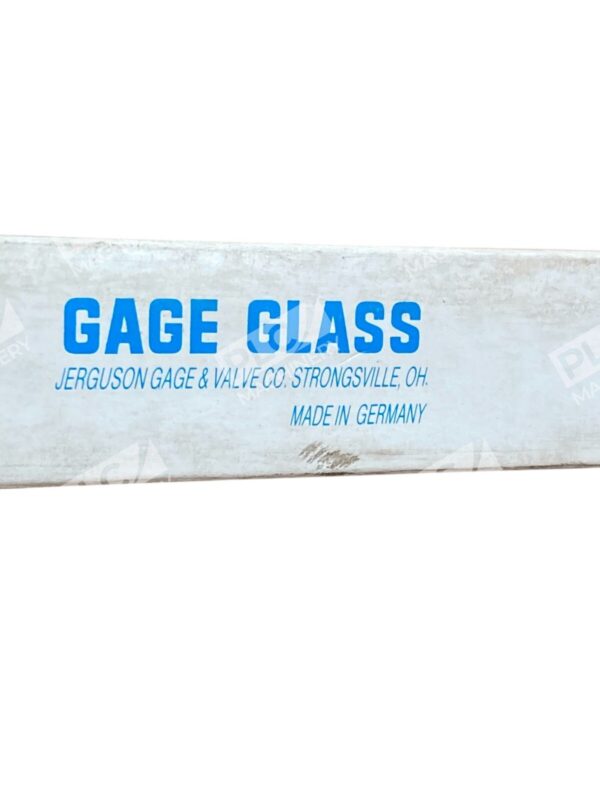

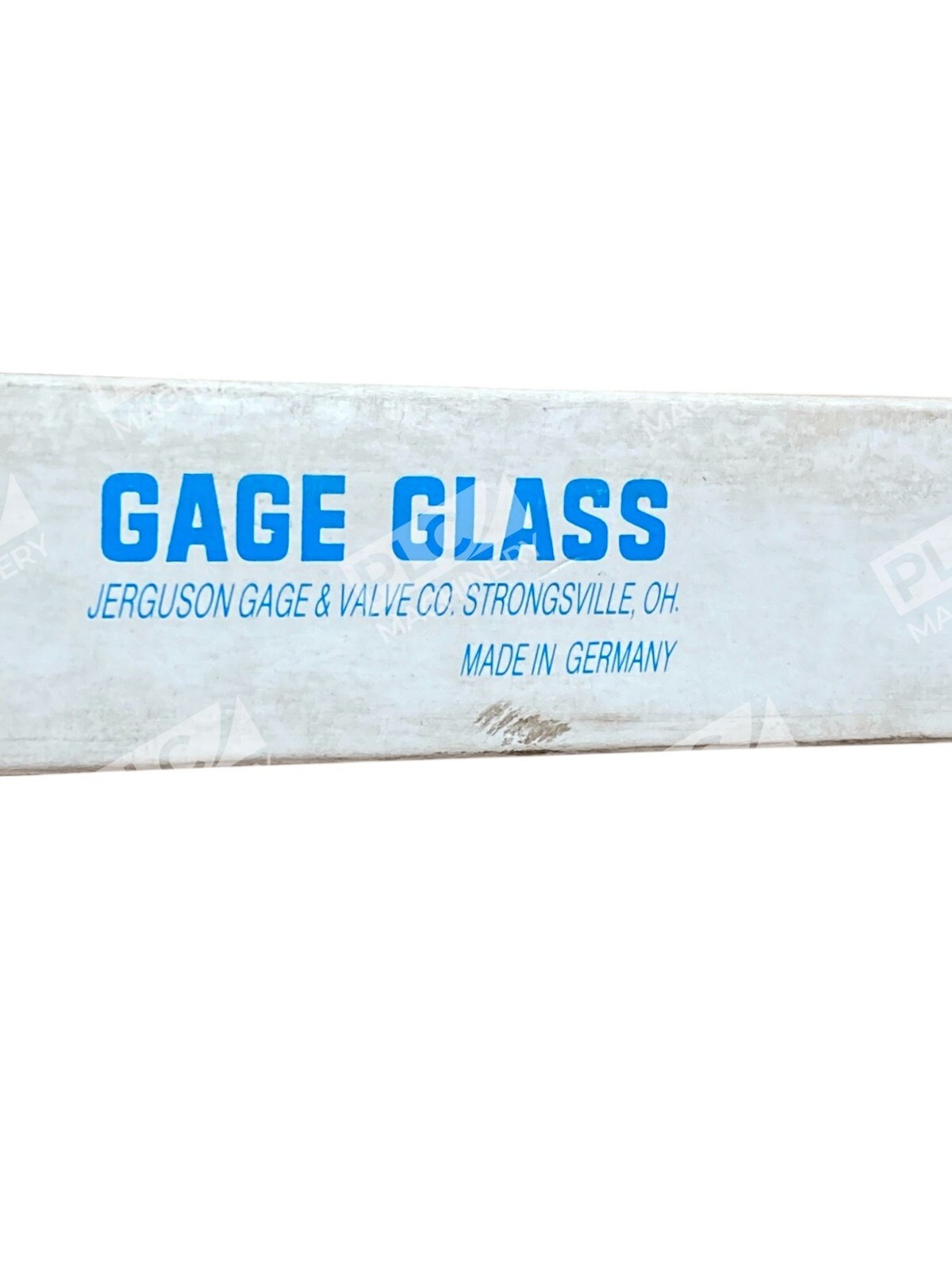

The Jerguson V16757-9 gage glass is a replacement transparent sight glass engineered for Size 9 liquid level gages used across chemical processing, petrochemical, refining, and utility industries. This flat borosilicate component delivers clear, unobstructed visibility of liquid levels in process vessels, enabling operators to monitor system status and make real-time control decisions. The tempered borosilicate construction ensures durability and thermal resistance for demanding industrial environments.
Key Features
- Transparent design with flat glass on both sides for maximum visibility
- Tempered borosilicate material for thermal and mechanical durability
- Size 9 gage—direct fit for Jerguson Series 20, 32, and L10 gages
- Suitable for low-viscosity liquids and applications below 300 PSIG in steam service
- Quick replacement—no recalibration required
Technical Specifications
- Material: Tempered borosilicate glass
- Glass Type: Transparent (flat on both sides)
- Size: Size 9
- Dimensions: 340 × 34 × 17 mm
- Weight: 1.01 lbs
- Pressure Rating: See gage assembly rating (typically up to 300 PSIG steam)
- Temperature Range: Below 317 °C (600 °F)

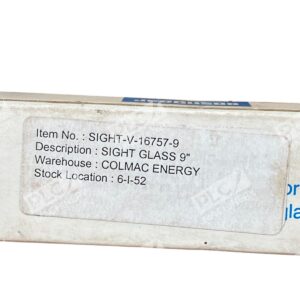

- Part Number: V16757-9
Typical Applications
- Petrochemical and refining process vessels
- Chemical reactor and storage tank level monitoring
- Utility boiler and condenser level indication
- Glycol, oil, and other low-viscosity fluid systems
- Low-pressure steam condensate applications (below 300 PSIG)
Compatibility & Replacements
Compatible With
- Jerguson Series 20 liquid level gages
- Jerguson Series 32 liquid level gages
- Jerguson L10 liquid level gages
- Standard Jerguson gage valves with Size 9 connections
Replaces / Drop-In Replacement For
- Original equipment Jerguson V16757-9 transparent gage glass
- Equivalent Size 9 transparent borosilicate gage glasses from other suppliers
Works With
- Jerguson gage valve assemblies (ball check, vent/drain connections)
- Standard threaded nipple connections for Size 9 gages
- Process control systems requiring visual level indication
- SCADA and HMI systems with manual operator observation
