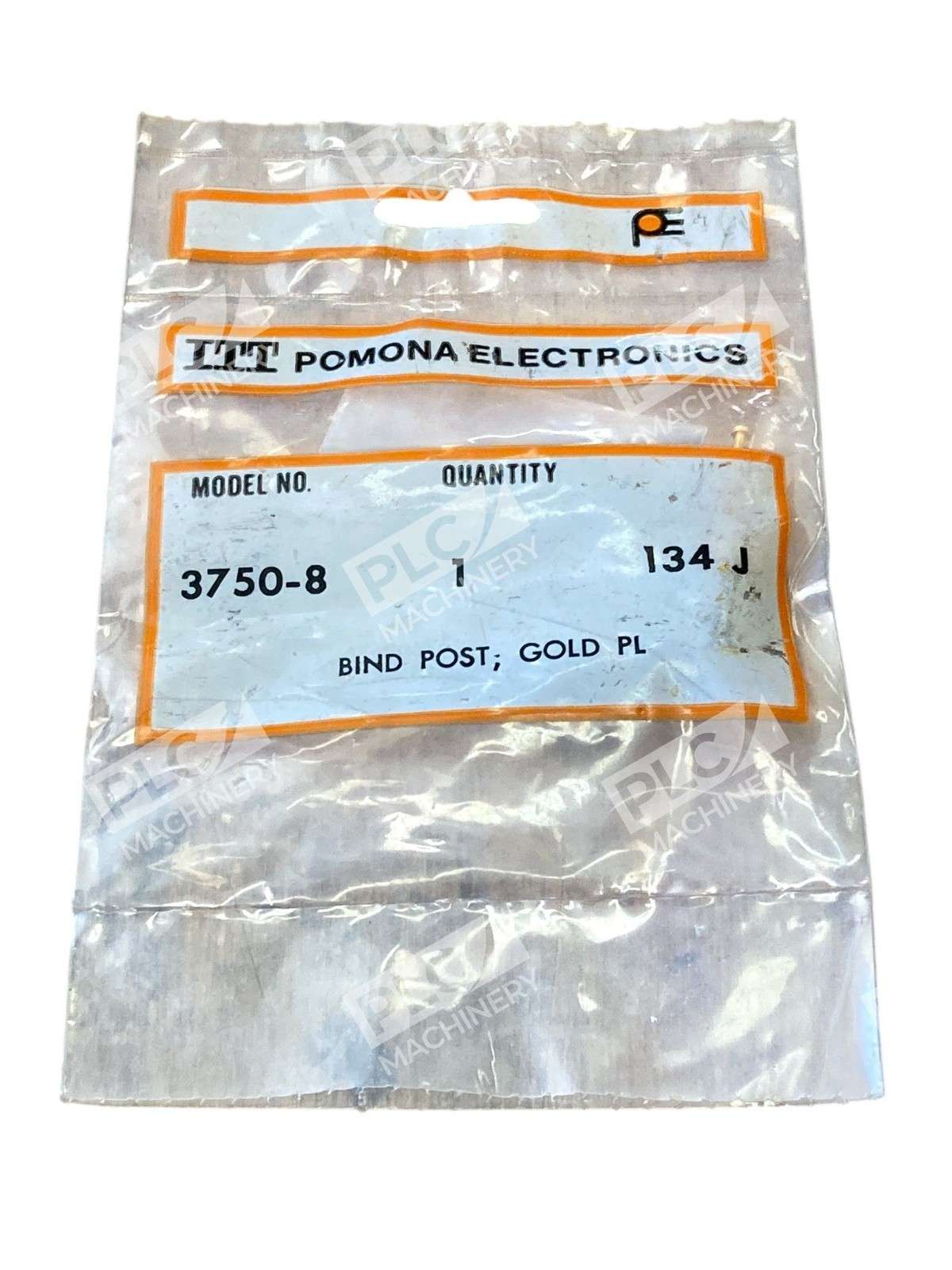

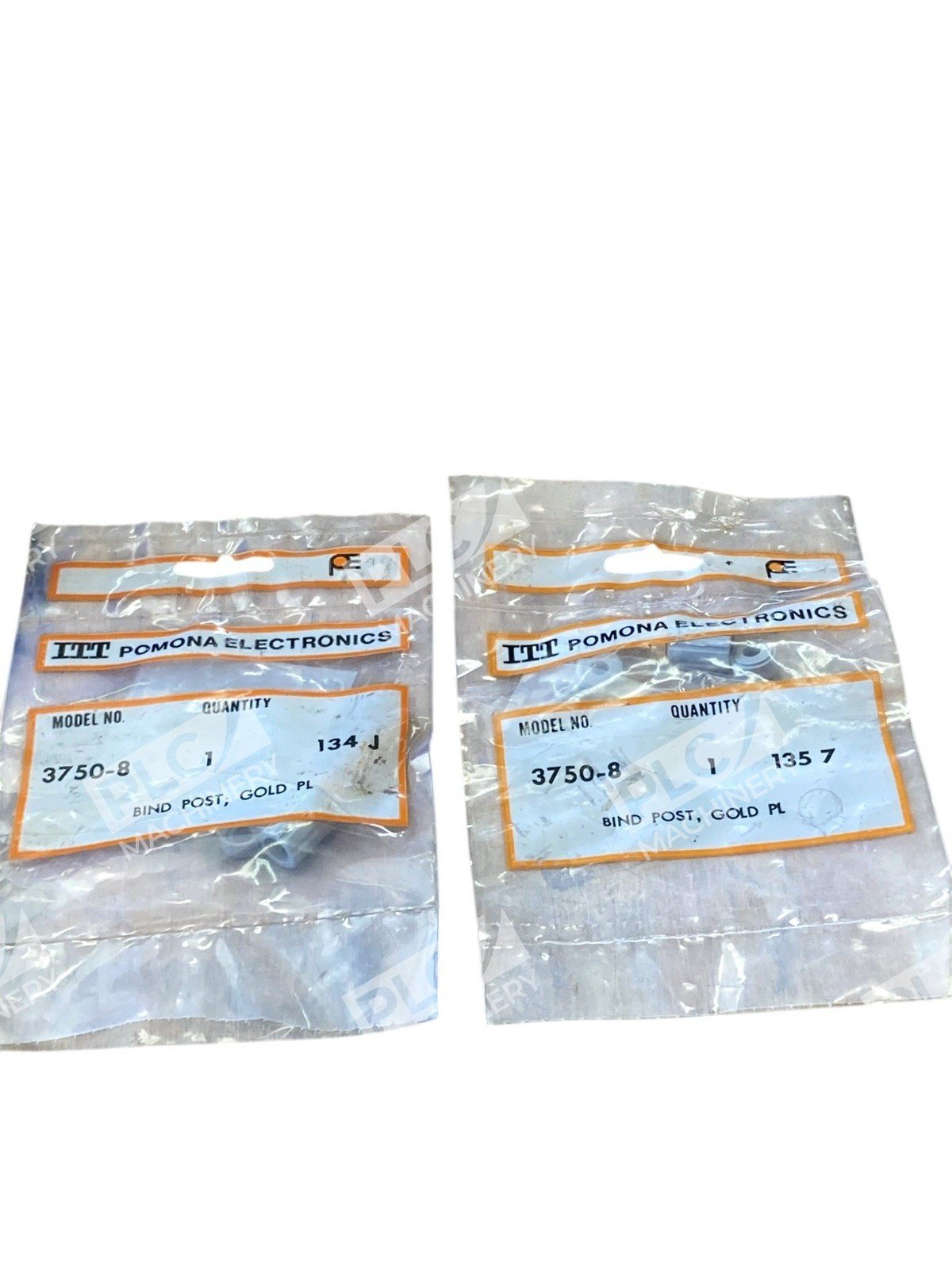

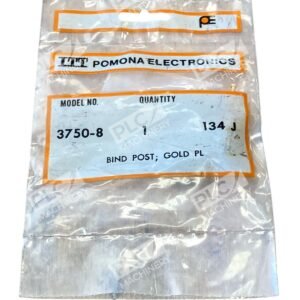

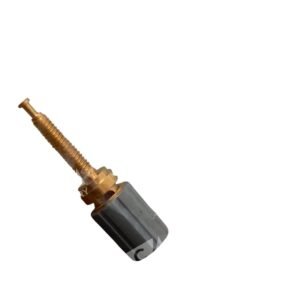

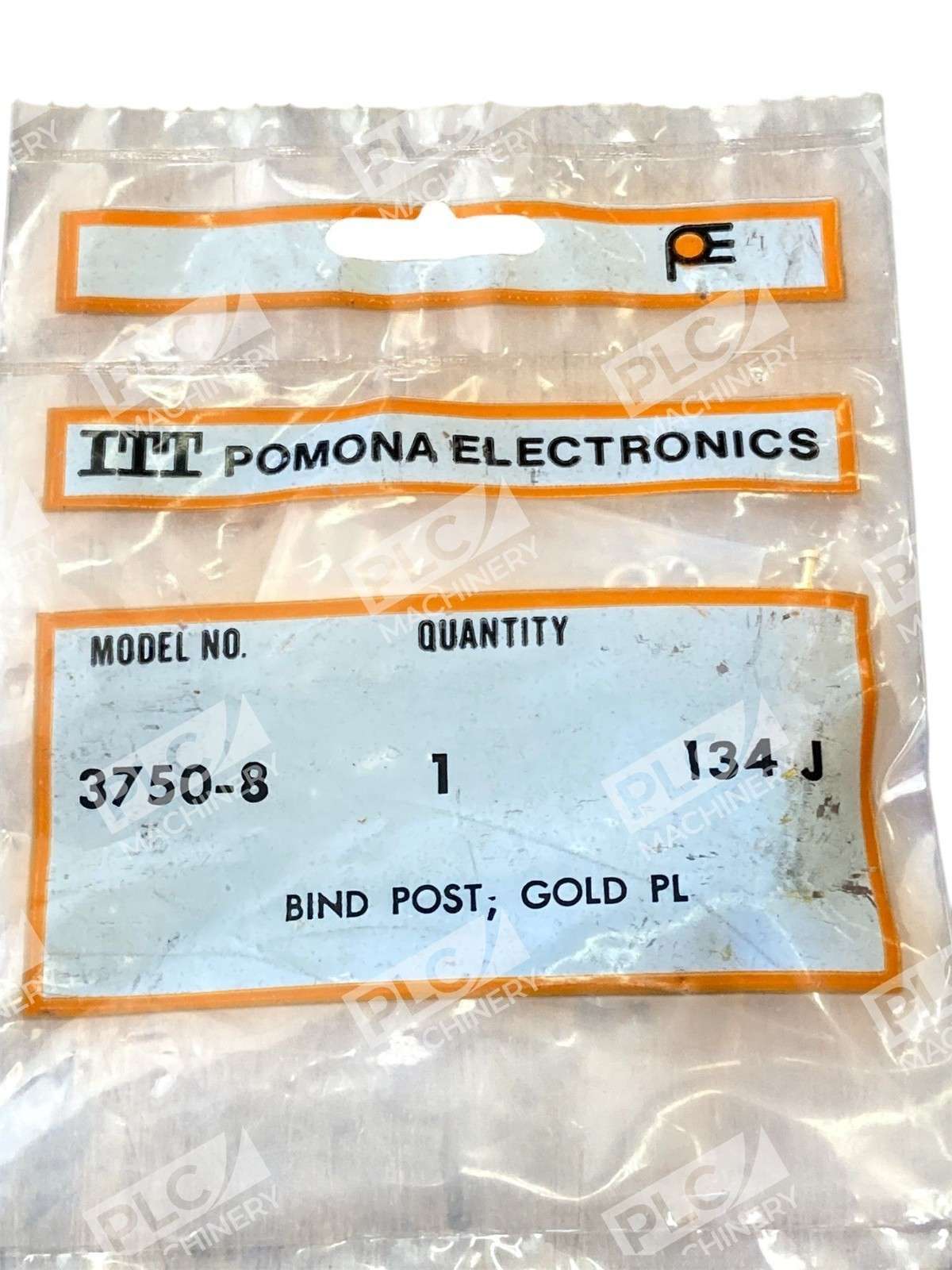

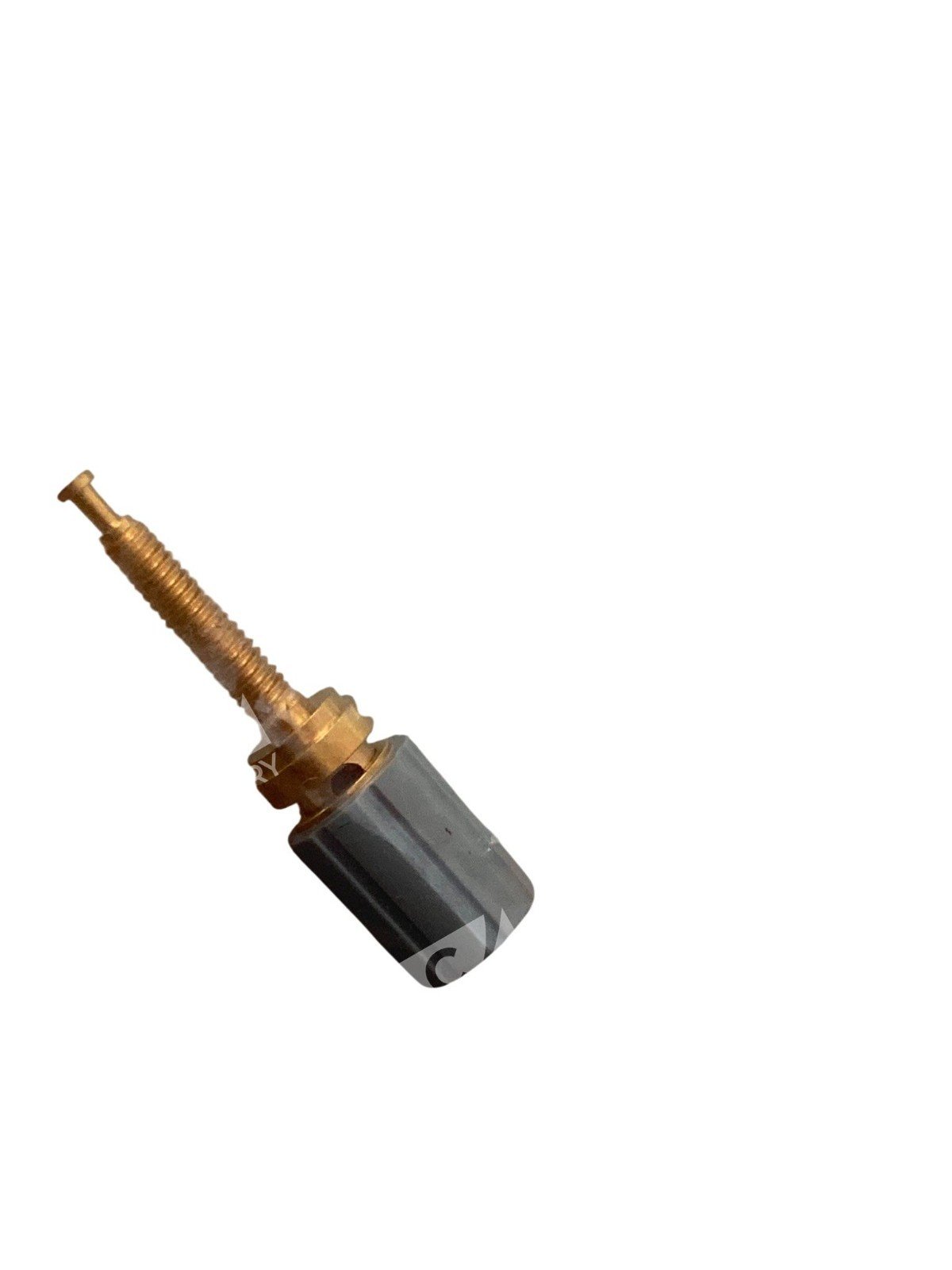

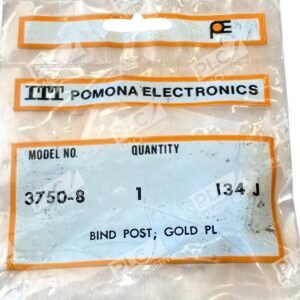

The ITT Pomona Electronics 3750-8 Binding Post is a high-quality connector designed for secure and reliable electrical connections. This lot includes two gray-colored binding posts, each featuring a gold-plated brass body that ensures excellent conductivity and resistance to corrosion.
Key Features
- Versatile Compatibility: Accepts standard banana plugs, wires, or spade lugs, providing flexibility for various connection needs.
- Panel Mount Design: Suitable for mounting in panels with thicknesses ranging from 0.070 inches to 0.250 inches (1.77mm to 6.35mm), facilitating easy integration into different setups.
- Durable Construction: Constructed with a gold-plated brass body and insulated with polycarbonate, offering durability and safety in electrical applications.
- High Electrical Ratings: Supports a maximum current of 15 amperes and an operating voltage of up to 2500 Vrms, making it suitable for a wide range of electrical tasks.
Specifications
- Color: Gray
- Material: Gold-plated brass with polycarbonate insulation
- Current Rating: 15 A
- Voltage Rating: 2500 Vrms maximum
- Panel Thickness Compatibility: 0.070″ to 0.250″ (1.77mm to 6.35mm)
- Operating Temperature: Up to 239°F (115°C)
These binding posts are ideal for applications requiring robust and reliable connections, such as in test equipment, audio devices, and various electronic projects. Their gold-plated finish not only enhances conductivity but also provides long-term resistance to wear and environmental factors.
