Overview

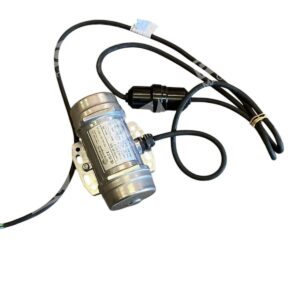

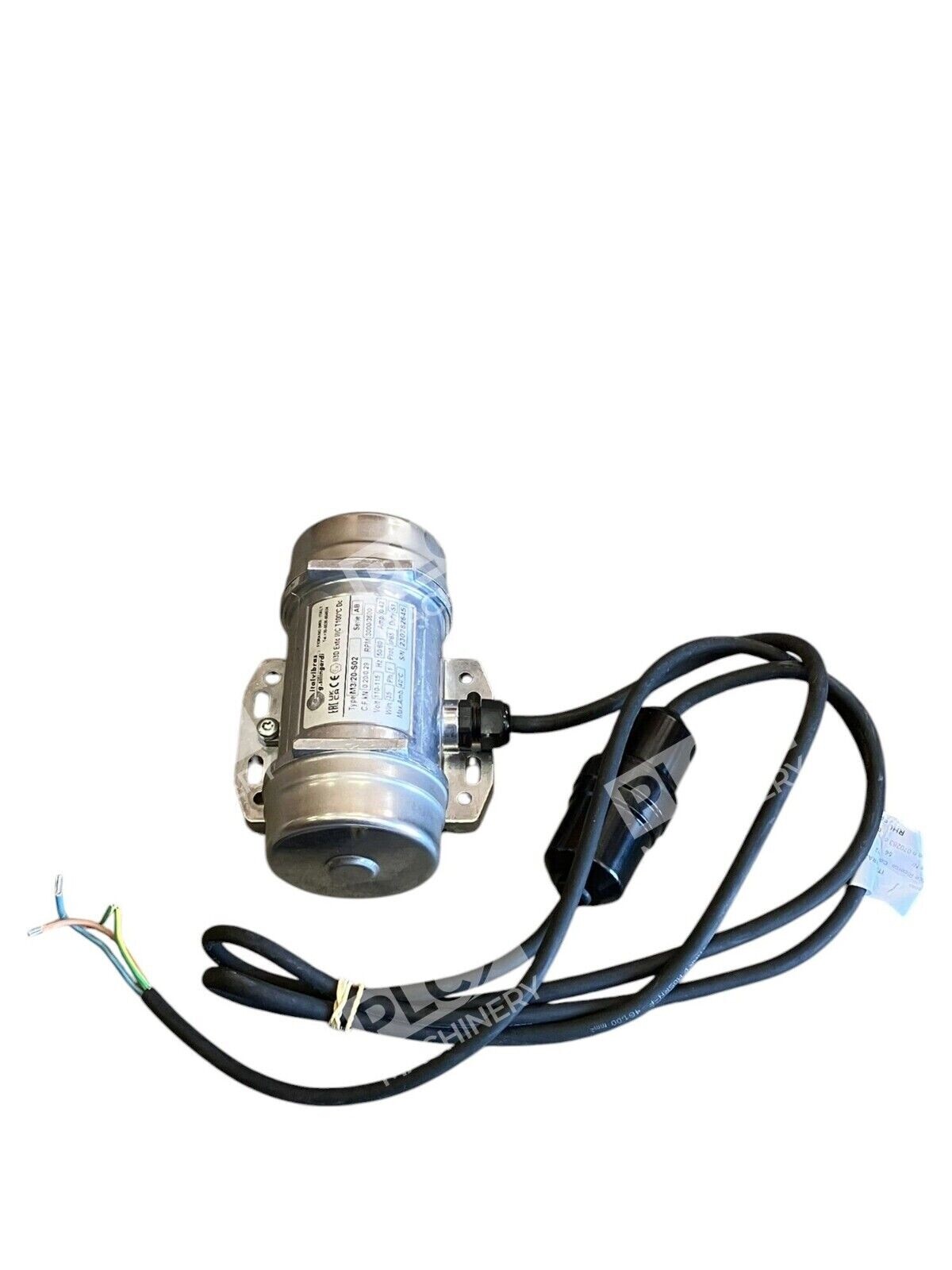

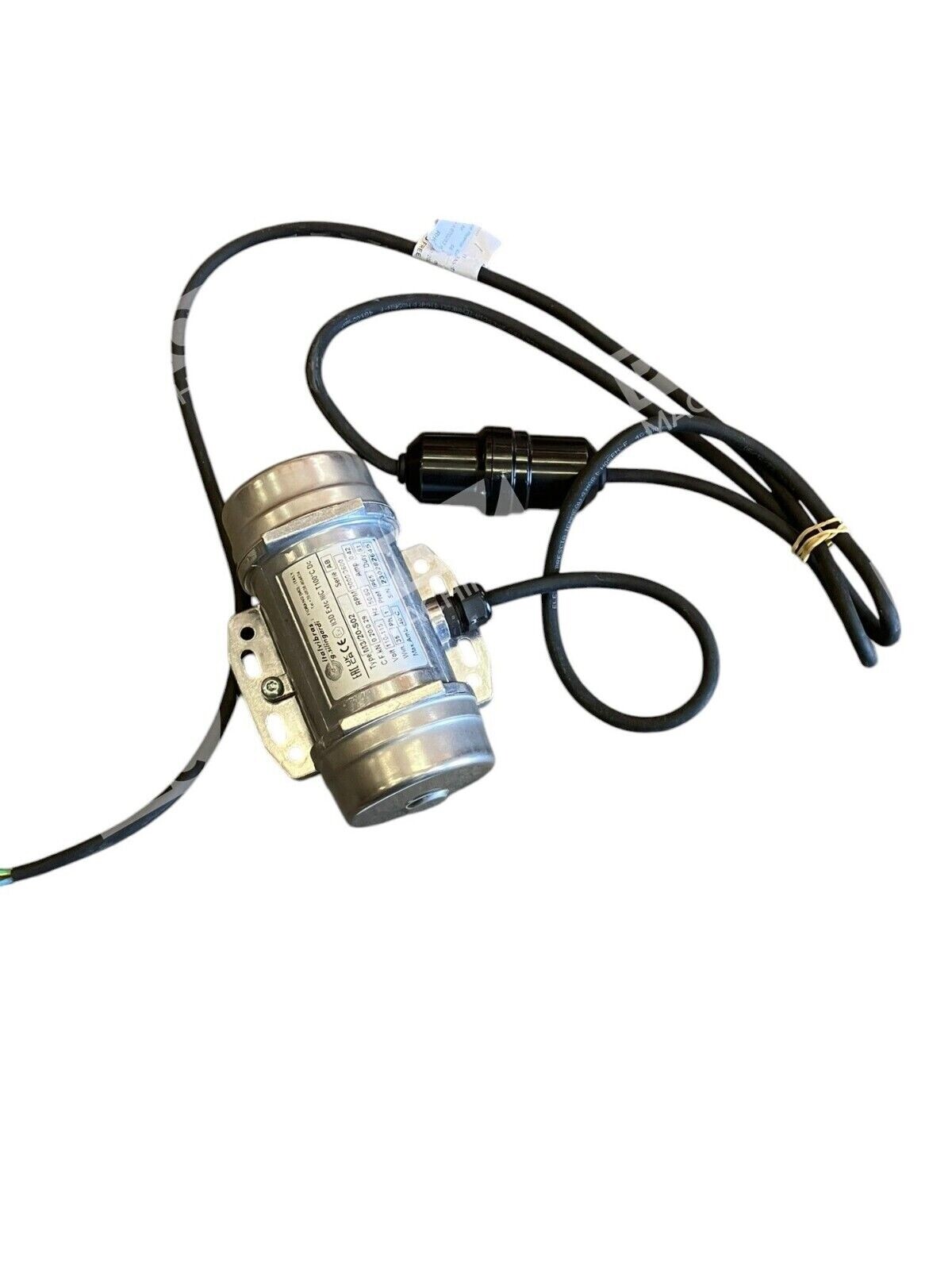

The Italvibras M3/20-S02 /AB is a foot-mounted micro electric vibrator engineered for continuous industrial duty where space and power constraints require a compact solution. The MICRO series has been designed for continual industrial service in processes where a reduced centrifugal force and reduced overall vibrator size are required. This Italian-made vibrator delivers consistent performance in demanding automation environments while maintaining a minimal installation footprint.
Key Features
- Foot-mounted micro vibrator with compact design and reduced overall dimensions
- Used in many applications in feeding, transport, screening, sizing, separation processes, and compaction in automatic machines
- Multi-holes mounting feet enable matching with several existing mounting plates
- Suitable for chemical, food, pharmaceutical, and packaging industries
- Continuous duty rated for S1 operating class
- Made in Italy with proven industrial reliability
Technical Specifications
- Centrifugal Force: 0.196 kN
- Power Consumption: 0.035 kW
- Weight: 1.97 kg
- Supply Voltage: Three-phase 380V standard (also available 24V–480V range, 50Hz/60Hz)
- Motor Type: Asynchronous (three-phase and single-phase available)
- Duty Class: Continual service (S1)
- Complies with Low Voltage Directive 2006/95/EC; ATEX Directive 2014/34/UE; EN/IEC 60034-1, EN/IEC 60079-0, EN/IEC 60079-31, UL 1004-1, CSA C22.2 No.100, NEMA MG-1
- Inverter Compatible: 20–60 Hz with constant torque load profile
Typical Applications
MICRO vibrators are used in numerous applications in feeding, transport, screening, sizing, separation processes, compaction in the automatic machines used in the chemical industry, food industry, pharmaceuticals, packaging and automation in general. The M3/20-S02 is ideal for compact equipment where standard vibrators are oversized or consume excessive power.
Compatibility & Replacements
Compatible With
- Three-phase 380V industrial power systems
- Single-phase 200–240V systems (with capacitor)
- VFD/inverter controlled systems (20–60 Hz)
- Foot-mount plates with multi-hole patterns
- European and North American electrical standards (UL, CSA, NEMA)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The M3/20-S02 is part of the Italvibras MICRO series; similar models in the compact range include M3/4 and M3/45 variants.
Works With
- Industrial automation control systems
- Soft-starters and variable frequency drives (VFDs)
- Capacitor-based single-phase power conditioning
- ATEX-compliant hazardous-area installations
