Overview

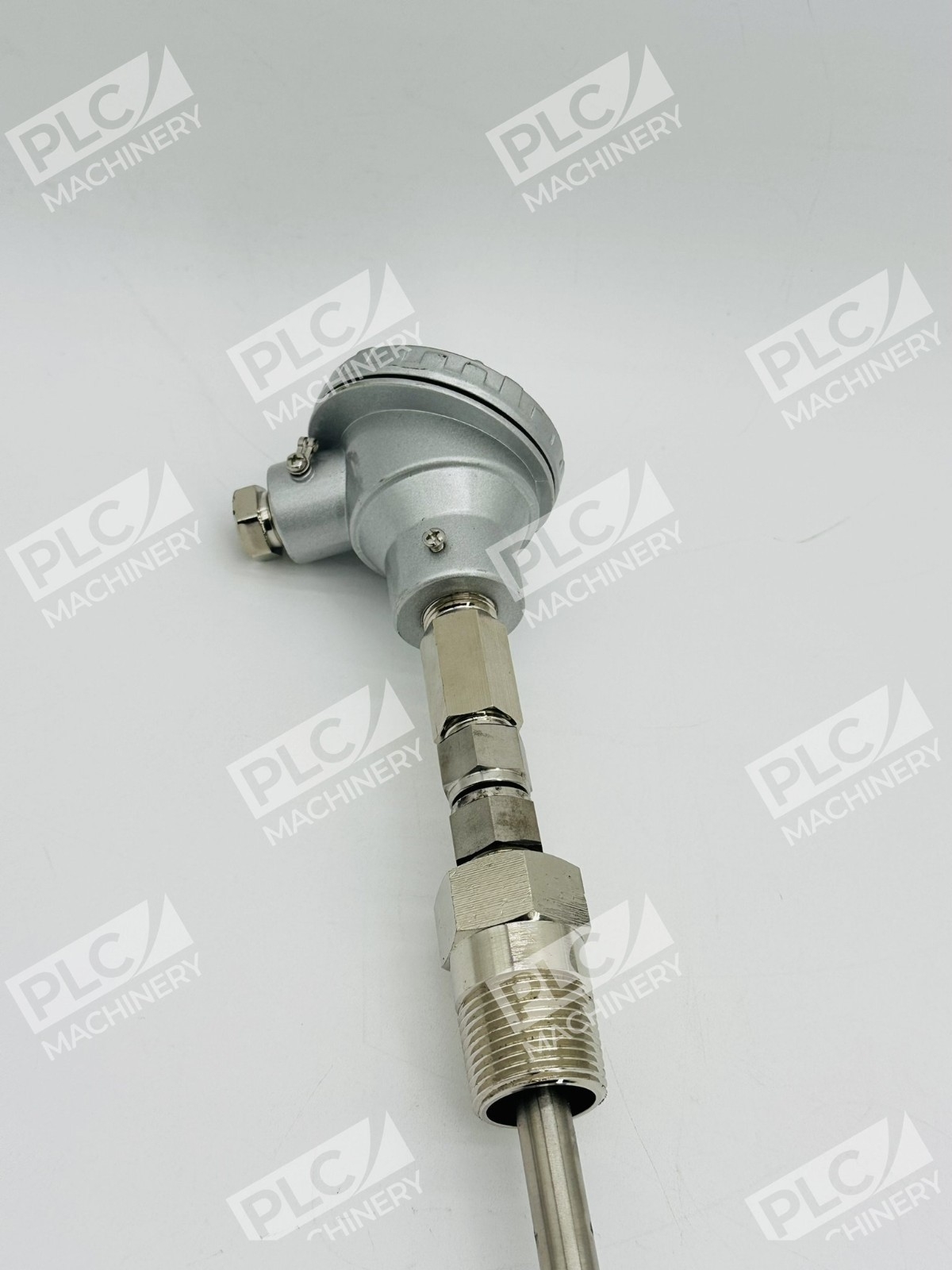

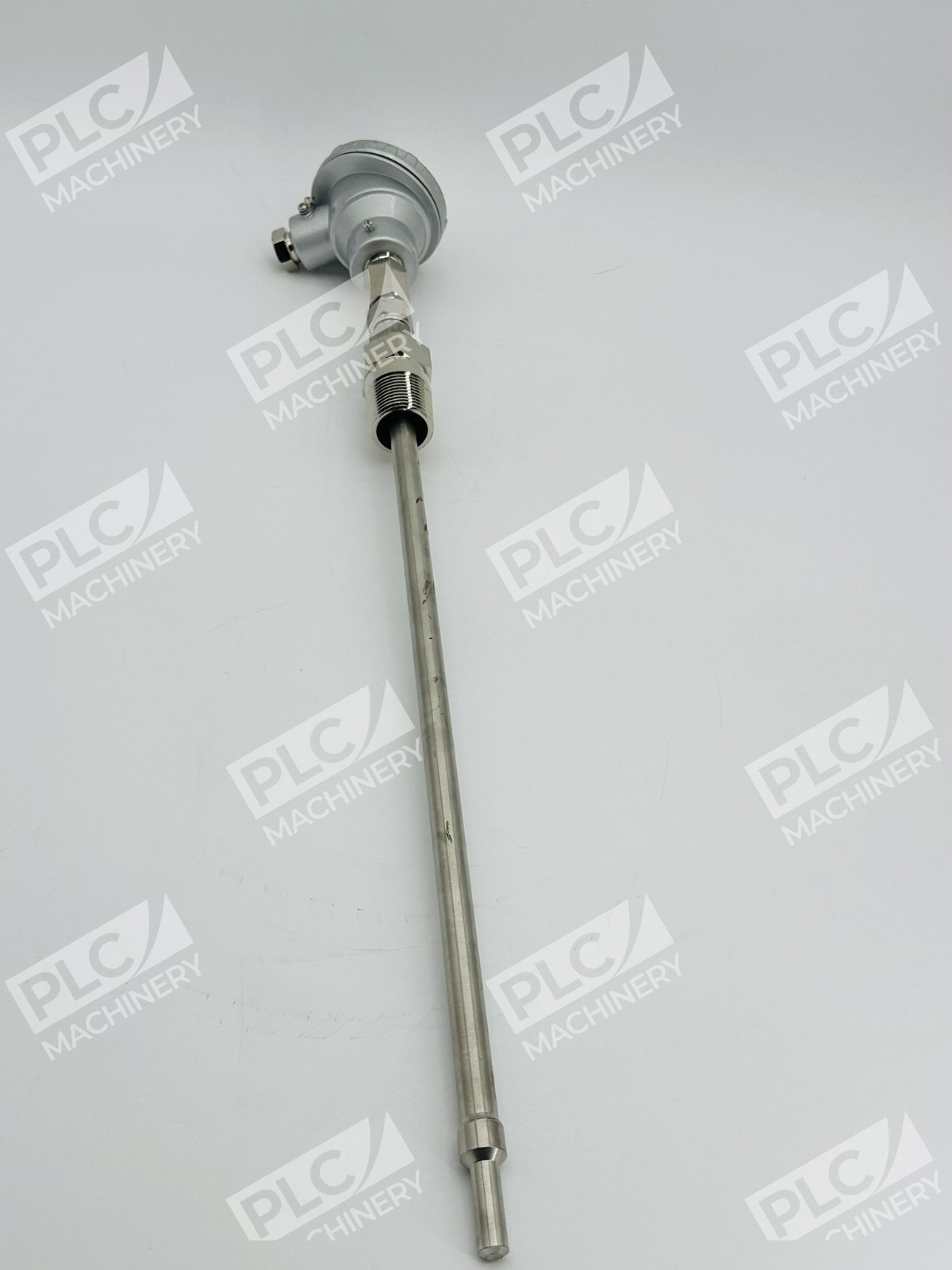

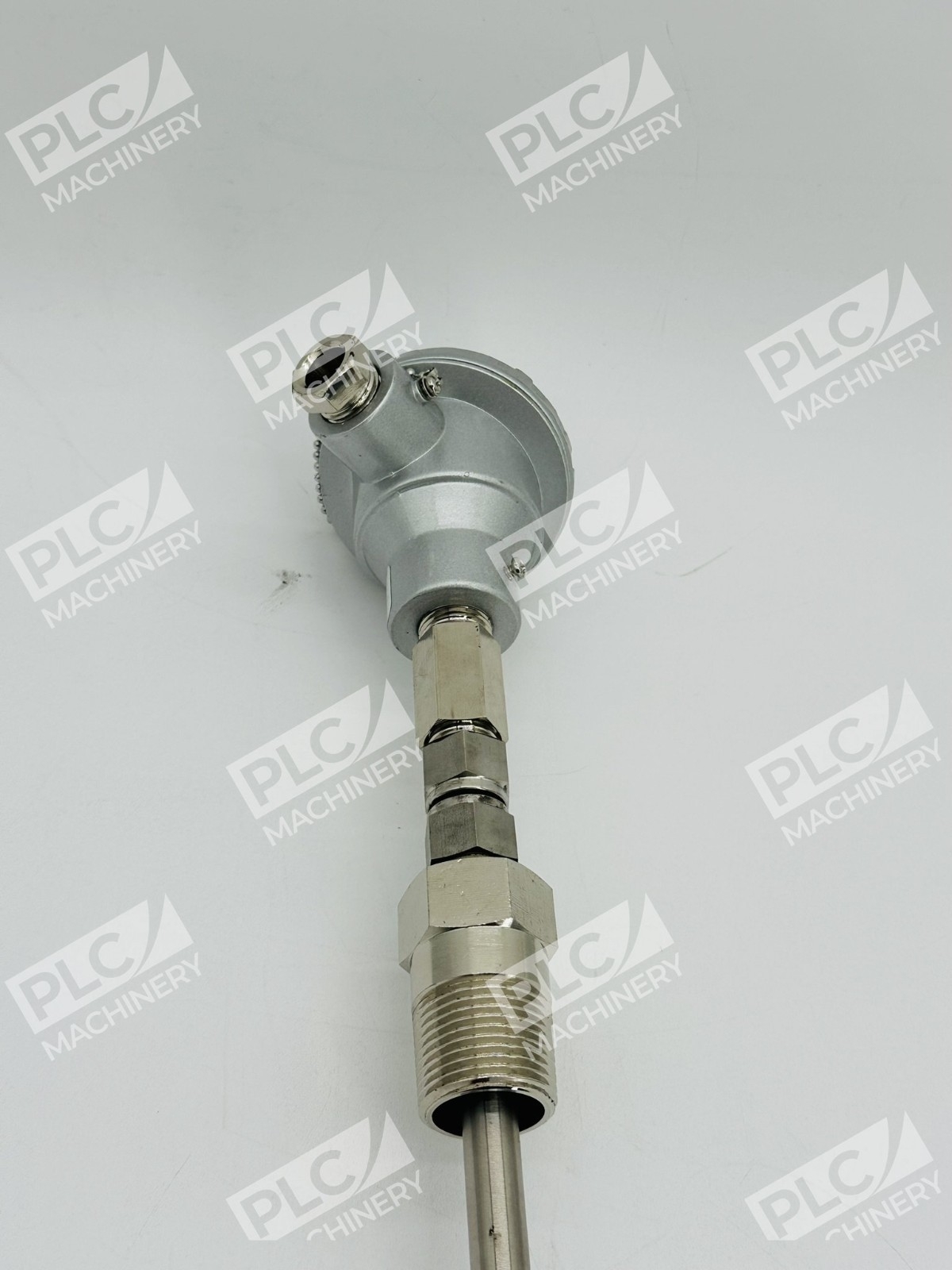

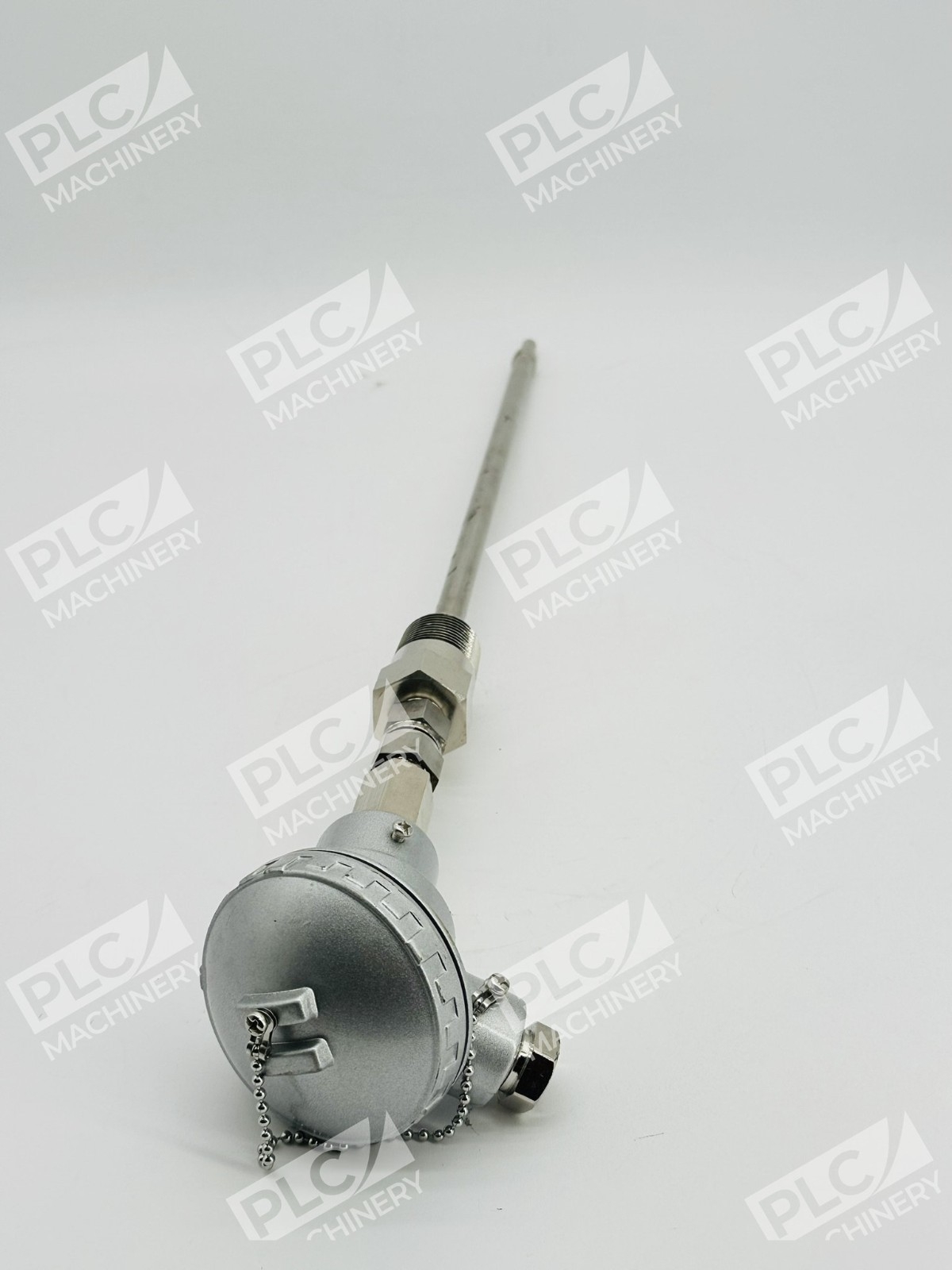

The Intempco R56-L-P-2-TB-D-S-200-H18-GN-HT-AC2-A is a spring loaded RTD (Resistance Temperature Detector) assembly engineered for precision temperature monitoring in industrial and process control systems. This model combines a thermowell-mounted RTD sensor with integrated hot-tap capability, allowing installation without process interruption. The sensor is designed to deliver consistent, accurate readings across a wide range of applications including HVAC systems, industrial process monitoring, and sanitary/pharmaceutical environments.
Key Features
- Spring loaded RTD assembly for reliable sensor contact and stable readings
- Hot-tap thermowell integration for live installation without shutdown
- 316 stainless steel construction for corrosion resistance and durability
- Field-proven accuracy suitable for process control and monitoring
- Modular design allows flexible configuration for various process requirements
Technical Specifications
- Series: R56 Spring Loaded RTD Assembly

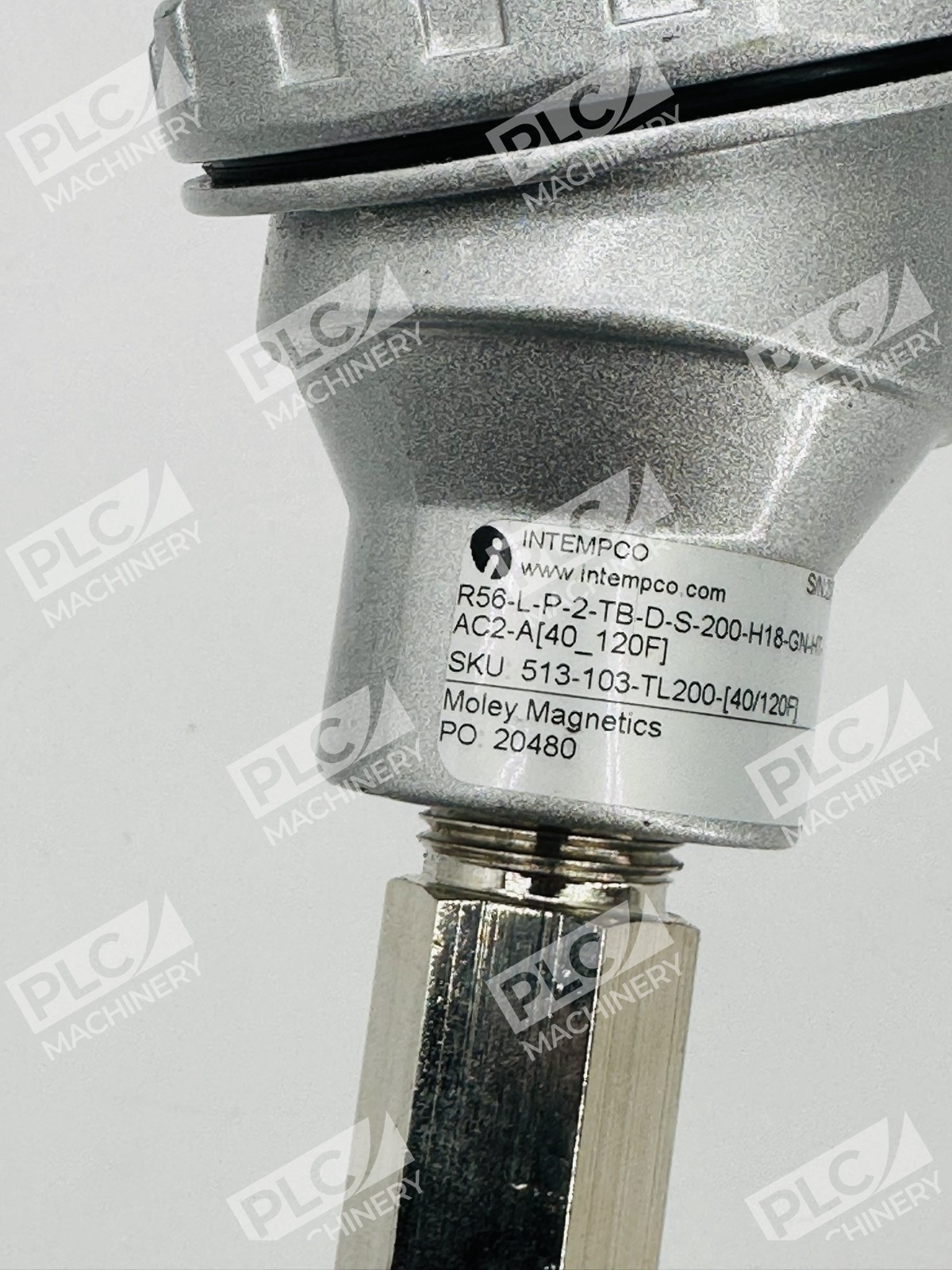

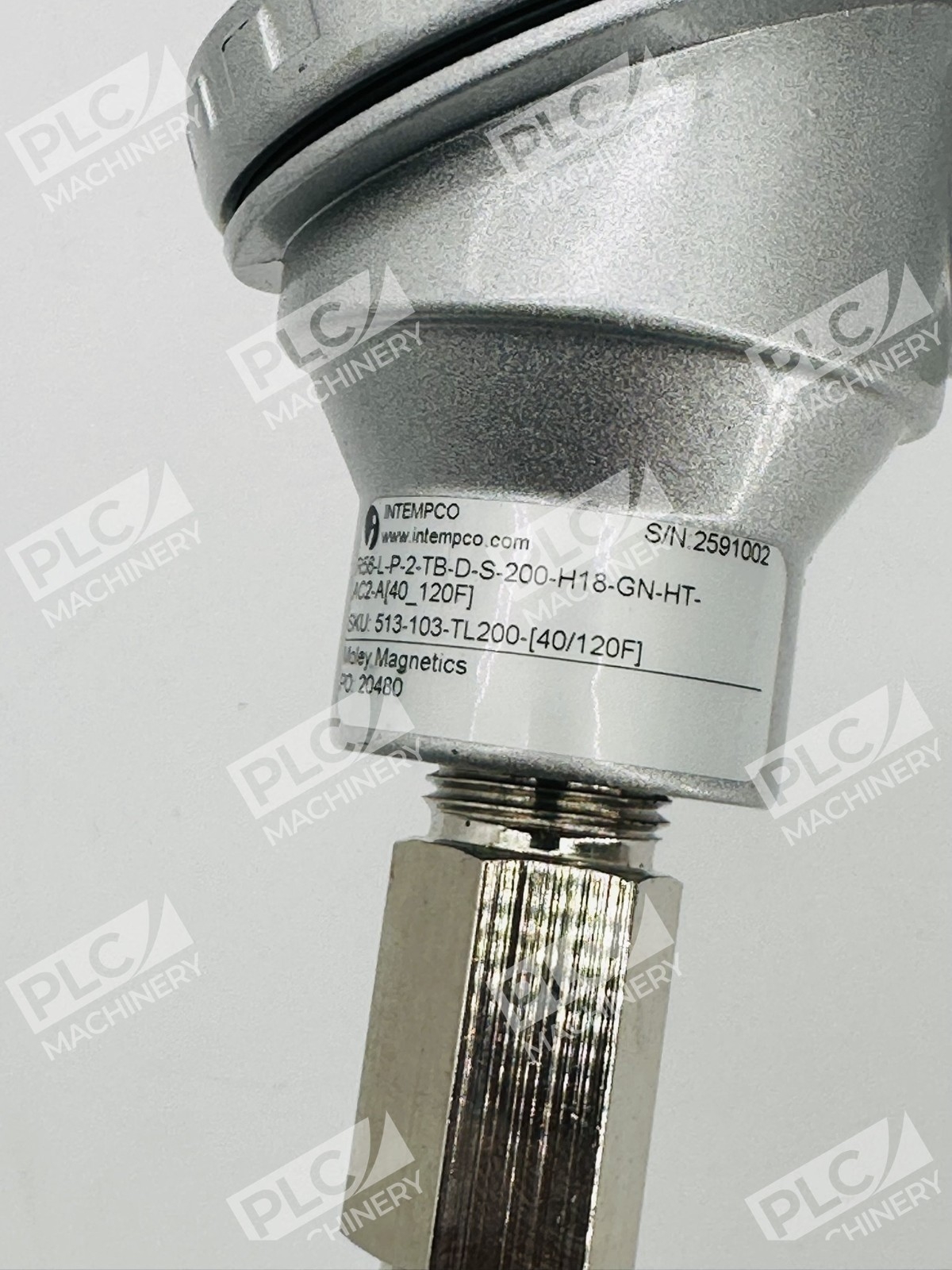

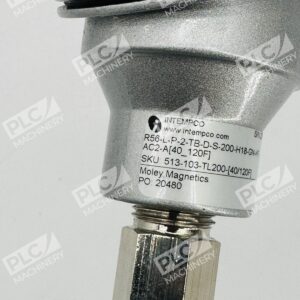

- Configuration: R56-L-P-2-TB-D-S-200-H18-GN-HT-AC2-A (Complete part designation)
- Thermowell Type: Hot-Tap (HT)
- Material: Stainless Steel 316 (GN designation)
- Sensor Type: RTD (Resistance Temperature Detector)
- Connection Head: AC2 Model
- Probe Diameter: 2 (standard sizing)
- Mounting Style: Direct thermowell mounting
Typical Applications
The Intempco R56 series is ideal for:
- HVAC and building automation temperature monitoring
- Industrial process control and feedback systems
- Sanitary/3-A compliant food and beverage processing
- Heat exchanger and chilled water system monitoring
- Pharmaceutical and medical equipment temperature control
- Hot water systems and differential temperature measurement
Compatibility & Replacements
Compatible With
- Industrial PLC and DCS systems accepting RTD inputs
- Standard RTD signal conditioning modules (2-wire, 3-wire, 4-wire)
- 4-20 mA transmitter systems
- HVAC building management systems
- Legacy and modern process control architectures
Replaces / Drop-In Replacement For
For specific replacement compatibility, verify the probe length, thermowell connection type, and RTD element specification with your system integrator or contact Intempco directly at [email protected].
Works With
- RTD temperature transmitters and signal conditioners
- Rockwell Automation analog input modules
- Siemens S7 and S7-1200/1500 RTD input modules
- Omron temperature control systems
- Mitsubishi FX and iQ-F series RTD inputs
- Standard 4-20 mA process control networks
- Modbus and industrial Ethernet RTD gateway systems
