Overview

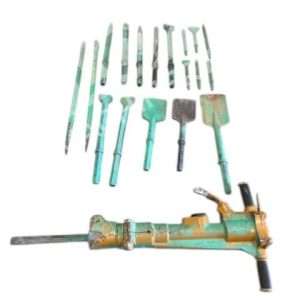

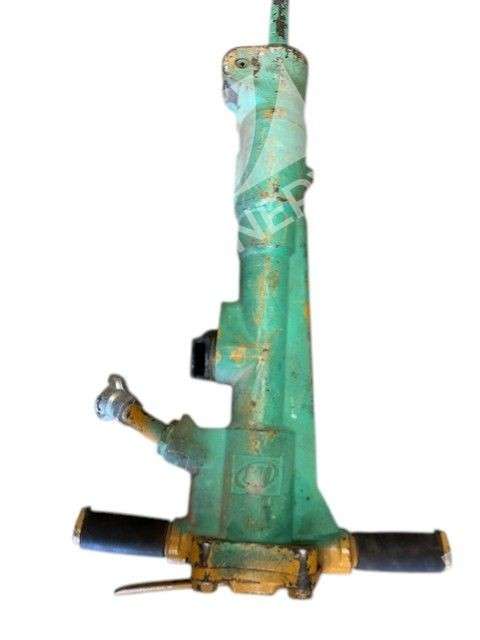

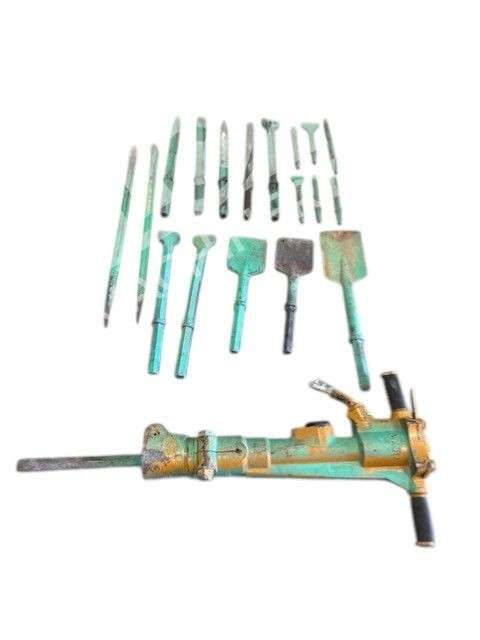

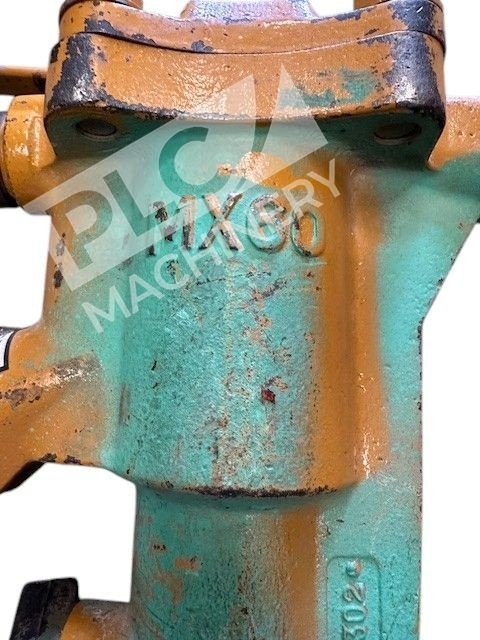

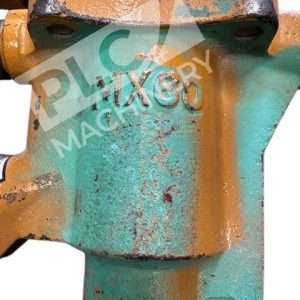

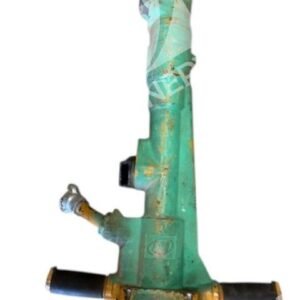

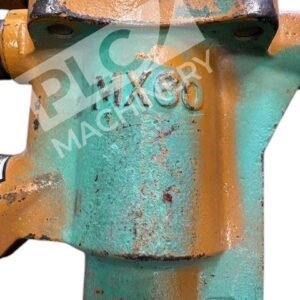

The Ingersoll Rand MX60 pneumatic pavement breaker is a versatile, high-impact demolition tool designed for professionals tackling concrete breaking, asphalt removal, utility work, and heavy construction. The MX60 and MX90 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. Built on Ingersoll Rand’s proven pneumatic platform, the MX60 delivers reliable impact force and durability across demanding jobsites.
Key Features
- Delivers exceptional breaking performance, generating a powerful 1250 blows per minute (BPM)
- Directional exhaust prevents blowback, and with one of the fewest parts in the industry, the MX Series is easier and less complex to service
- Power-stroke piston which delivers more power to the work surface and eliminates a costly wear item, the anvil block
- Composite valve eliminates rusting

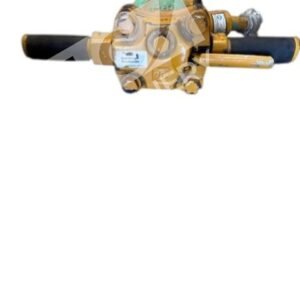

- Available in standard handle or vibration-reduced Flex-Handle variants
- Built around a larger 1-1/8″ × 6″ hex shank, this pavement breaker offers superior bit retention and compatibility with a wide range of heavy-duty chisels and bits
Technical Specifications
- Bore Diameter: 2.06 inches
- Stroke Length: 5.75 inches
- Blows Per Minute (BPM): 1250
- Air Consumption (at Load): 70 CFM

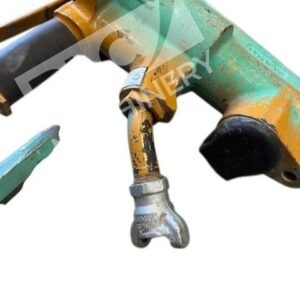

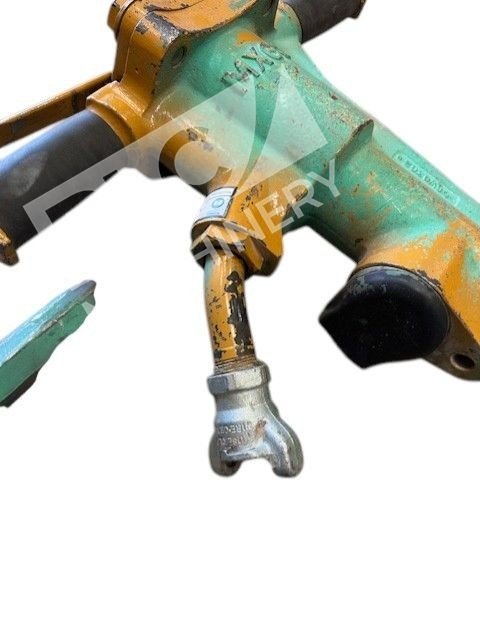

- Air Inlet: 3/4-inch NPT
- Minimum Hose Size: 3/4-inch
- Length (without accessories): 27.5 inches
- Power Source: Pneumatic (compressed air)
Typical Applications
The MX60 and MX90 pavement breakers are ideal for various heavy-duty tasks, including demolition, asphalt removal, and industrial maintenance. Common uses include concrete foundation breaking, pavement removal, roadwork, bridge demolition, trenching operations, and general site preparation on construction and infrastructure projects.
Compatibility & Replacements
Compatible With
- Standard pneumatic compressor systems with 3/4-inch NPT connection

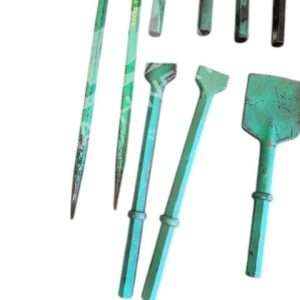

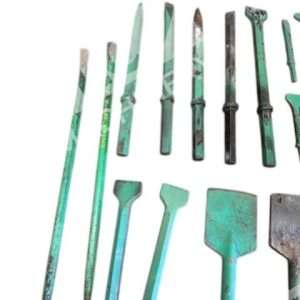

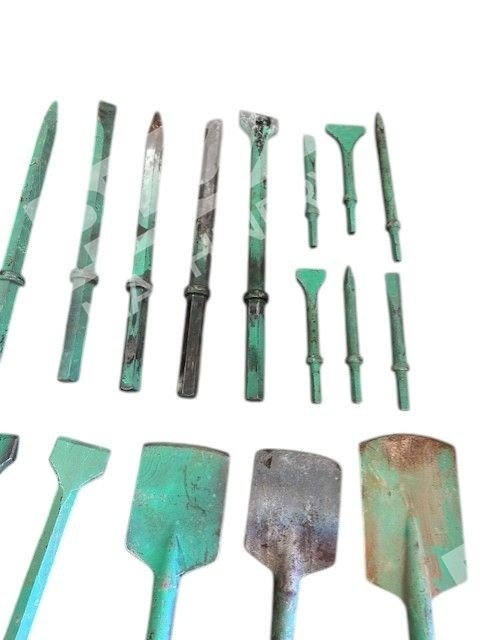

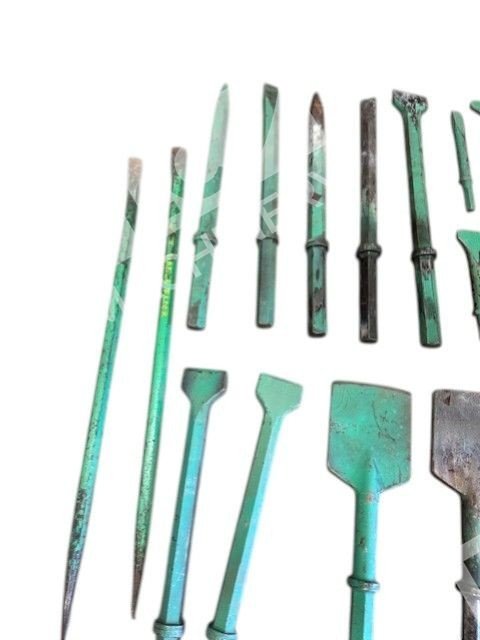

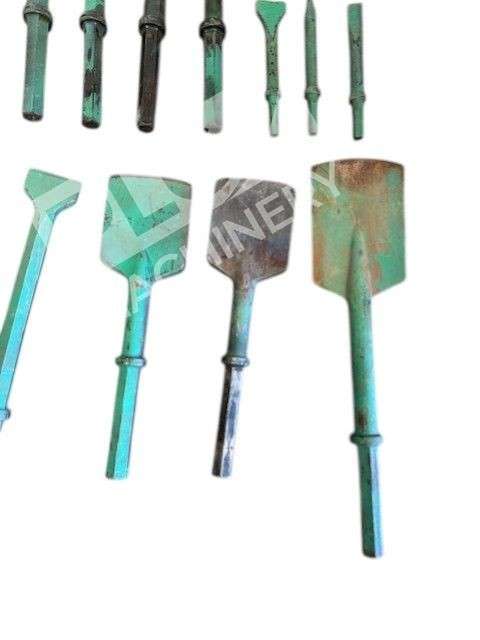

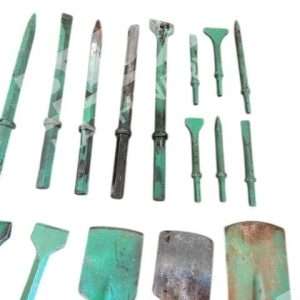

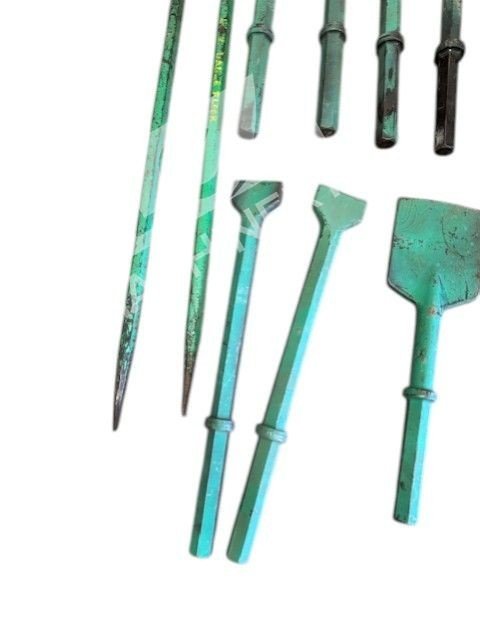

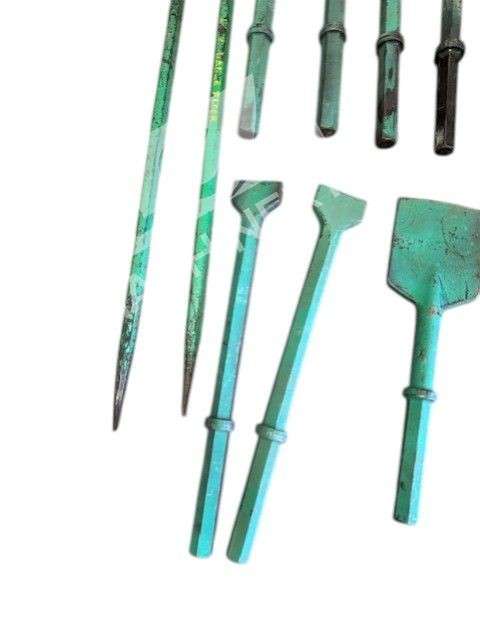

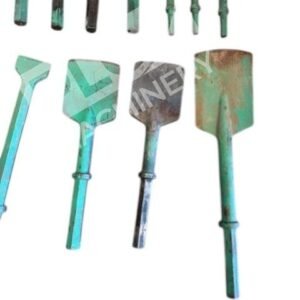

- Industry-standard 1-1/8-inch hex shank demolition bits and chisels
- Heavy-duty pneumatic hose rated for 90+ psi
- Professional construction and demolition equipment inventories
Replaces / Drop-In Replacement For
- Ingersoll Rand MX60A (standard 1-1/8″ × 6″ hex shank configuration)
- Earlier-generation pavement breakers in the lightweight-to-medium class
- Older pneumatic breakers with comparable bore and stroke specifications
Works With
- Universal 1-1/8-inch hex shank attachment system
- Pneumatic power supply systems (rotary vane or reciprocating compressors)
- Industry-standard quick-disconnect couplers
- Field-replaceable composite valve cartridges (no side rod or spring assemblies required)
