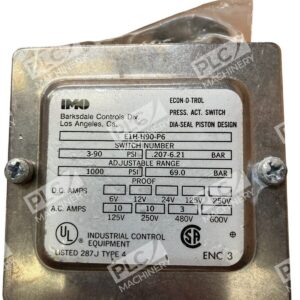

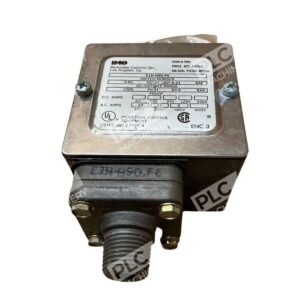

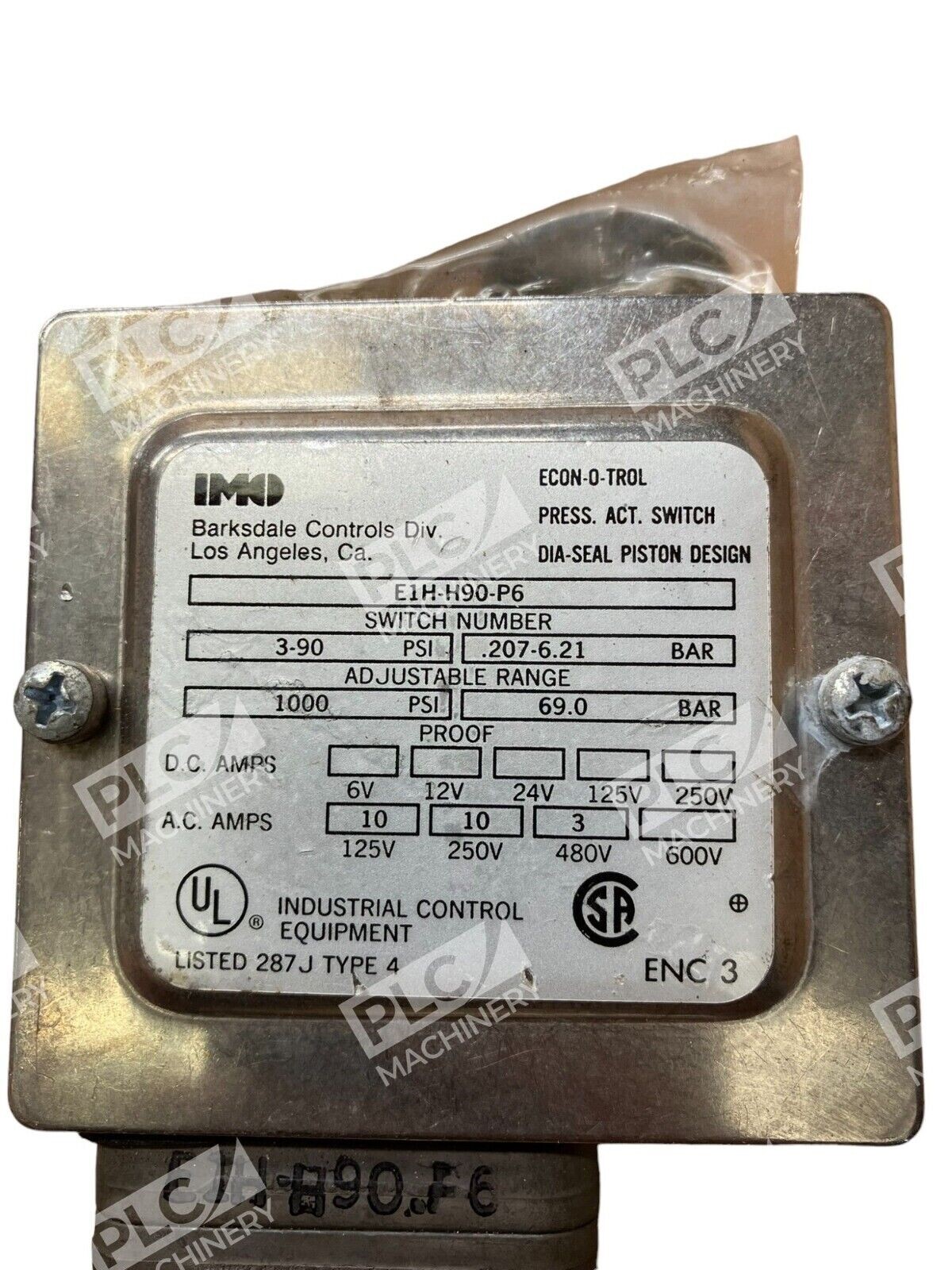

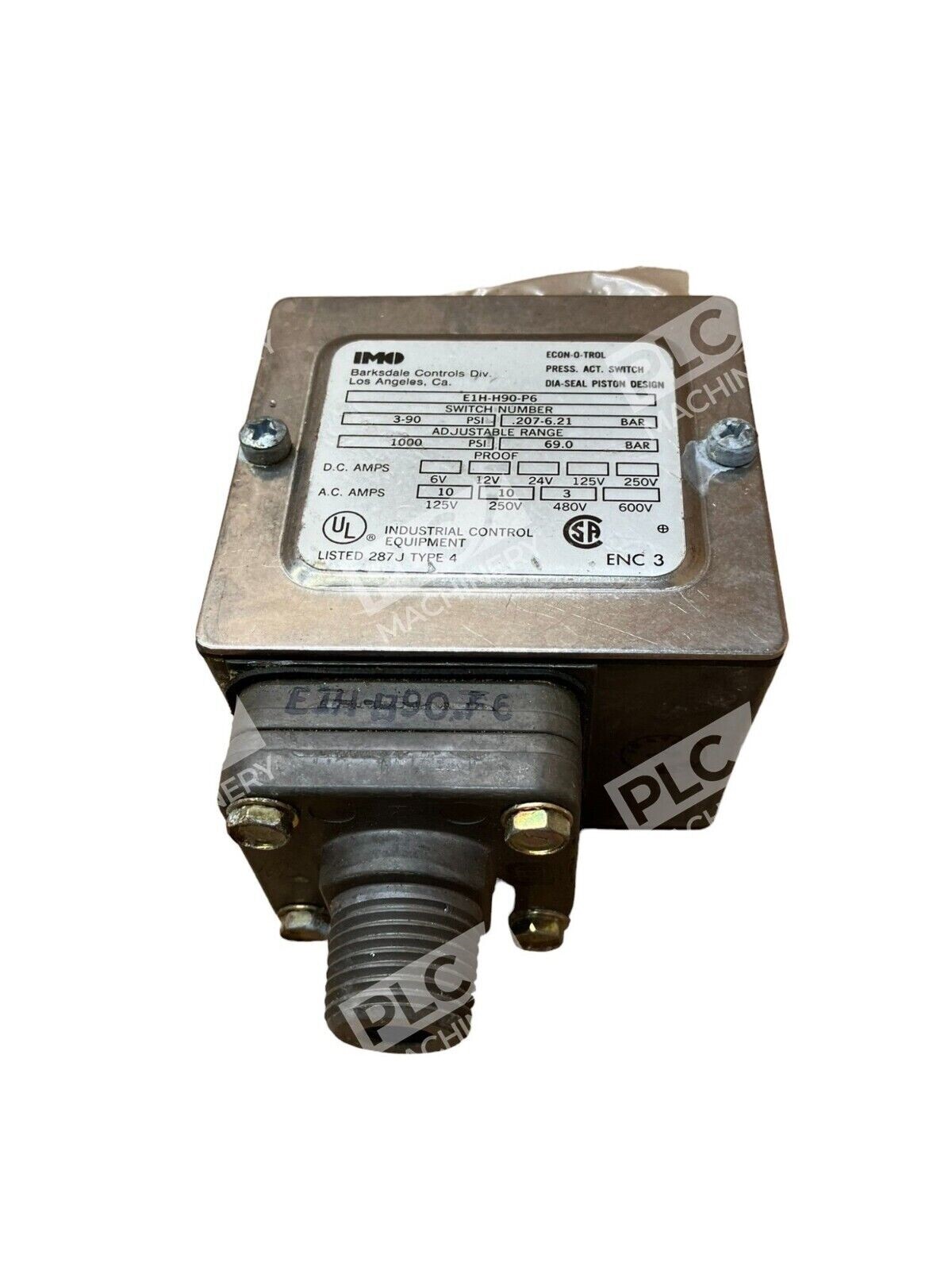

Barksdale E1H-H90-P6 Pressure Switch

The Barksdale E1H-H90-P6 is a robust and reliable pressure switch designed to deliver precise pressure monitoring and control in various industrial applications. Its compact design and durable construction make it an ideal choice for environments where space is limited and performance is critical.

Key Features

• Adjustable Pressure Range: Capable of measuring and controlling pressures from 3 to 90 psi, accommodating a wide range of operational requirements.
• High Accuracy: Maintains an accuracy of ±2% of the adjustable range, ensuring consistent and reliable performance.
• Durable Construction: Features an anodized aluminum enclosure, providing resistance to corrosion and enhancing longevity.
• Versatile Electrical Ratings: Equipped with a single pole double throw (SPDT) snap-action switch rated at 10 amps for 125/250 VAC and 3 amps for 480 VAC, suitable for various electrical systems.
• Easy Installation: Designed with 1/8″ internal and 1/2″ external NPT pressure connections, facilitating straightforward integration into existing systems.
• Environmental Protection: Enclosure meets NEMA 4 standards, offering protection against dust and water ingress, suitable for demanding industrial environments.

Applications

The E1H-H90-P6 pressure switch is well-suited for a variety of industrial applications, including:

• Medical equipment
• Pump and compressor monitoring
• Air proving in HVAC systems
• Irrigation systems
• Engine monitoring
• Machine tools
• General industrial applications
• Metal working
• Food and beverage processing

Specifications

• Accuracy: ±2% of the adjustable range

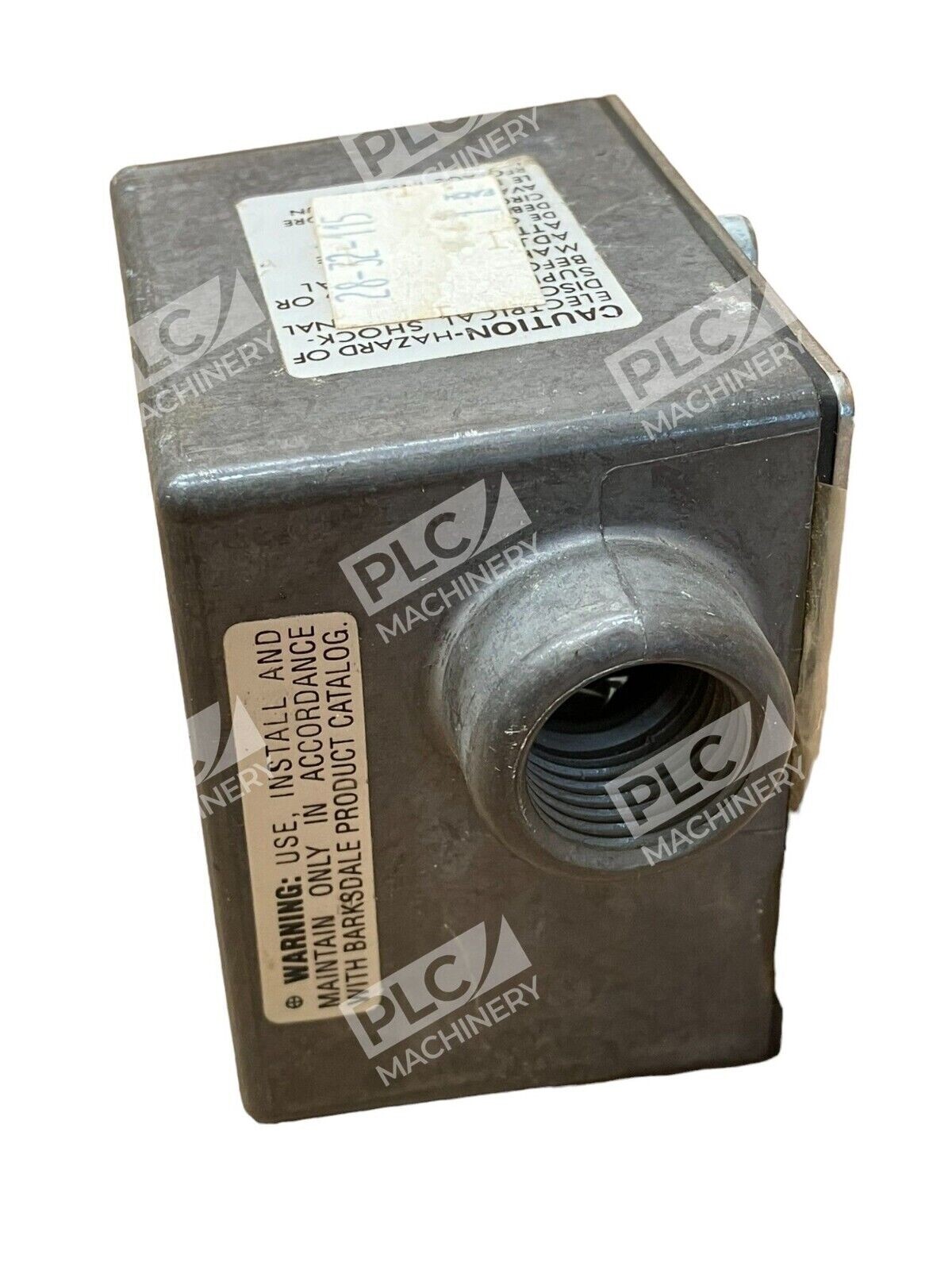

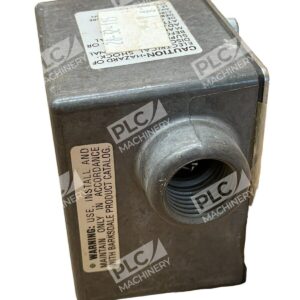

• Electrical Connection: Screw terminals via 1/2″ NPT female conduit connection

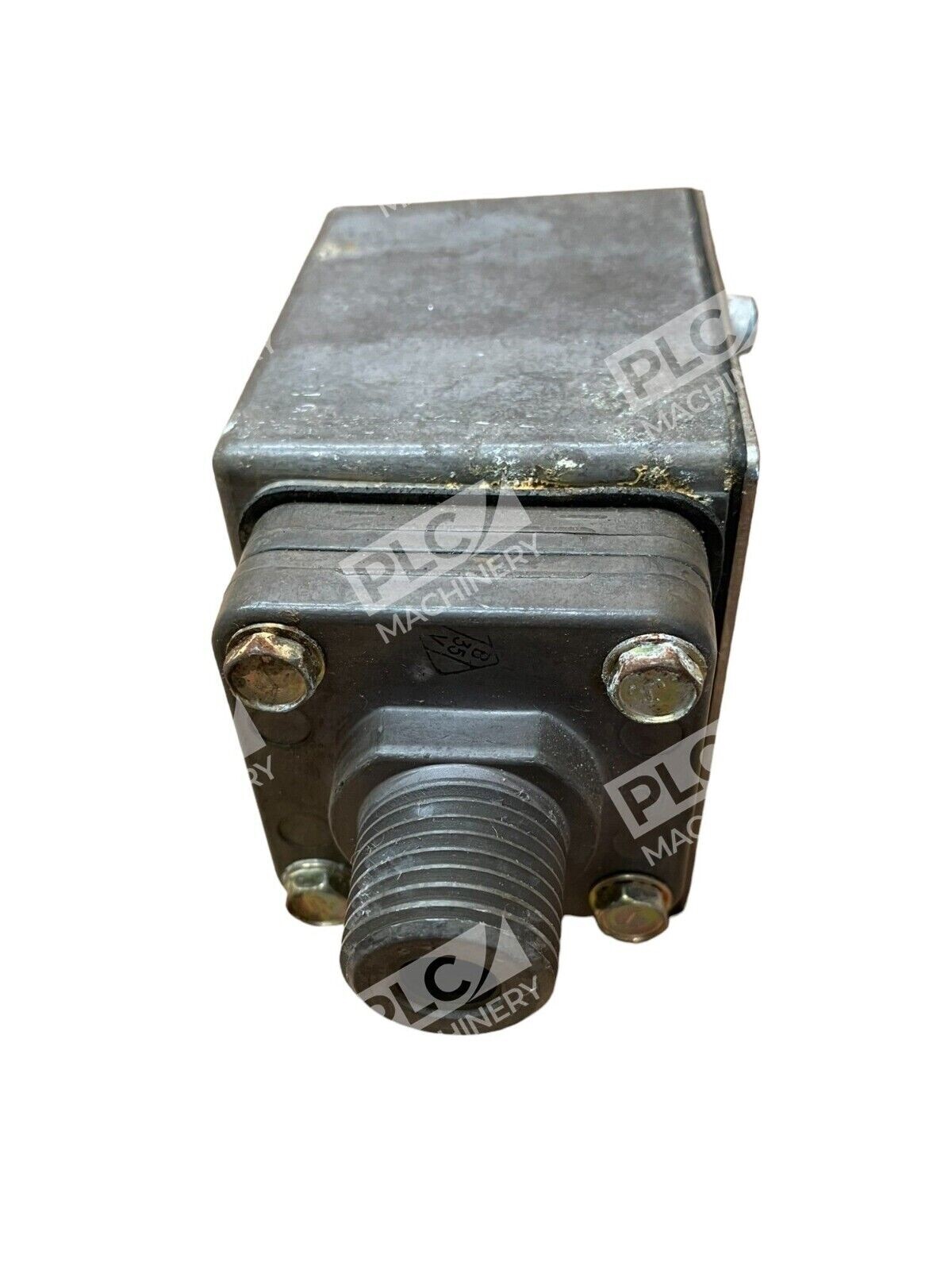

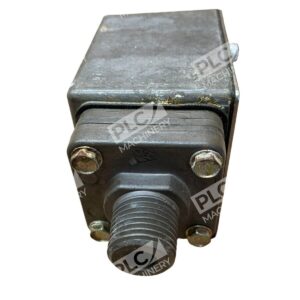

• Pressure Connection: 1/8″ internal and 1/2″ external NPT
• Switch Type: SPDT snap-action; single circuit
• Switch Rating: 10 amps at 125/250 VAC; 3 amps at 480 VAC
• Wetted Parts: Anodized aluminum
• Enclosure: Anodized aluminum
• O-Rings: Buna-N

The Barksdale E1H-H90-P6 pressure switch combines precision, durability, and versatility, making it an excellent choice for industries requiring reliable pressure monitoring and control solutions.
