Overview

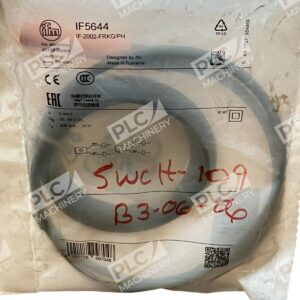

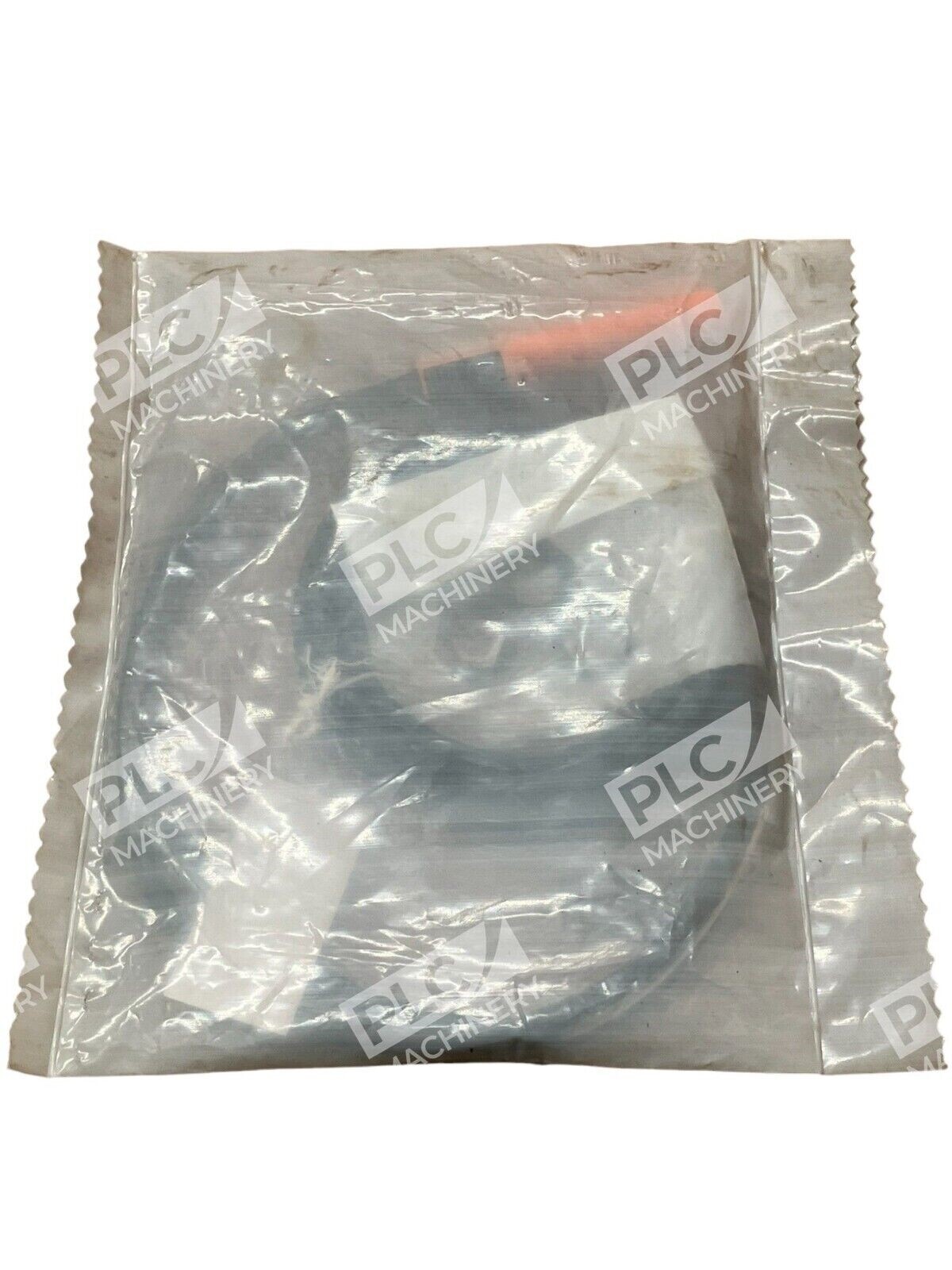

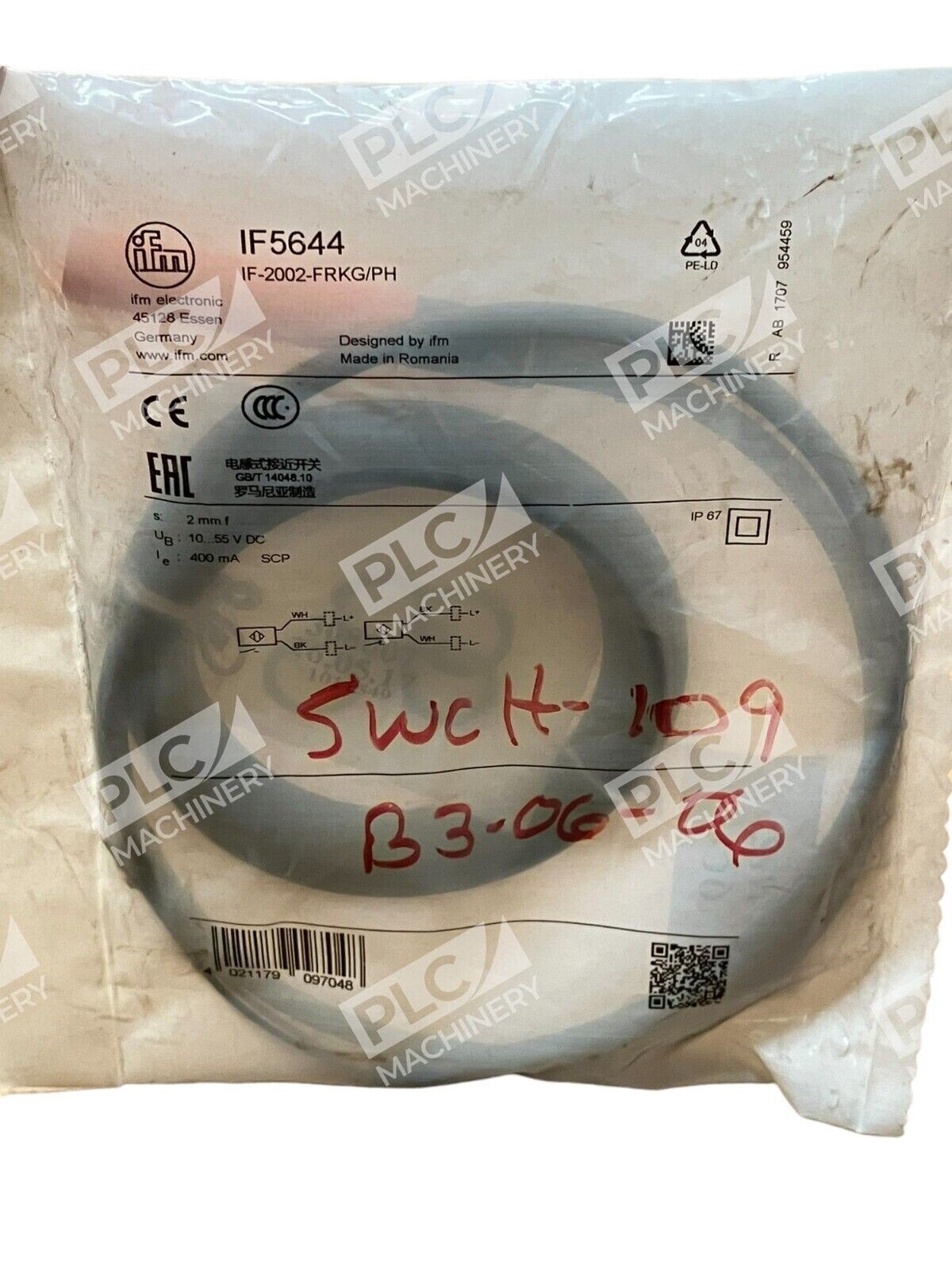

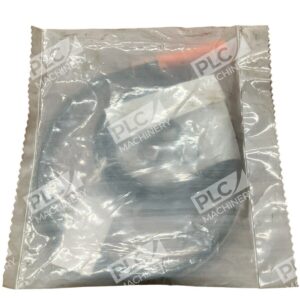

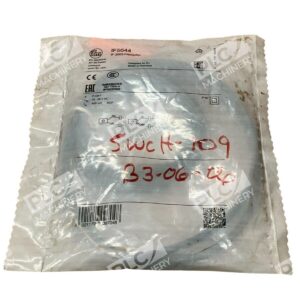

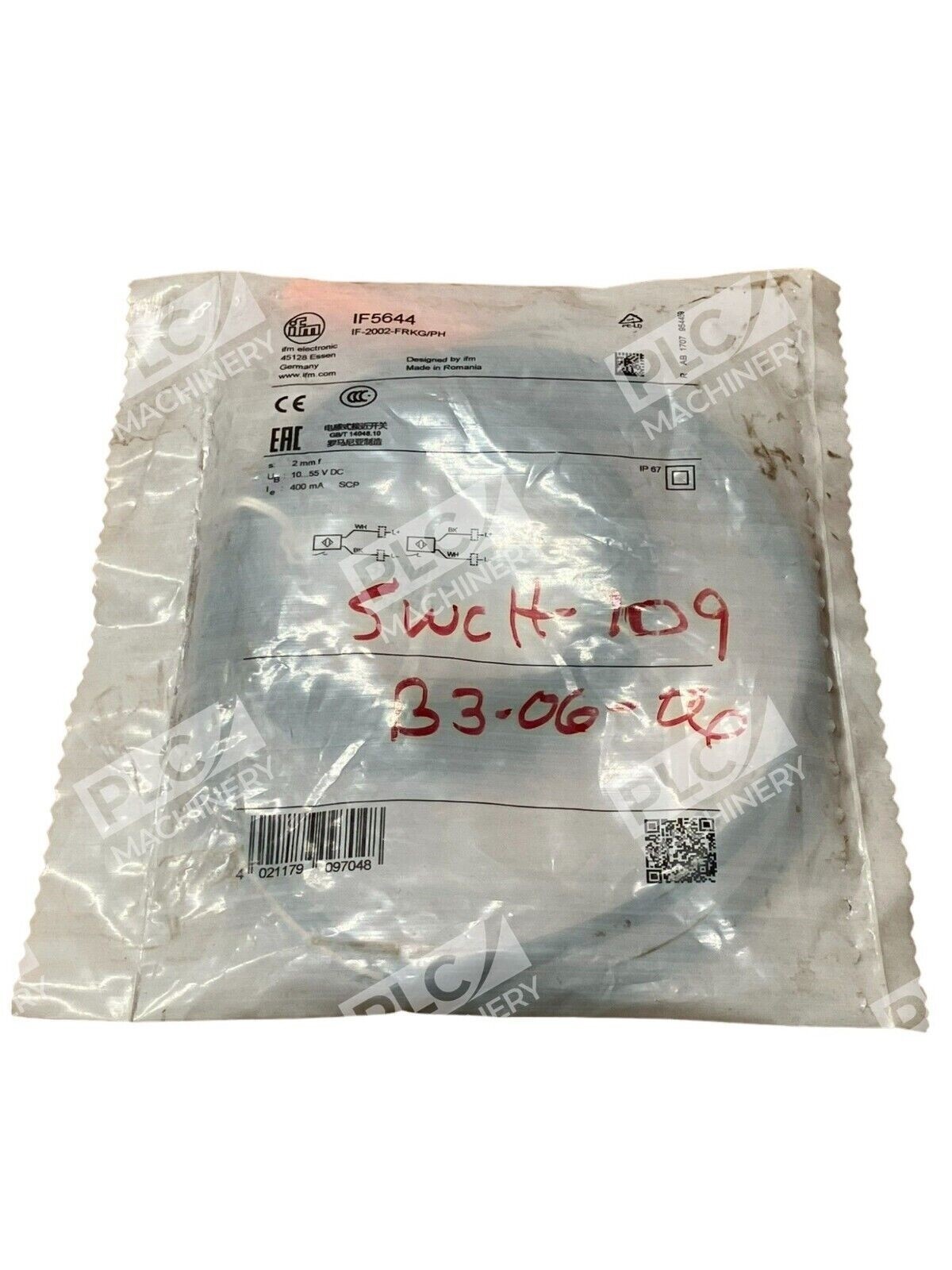

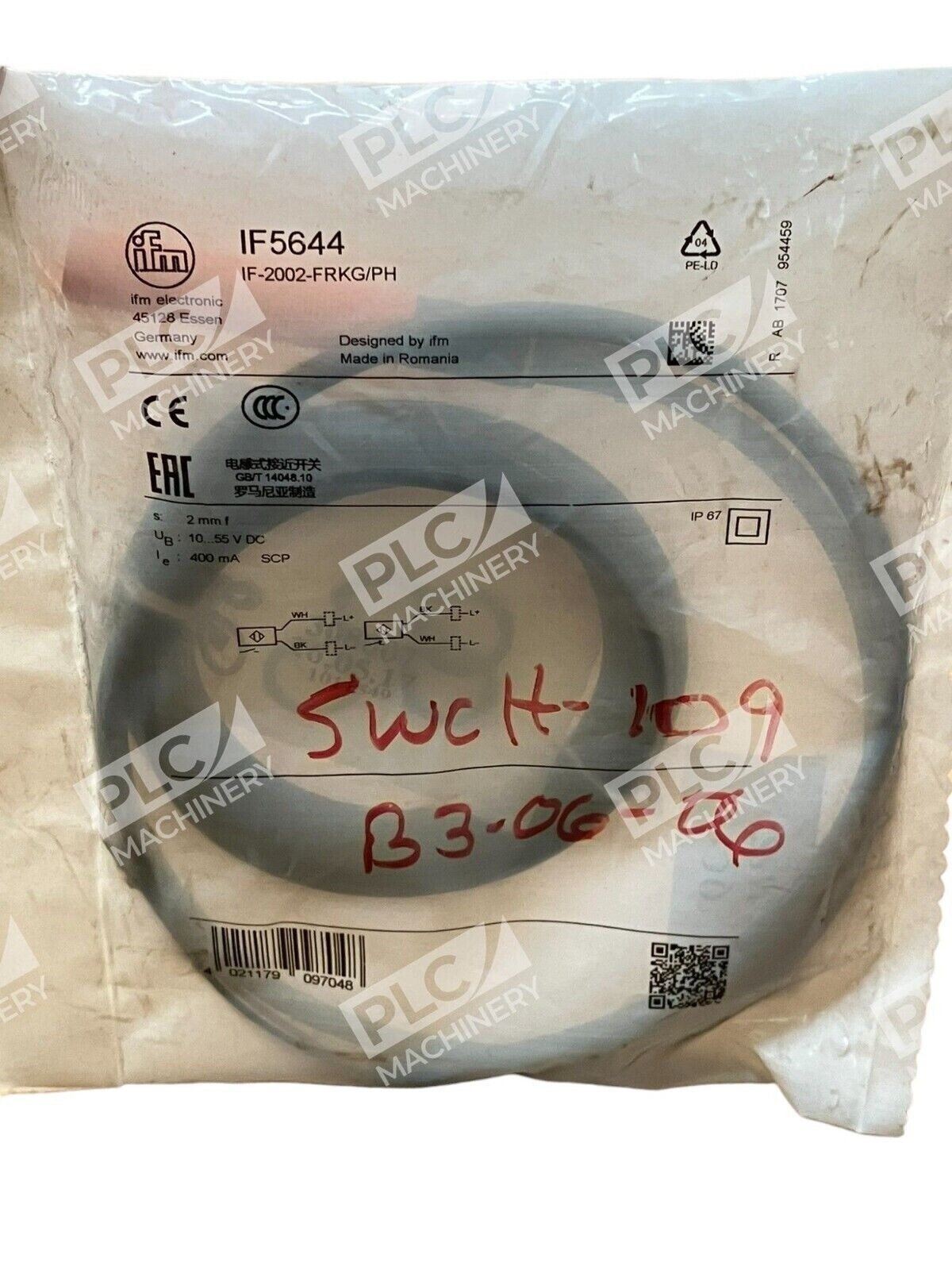

The IFM IF-2002-FRKG/PH is a rectangular inductive sensor from IFM’s EFECTOR line, engineered for reliable position detection in industrial automation. This IFM IF-2002-FRKG/PH inductive sensor delivers precision switching in compact form, making it ideal for machinery positioning, part detection, and material handling applications. With a 2 mm flush-mountable sensing range and selectable output logic, it integrates seamlessly into existing control systems.
Key Features
- 2 mm Flush-Mount Sensing Range — Detects ferrous metal objects without physical contact; flush installation minimizes mechanical damage risk
- Selectable PNP/NPN Output — Normally open or normally closed configuration supports diverse control architectures
- IP67 Protection Rating — Sealed against dust and moisture for harsh industrial environments
- High Switching Frequency — 2000 Hz switching capability enables responsive position monitoring and fast detection cycles
- 2 M Shielded Cable — PVC or PUR jacket for flexible routing and cable management
- DC Operating Voltage — 10–36 V DC supply accommodates standard industrial power systems
Technical Specifications
Key specifications for the IFM IF-2002-FRKG/PH sensor:
- Housing Material: Plastic (threaded M12 x 1 mounting)
- Sensing Distance: 2 mm (flush-mountable)
- Supply Voltage: 10–36 V DC
- Output Type: PNP/NPN selectable (NO/NC)
- Switching Frequency: 2000 Hz
- Protection Rating: IP67
- Cable Length: 2 m (PVC or PUR)
- Operating Temperature Range: −25 to +80 °C
- Dimensions: 40 × 12 × 26 mm (rectangular body)
- Weight: Approximately 1.4 lbs
- Contact Type: 2-wire, 2 m shielded cable
Typical Applications
- Position monitoring on conveyor systems and assembly lines
- Part detection and presence verification in material handling
- Automated gate and door limit switching
- Machinery bed positioning and index detection
- Packaging machine gate and hopper level monitoring
- Industrial robot end-effector position sensing
Compatibility & Replacements
Compatible With
- Allen-Bradley PLCs (via digital input modules)
- Siemens S7-1200, S7-1500, and legacy S5 controllers
- Mitsubishi FX and Q-series PLCs
- Omron CJ, CP, and NJ-series controllers
- 24 V DC industrial control systems
- Standard PLC digital input cards (10–36 V DC tolerance)
Replaces / Drop-In Replacement For
- IFM IS-2002-FRKG/PH (earlier EFECTOR designation)
- IFM IS5026 — Rectangular inductive sensor, 2 mm sensing range
- IFM IF5644 — Alternative part designation for same sensor family
- Generic rectangular 2 mm flush-mount PNP/NPN inductive sensors with M12 threading
Works With
- IFM INDUCTIVE SENSOR EFECTOR product line
- Standard PLC digital input modules (all major manufacturers)
- 24 V DC relay logic and hardwired control systems
- Distributed I/O gateways and remote terminal units (RTUs)
- CANopen, EtherCAT, and industrial Ethernet networks via appropriate gateways
