Overview

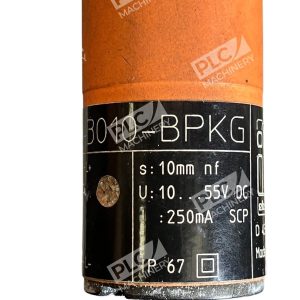

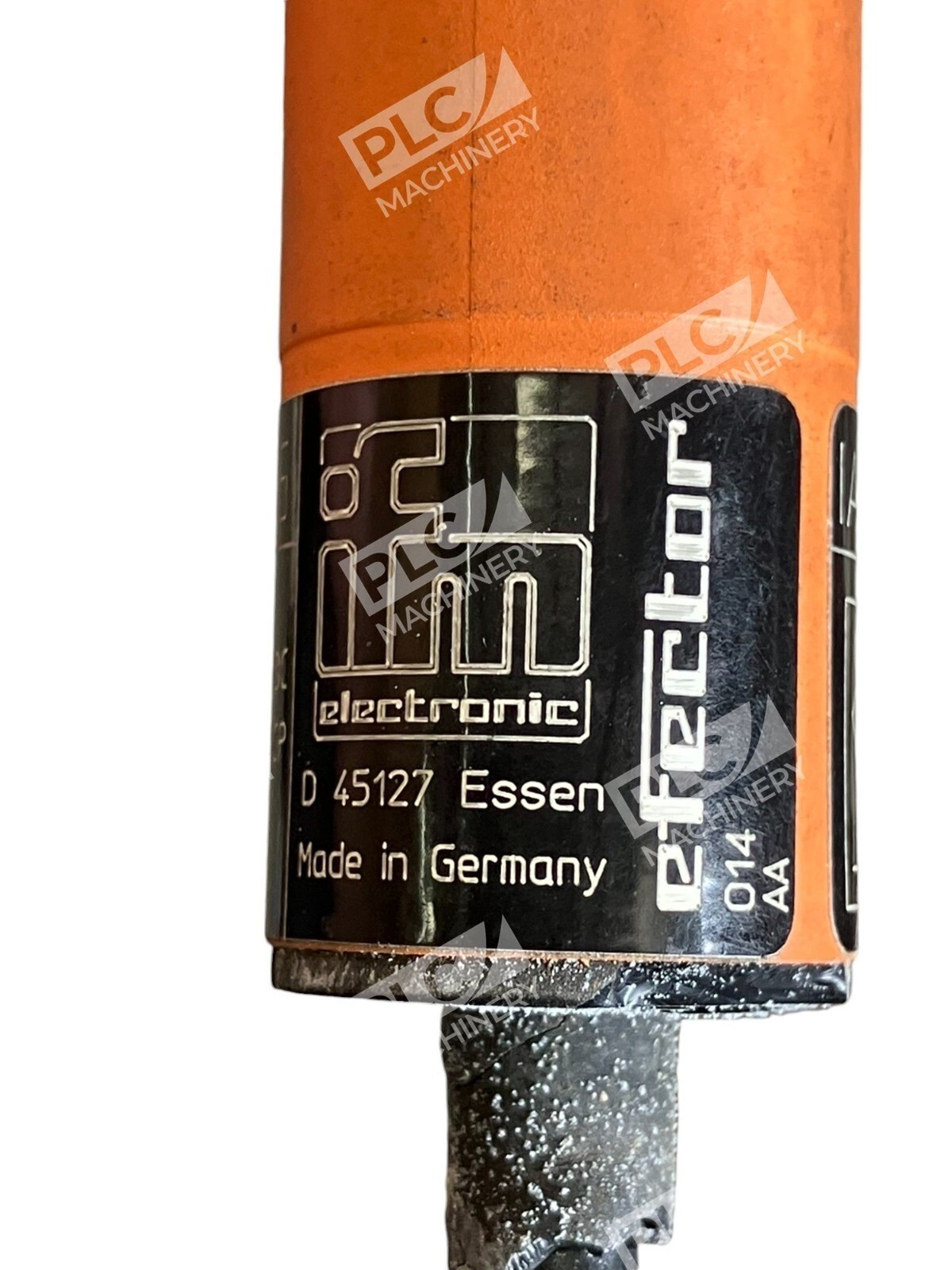

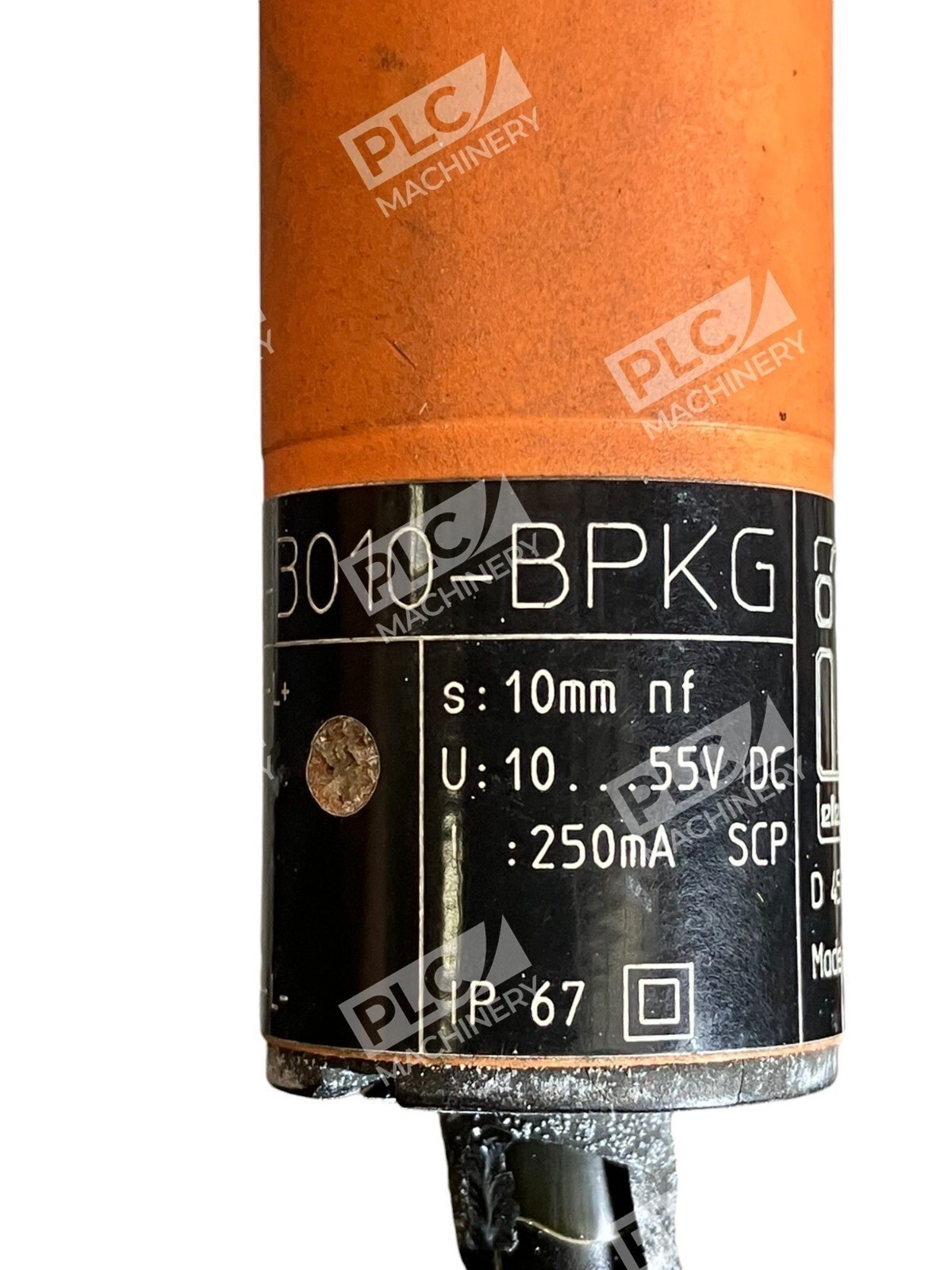

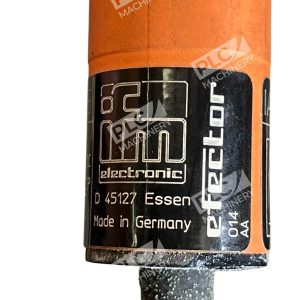

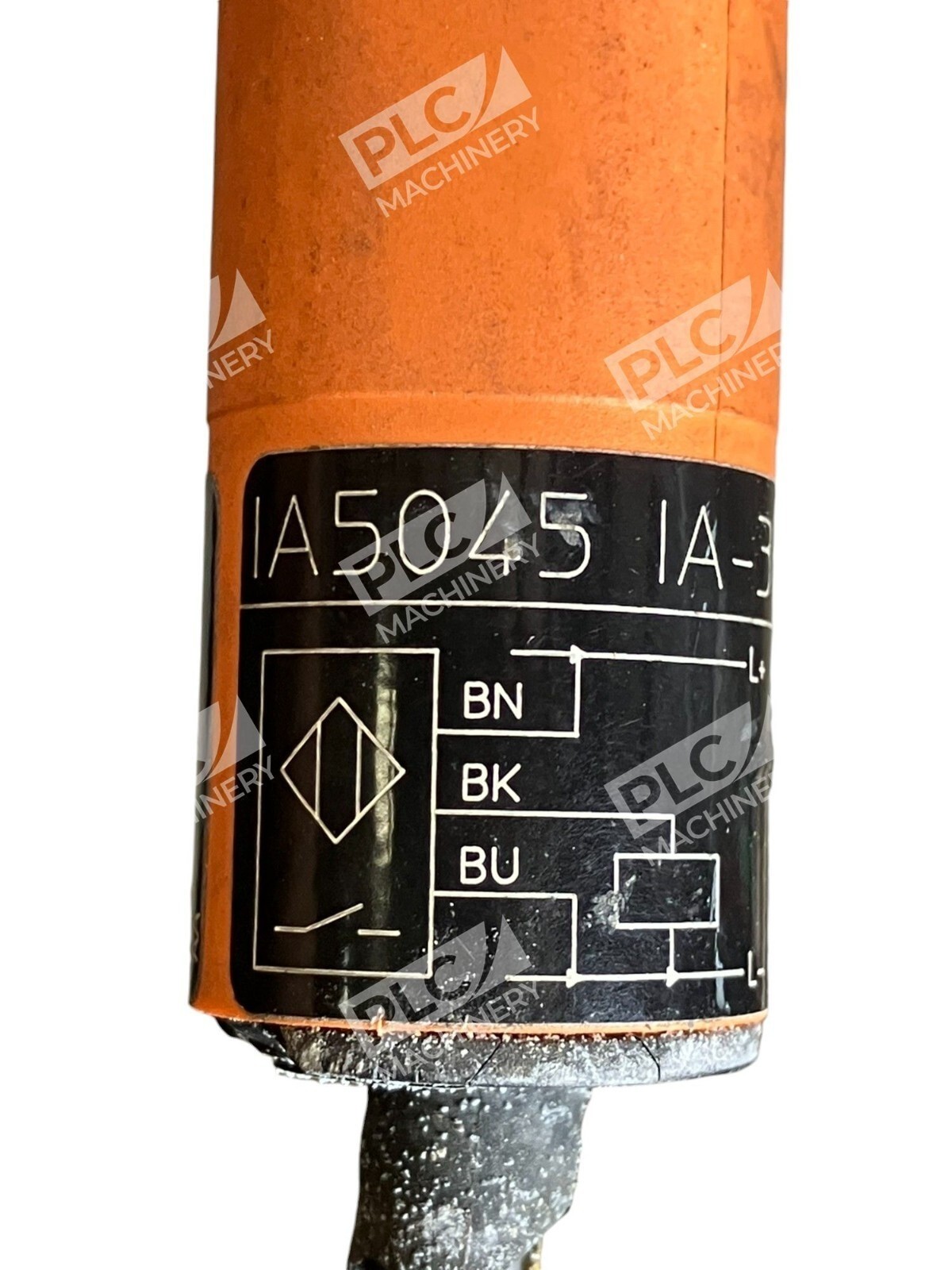

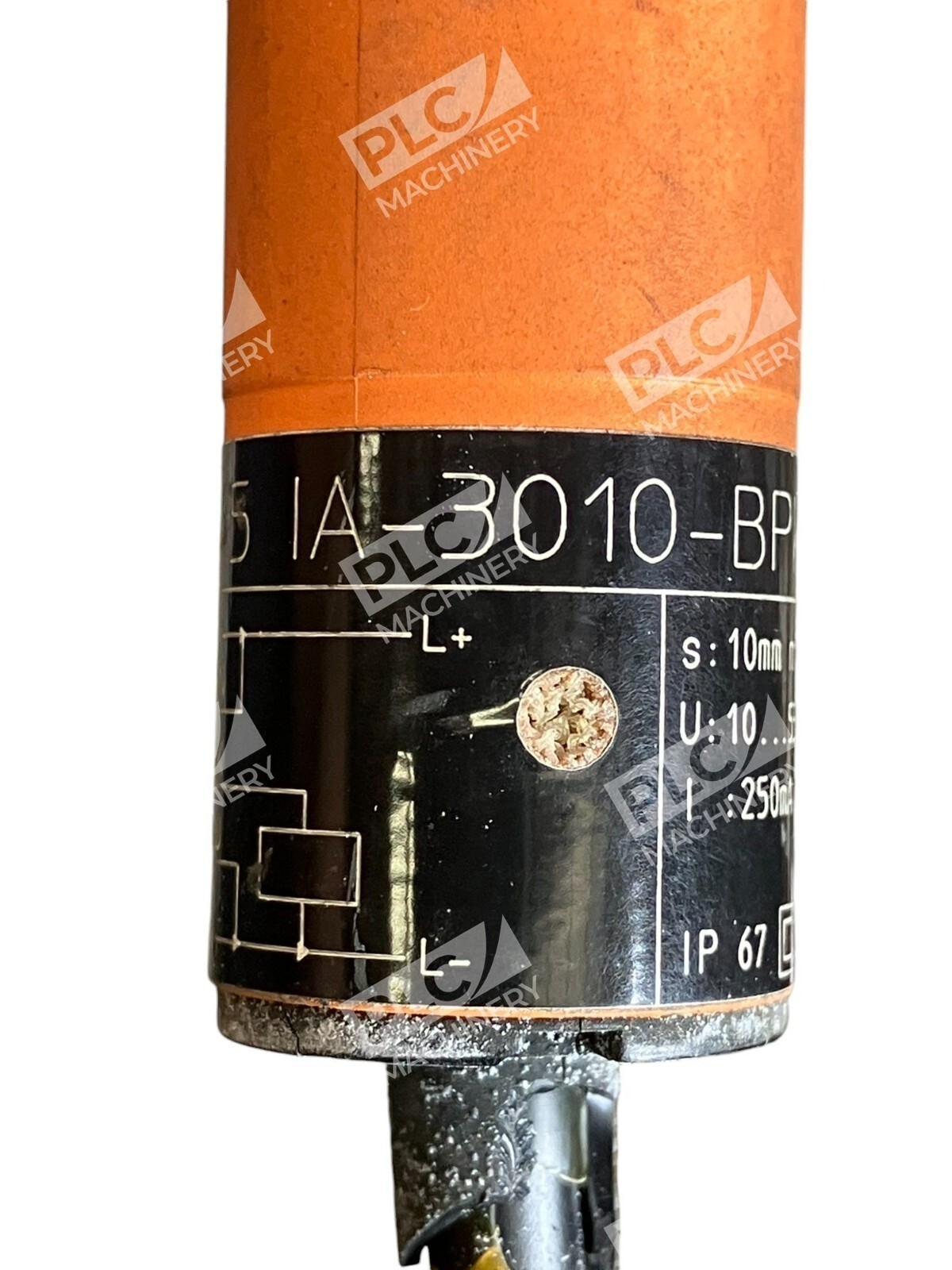

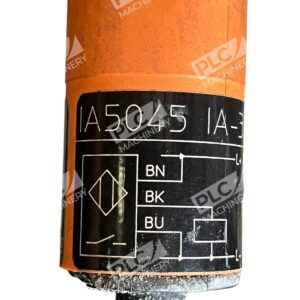

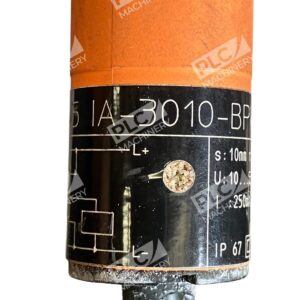

The IFM IA-3010-BPKG inductive sensor (Efector model IA5082) is a cylindrical, non-flush-mount proximity detector engineered for industrial automation and process control. This IFM IA-3010-BPKG unit features PNP output, a 10 mm sensing range, and operates across 10–36 VDC input, making it a reliable drop-in solution for machine limit switches, position detection, and conveyor applications.
Key Features
- 10 mm sensing range with non-flush mounting configuration
- PNP output, normally open (N/O) contact function
- Reverse polarity protection and short-circuit protection (pulsed)
- IP67 rated enclosure for dust and splash environments

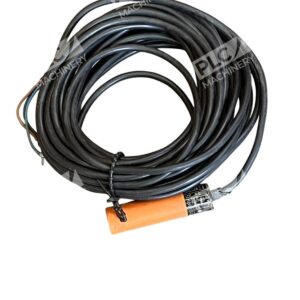

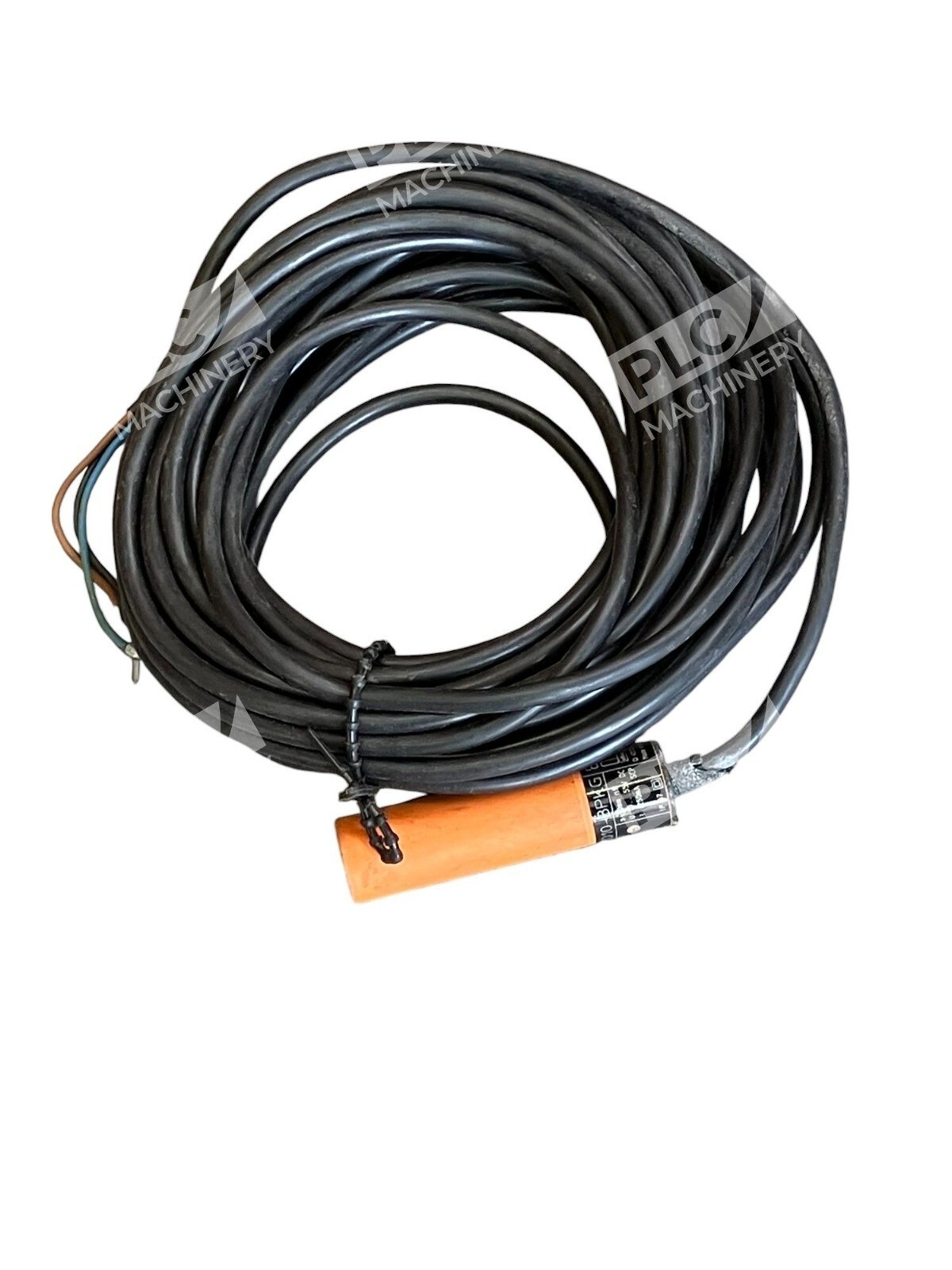

- 2 meter PVC cable with quick-disconnect mounting clips included
- Compact cylindrical housing (Ø 20 mm × 77 mm length)
Technical Specifications
- Operating Voltage: 10–36 VDC
- Sensing Range: 10 mm (±10 %)
- Output Type: PNP, normally open
- Current Consumption: 15 mA @ 24 VDC
- Switching Output Current: 250 mA max
- Voltage Drop (switching): 2.5 V max
- Switching Frequency: 300 Hz
- Enclosure Rating: IP67
- Operating Temperature: −25 °C to +80 °C
- Housing Material: PBT
- Dimensions: Ø 20 × L 77 mm
- Weight: 160.7 g
- Cable Length: 2 meters
- Protection Class: II
- Accessories: 2 lock nuts for non-flush mounting
Typical Applications
- Machine building: limit switches and end-of-travel detection
- Conveyor systems: part presence and position sensing
- Automated assembly lines: workpiece detection
- Material handling: proximity monitoring on moving equipment
- Production control: logic gate triggering for PLC inputs
Compatibility & Replacements
Compatible With
- PLC input modules accepting 10–36 VDC PNP signals
- Industrial relay logic and motion control systems
- Machine controller systems with proximity switch inputs
- Standard 24 VDC automation power supplies
Replaces / Drop-In Replacement For
- IA5082 (same unit, alternative model designation)
- OEM factory original sensor applications using IA-3010-BPKG
Works With
- Allen-Bradley CompactLogix, ControlLogix analog input modules
- Siemens S7-1200, S7-1500 discrete input cards
- Mitsubishi PLC digital input terminals
- Omron CJ, CS series controller I/O
- Any 24 VDC industrial automation control network
