Overview

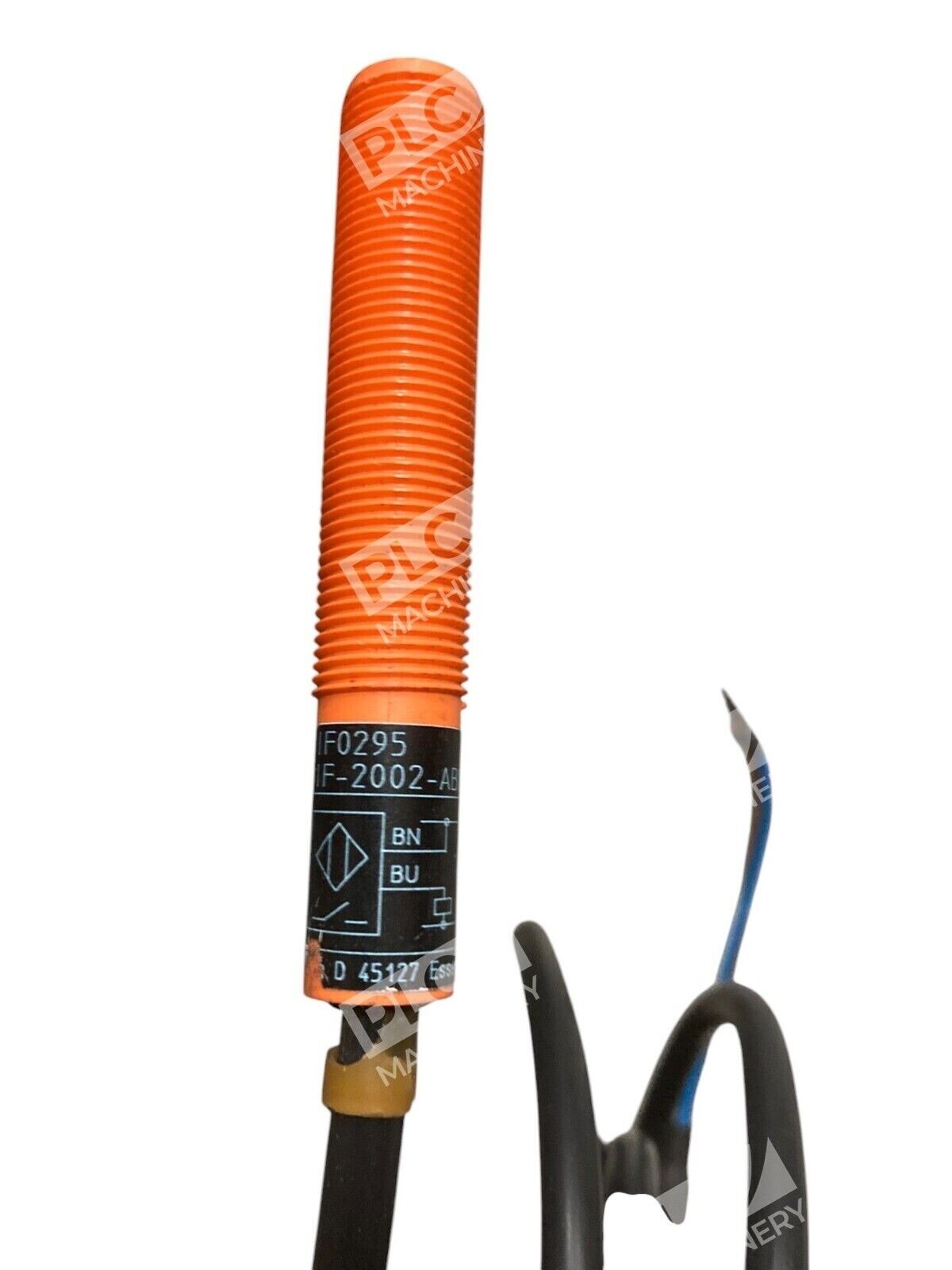

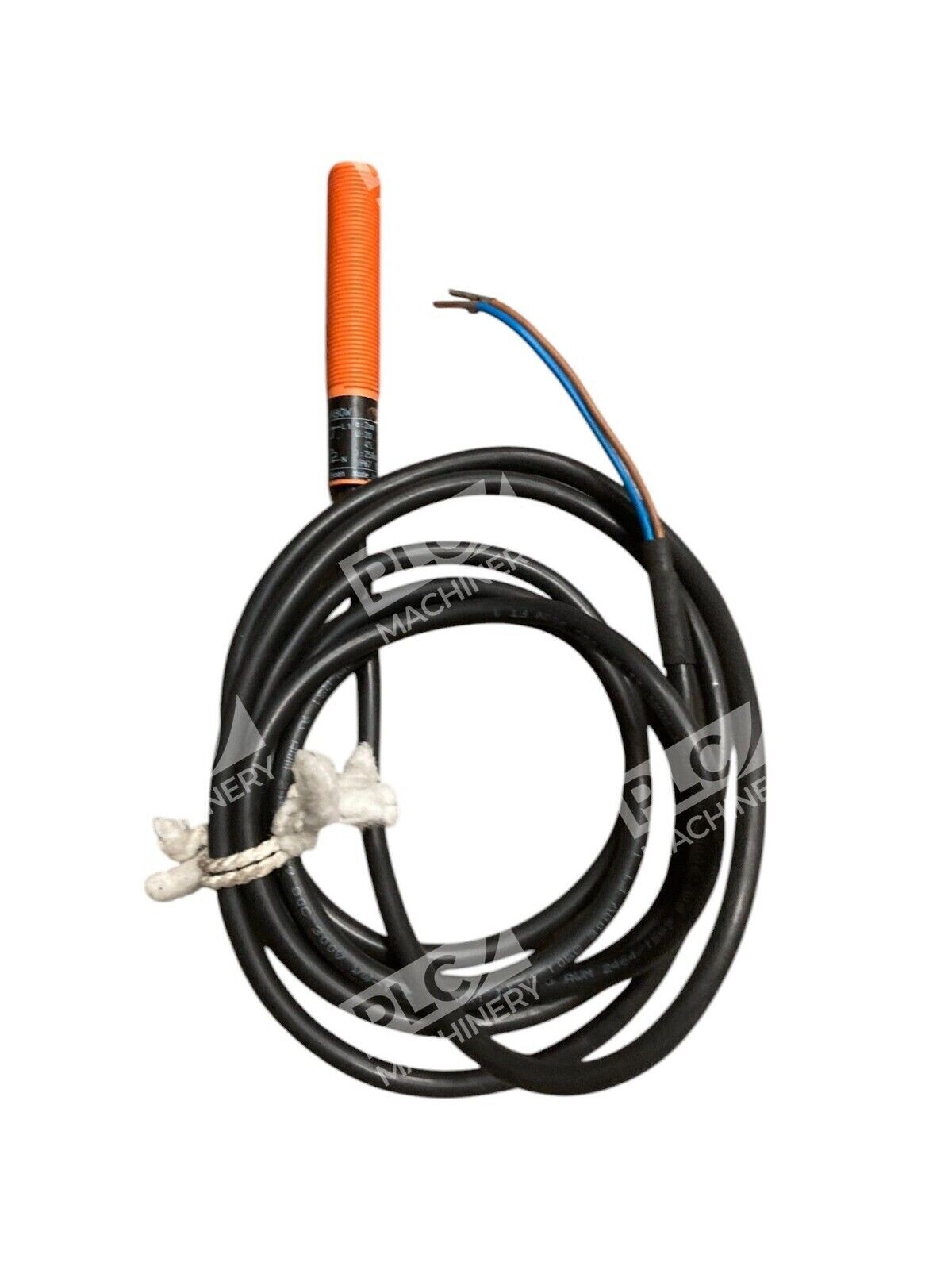

The IFM IF-2002-ABOW inductive sensor is a compact, flush-mountable M12 proximity sensor designed for reliable object detection in industrial automation. With a 2mm sensing range, normally open output, and IP67 protection rating, this sensor delivers consistent performance in machine automation and factory environments. The unit features PBT housing with an operating voltage range of 20–250V AC and is compatible with standard M12 x 1 connectors.
Key Features
- Flush-mountable M12 x 1 connector with 71.5mm housing length
- 2mm sensing range with normally open output function
- IP67 protection rating for harsh industrial environments
- Operating voltage of 20–250V AC at 47–63 Hz
- 2-wire PVC cable (2m standard length)
- Compact design with 25Hz switching frequency
Technical Specifications
- Sensing Range: 2mm flush-mountable
- Connector Type: M12 x 1
- Housing Length: 71.5mm
- Output Function: Normally open
- Operating Voltage: 20–250V AC at 47–63 Hz
- Max. Voltage Drop (AC): 8.5V
- Switching Frequency: 25Hz
- Current Rating: 200mA permanent at AC, 900mA short-time
- Leakage Current: 2mA max
- Protection Rating: IP67
- Ambient Temperature: −25 to +80°C
- Housing Material: PBT
- Cable: 2m PVC
- Weight: 101.6g
Typical Applications
The IF-2002-ABOW is widely used in factory automation, machine building, assembly lines, and packaging equipment. Its compact M12 profile and 2mm sensing distance make it ideal for tight spaces where standard larger proximity sensors will not fit. Common applications include parts detection, position sensing, and limit switching in manufacturing environments.
Compatibility & Replacements
Compatible With
- Standard M12 x 1 sensor connectors and cable systems
- AC-powered industrial control systems (20–250V AC)
- Machine controllers and PLCs with standard 24V logic inputs
- Factory automation and OEM equipment using M12 inductive sensors
Replaces / Drop-In Replacement For
- IFM IF0295 (direct equivalent designation)
- Other IFM Efector series 2mm M12 flush-mount sensors of similar voltage class
- Generic M12 2mm inductive proximity sensors with equivalent AC specifications
Works With
- M12 A-coded connectors and extension cables
- AC industrial control relays and circuits
- PLC analog and digital input modules with AC trigger capability
- Standard factory automation wiring and sensor networks
