<h2>Overview</h2>

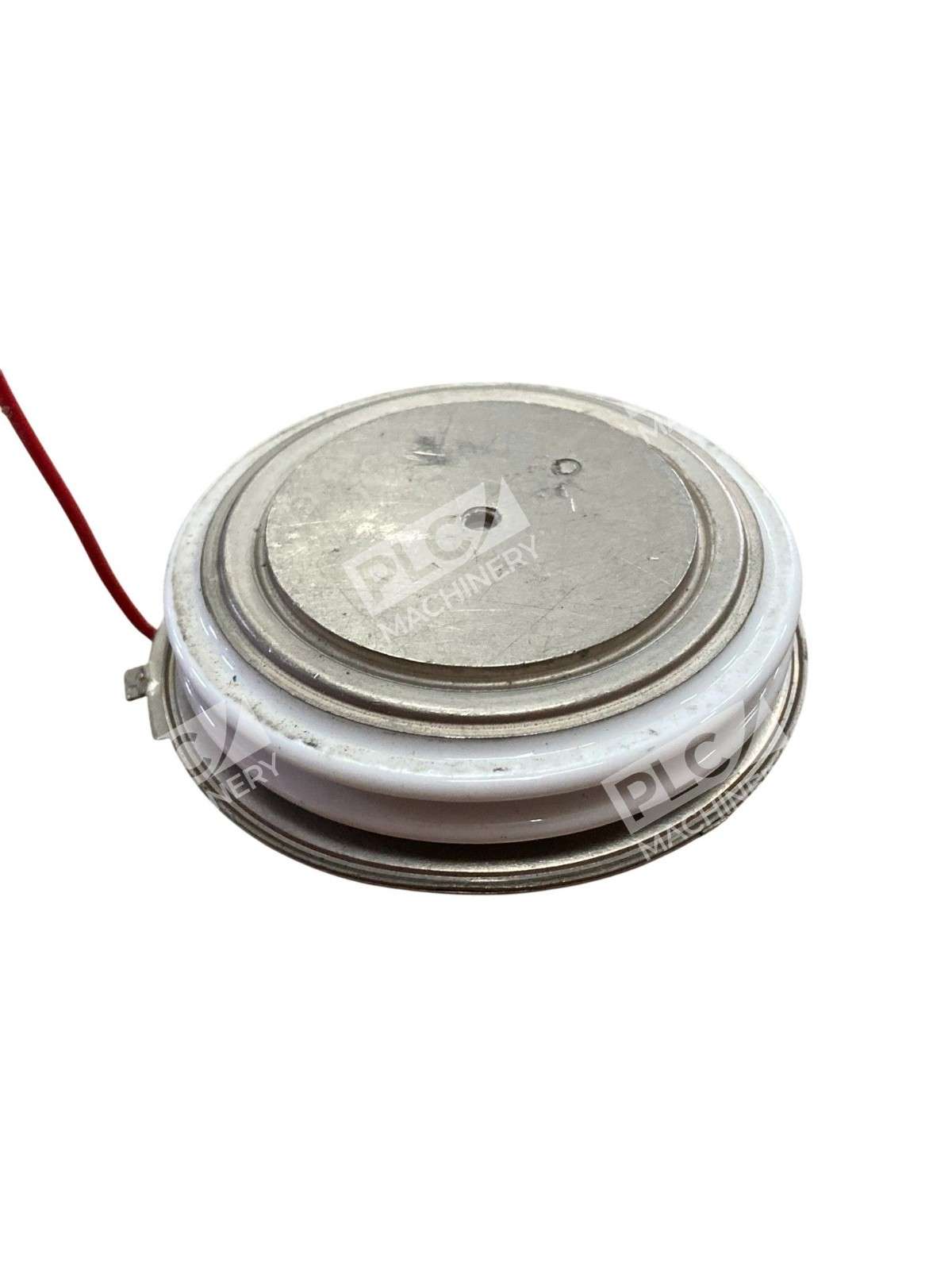

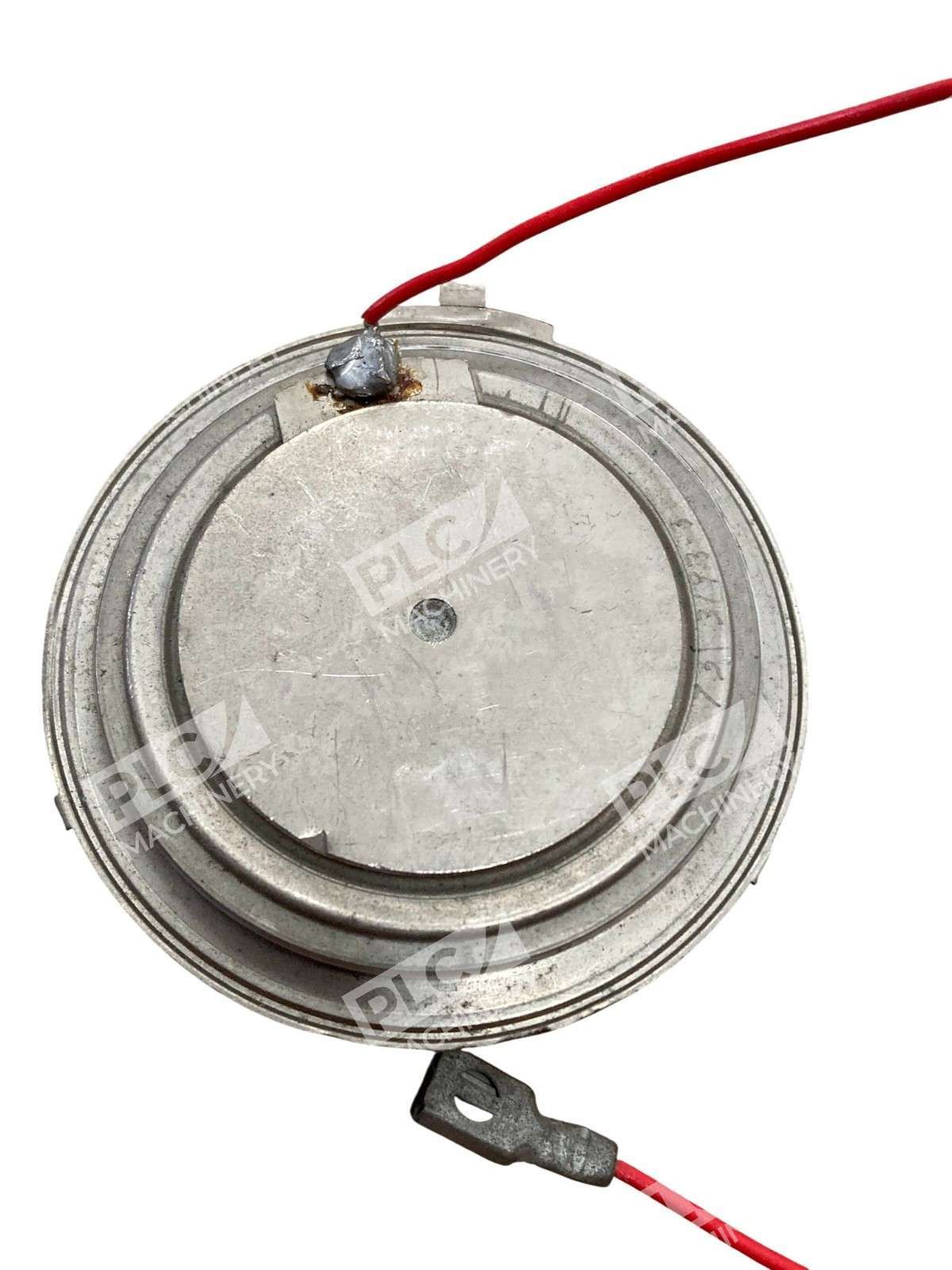

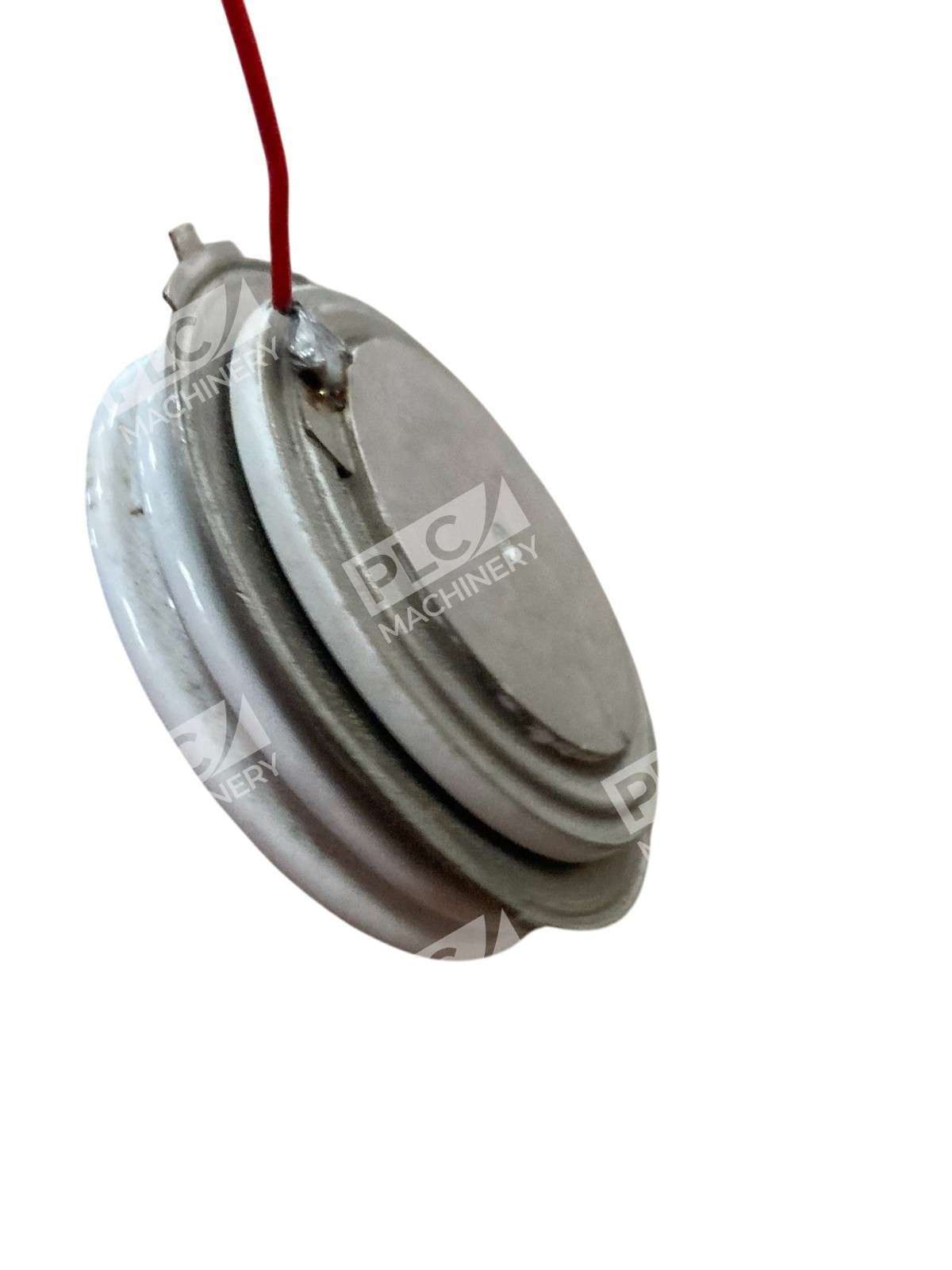

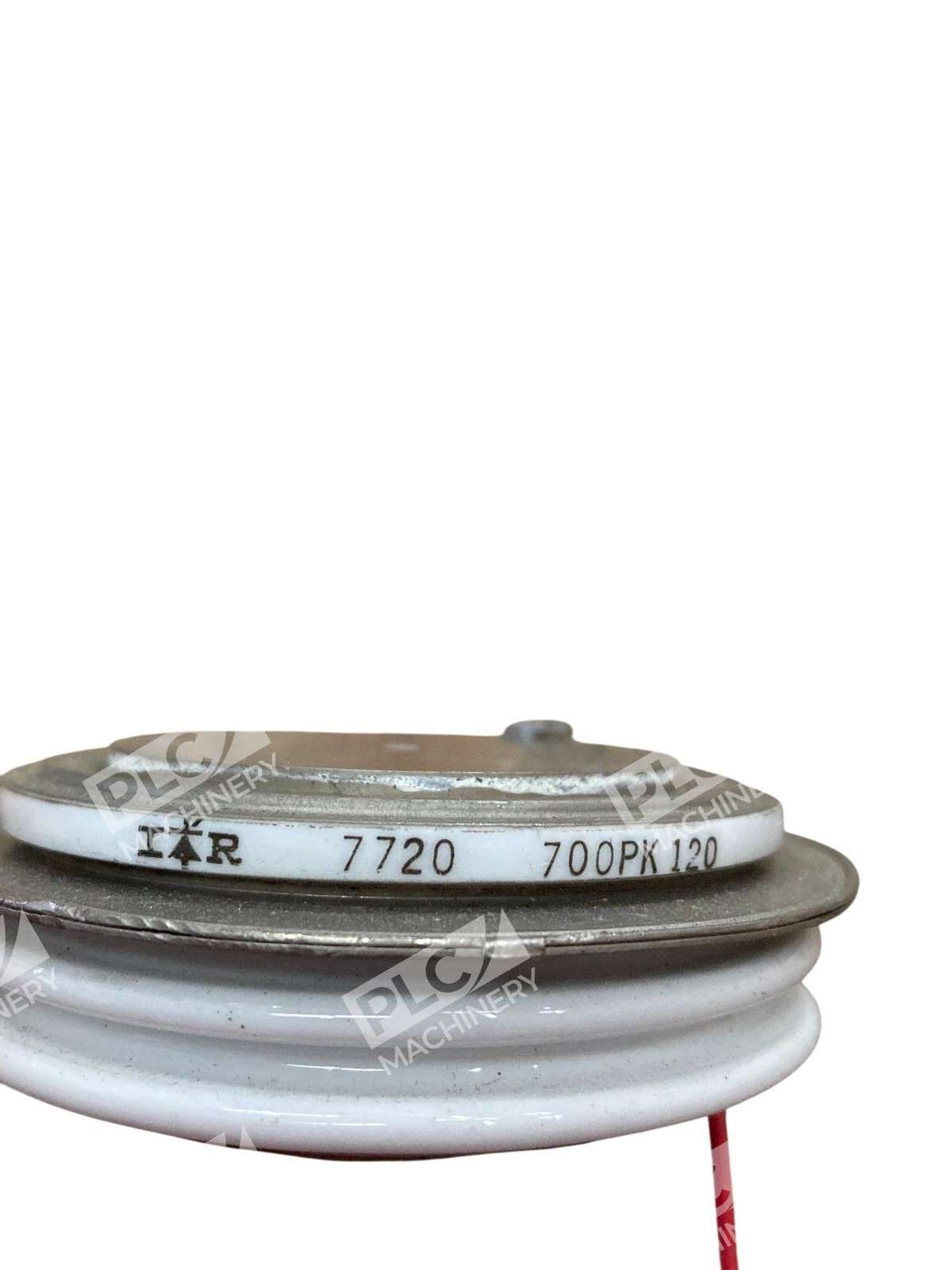

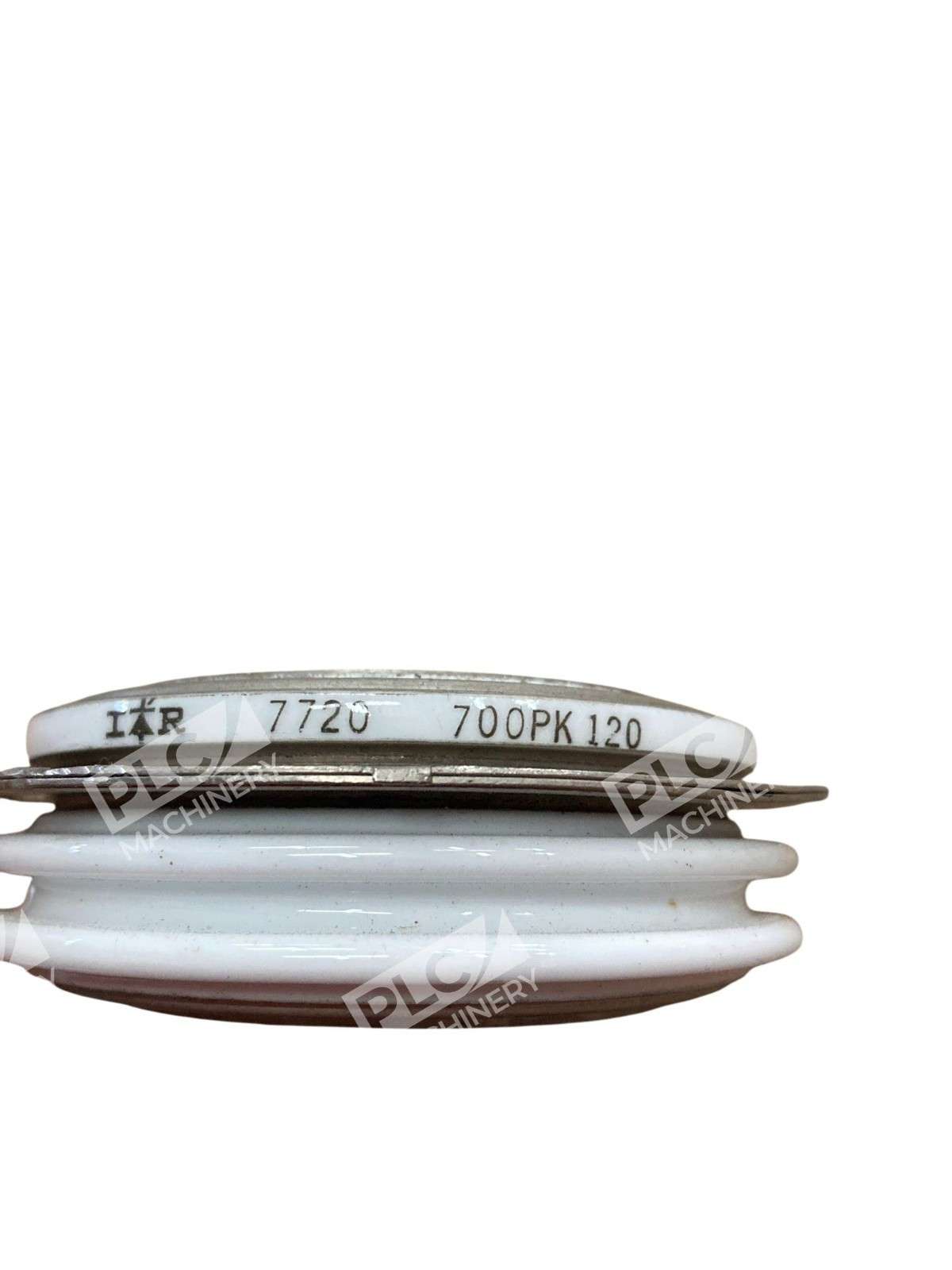

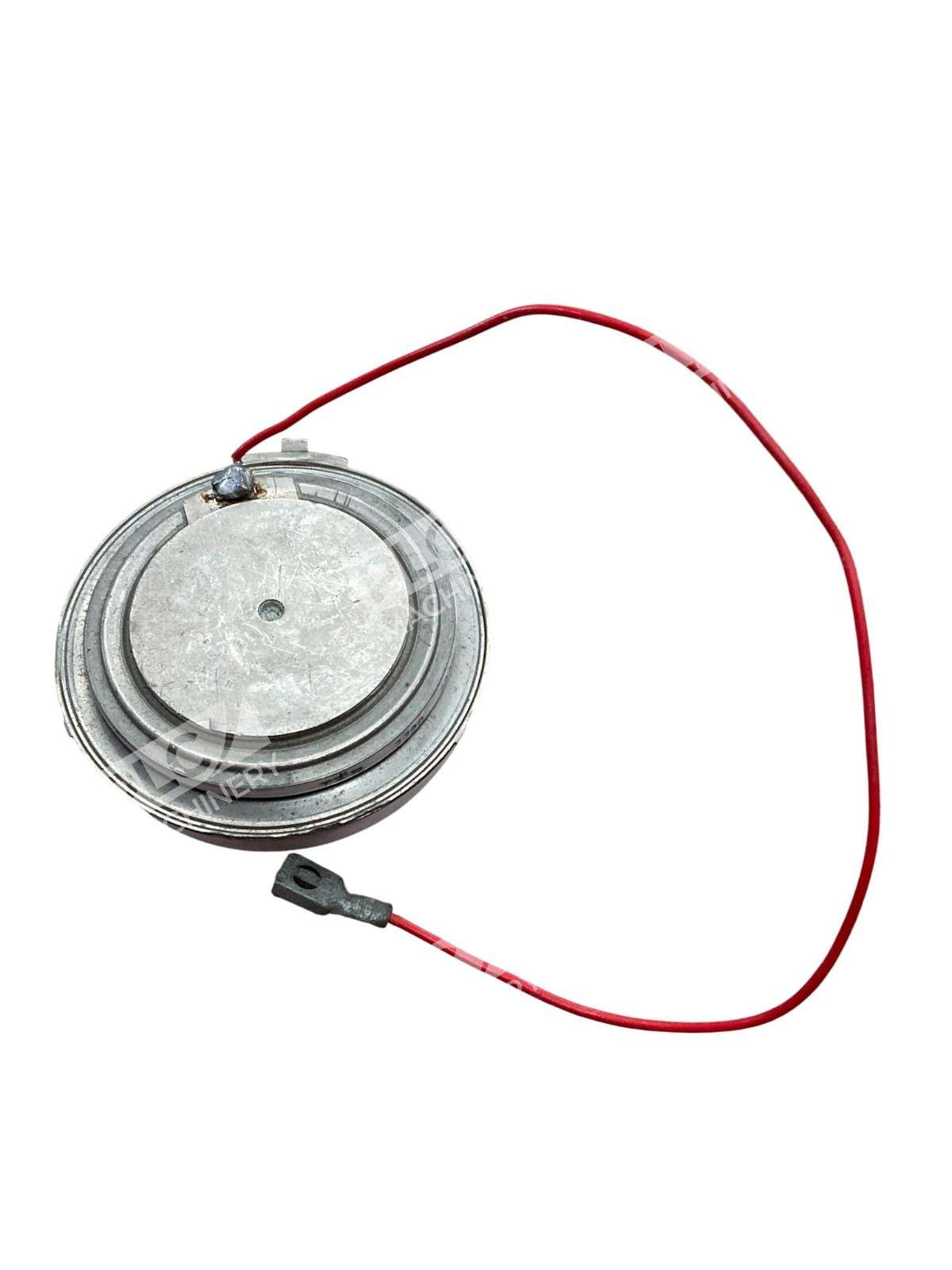

<p>The <strong>IAR 7720 700PK 120</strong> is a high-power disc thyristor SCR/diode rectifier module designed to handle heavy electrical loads in industrial power conversion and control systems. As a combination SCR (silicon controlled rectifier) and diode unit, this component is engineered to deliver stable, efficient rectification in applications ranging from DC power supplies to variable frequency drives and motor control systems. The disc form factor is typical of high-current semiconductor modules optimized for thermal management and mounting on heatsinks.</p>
<h2>Key Features</h2>
<ul>
<li>High-power disc thyristor design suited for industrial rectification and switching</li>
<li>Combined SCR and diode functionality in a single module</li>
<li>Robust construction for demanding electrical environments</li>
<li>Optimized for thermal dissipation with heatsink mounting capability</li>
<li>Suitable for AC to DC conversion and phase-angle power control</li>
</ul>
<h2>Technical Specifications</h2>
<p>Detailed electrical ratings including voltage, current, and thermal specifications are not currently available from the manufacturer datasheet. To ensure proper integration and safe operation of this component, verify all electrical ratings, gate triggering requirements, and thermal performance specifications with the original equipment documentation or your system integrator before deployment.</p>
<h2>Typical Applications</h2>
<ul>
<li>Industrial AC/DC power supplies and rectifier modules</li>
<li>Motor control and variable frequency drive (VFD) systems</li>
<li>Phase-angle power control circuits</li>
<li>High-current switching and commutation circuits</li>
<li>Power distribution equipment requiring regulated rectification</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Industrial power conversion and control systems</li>
<li>Heatsink-mounted rectifier modules</li>
<li>AC-driven industrial power supplies</li>
<li>Motor control modules and VFD systems</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>Verify compatibility with your system integrator before ordering. Specific cross-reference models cannot be confirmed without access to the original manufacturer documentation.</p>
<h3>Works With</h3>
<ul>
<li>Gate drive circuits and firing control systems</li>
<li>Heatsink and thermal management hardware</li>
<li>Industrial control platforms using phase-angle or zero-cross switching</li>
<li>Power factor correction and harmonic filtering systems</li>
</ul>
