Overview

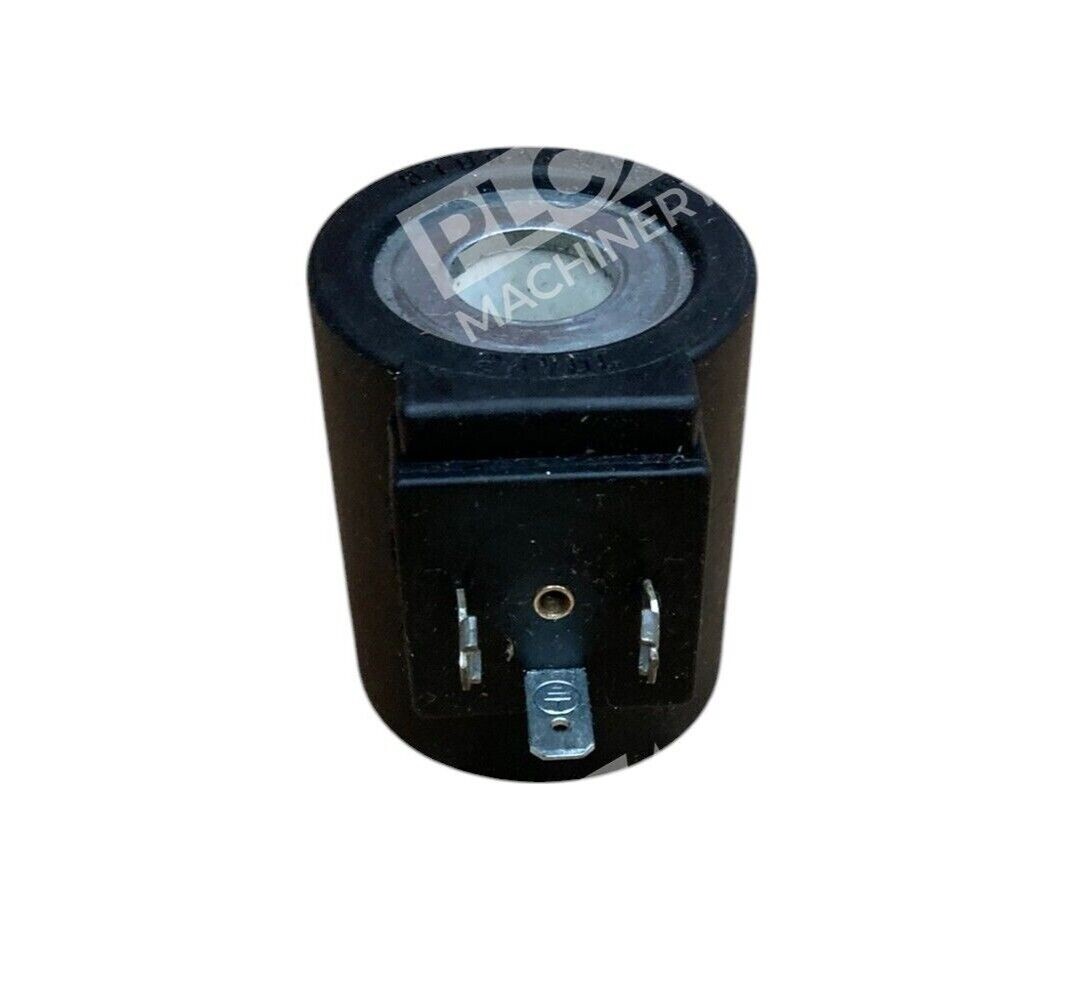

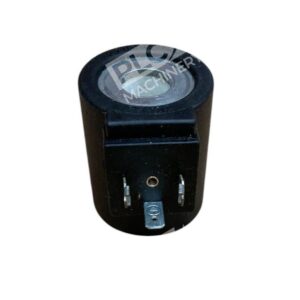

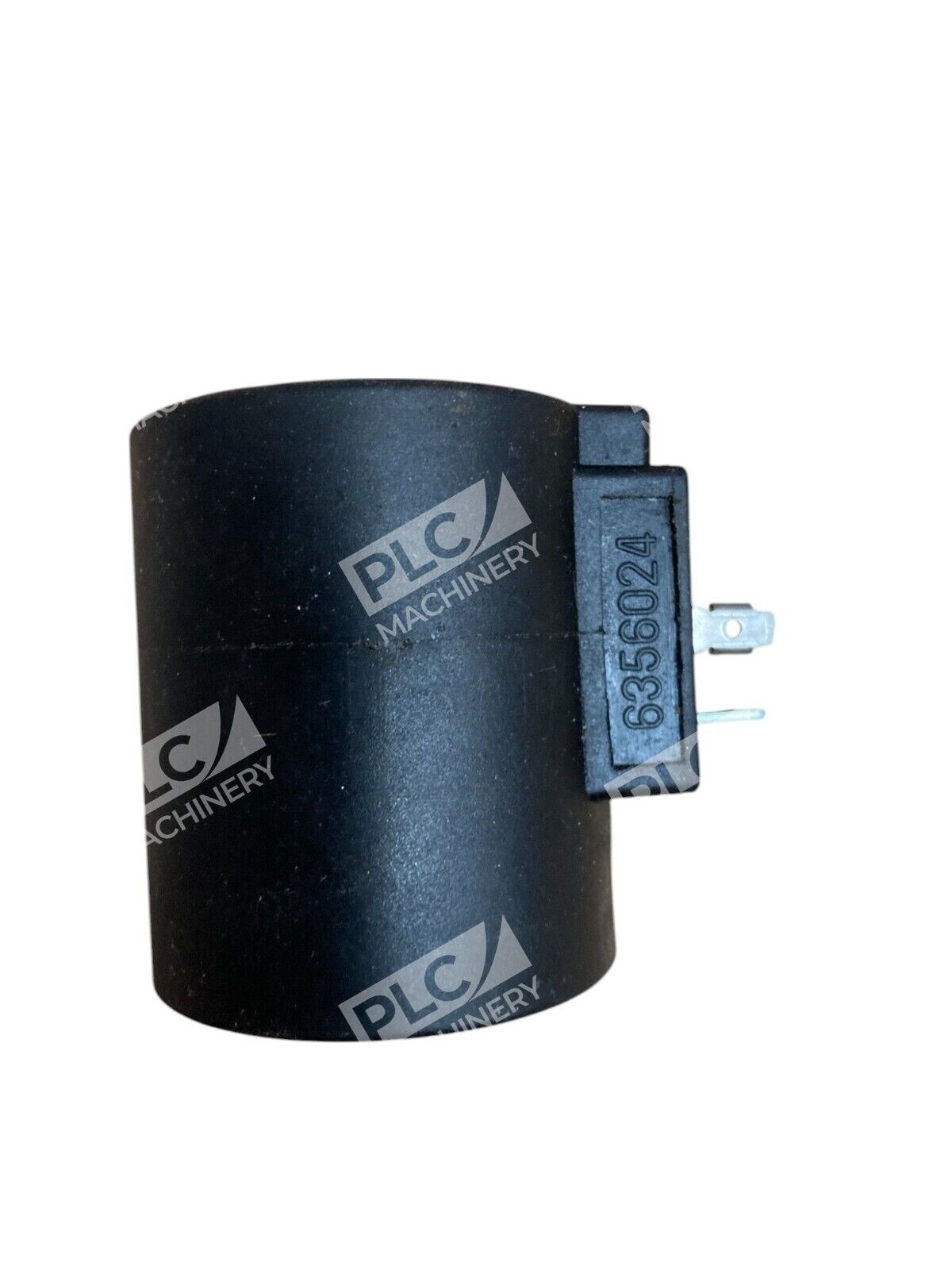

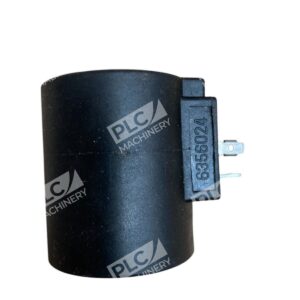

The HydraForce 6356024 is a high-performance 24V DC solenoid valve coil designed for industrial and mobile hydraulic systems. This coil is engineered for use with HydraForce cartridge valves in Series 10, 12, 16, 38 and 58 platforms. Encapsulated with 30% glass-filled polyester resin over a steel-framed bobbin and using Class H (180 °C) magnet wire, this coil delivers reliable actuation in demanding hydraulic and mobile-equipment environments. The standardized 3-pin DIN 43650 connector ensures drop-in replacement capability across compatible valve cavities.
Key Features
- Glass-filled bobbin with steel frame and polyester resin encapsulation for durability
- Compatible with multiple valve series (10, 12, 16, 38, 58) – simplifies inventory and sourcing
- Standardised installation footprint and connector format – facilitates fast replacement and maintenance
- Case designed for withstanding high-shock and high-vibration environments (mobile/heavy machinery)
- Class H magnet wire rated for 180°C thermal class
- Anerobic sealant impregnation for moisture resistance
Technical Specifications
The 6356024 coil meets industrial standards for reliable electro-hydraulic control:
- Supply voltage: 24V DC
- Connector type: 3-pin DIN 43650
- Power rating: 20 watts, 0.83 amperes initial current draw
- Mounting: 5/8″ I.D. cavity (10 Series)
- Weight: 290 grams
- Magnet wire class: H (180°C)
- Bobbin material: 30% glass-filled polyester
- Frame material: Steel
- Compatible valve series: 10, 12, 16, 38, 58
Typical Applications
The HydraForce 6356024 is deployed across industrial and mobile equipment:
- Actuation of directional control valves in mobile hydraulics: excavators, loaders, telehandlers
- Hydraulic systems in renewable-energy or industrial machinery requiring coil spares or servicing
- Retrofit or aftermarket coil for repair of hydraulic manifolds and electro-hydraulic valves
- OEM integration in new machinery requiring a standardised 24 V DC coil across valve sizes
- Maintenance teams stocking multi-series compatible coils for fast field replacement
Compatibility & Replacements
Compatible With
- HydraForce Series 10 cartridge valves (5/8″ cavity)
- HydraForce Series 12 cartridge valves
- HydraForce Series 16 cartridge valves
- HydraForce Series 38 cartridge valves
- HydraForce Series 58 cartridge valves
- 24V DC industrial control systems
- Mobile hydraulic equipment with 24V power supplies
Replaces / Drop-In Replacement For
- Original HydraForce 6356024 coils
- Equivalent 24V DC solenoid coils for HydraForce Series 10, 12, 16, 38, 58 valve cavities
- Worn or failed solenoid coils in existing manifolds with 5/8″ mounting cavity
Works With
- HydraForce electro-hydraulic control systems
- 24V DC power supplies (PLC control systems, industrial controllers)
- DIN 43650 connector socket assemblies
- Standard hydraulic manifold blocks with compatible cartridge valve cavities
