Overview

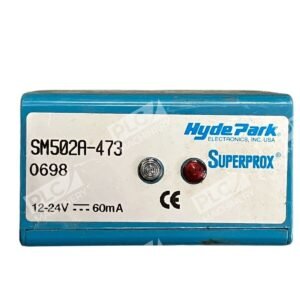

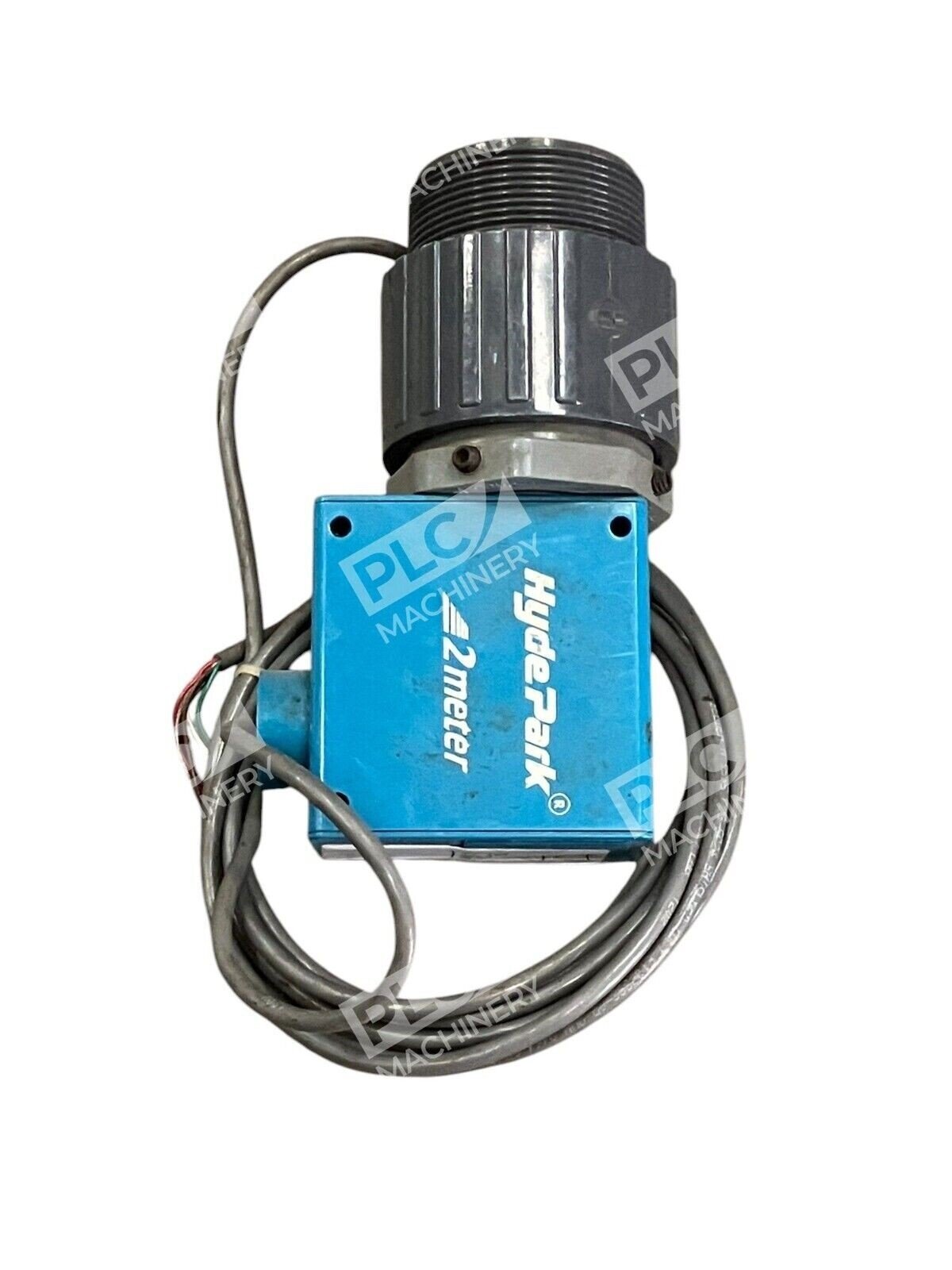

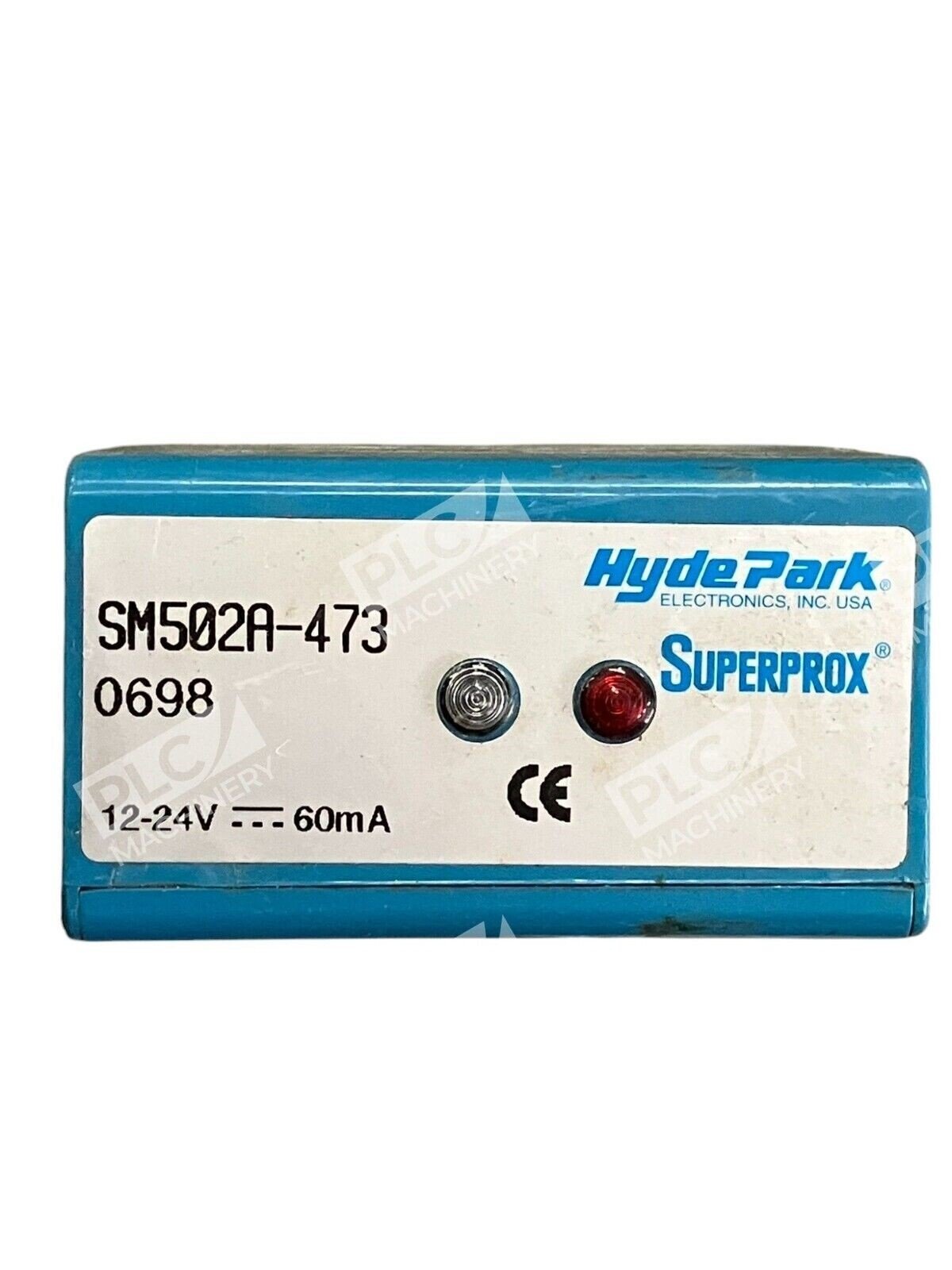

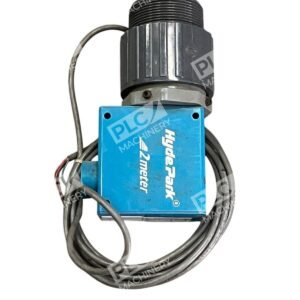

The Hyde Park SM502A-473 is a compact ultrasonic proximity sensor from the Superprox family (Telemecanique Sensors / Schneider Electric). It operates at 12-24V DC with a 60mA maximum current consumption and delivers discrete on/off switching output. With a 2-meter sensing range and field-adjustable detection window, this sensor is designed for reliable contactless detection of objects regardless of color, surface texture, or material composition.
Key Features
- Discrete Output: Direct on/off switching suitable for PLC and logic controller integration
- Wide Voltage Range: 12-24V DC operation offers flexibility in system integration
- Field-Adjustable Sensing Window: Allows fine-tuning of detection distance and hysteresis on-site
- Potted Cable Design: Sealed construction protects against moisture, dust, and contamination
- IP67 Rating: Fully sealed enclosure for harsh industrial environments
- Contactless Detection: Ultrasonic technology works on any material—transparent or opaque, hard or soft
Technical Specifications
- Operating Voltage: 12–24V DC
- Current Consumption: 60mA maximum
- Sensing Range: 2 meters (approximately 6.5 feet)
- Output Type: Discrete (on/off switching)
- Frequency: 40 kHz (typical ultrasonic)
- IP Rating: IP67 (fully sealed)
- Cable Type: Potted, ruggedized
- Connection: Cable connector (2-meter lead)
Typical Applications
- Packaging machinery—carton and case presence/absence detection
- Conveyor systems—object counting and positioning
- Automotive assembly—parts verification and staging
- Food and beverage processing—level monitoring and fill detection
- Material handling—proximity sensing in wet and dusty environments
- General industrial automation—presence detection where optical sensors fail
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix controllers
- Siemens S7-200, S7-1200, S7-1500 PLCs
- Omron CP/CJ series PLCs
- Mitsubishi FX and Q series controllers
- Any 12-24V DC input module or discrete logic system
- Standard industrial 24V DC power supplies
Replaces / Drop-In Replacement For
- Hyde Park SM502 series variants with 2-meter sensing distance
- Telemecanique Superprox SM502A discrete ultrasonic sensors
- Note: Verify exact connector type and cable length with your integrator before substitution
Works With
- Discrete 24V DC input circuits and relay logic
- Standard PLC digital input modules (requires 12-24V power supply)
- Industrial control systems using TTL or logic-level switching signals
- Hard-wired safety circuits and panel-mounted controls
