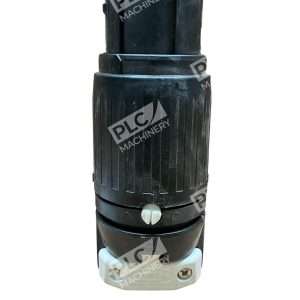

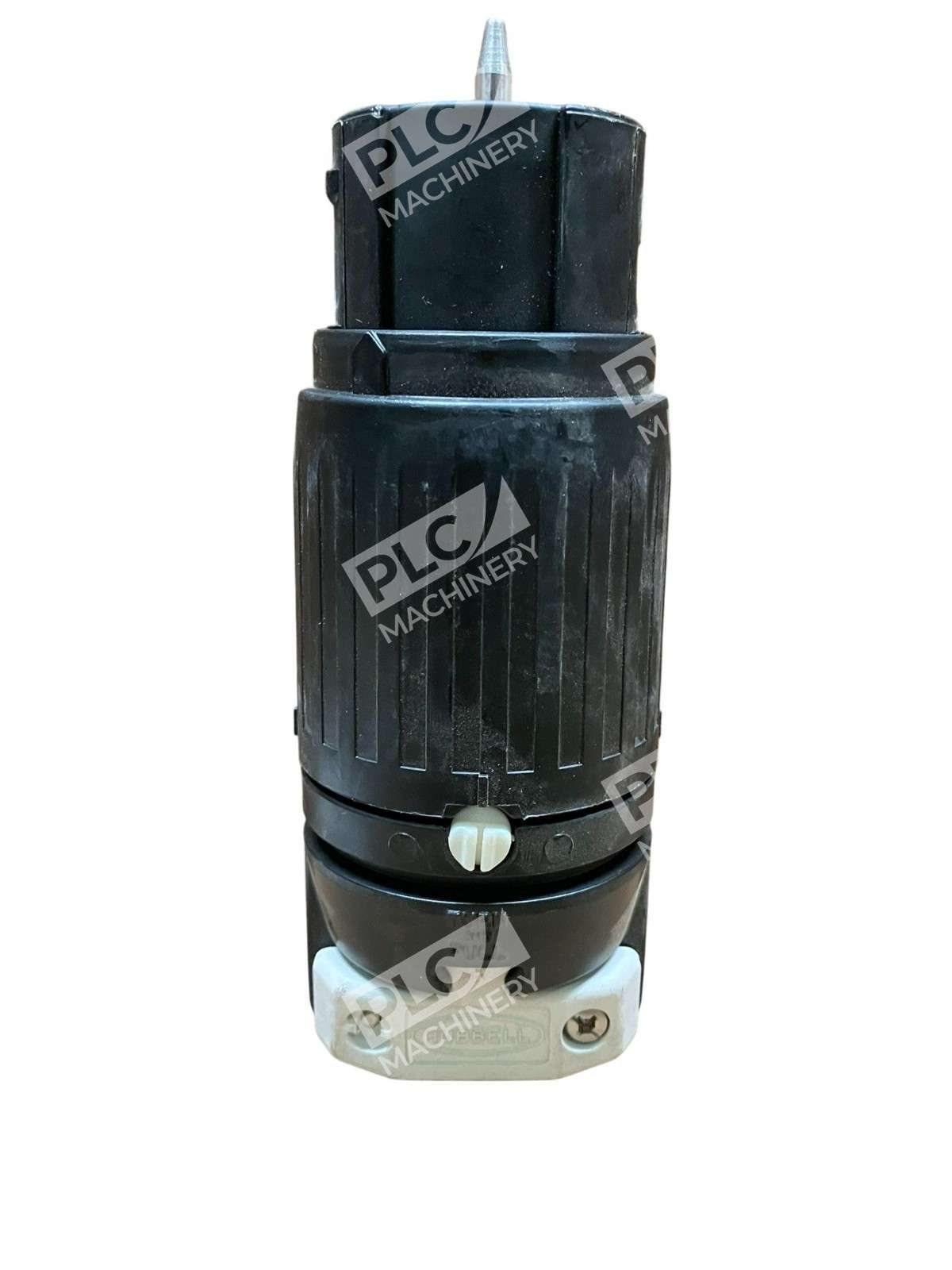

The Hubbell CS-8464C is a robust 50A, 480V AC, 2-pole, 3-wire grounding female Twist-Lock® connector designed for demanding industrial applications.
Key Features
- Durable Construction: Crafted with a super-tough nylon housing, this connector offers exceptional impact resistance, ensuring longevity even in harsh environments.
- Secure Connections: The box terminal features a hex socket threaded slug, allowing for high clamping pressure on conductors without damaging strands, resulting in reliable and secure connections.
- Enhanced Strain Relief: A heavy-duty two-piece external cord clamp provides maximum strain relief, effectively securing the conductors and cord jacket.
- Heat and Impact Resistance: The thermoplastic polyester interior offers superior heat resistance and impact strength, maintaining performance under demanding conditions.
- Optimized Performance: Oversized contacts are designed to minimize operating temperatures, enhancing the connector’s efficiency and safety.
Specifications
- Amperage Rating: 50 Amps
- Voltage Rating: 480V AC
- Poles and Wires: 2-Pole, 3-Wire Grounding
- Material: Nylon housing with thermoplastic polyester interior
- Operating Temperature: -40°C to 75°C without impact
- Cord Range: 0.830″ to 1.250″ (21.08mm to 31.75mm)
- Terminal Accommodation: #10 AWG to #6 AWG stranded copper wire
The Hubbell CS-8464C Twist-Lock® connector is engineered to meet the rigorous demands of industrial settings, providing a reliable and secure connection solution for high-amperage applications.
