Overview

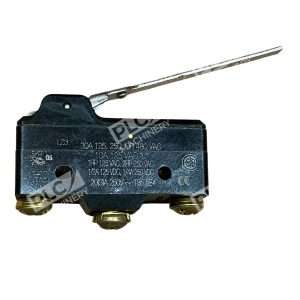

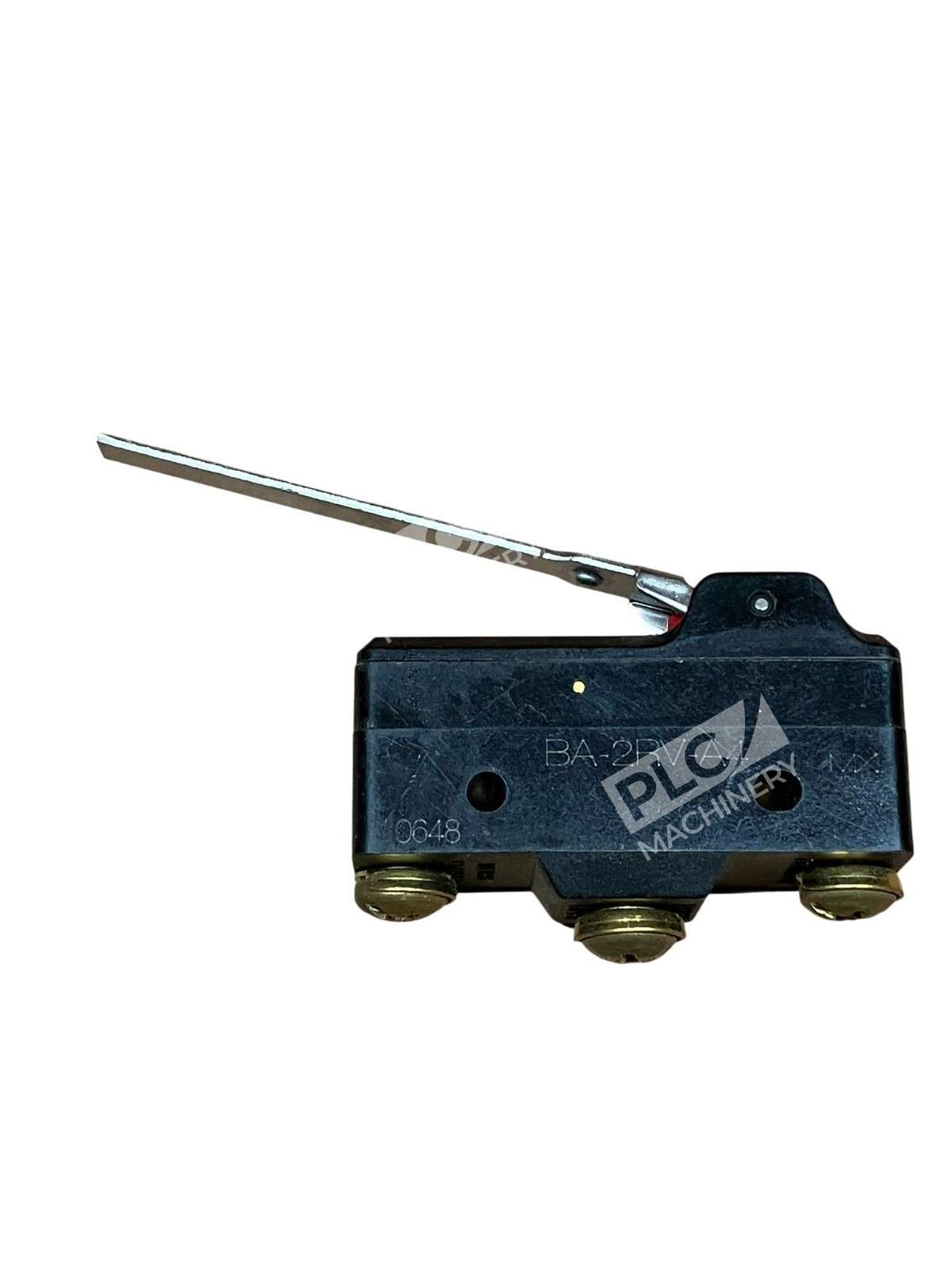

The Honeywell BA-2RV-A4 SPDT micro switch is an industrial-grade snap-action switch designed for precision on/off control in automation, process control, and machinery applications. Part of Honeywell’s MICRO SWITCHâ„¢ BA series, this switch combines reliable electrical performance with mechanical simplicity, making it ideal for limit switches, safety circuits, and control logic applications where repeatability is critical.
Key Features
- Single-pole double-throw (SPDT) contact configuration for versatile switching logic

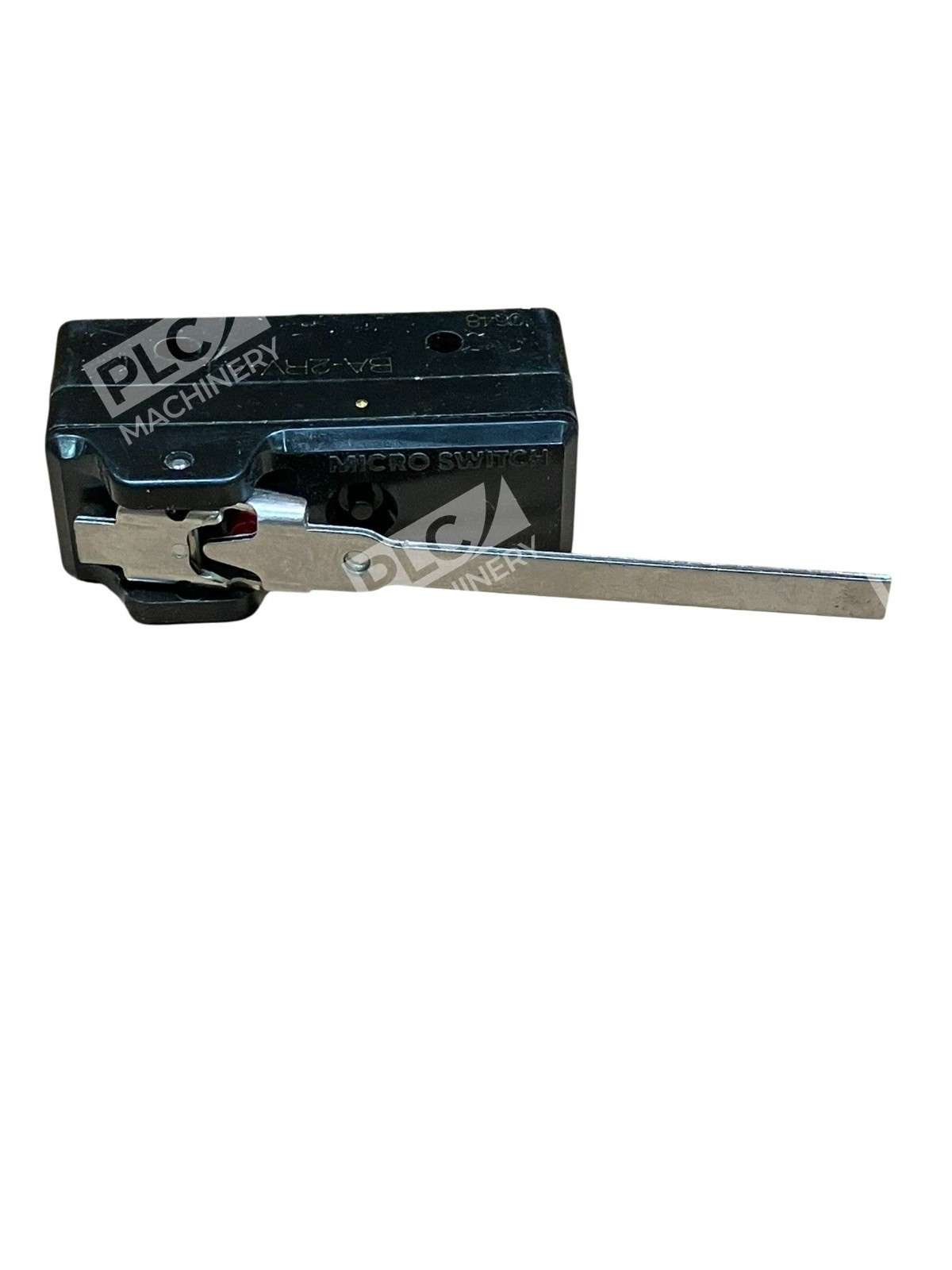

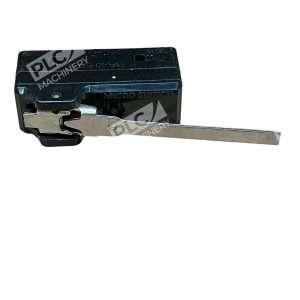

- Rigid straight lever actuator for consistent, repeatable operation across millions of cycles
- Snap-action mechanism with low operating force and sensitive differential travel
- Silver-plated contacts for reliable electrical performance
- Phenolic housing rated for general-purpose industrial environments

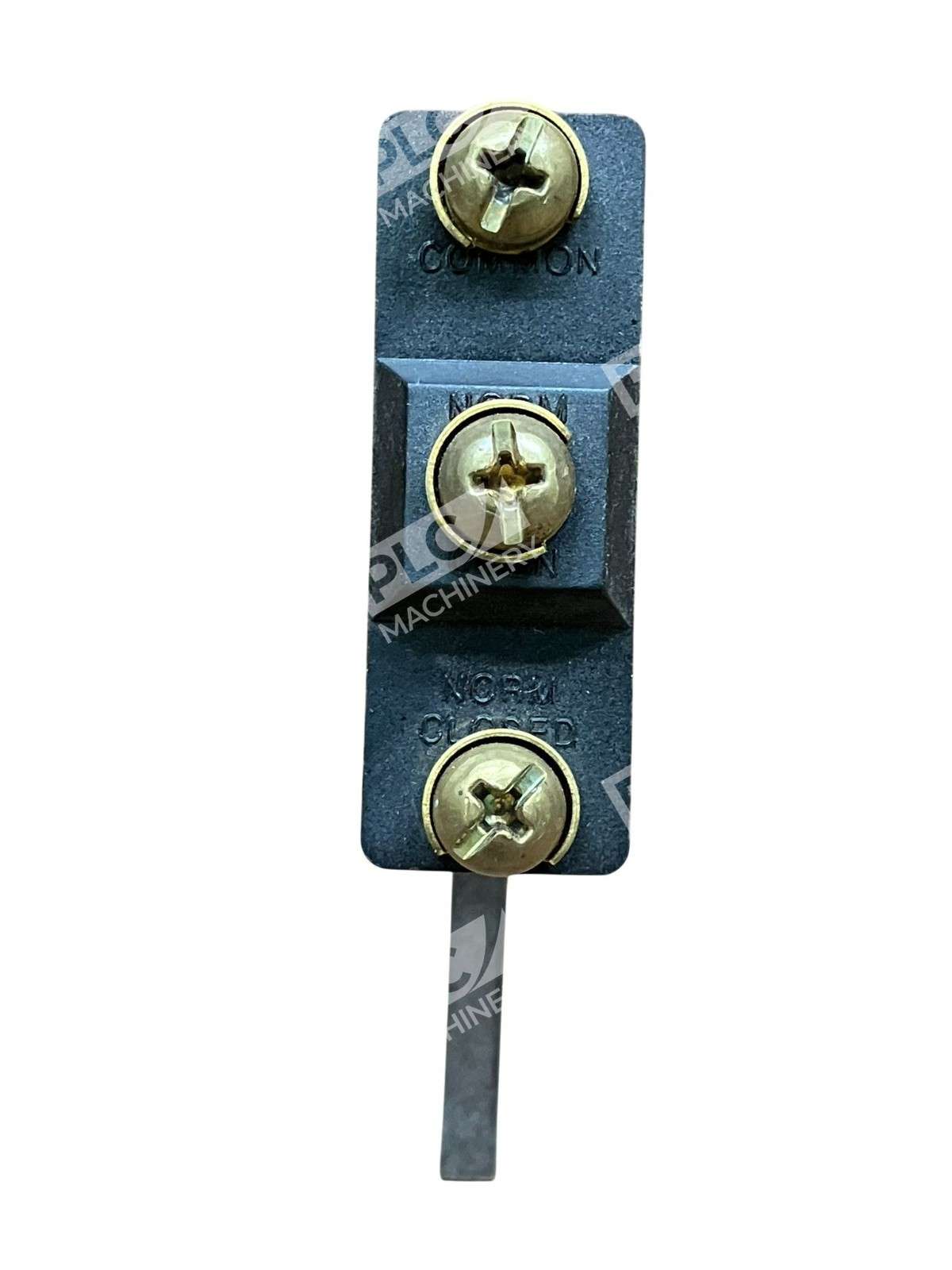

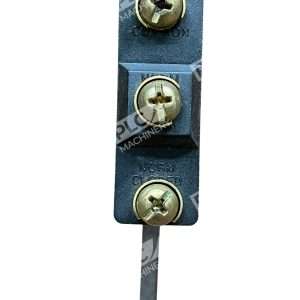

- Screw terminal connections for secure, tool-free wiring
- Elongated mounting holes for flexible, accurate installation
Technical Specifications
- Contact Configuration: SPDT (1 form C)

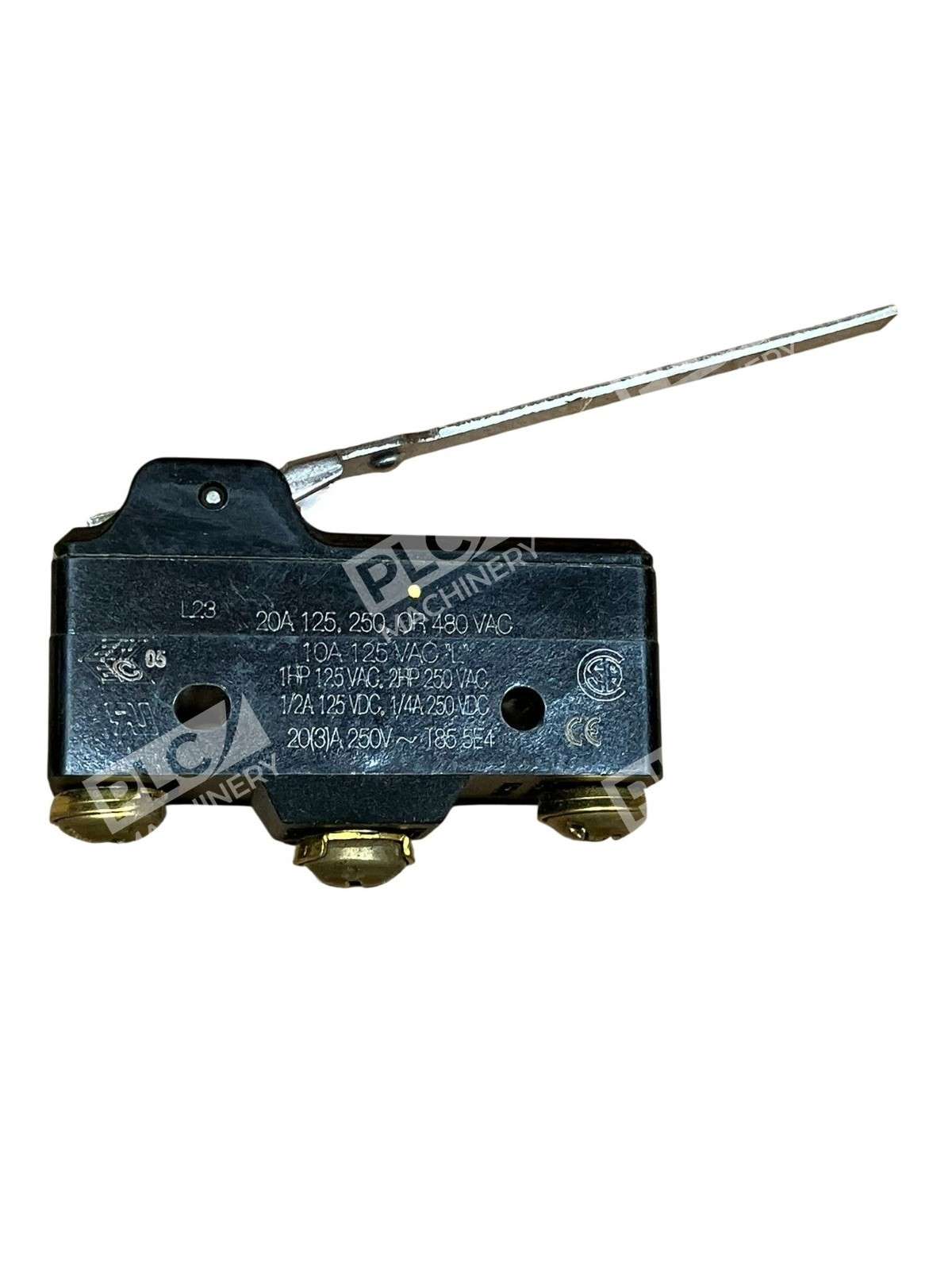

- Electrical Rating: 20 A at 250 VAC
- Actuator Type: Rigid straight lever
- Contact Material: Silver-plated
- Termination: Screw terminals
- Housing Material: Phenolic (general-purpose)
- Series: BA (Standard Basic Switch, Large)
- Mechanical Life: 10 million operations minimum
- Electrical Life: 100,000 operations at full load
- Operating Force: Low (typical for BA series)
- Differential Travel: Sensitive (typical for BA series)
Typical Applications
- Limit switches on production machinery and conveyors
- Door and safety interlock circuits
- Process control and valve on/off logic
- Equipment position sensing and feedback
- Manual control pushbutton and selector circuits
- Industrial automation and PLC input modules
Compatibility & Replacements
Compatible With
- Standard 24 VDC/120 VAC/250 VAC industrial control circuits
- PLC discrete input modules and relay logic
- Industrial machinery equipped with basic switch slots
- MICRO SWITCH mounting footprints and panel cut-outs
Replaces / Drop-In Replacement For
- BA-2RV variants with equivalent straight lever and SPDT configuration
- Verify compatibility with your system integrator before ordering for critical safety applications
Works With
- Industrial relay panels and terminal blocks
- Screw-terminal wiring platforms and control enclosures
- Standard “Large Basic” switch mounting systems
- General-purpose industrial control environments
