Overview

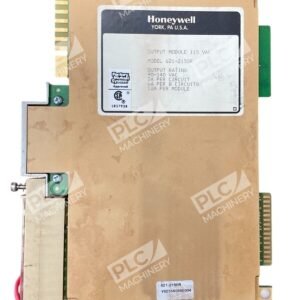

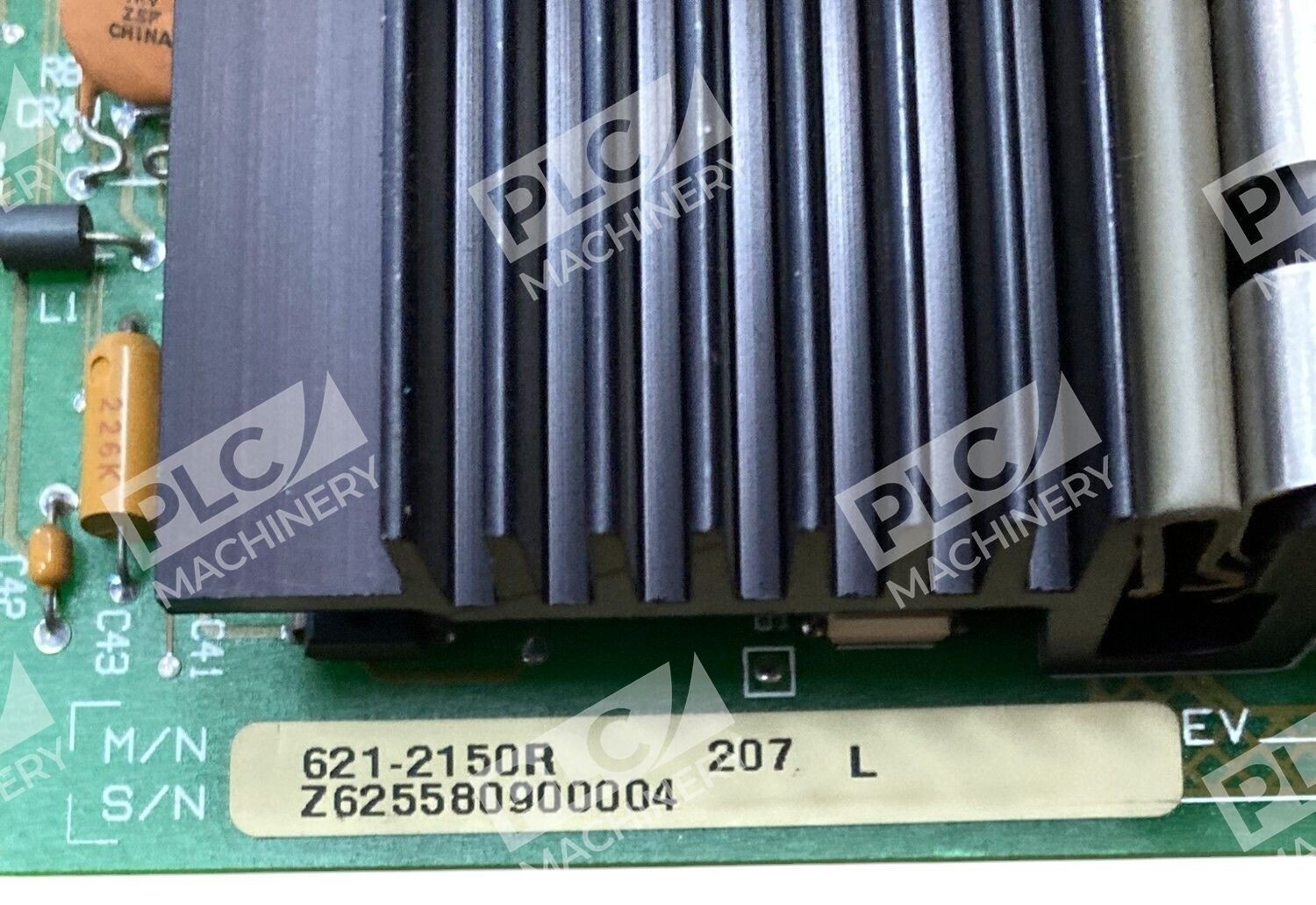

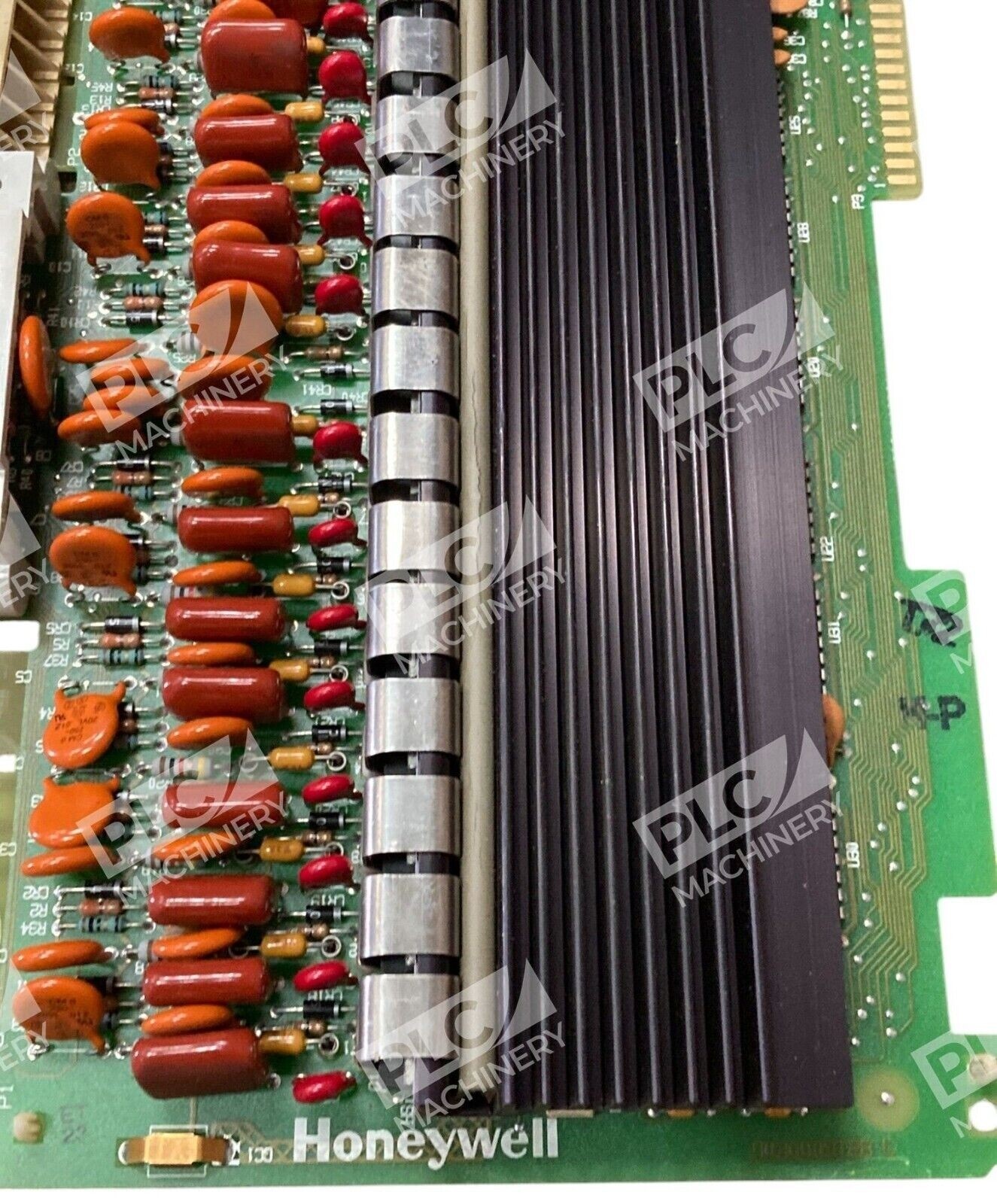

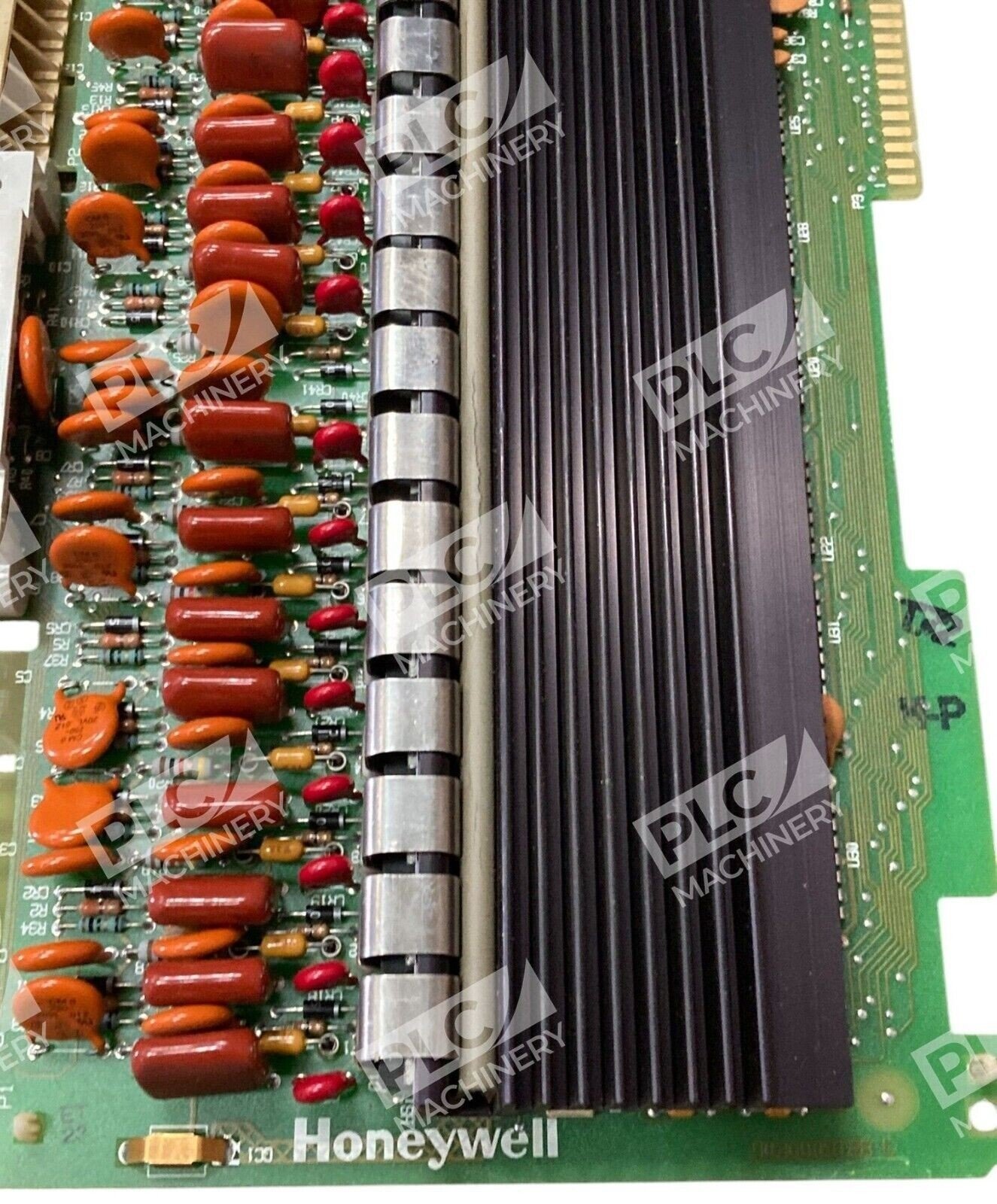

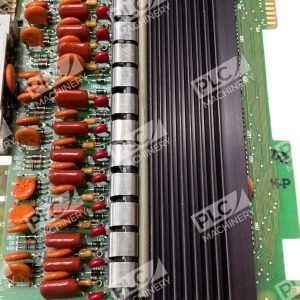

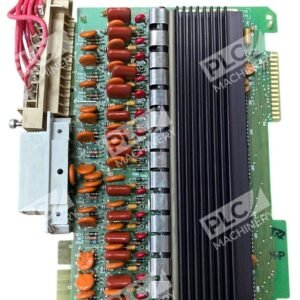

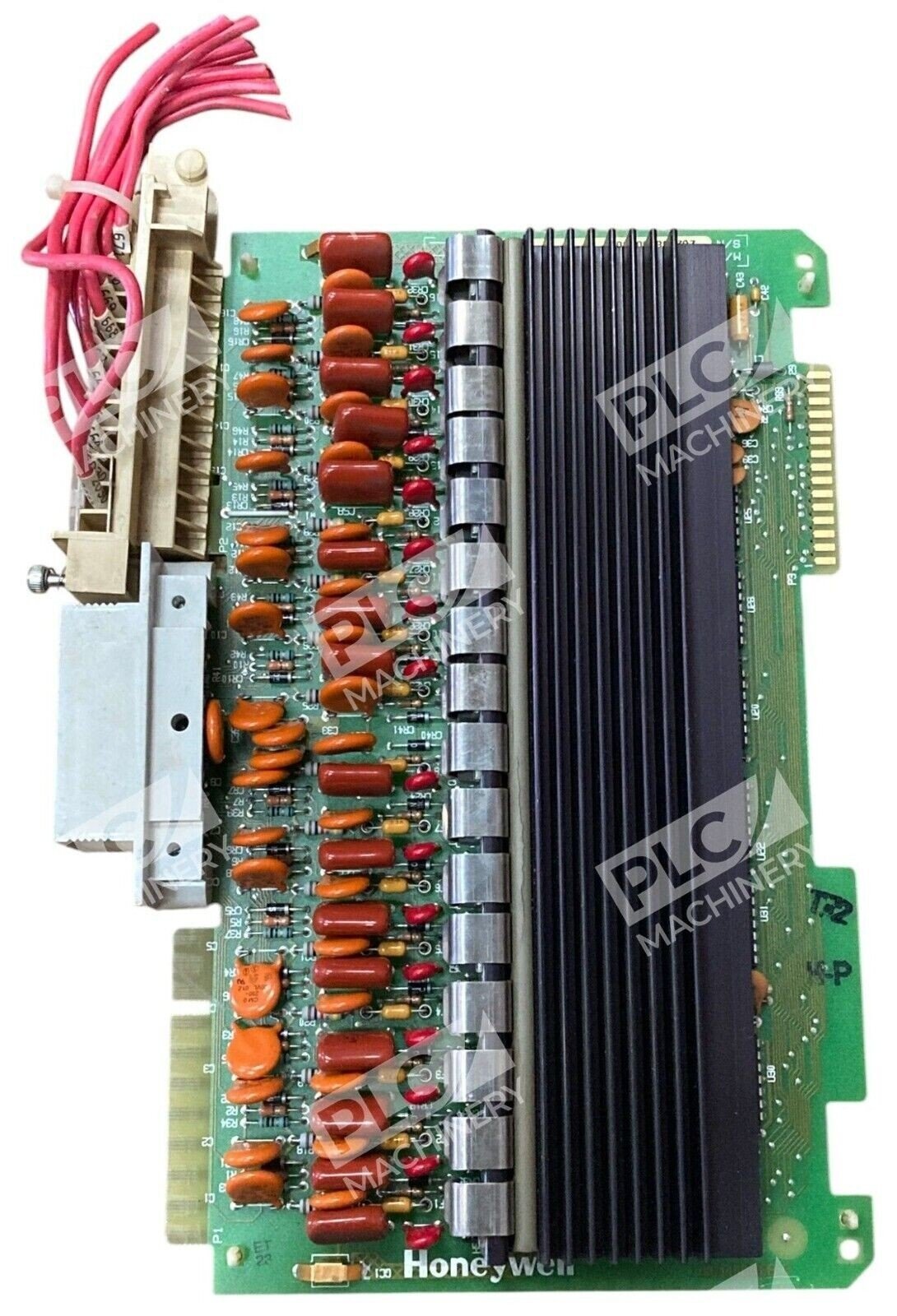

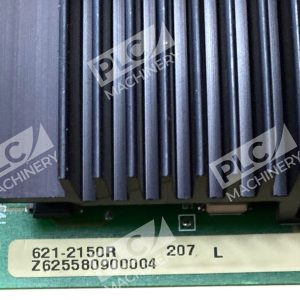

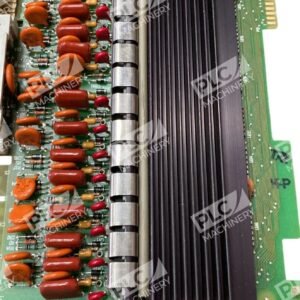

The Honeywell 621-2150R is a 16-point discrete output module designed for industrial automation and distributed control systems. The 621-2150R is the 115VAC discrete output card for the IPC/Logic Manager system. This model features an output rating of 115VAC, with a range of 90-140VAC for optimal operation. Each circuit is capable of handling 2A, with a total module output of 12A, ensuring consistent power distribution. The ‘R’ suffix designation indicates hot-swappable functionality, allowing installation or removal while the rack remains powered without interrupting other I/O modules.
Key Features
- LED indication for each output circuit on the 16-point modules is on the load side of the output (except isolated outputs and reed relay).
- All AC output modules incorporate zero crossing—the output is turned ON at the zero crossing of the ac wave form.
- All discrete outputs are optically isolated to 2500 Vdc.
- The ‘R’ suffix indicates the module can be removed or inserted into an I/O rack while the rack remains powered. Other I/O modules in the rack continue to control the machine or process.
- All channels are electrically isolated from each other and from logic circuits, providing excellent noise immunity for stable operation in industrial environments.

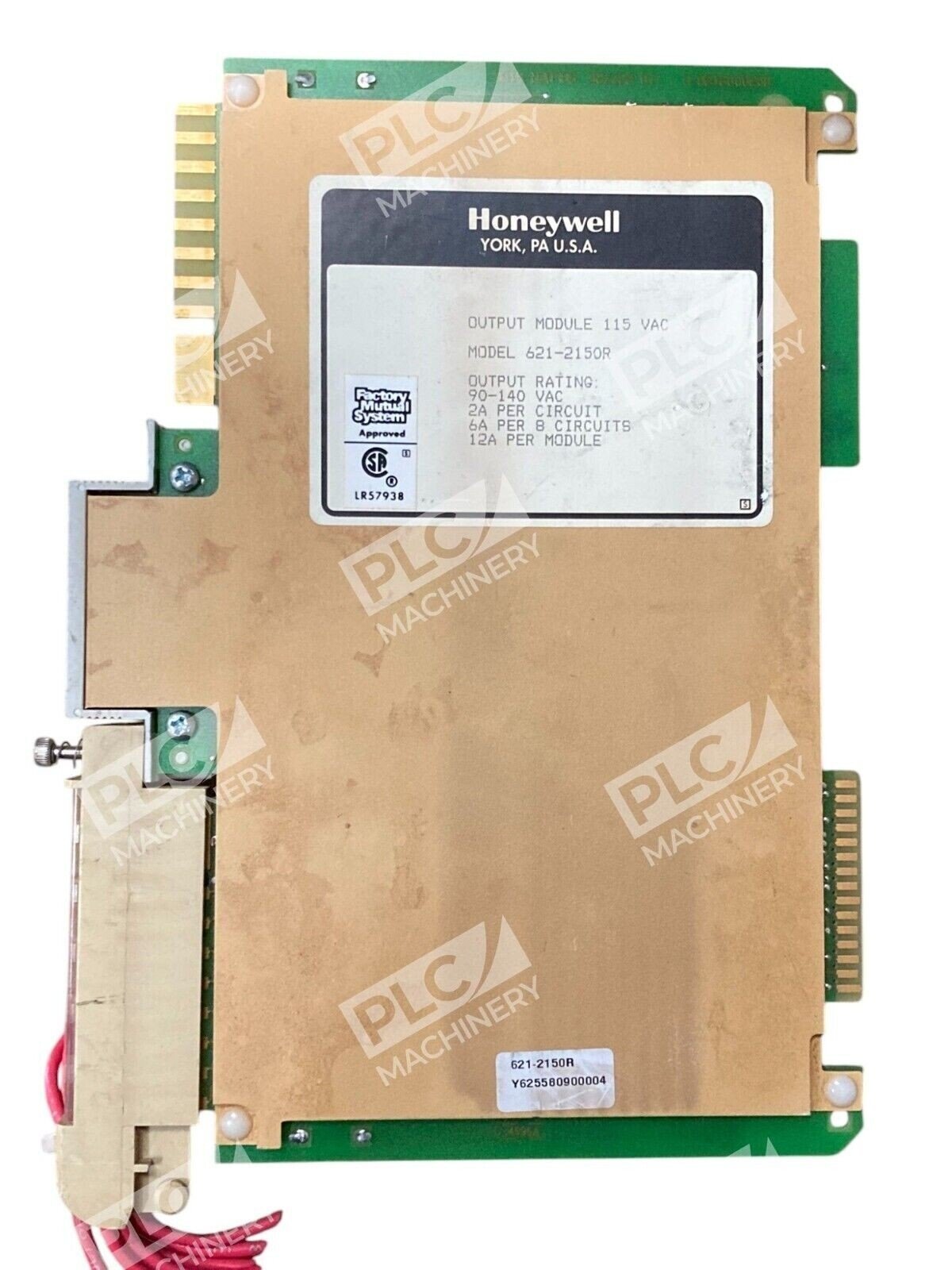

Technical Specifications
- Output Rating: 115VAC nominal
- Operating Voltage Range: 90–140VAC
- Output Points: 16
- Per-Circuit Output: 2A maximum
- Total Module Output: 12A
- Frequency: 50/60 Hz
- Isolation: Optical isolation to 2500 VDC
- Switching: Zero-crossing AC
- Weight: Approximately 560–630 grams
- Mounting: Rack-mount for IPC 620 and related chassis
- Hot-Swappable: Yes (R-suffix designation)
Typical Applications
The typical discrete output module offers the ability to control the ON and OFF state of its end devices. Among the common output devices are motor starters, solenoid valves, and indicator lamps. Commonly used in power plants, refineries, petrochemical, and manufacturing facilities to control discrete devices, implement interlock logic, sequence operations, and perform reliable digital output functions in DCS environments.
Compatibility & Replacements
Compatible With
- Honeywell IPC 620 Series controllers
- Honeywell IPC 621 Series controllers
- Honeywell TDC 2000 distributed control systems
- Honeywell TDC 3000 distributed control systems
- Honeywell Logic Manager platform
Replaces / Drop-In Replacement For
- Original Honeywell 621-2150 (non-R variant)
- Equivalent 16-point 115VAC output modules in IPC/TDC 2000/3000 chassis
Works With
- Honeywell IPC 620 and TDC 2000/3000 I/O racks
- Discrete AC loads (relays, contactors, motor starters, solenoid valves, indicator lamps)
- Systems requiring zero-crossing AC control and optical isolation
- Output type can be configured for either relay or transistor operation depending on application needs.
