Overview

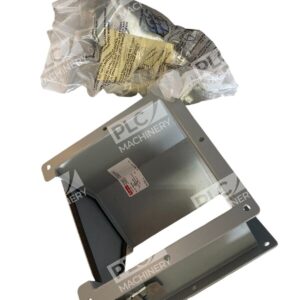

The Hoffman F88LE45A is a 45-degree lay-in wireway elbow designed for modular power distribution and cable management systems. Manufactured by nVent Hoffman, this component provides a smooth 45-degree turn in continuous wireway runs while maintaining the lay-in feature for flexible cover orientation. The F88LE45A measures 8.00 x 8.00 inches and is constructed from steel with a gray finish, delivering NEMA 1 rated protection suitable for dry indoor industrial environments.
Key Features
- 45-degree bend for directional wireway transitions
- Top opening with hinged cover for easy conductor access
- Lay-in design allows cover orientation in any direction
- Steel construction with gray powder-coat finish
- NEMA 1 / IP 54 rated for indoor protection
Technical Specifications
- Bend Angle: 45 degrees
- Cross Section: 8.00 x 8.00 inches
- Material: Steel
- Finish: Gray
- Cover Type: Hinged, top opening
- NEMA Rating: 1
- IP Rating: 54
- Mounting: Lay-in wireway compatible
Typical Applications
The F88LE45A is commonly used in:
- Industrial control cabinets and power distribution centers
- Factory automation and machine control systems
- Electrical panel branch routing and cable consolidation
- Modular wireway installations requiring 45-degree directional changes
- Continuous conductor protection in manufacturing environments
Compatibility & Replacements
Compatible With
- nVent Hoffman lay-in wireway 8×8 systems
- Type 12 industrial wireway installations
- Modular cable trunking networks
- NEMA 1 rated control enclosures and panels
Replaces / Drop-In Replacement For
- Previous-generation Hoffman F88LE45A units
- Verify compatibility with your system integrator before ordering to ensure proper channel dimensions and mounting orientation.
Works With
- Hoffman lay-in wireway components (straight sections, covers, connectors)
- Industrial control system routing and branch installation
- Standard power distribution architectures and cable management systems
