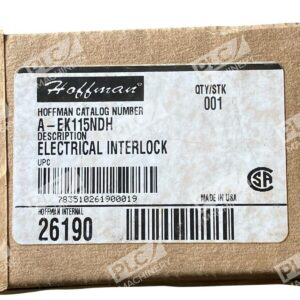

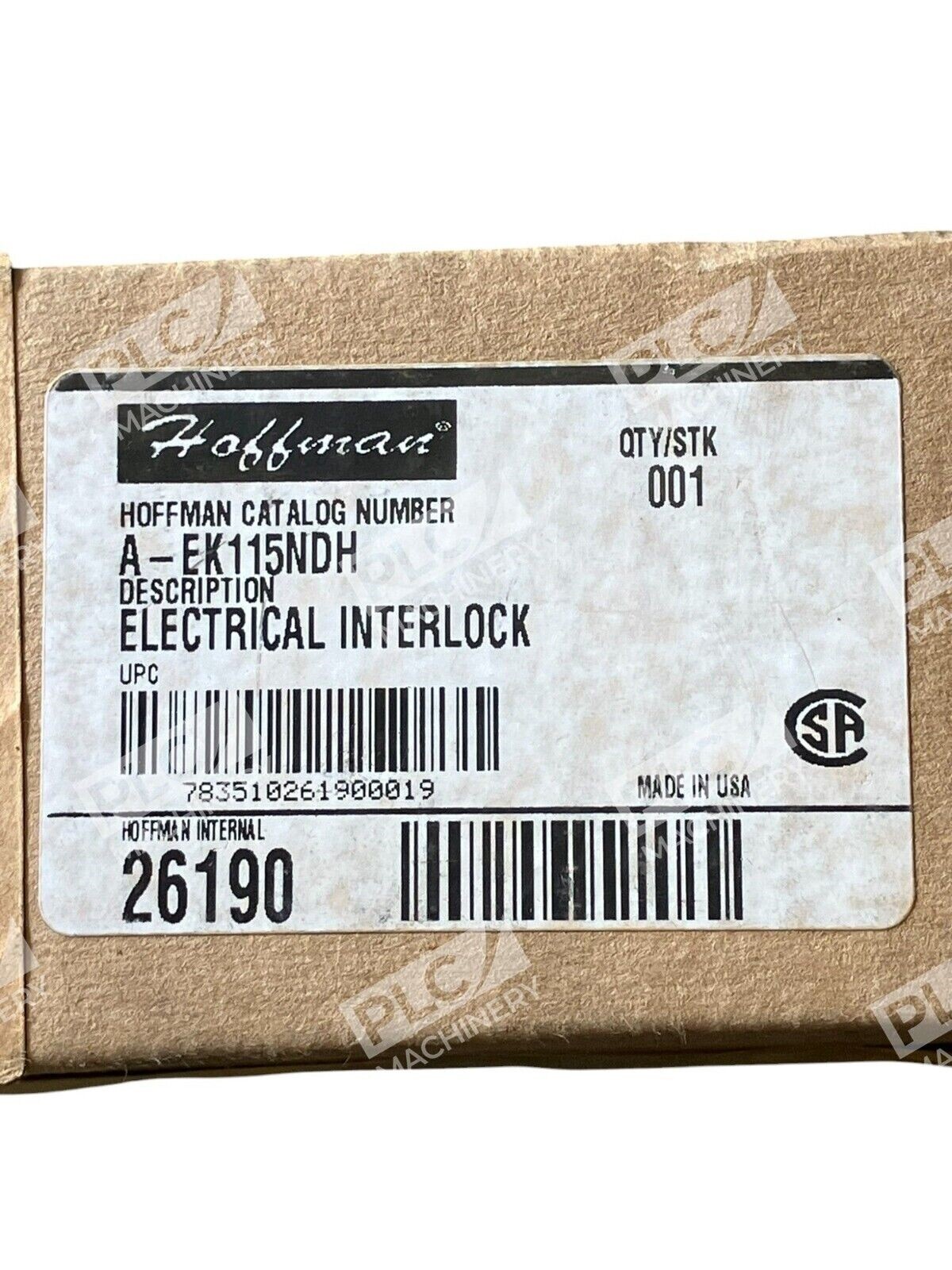

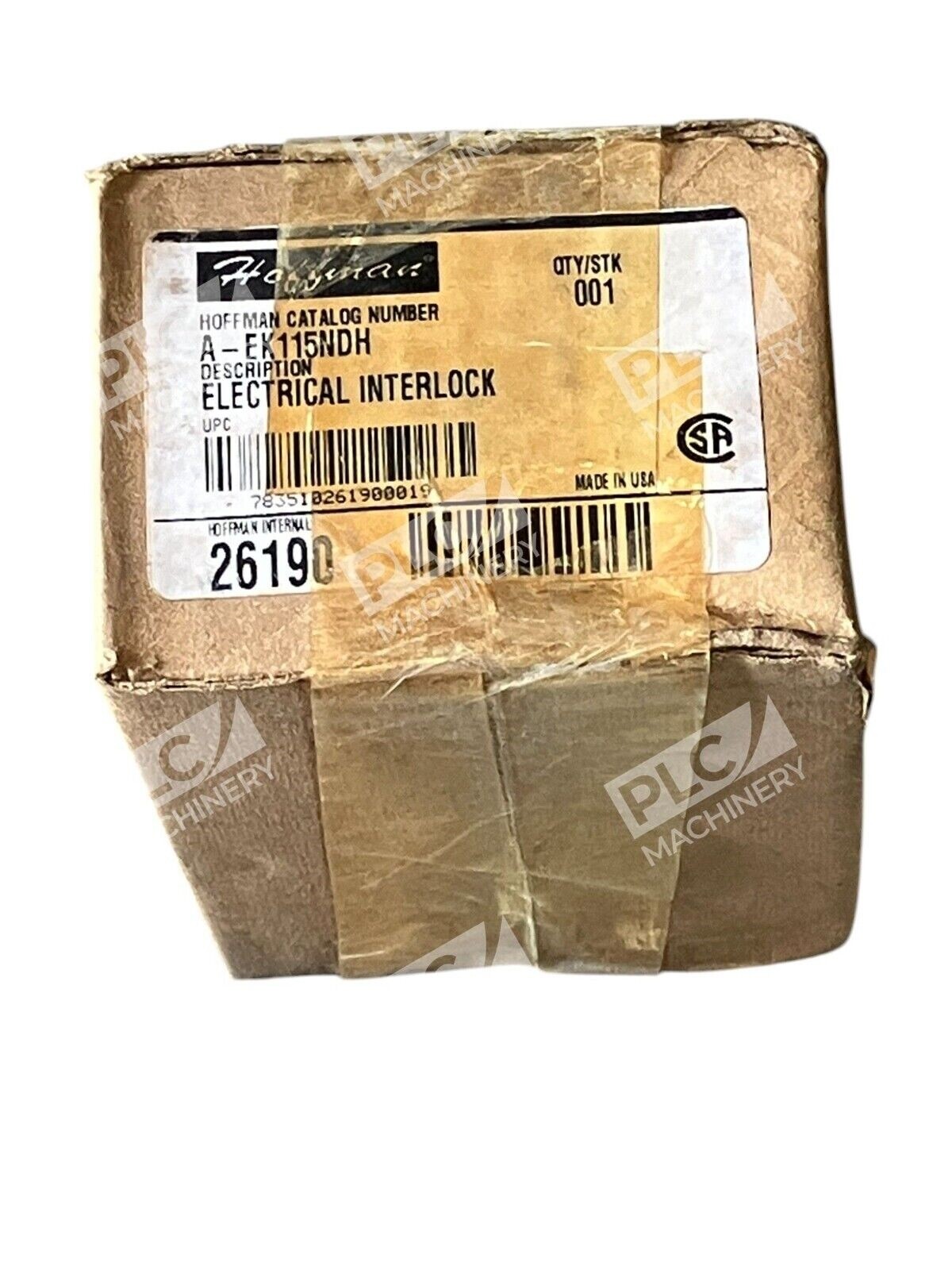

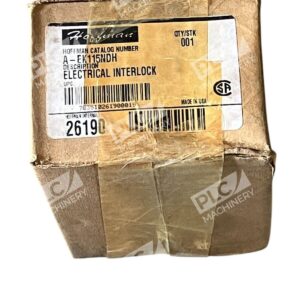

The Hoffman 26190 Electrical Interlock A-EK115NDH is engineered to provide a secure internal safety lockout for electrical enclosures during equipment operation. When energized, this interlock prevents the door handle from being turned, thereby restricting access to the enclosure.
Key Features
- Continuous Duty Solenoid: Designed for heavy industrial use, ensuring reliable performance over extended periods.
- Comprehensive Installation Kit: Includes a solenoid assembly, strike plate or bracket, and detailed instructions for straightforward field installation.
- Durable Construction: Constructed from rugged steel with a plated finish, offering enhanced durability and resistance to wear.
Compatibility
The A-EK115NDH interlock is suitable for various Hoffman enclosures and boxes featuring exterior latching mechanisms. It is compatible with:
- One-door Type 4 and 4X enclosures
- Two-door Type 4 and 4X enclosures
- One-door Type 12 enclosures
- Larger sizes of hinge-cover junction boxes
- Type 1 and large Type 1 enclosures
Additionally, it fits most Hoffman custom enclosures and boxes with doors or covers hinged similarly to the aforementioned enclosures.
Specifications
- Voltage: 115 VAC, 60 Hz
- Material: Steel
- Finish: Plated
- Dimensions: 3.25 in H x 3.75 in W x 1.88 in D
- Weight: 1.6 lb
Industry Standards
The A-EK115NDH meets the following industry standards:
- UL 508A Component Recognized
- CSA Certified
This electrical interlock is an essential component for ensuring safety and compliance in industrial settings, effectively preventing unauthorized access to energized equipment.
