Overview

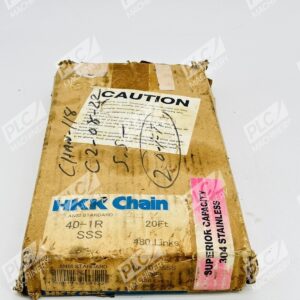

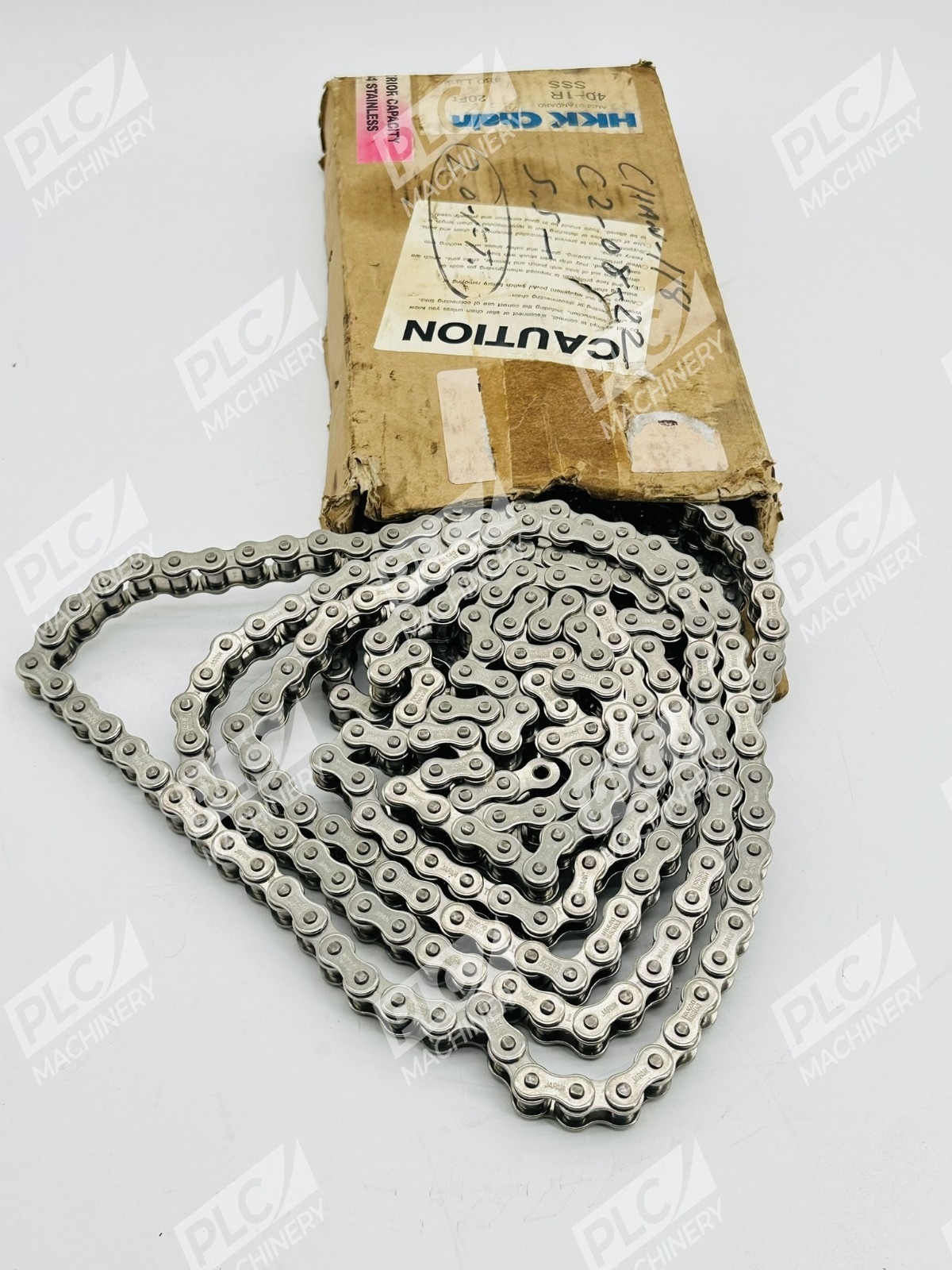

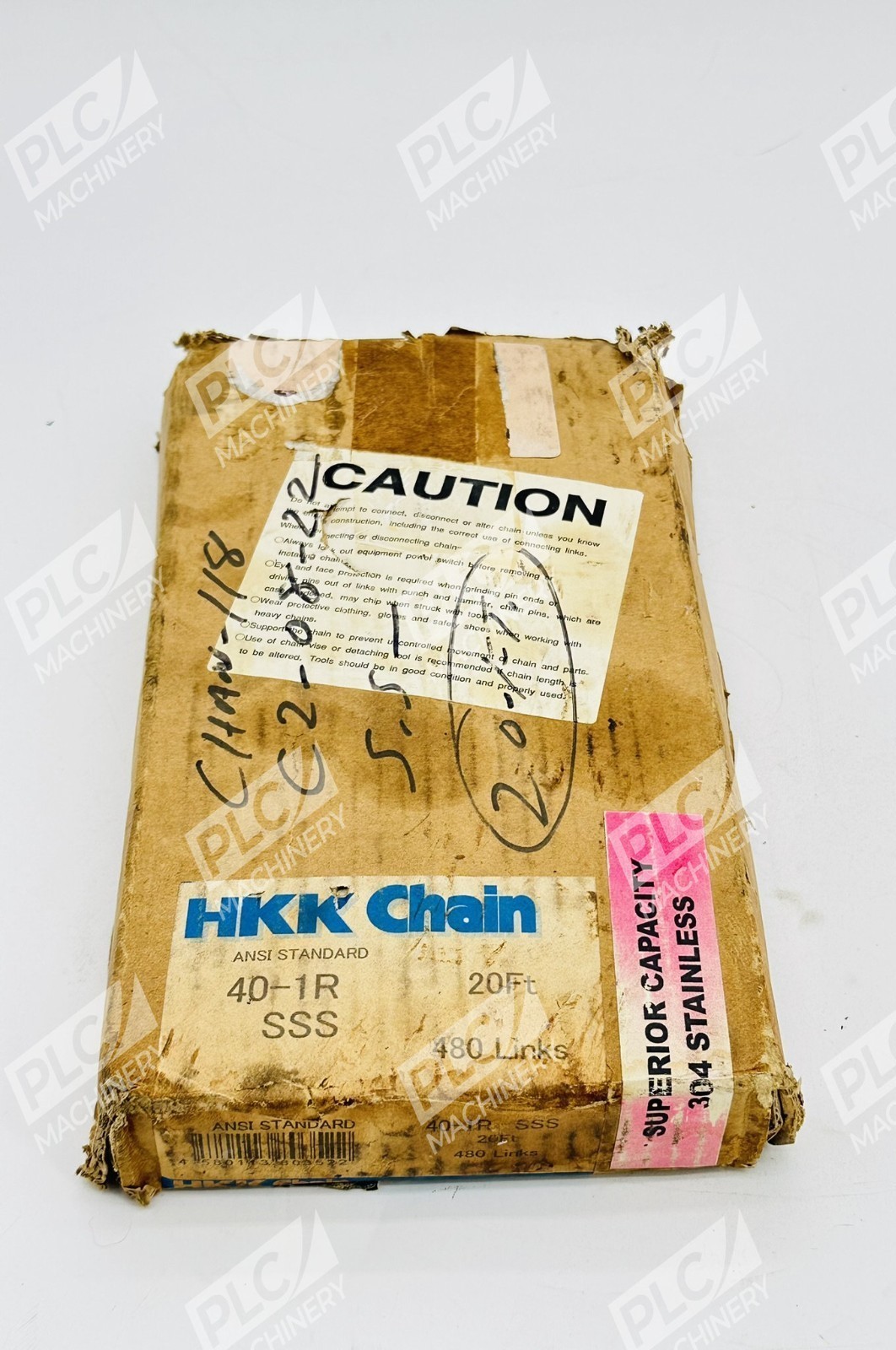

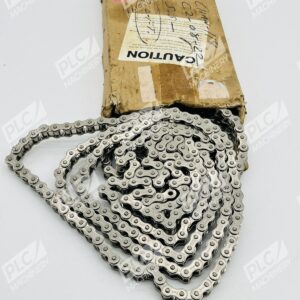

The HKK Chain 40-1R SSS is a precision 304 stainless steel roller chain designed for high-reliability power transmission in corrosive and extreme-temperature environments. HKK precision stainless steel roller chains are manufactured from 304 series stainless steel, to achieve the utmost corrosion and temperature resistance. This 20-foot assembly contains 480 links and is manufactured in accordance with ANSI B29.1 dimensional standards.
Key Features
- Solid Rollers & Bushings: Equipped with solid rollers which will not split or deform like conventional split rollers under extreme loads and temperatures.
- ANSI B29.1 Certified: Meets industry standards for dimensional accuracy and interchangeability.
- Made in Japan: Made in Japan. Engineered with precision manufacturing and quality control.
- 304 Stainless Steel Construction: Superior corrosion and temperature resistance for food processing, washdown, and chemical environments.
- Superior Fatigue Strength: Engineered for maximum allowable load capacity and extended service life.
- Connecting Link Included: One connecting link is supplied with each 10′ of chain.
Technical Specifications
- Chain Size: ANSI #40
- Pitch: 1/2 inch (12.7 mm)
- Material: 304 Stainless Steel
- Link Count: 480 links
- Overall Length: 20 feet
- Pin Diameter: 0.156 inches (3.96 mm)
- Roller Diameter: 0.312 inches (7.92 mm)
- Roller Width: 5/16 inches (7.94 mm)
- Link Plate Height: 0.457 inches (11.6 mm)
- Link Plate Thickness: 0.060 inches (1.52 mm)
- Standard: ANSI B29.1
- Connecting Links: Spring clip type (2 included with 20 ft assembly)
- Bushing Type: Cold forged solid bushings
- Origin: Made in Japan
Typical Applications
The HKK Chain 40-1R SSS is ideal for demanding mechanical power transmission systems including:
- Food processing and beverage packaging machinery
- Chemical and pharmaceutical equipment
- Washdown and wet environments
- Marine and coastal applications
- Pharmaceutical and medical device assembly
- Agricultural processing systems
- Industrial conveyors in corrosive settings
- Temperature-cycling environments
Compatibility & Replacements
Compatible With
- ANSI #40 chain sprockets (1/2″ pitch)
- Standard roller chain tensioners and guides
- Mechanical power transmission systems designed for #40 chain
- Industrial machinery requiring stainless steel chain
Replaces / Drop-In Replacement For
- HKK 40R standard carbon steel chain (same pitch and link configuration)
- Other ANSI #40 single strand roller chains (verify sprocket compatibility)
- Generic stainless steel #40 chains from other manufacturers
Works With
- Spring clip type connecting links (standard with chain)
- Offset links (SKU SR040CHL1 – sold separately)
- Roller links and pin components for field repairs
- Universal roller chain tensioning systems
