Overview

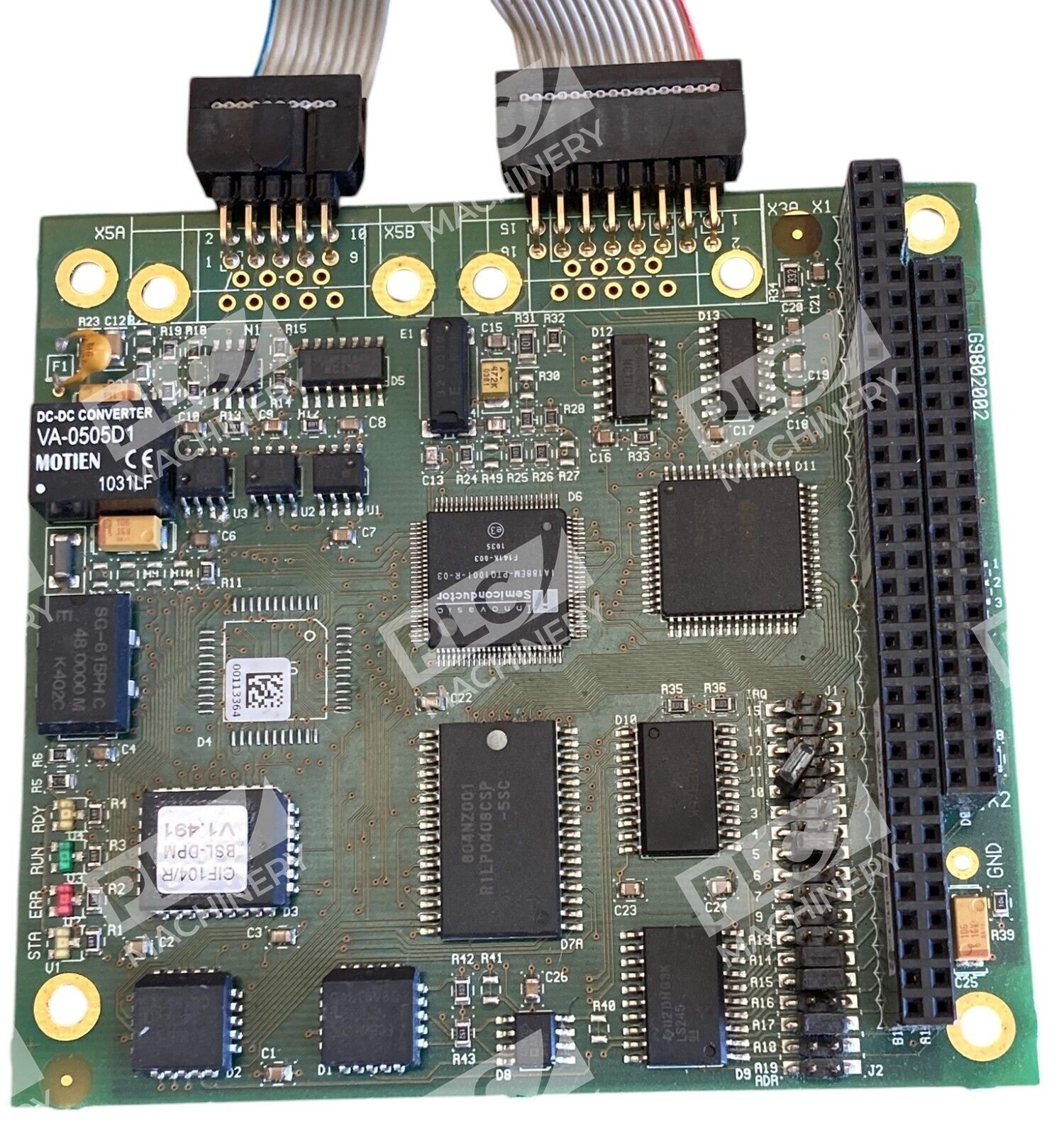

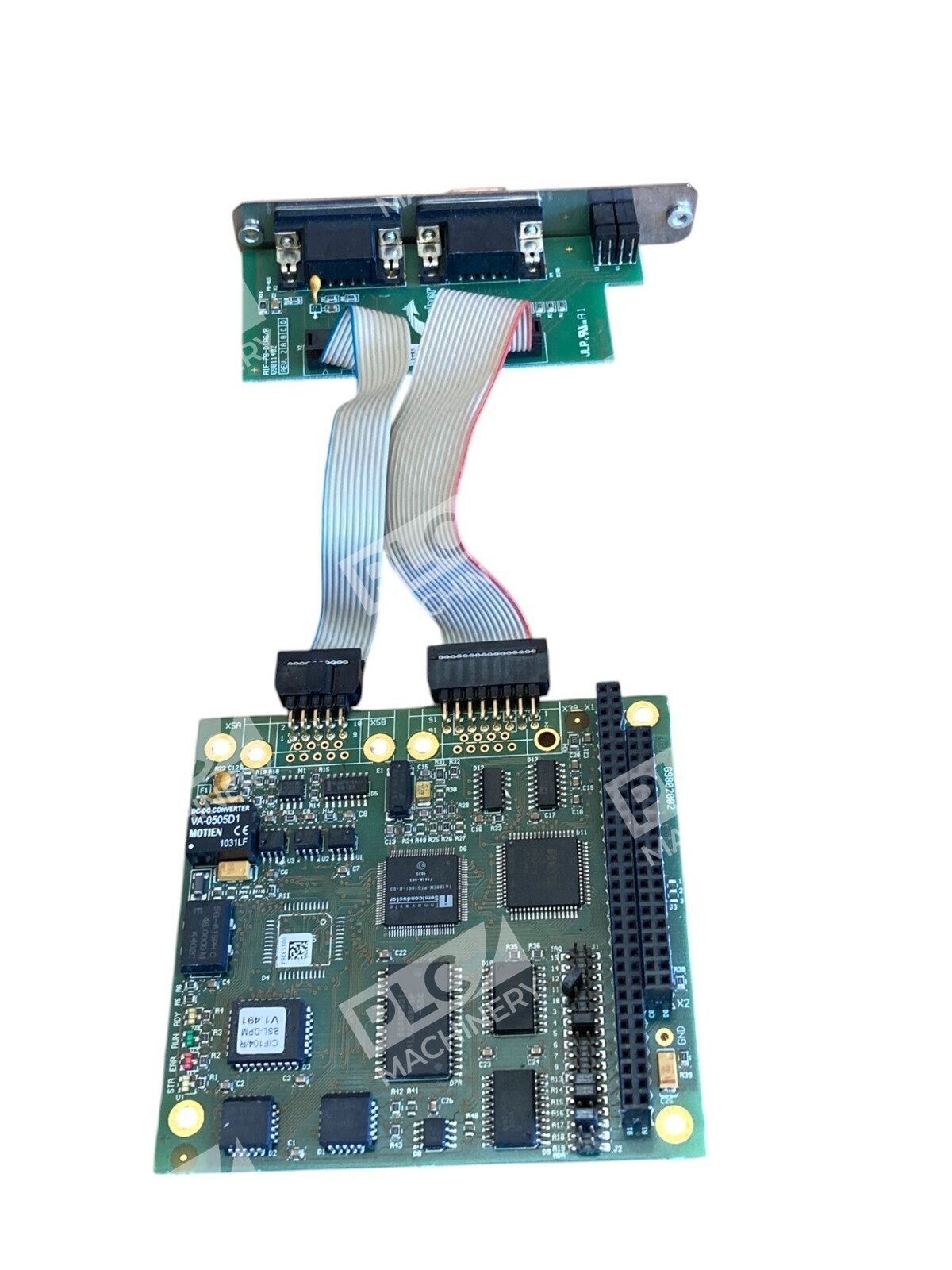

The Hilscher AIF-PB-DIAG/R G9811402 is a PROFIBUS DP-Master interface module designed for reliable fieldbus communication in PC-based automation systems. Hilscher CIF communication interface cards have been used successfully in varied areas of application and have become a standard on the market. This used unit comes equipped with the G9802002 circuit board (internal reference 2790-8C) and CIF104/R firmware V1.491, providing proven functionality for PROFIBUS DP master and slave operations.
Key Features
- PROFIBUS DP Master/Slave Capable: Fieldbus systems function excellently in PC-based automation whether as Master or Slave
- Established Communication Standard: Proven industrial-grade interface module for networked process control
- Integrated Circuit Board: Includes G9802002 PCB assembly with CIF104/R firmware V1.491
- Flexible Network Operations: Supports cyclic and acyclic data transfer on PROFIBUS DP networks
- PC-Based Integration: Designed for embedded and standalone PC automation platforms
Technical Specifications
- Module Type: PROFIBUS DP-Master Interface

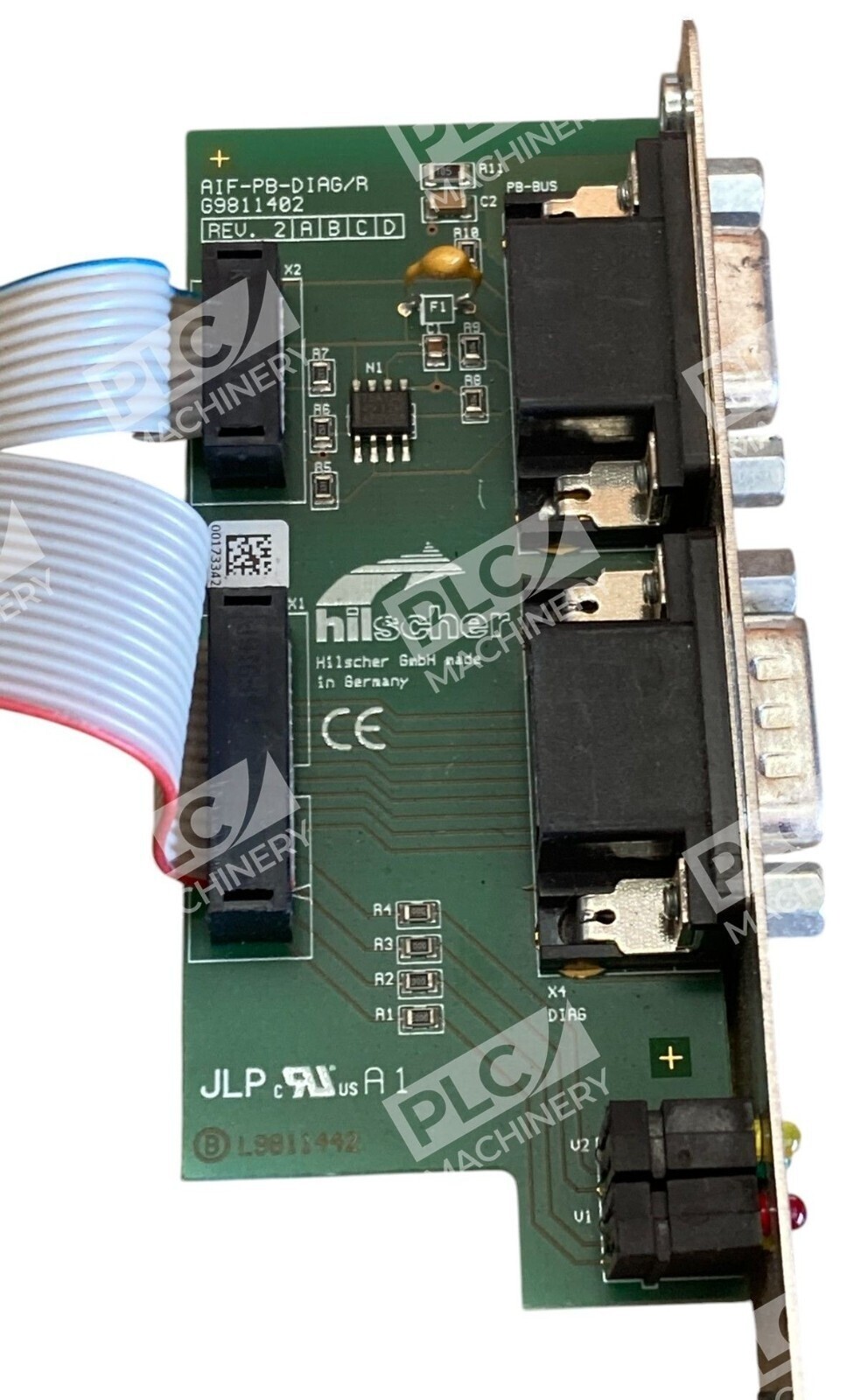

- Part Number: AIF-PB-DIAG/R G9811402 X74

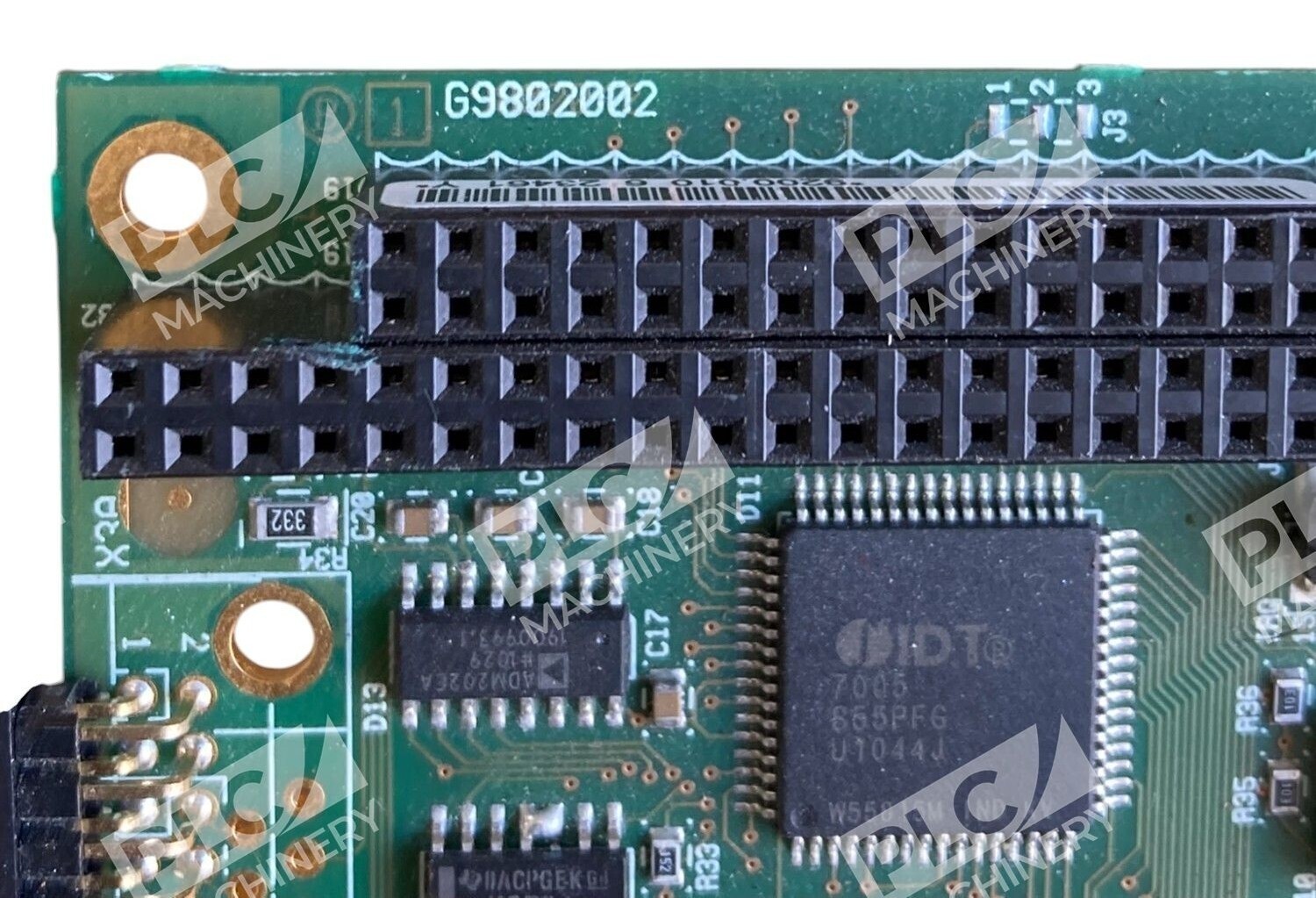

- Circuit Board: G9802002
- Firmware: CIF104/R BSL-DPM V1.491
- Internal Reference: 2790-8C
- Communication Protocol: PROFIBUS DP (EN 50170)
- Operating Modes: Master and Slave
- Data Transfer: Cyclic and acyclic
- Network Standards: PROFIBUS DP industrial fieldbus
Typical Applications
- Industrial process control and monitoring
- Distributed I/O control on PROFIBUS networks
- PC-based manufacturing automation
- Legacy and retrofit fieldbus integration
- Multi-device master/slave PROFIBUS communication
Compatibility & Replacements
Compatible With
- PROFIBUS DP networks and devices
- PC-based industrial automation platforms
- Hilscher DTM (Device Type Manager) tools and configuration software
- FDT container systems for device configuration
- Standard PROFIBUS DP slave devices from all manufacturers
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This module is a direct replacement for equivalent Hilscher AIF-PB-DIAG/R configurations with G9802002 circuit boards.
Works With
- PROFIBUS DP Protocol Stack (EN 50170)
- Hilscher DTM-DPM (PROFIBUS DP-Master DTM)
- FDT/DTM configuration frameworks
- Standard PROFIBUS engineering tools and diagnostics
- PC-based real-time automation software
