Overview

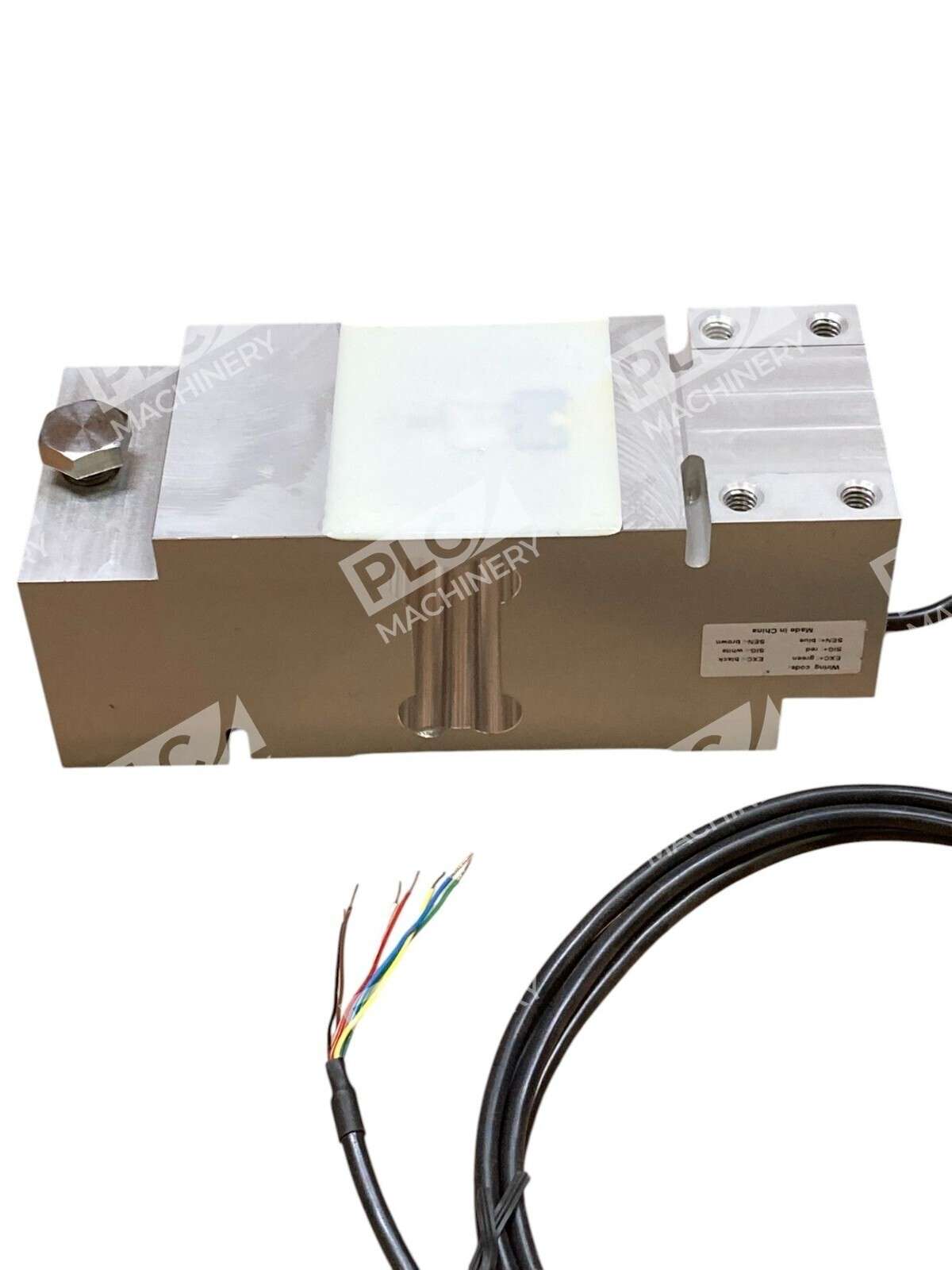

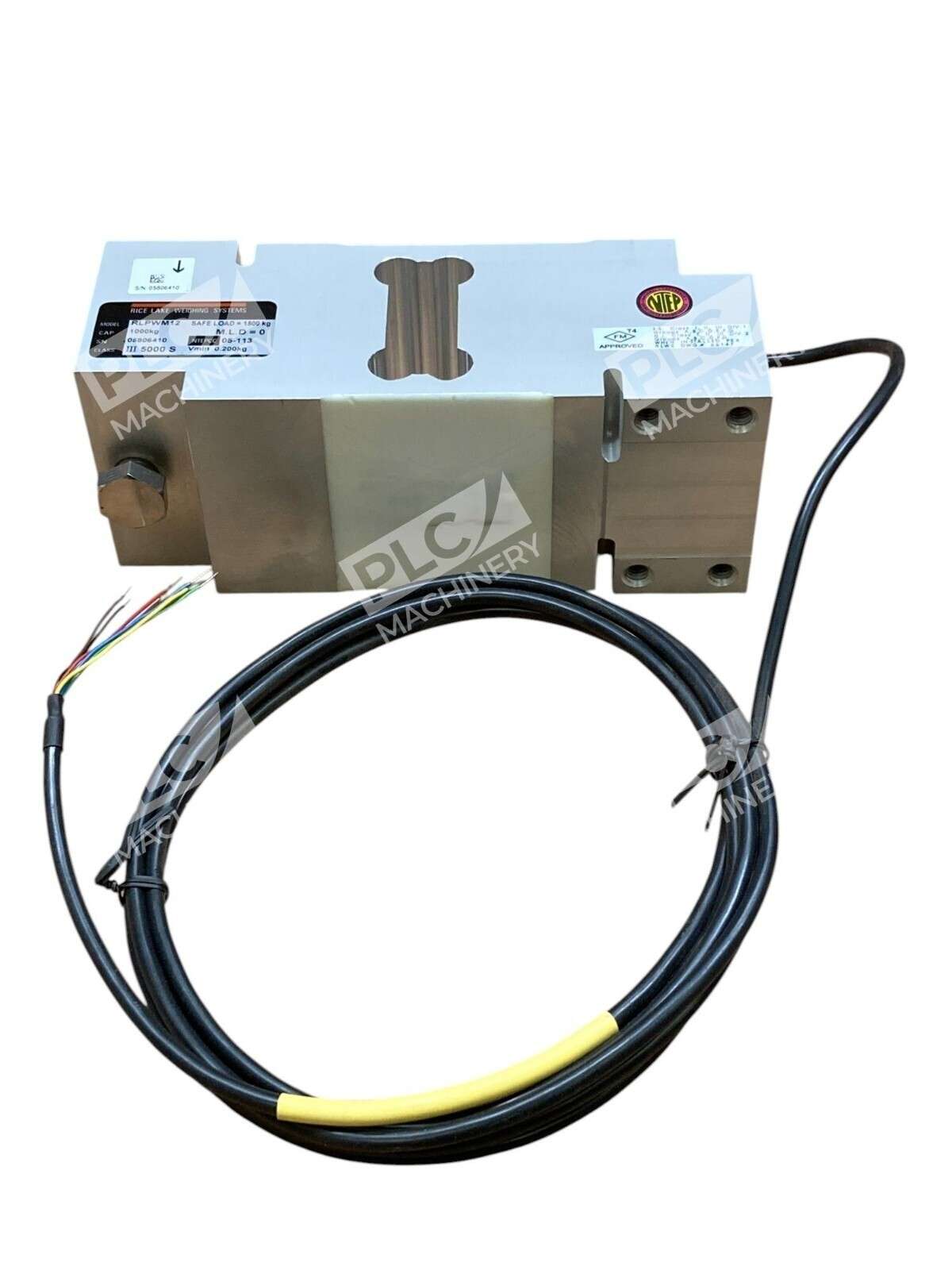

Rice Lake RLPWM12-1000kg load cell delivers accurate weight measurement for industrial weighing applications. Ideal for platform, hanging scale and other low-capacity beam applications with capacities ranging from 50 kilograms to 1000 kilograms, this single point design provides reliable performance in demanding environments. Constructed of aluminum and IP67 rated, the RLPWM12 meets standards for legal-for-trade weighing systems.
Key Features
- NTEP Certified for accurate, compliant weight measurement
- IP67 rated aluminum construction ensures durability and moisture resistance
- Includes 10 ft of load cell cable for quick installation
- Single point design simplifies integration into platform and hanging scales
- Long-term stability suitable for continuous production weighing
Technical Specifications
- Capacity: 1000 kg (2204.6 lbs)
- Output Sensitivity: 2 mV/V
- Accuracy: 0.02% total error
- Electrical Resistance: 420/350 ohms
- Cable Length: 10 feet (6-conductor)
- Material: Anodized aluminum
- IP Rating: IP67

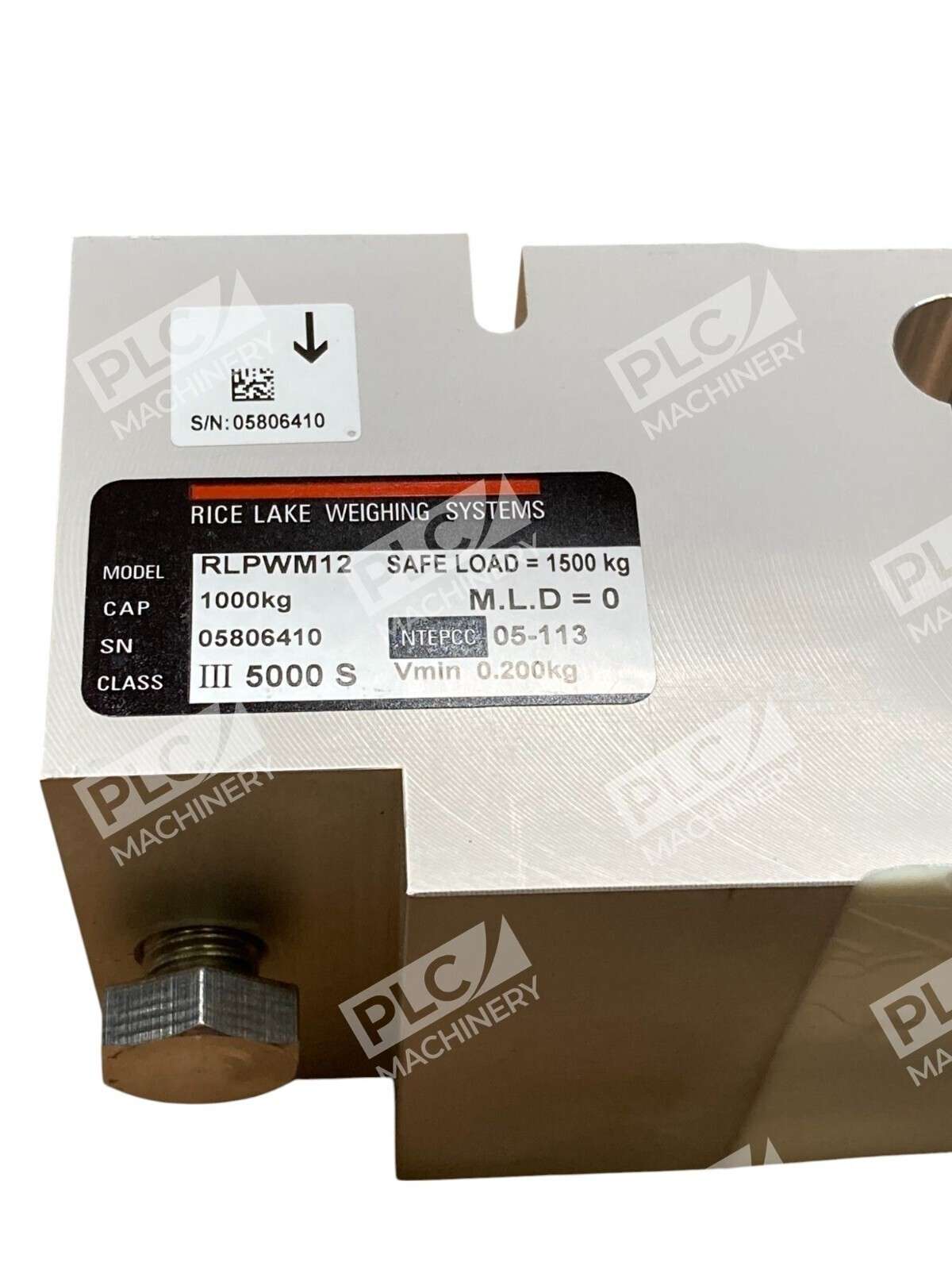

- Certification: NTEP 99-106 III S (5,000 divisions)

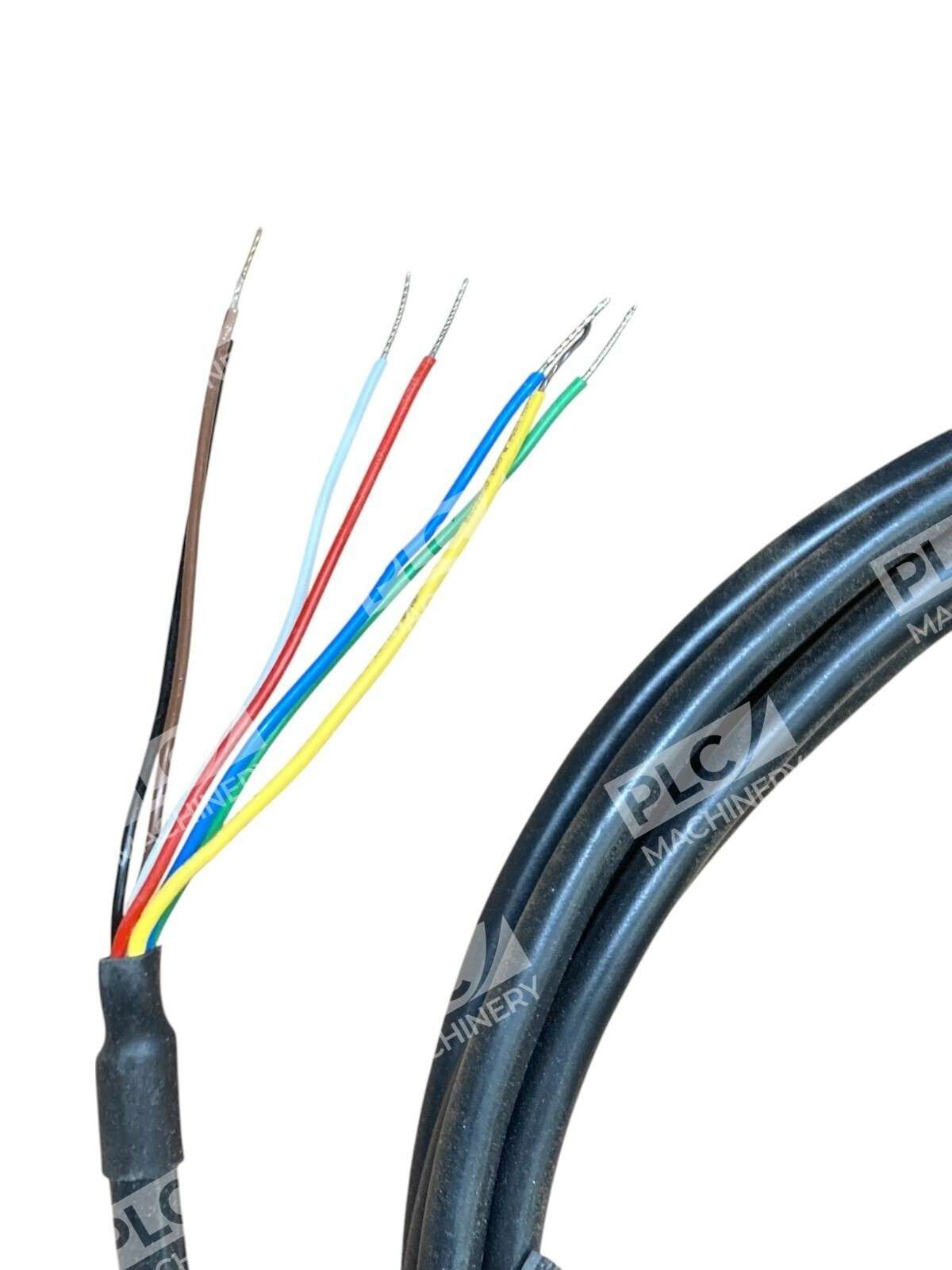

- Wire Color Code: Green (+ Excitation), Black (- Excitation), Blue (+ Sense), Brown (- Sense), Red (+ Signal), White (- Signal), Yellow (Shield)
Typical Applications
- Platform scales for postal and shipping operations
- Hanging scales for suspended load measurement
- Batch weighing systems in industrial and food processing
- Packaging equipment requiring accurate load feedback
- Material handling and inventory control systems
- Process control weighing stations
Compatibility & Replacements
Compatible With
- Rice Lake weighing scale instruments and control units
- Universal load cell indicators and junction boxes
- Standard 6-conductor load cell summing cables
- NTEP-certified platform and hanging scales
- Legal-for-trade weighing systems
Replaces / Drop-In Replacement For
- HBM PW12 (compatible, verify pin configuration)
- VPG Tedea-Huntleigh 1250
- Rice Lake RL1250
- Coti Global CG-50 series (1000kg)
- CAS BCM, Celtron LOC, Transcell FAY (1000kg models)
Works With
- Load cell amplifiers and conditioning modules
- Analog and digital weight indicators
- PLC-based process control systems with analog input modules
- 4-20mA transmitter interface equipment
- Industrial automation and SCADA systems
