Overview

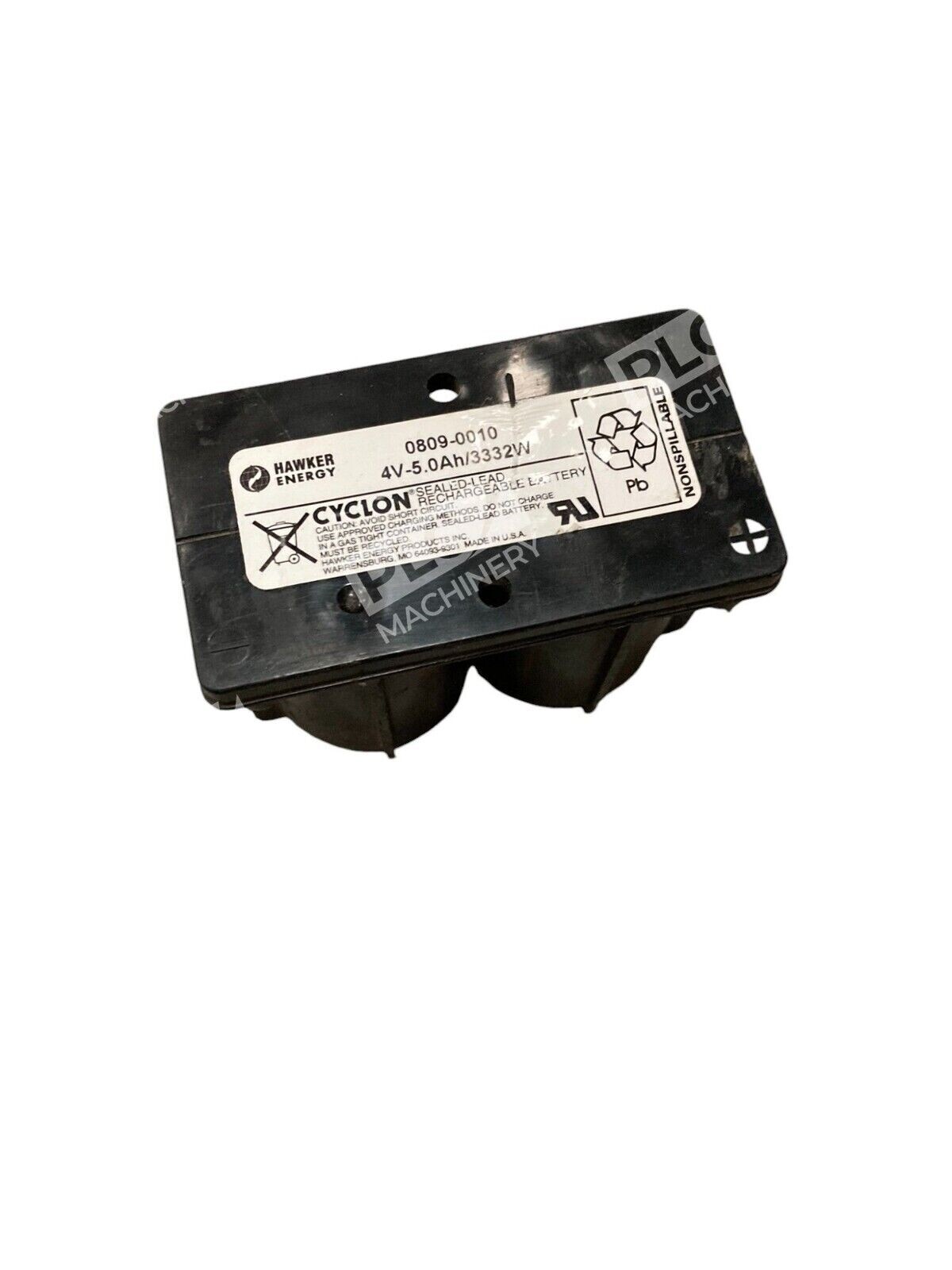

The Hawker Energy 0809-0010 is a high-performance 4V 5.0Ah sealed lead acid (SLA) monobloc battery designed for demanding backup power and emergency lighting applications. Built with Cyclon spiral-wound cell construction, this VRLA (valve-regulated lead acid) battery delivers consistent performance across a wide operating temperature range and supports safe operation in any position.
Key Features
- Cyclon monobloc construction with spiral-wound cells for enhanced durability
- 4V nominal voltage, 5.0Ah rated capacity
- F2 terminal configuration for standard connectivity
- Absorbent glass mat (AGM) technology for reliable performance
- Valve-regulated design allows safe installation in any orientation
- UL listed for quality assurance and safety compliance
- Wide operating temperature range for climate-diverse applications
Technical Specifications
- Nominal Voltage: 4V DC
- Rated Capacity: 5.0Ah
- Chemistry: Sealed Lead Acid (VRLA)
- Cell Configuration: Monobloc (4 cells in series)
- Terminal Type: F2 (Faston 2.0mm)
- Dimensions: 3.8″ L × 2.12″ W × 3.02″ H (approximately)
- Technology: Absorbent Glass Mat (AGM)
- Certifications: UL listed
- Design: Spiral-wound construction with thin battery plates
Typical Applications
- Emergency lighting systems and exit signs
- Uninterruptible Power Supply (UPS) backup
- Industrial emergency backup equipment
- Lawn care equipment (lawn mowers, garden tools)
- Portable power tools and equipment
- Security and access control systems
Compatibility & Replacements
Compatible With
- Emergency lighting and exit sign systems requiring 4V monobloc batteries
- UPS backup power systems with 4V battery compartments
- Industrial backup power applications
- Lawn and garden equipment requiring 4V rechargeable power
Replaces / Drop-In Replacement For
- Jasco 0809-0010
- Hawker Gates HG-0809-0010
- Enersys Hawker Cyclon 0809-0010
- Other equivalent 4V 5.0Ah monobloc SLA batteries with F2 terminals
Works With
- Standard F2 terminal connectors and battery chargers
- Sealed lead acid battery charging systems and maintainers
- Emergency backup power distribution panels
- Any equipment originally specified for Hawker Cyclon 4V 5Ah monobloc batteries
