Harting 600 / 6kV / 3 10271010 Connector H-BVE-10-BS

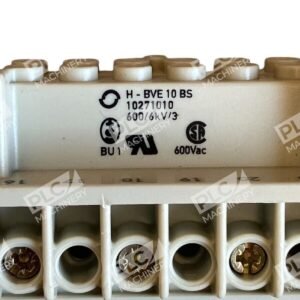

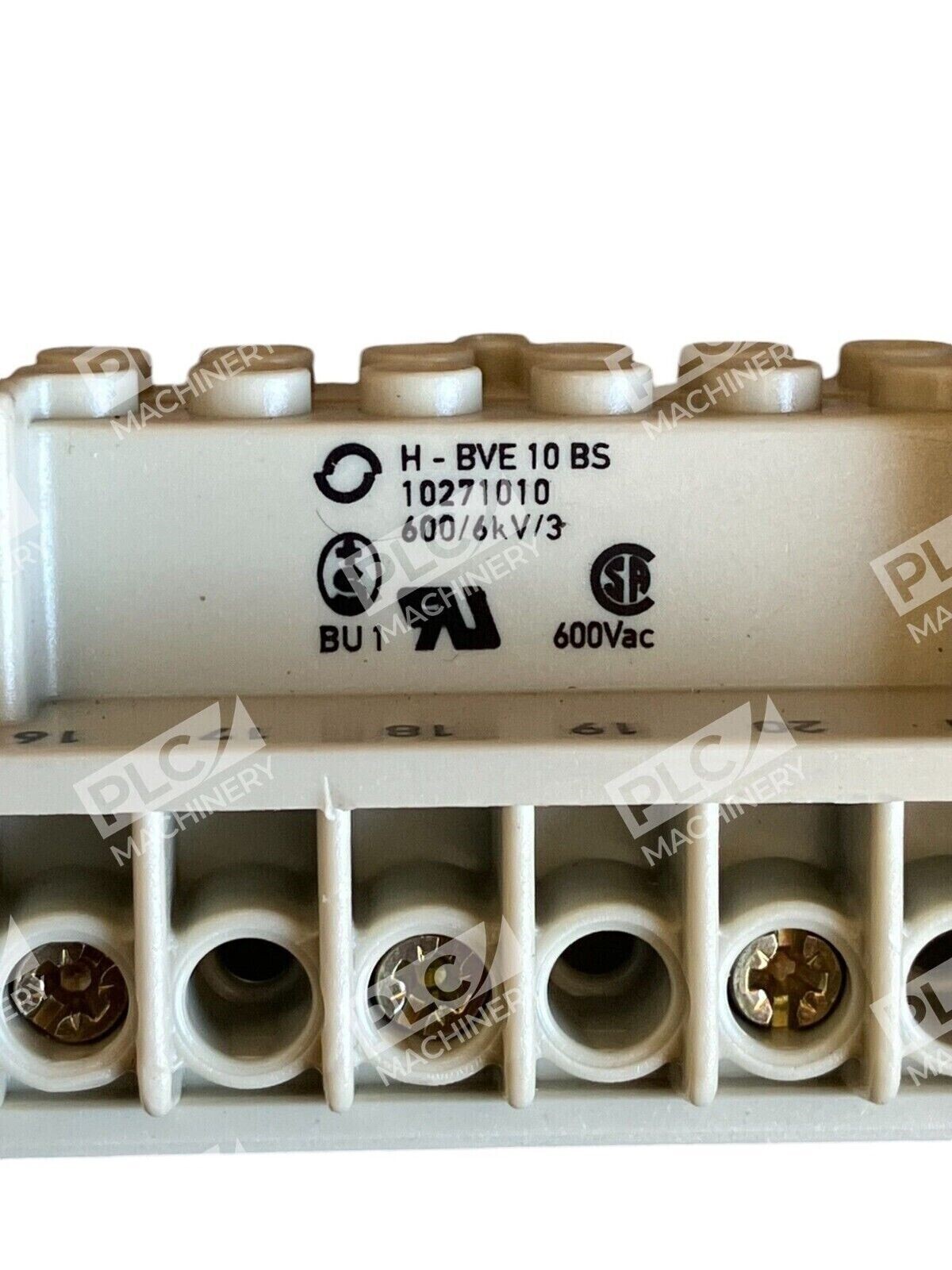

Harting H-BVE 10 BS Connector (Part Number: 10271010)

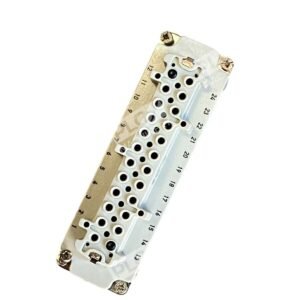

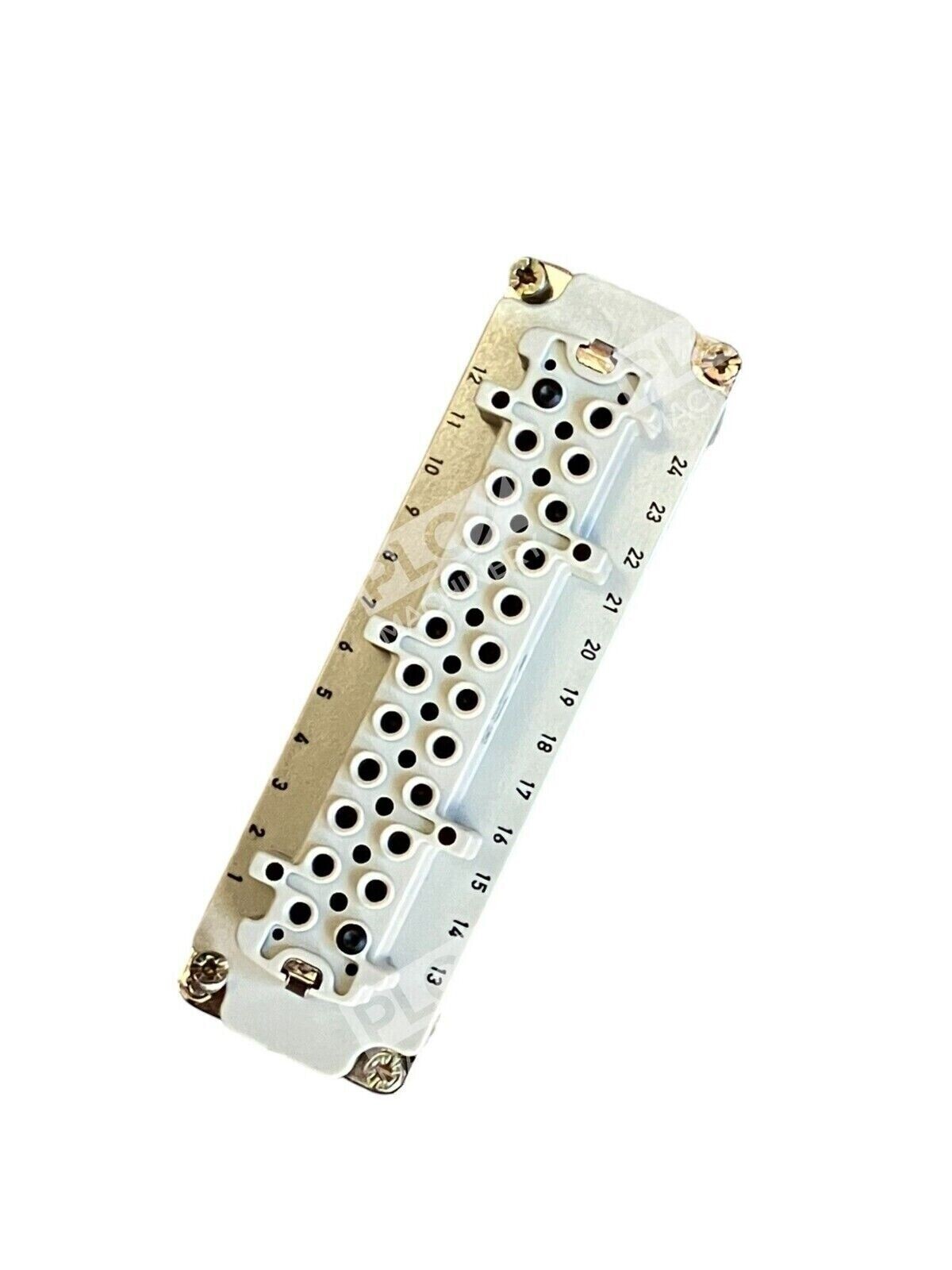

The Harting H-BVE 10 BS is a high-voltage female insert designed for rectangular connectors, featuring 10 main contacts and 2 additional switching contacts. This configuration enables efficient load disconnection operations, making it ideal for applications in mechanical and plant engineering.

Key Features

• Multipole Insert with Lagging Switch Contacts: The design includes delayed switching contacts that interrupt the power supply before the main working contacts are separated, enhancing safety during disconnection under load.
• High Voltage Capability: Rated for up to 630 V according to IEC standards, with a rated impulse voltage of 6 kV, suitable for demanding electrical environments.
• Robust Construction: Manufactured with a polycarbonate insert and silver-plated copper alloy contacts, ensuring durability and reliable electrical performance.

Technical Specifications

• Number of Contacts: 10 main contacts + 2 switching contacts + PE (Protective Earth)
• Rated Voltage: 630 V (IEC), 600 V (UL/CSA)
• Rated Current: 16 A (IEC/UL/CSA)
• Contact Resistance: < 2 mΩ
• Termination Method: Screw termination for wire sizes ranging from 0.5 mm² to 2.5 mm²
• Operating Temperature Range: -40°C to +100°C, with short-term peaks up to +125°C
• Mechanical Operations: Rated for at least 100 mating cycles

Applications

The H-BVE 10 BS connector is particularly suited for:

• Mechanical engineering
• Plant engineering

Its design ensures safe and efficient power disconnection, making it a reliable choice for high-voltage applications requiring additional switching capabilities.
