Overview

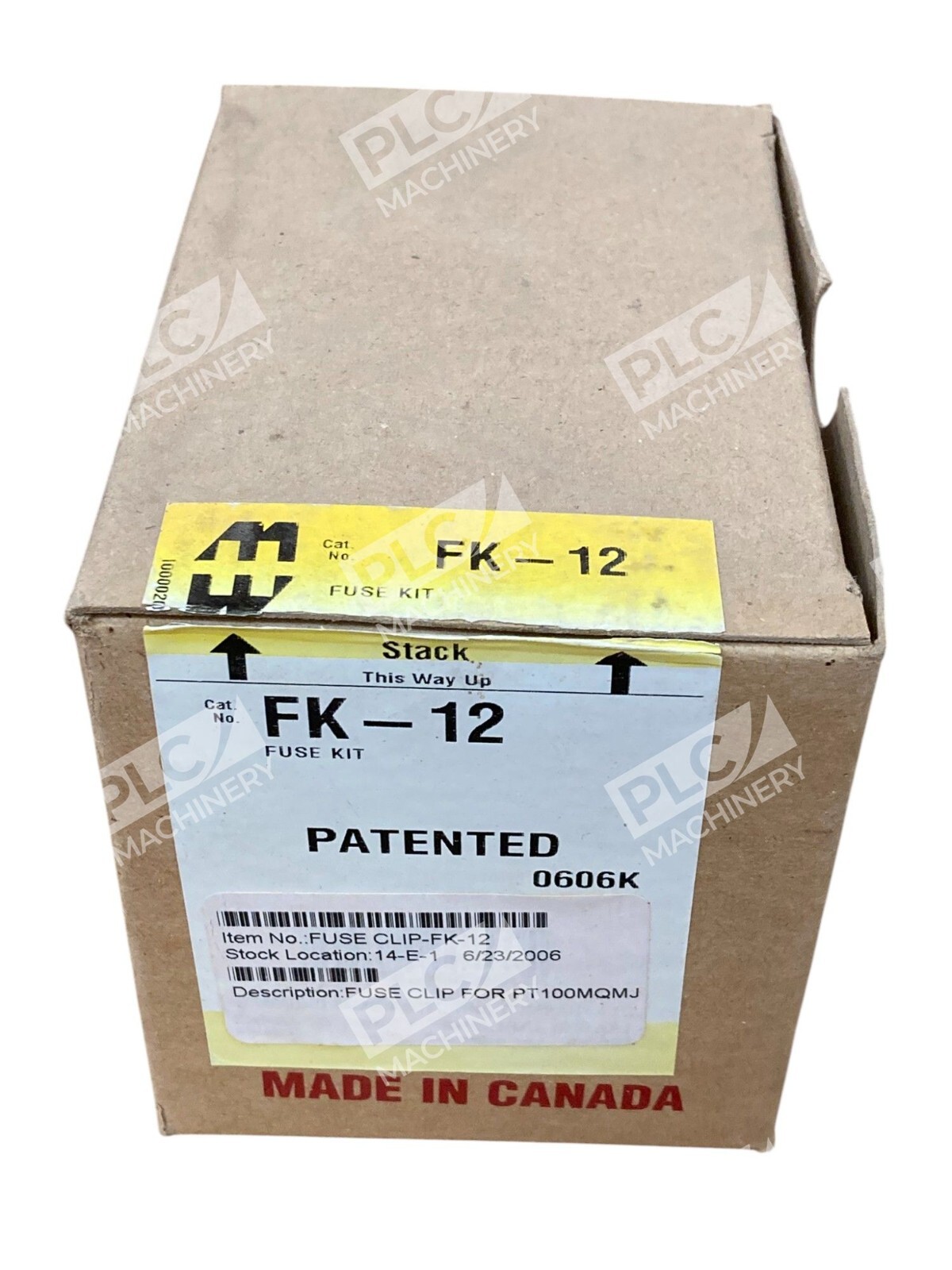

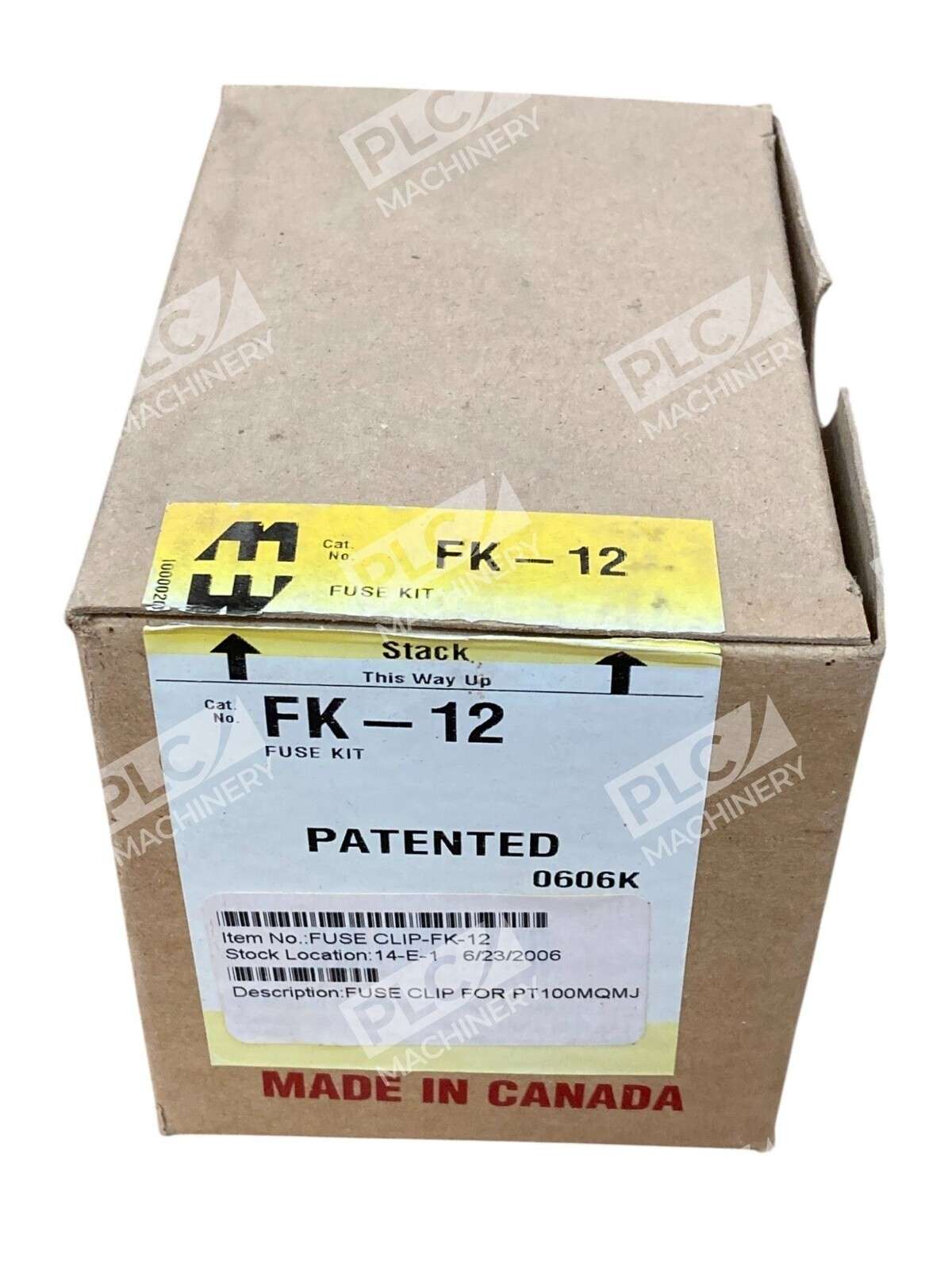

The Hammond FK-12 is a primary midget fuse clip kit designed for industrial control transformer applications. This kit provides secure mounting for 13/32″x1-1/2″ type CC midget fuses and is rated for 1000VA transformers at 120V primary. The kit includes all necessary hardware for field installation on Hammond Imperator series units and compatible transformer models.
Key Features

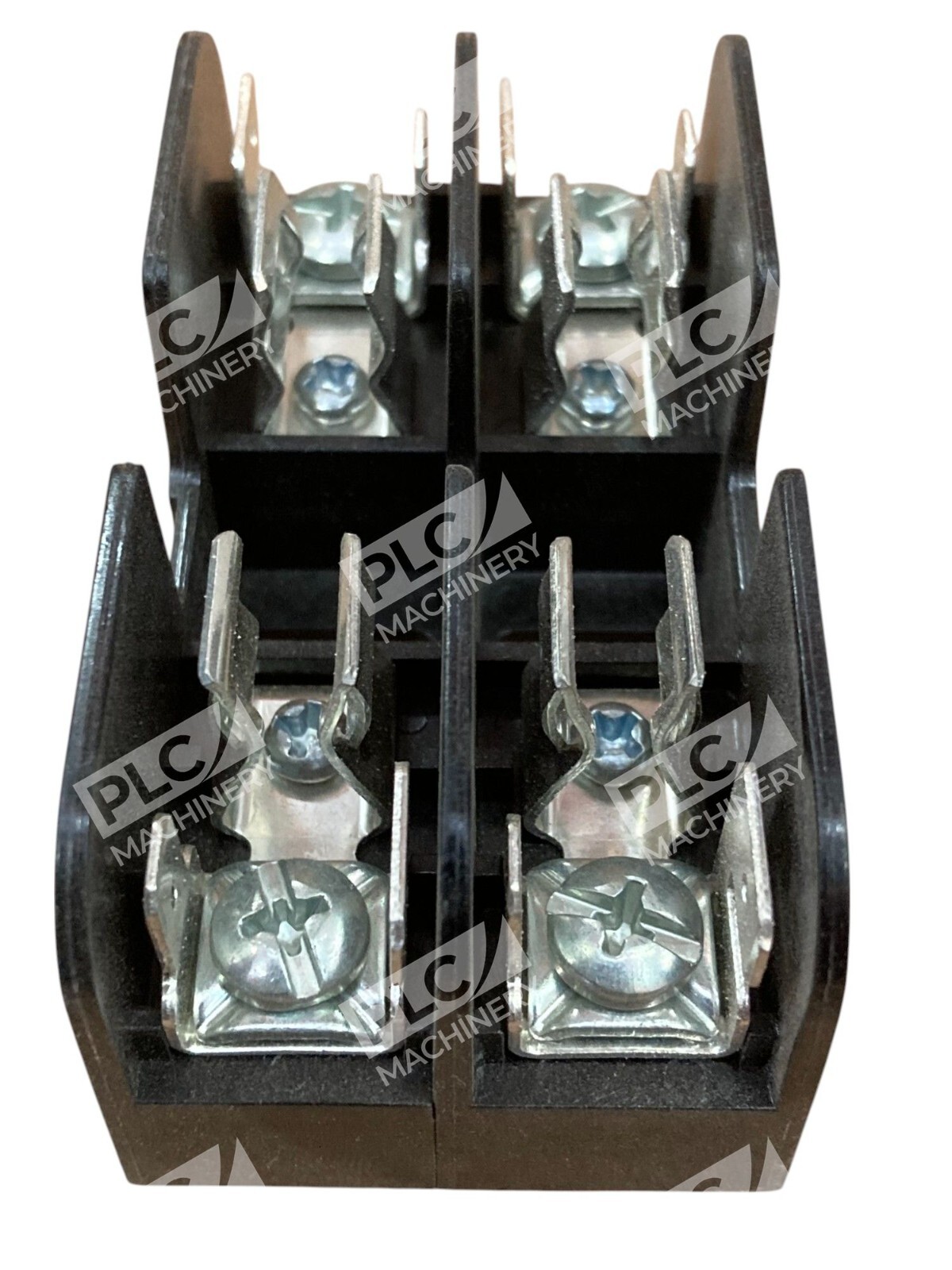

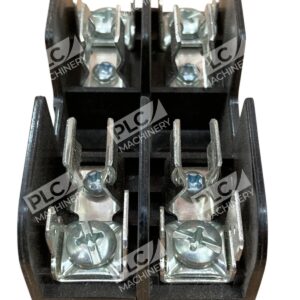

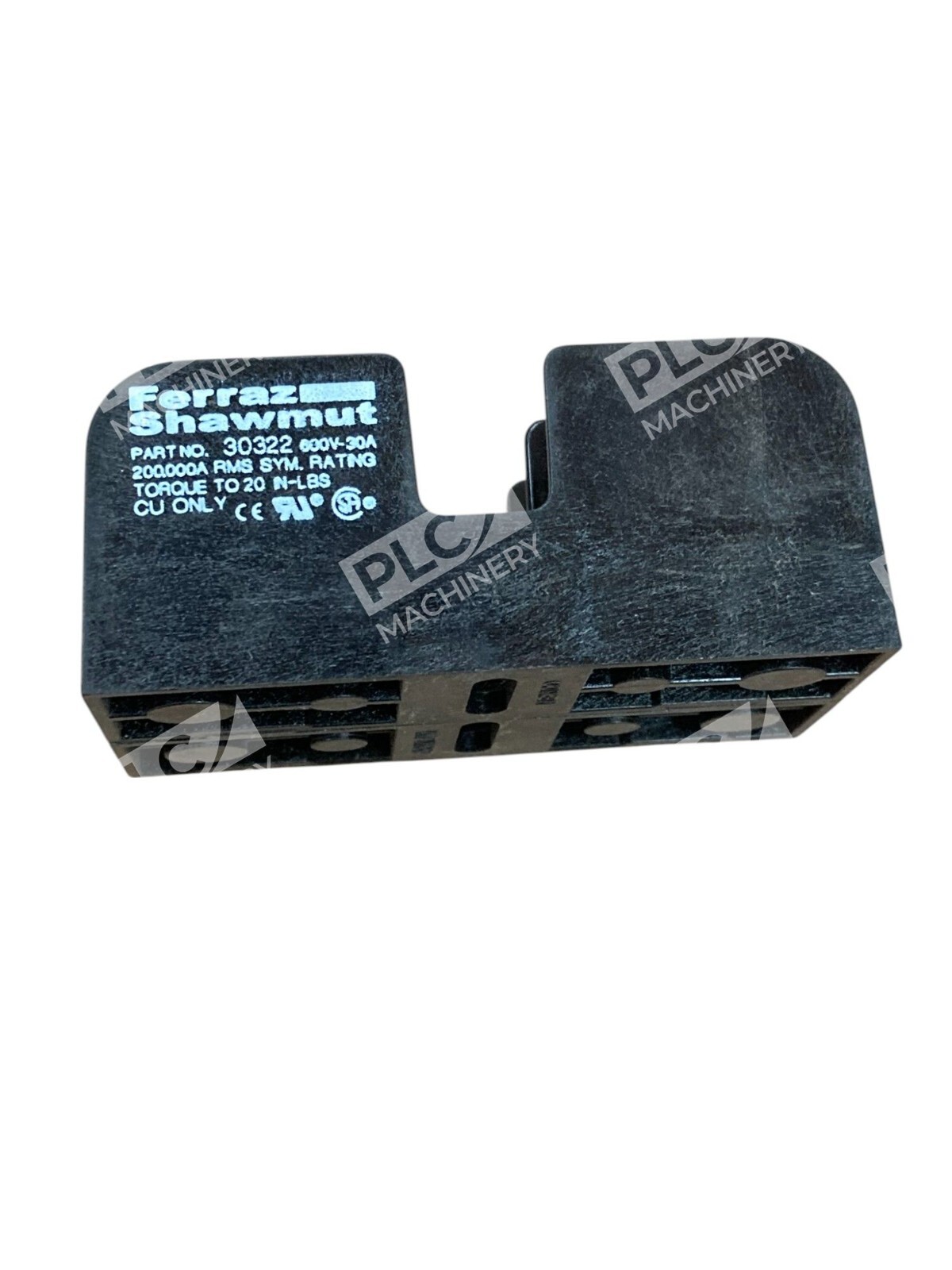

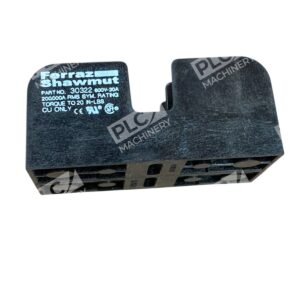

- Type CC Midget Fuse Clips: Holds 13/32″x1-1/2″ fuses for reliable overcurrent protection
- 30 Amp Rating: Maximum allowable current per Hammond specifications
- Primary Circuit Protection: Designed for primary side fusing in control transformer applications

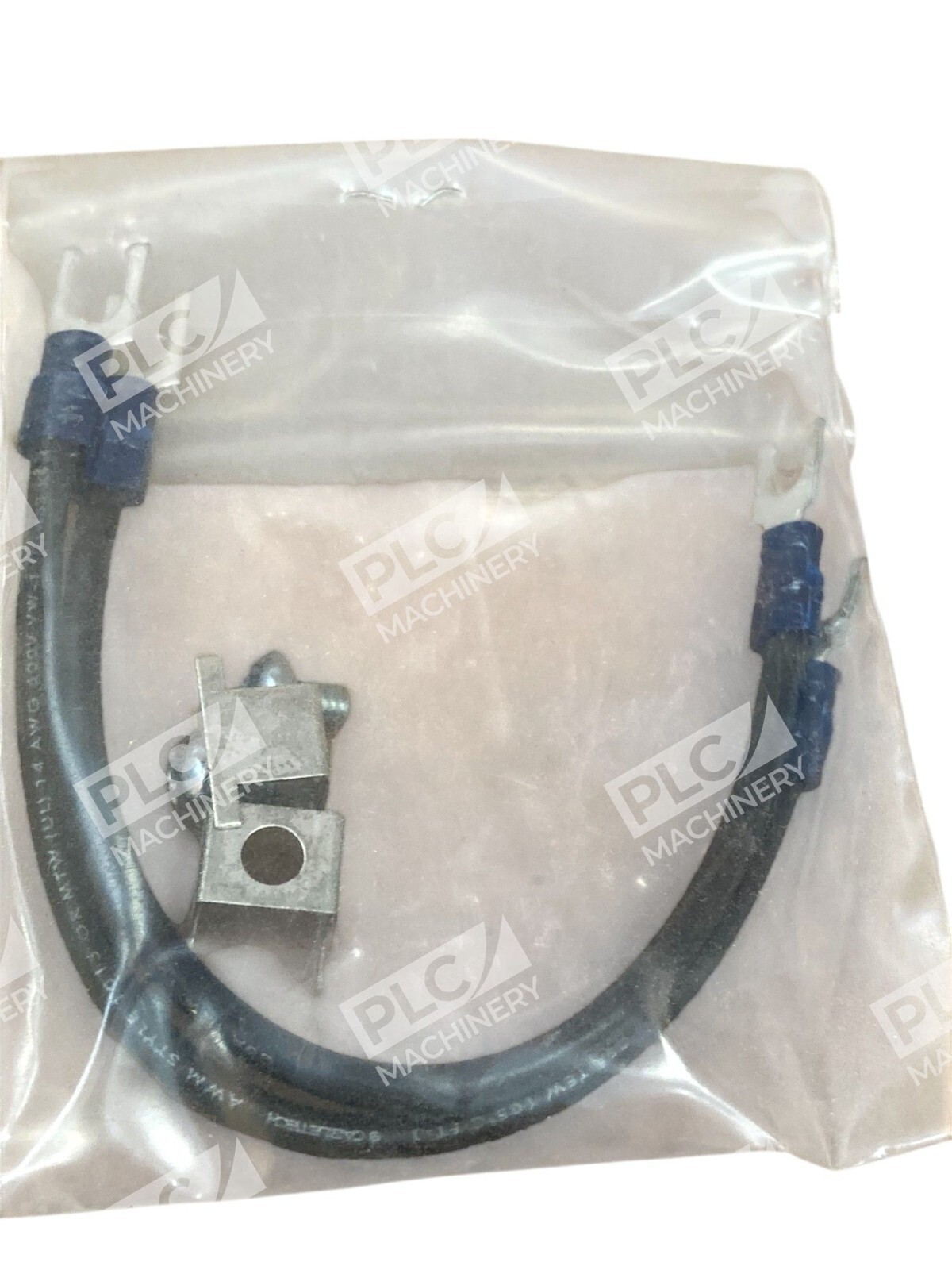

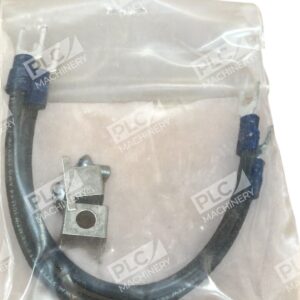

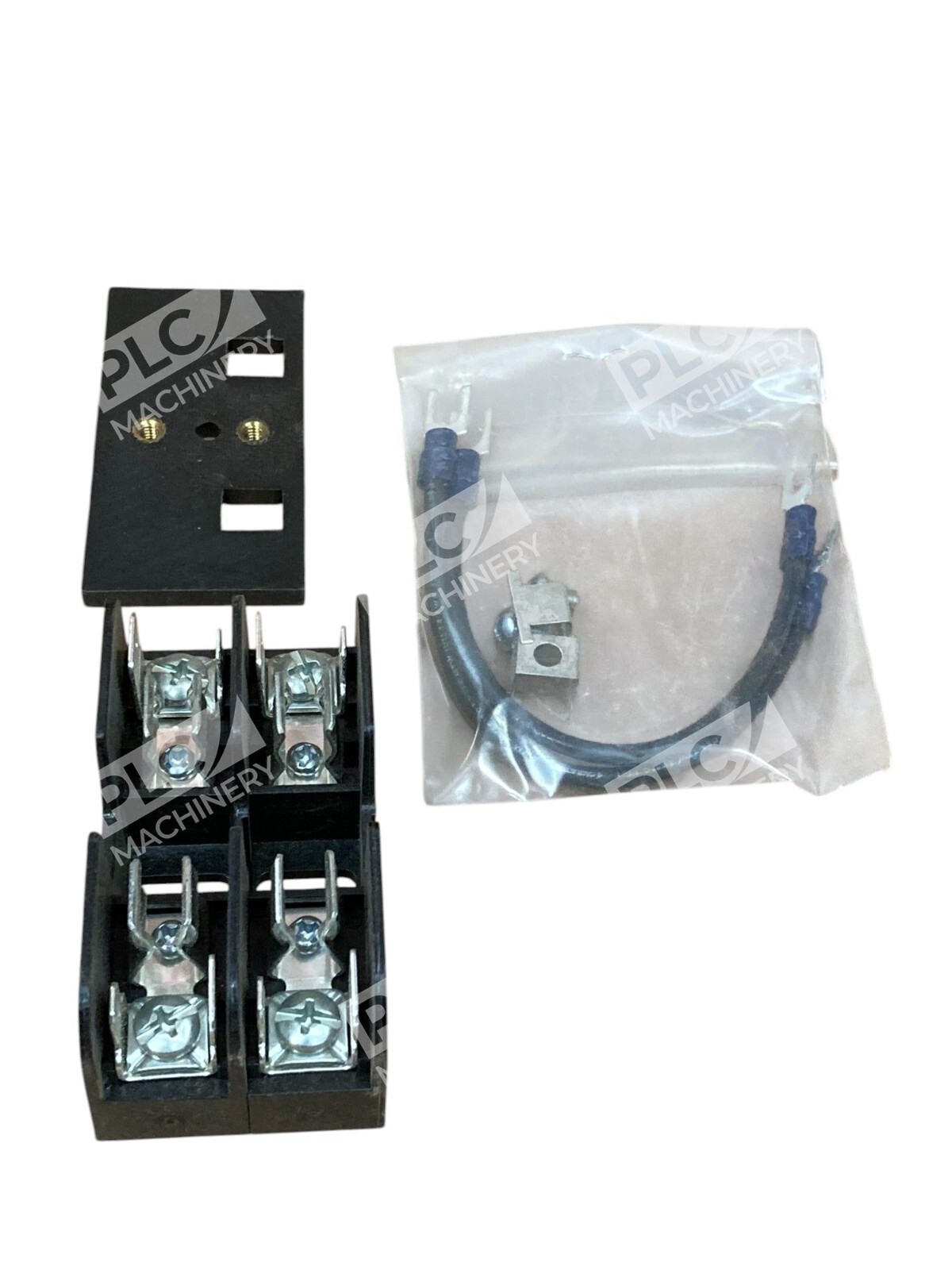

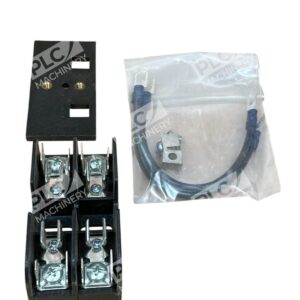

- Complete Kit: Includes fuse clips, mounting screws, and voltage link jumpers
- Industrial Grade Construction: Steel hardware rated for factory and panel installations
Technical Specifications
- Fuse Type: Type CC, 13/32″x1-1/2″ Midget
- Current Rating: 30 Amperes maximum
- Voltage Rating: 600 VAC
- Application: Primary fuse mounting
- Transformer Rating: 1000 VA at 120V primary
- Material: Steel with mounting hardware
- Certifications: UL Listed, CE Certified, RoHS Compliant
- Kit Contents: Fuse clips, clip mounting screws, voltage links, instruction sheet
Typical Applications
- Industrial control transformer primary circuit protection
- Machine tool transformer fusing
- Manufacturing equipment power distribution
- Factory automation control panels
- HVAC system transformer protection
- Field retrofit and replacement on existing systems
Compatibility & Replacements
Compatible With
- Hammond Power Solutions Imperator series control transformers
- HPS transformer models rated 1000VA and below
- Industrial control transformer panels
- Transformer-based automation systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The FK-12 is designed as a field-installable primary fuse kit for Hammond transformers in the 1000VA range.
Works With
- Type CC / Midget fuse form factors (13/32″x1-1/2″)
- 600 VAC industrial control systems
- Primary voltage circuits (per selection chart per PHAK1 instruction sheet)
- Standard electrical enclosures and control panels
