Overview

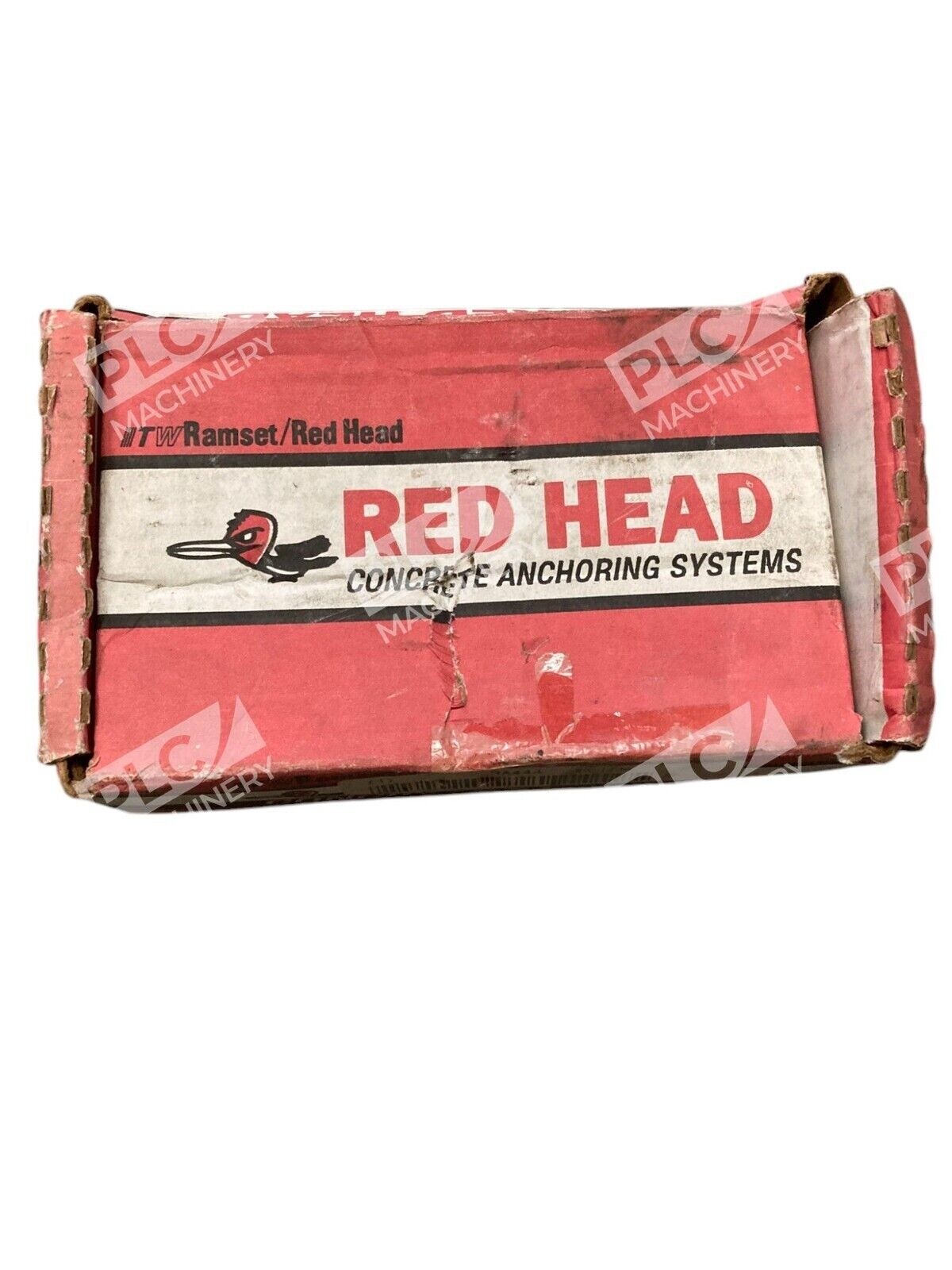

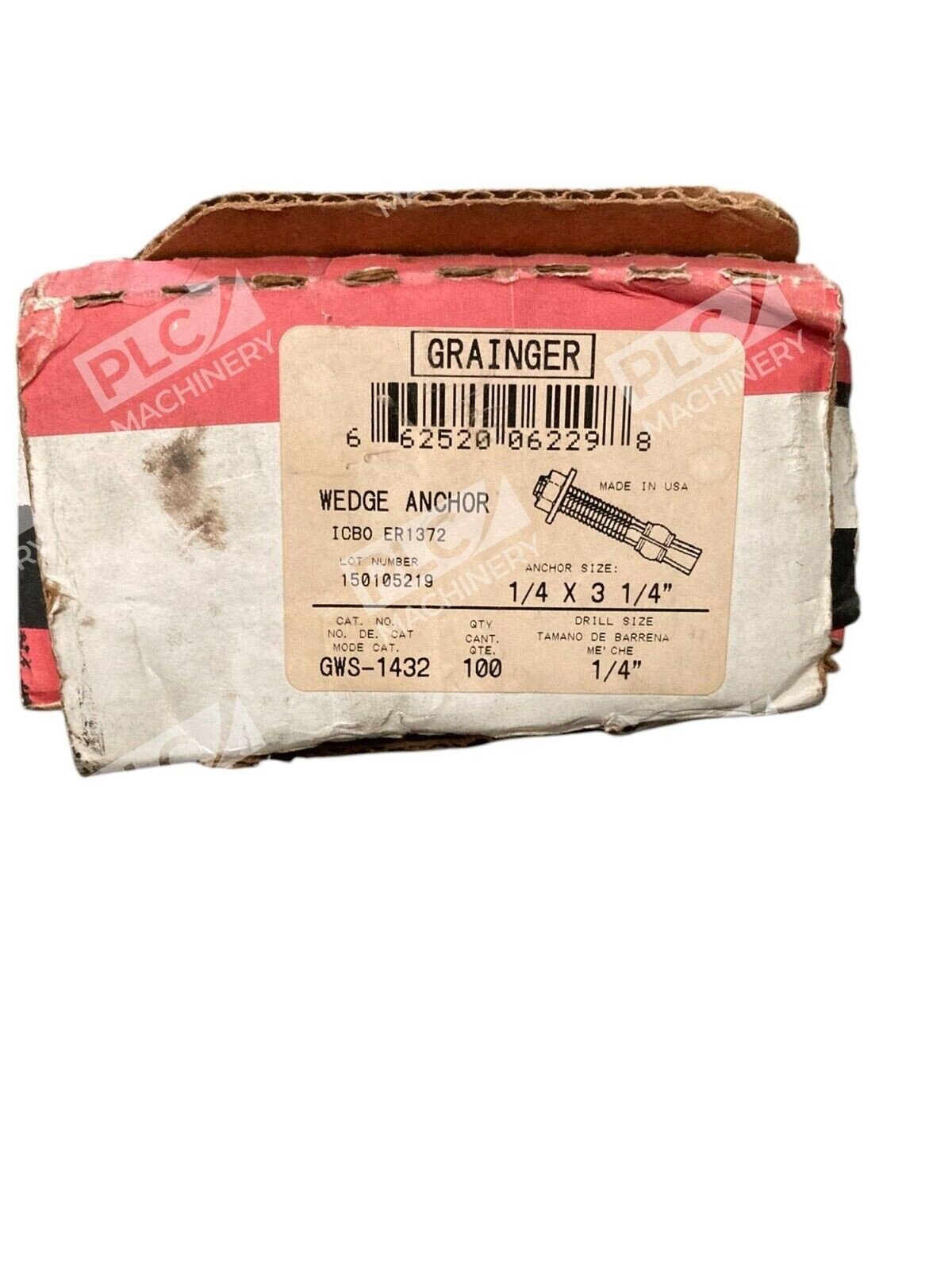

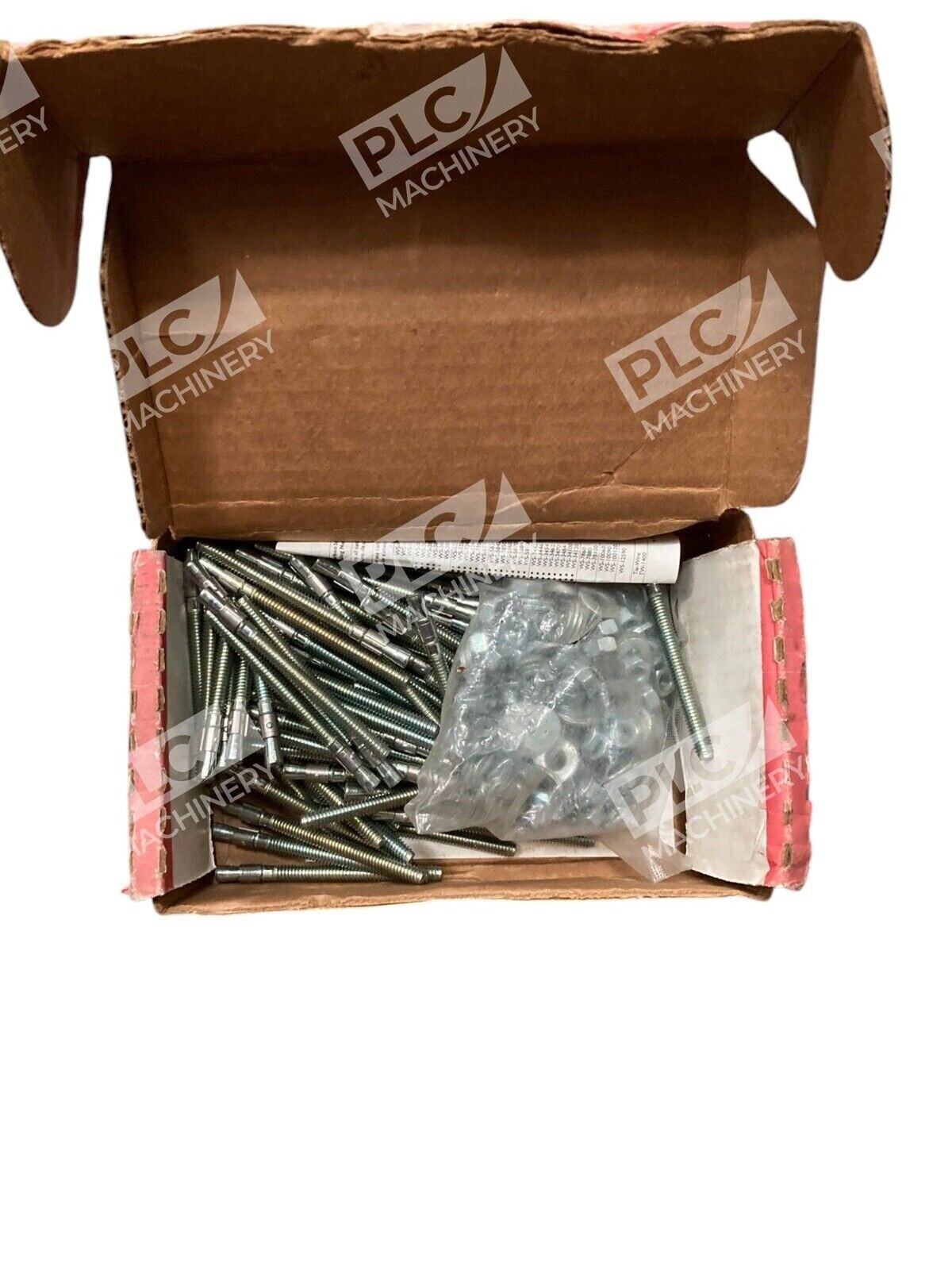

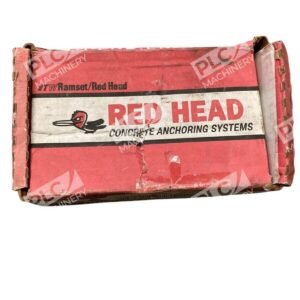

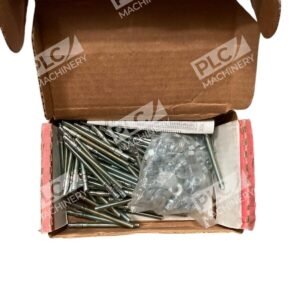

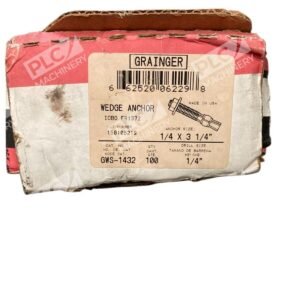

The Red Head GWS-1432 wedge anchor provides reliable mechanical anchoring for concrete applications requiring durable, long-lasting fastening. This 1/4″ diameter anchor features a 3-1/4″ overall length and includes nuts and washers for complete installations. Designed to resist pullout forces and vibration, the GWS-1432 is ideal for structural fastening, equipment mounting, and general construction work.
Key Features
- 1/4″-20 UNC thread for standard bolt compatibility
- Steel construction rated for heavy-duty concrete applications
- Wedge anchor design provides superior grip and pullout resistance
- Includes nut and washer for complete installation
- Suitable for continuous low-temperature environments
- Complies with G.S.A., A.N.S.I., and A.S.T.M. standards
Technical Specifications
- Anchor Diameter: 1/4″
- Overall Length: 3-1/4″
- Thread Size: 1/4″-20 UNC
- Material: Steel
- Minimum Embedment: 1 1/8″
- Maximum Work Thickness: 1 1/8″
- Package Quantity: ~50 anchors per box
- Installation Method: Hand tools (manual)
- Agency Certifications: G.S.A., A.N.S.I., A.S.T.M., UL, Factory Mutual
Typical Applications
- Structural steel connections in concrete
- Equipment and machinery mounting
- Railing and guardrail installation
- Bracket and ledger fastening
- HVAC and mechanical system anchoring
- Light to medium-load concrete fastening
Compatibility & Replacements
Compatible With
- Standard 1/4″-20 UNC bolts and fasteners
- Concrete substrates with minimum 1,500 psi compressive strength
- Low-temperature environments and seismic applications
- General construction and structural systems
Replaces / Drop-In Replacement For
- Red Head WS-1432 (steel variant)
- Red Head WW-1432 (stainless steel variant)
- Red Head SWW-1432 (seismic-rated stainless variant)
Works With
- Standard wrenches and hand installation tools
- Manual concrete drilling and anchoring methods
- Any 1/4″-20 bolt, washer, or nut
