Overview

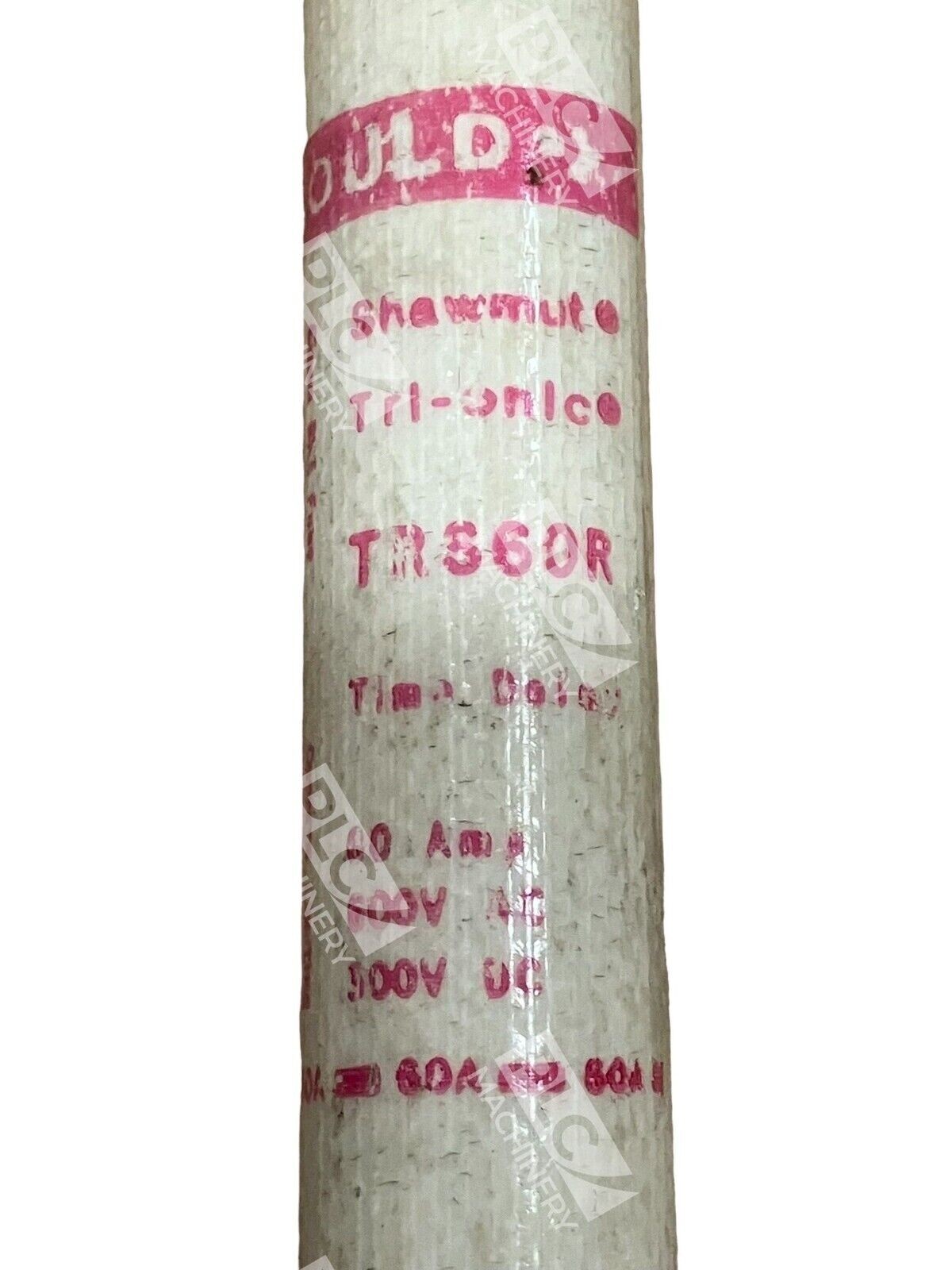

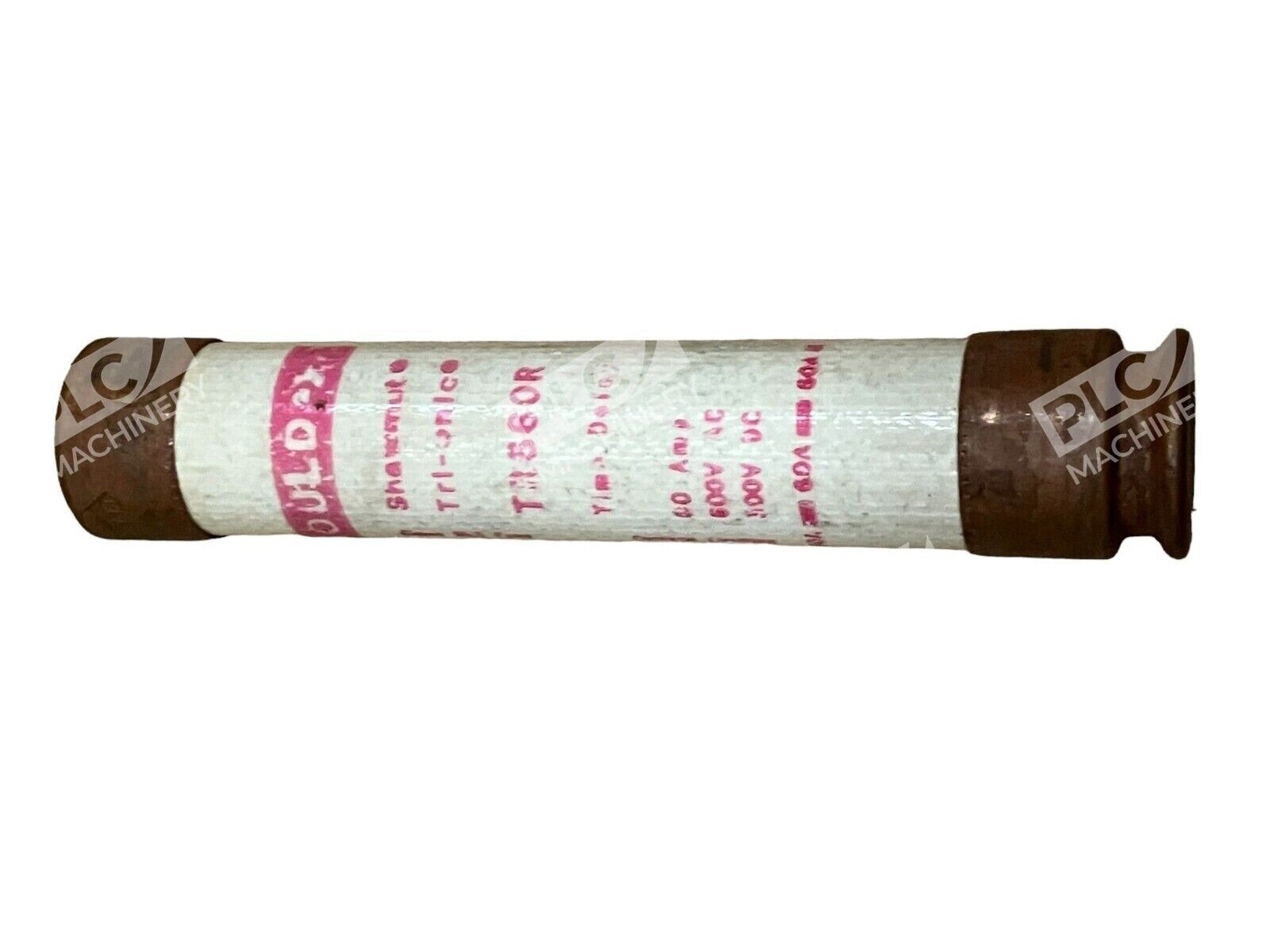

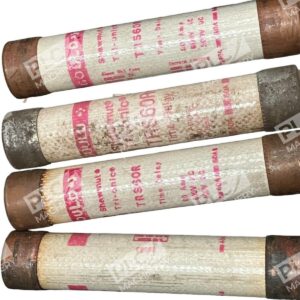

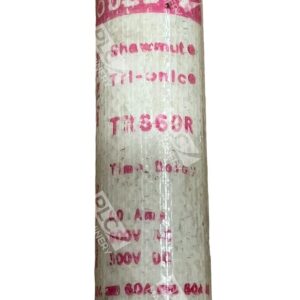

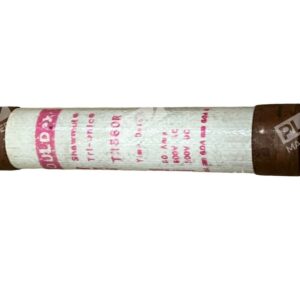

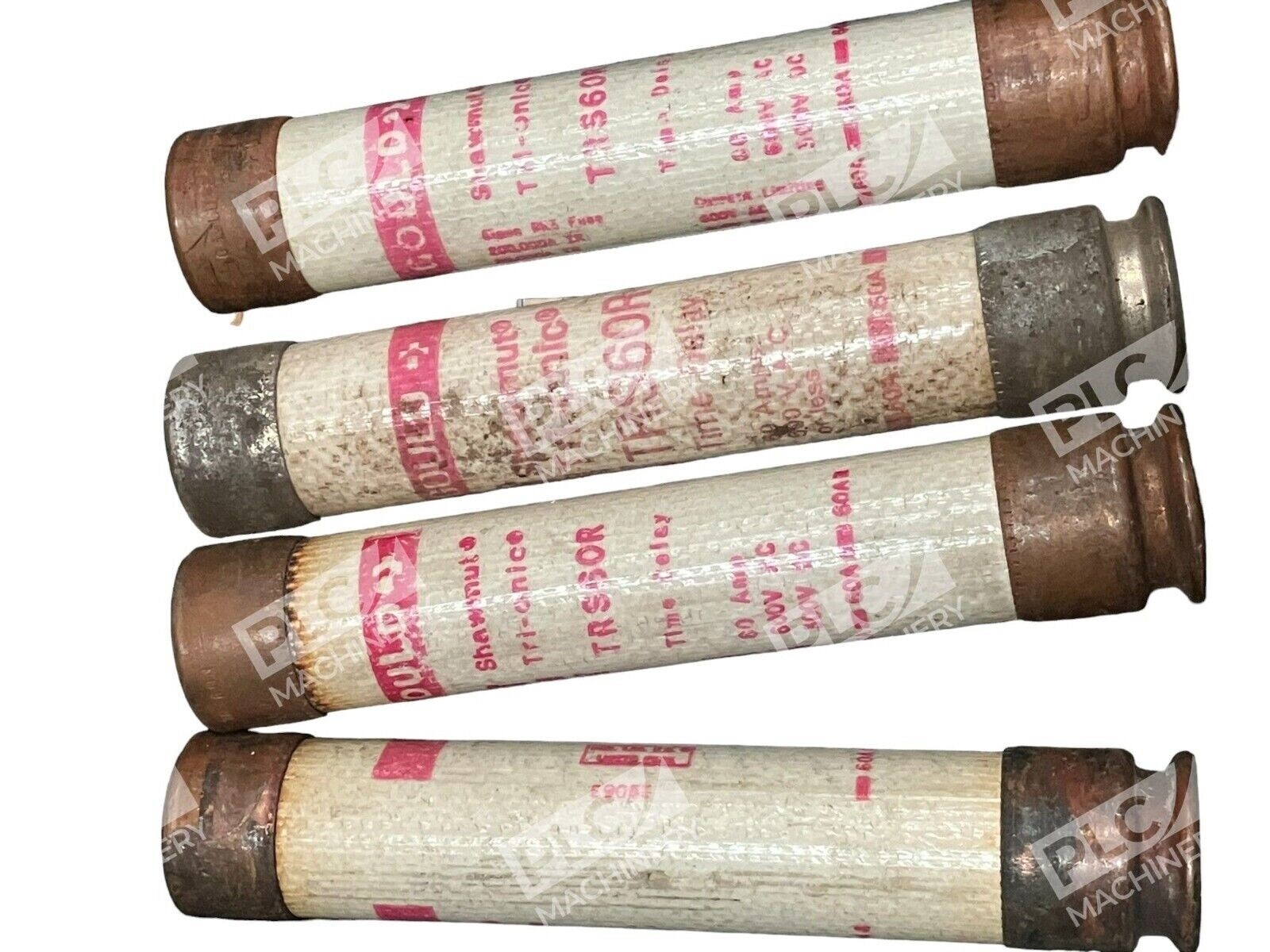

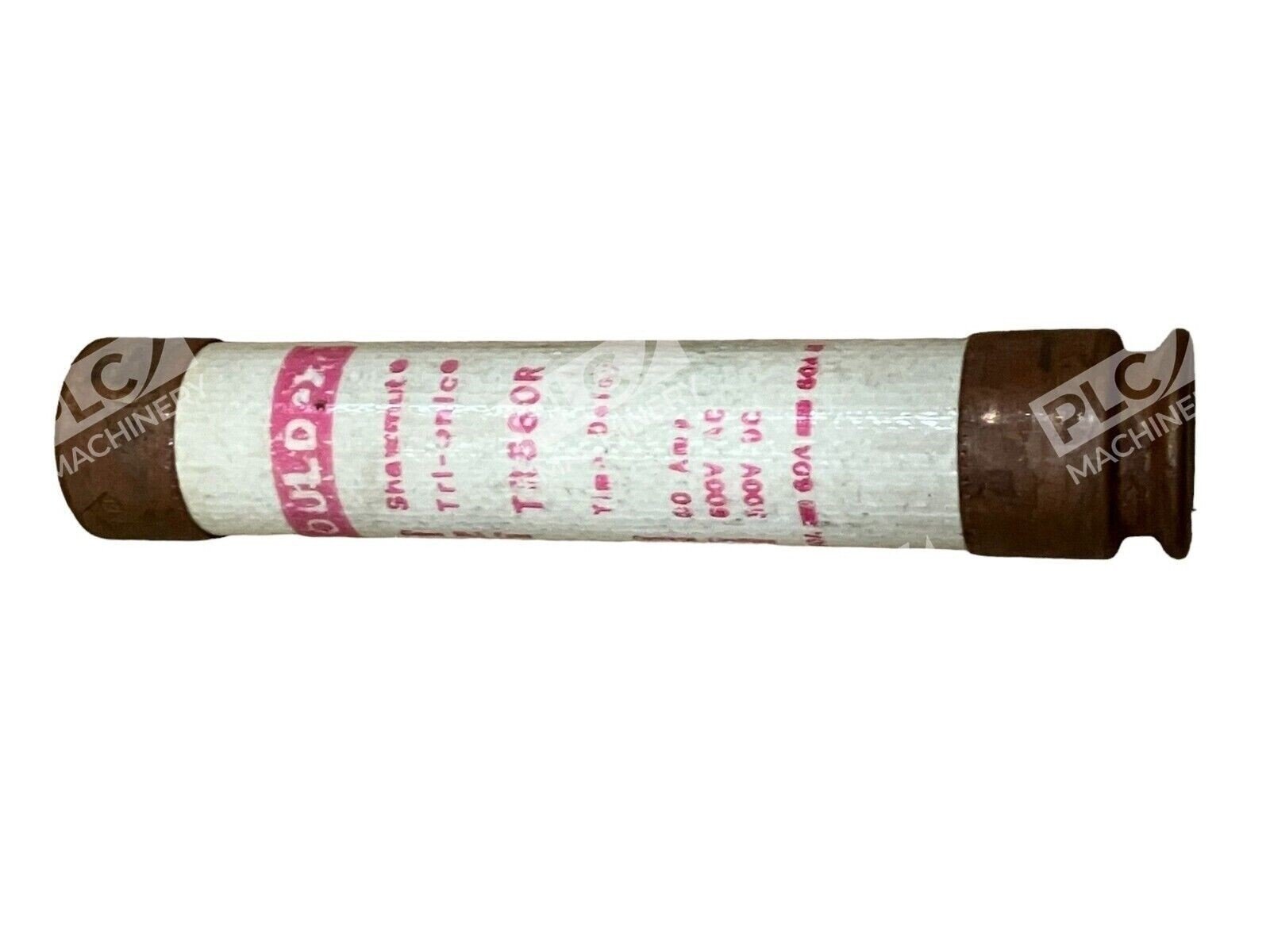

The Gould Shawmut TRS60R is a Tri-Onic current-limiting time-delay fuse designed for overcurrent protection in industrial motor circuits, transformers, service entrance equipment, feeders, and branch circuits. Ferraz Shawmut Tri-Onic® TRS-R current limiting time delay fuses are engineered for over current protection of motors, transformers, service entrance equipment, feeders and branch circuits. The TRS60R combines dual-element construction with time-delay characteristics to safely handle inrush currents without nuisance clearing.
Key Features
- Time-Delay Technology: The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today’s motors and transformers.
- Current Limiting: Reduces fault currents and protects downstream equipment
- Dual-Element Design: Dual-Element Time-Delay Fuse construction for reliable protection
- Class RK5 Rated: UL Class RK5, AIC Rating: 200kA @ 600V
- Multiple Applications: Ideal for Motor Circuits, Mains, Feeders, Brand Circuits, Transformers, Service Entrsance Equipment, General-Purpose Equipment.
Technical Specifications
- Voltage Rating: 600 Vac, 300 Vdc
- Current Rating: 60 A
- Interrupt Rating: 200 kA
- Class: Class RK5
- Speed: Time Delay
- Shape: Cartridge Fuses
- Dimensions: 1.06″ Dia x 5.5″ L (26.92×139.7mm)

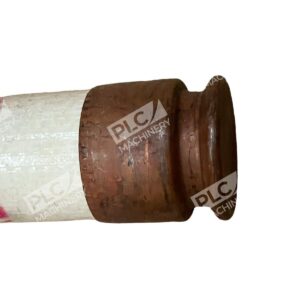

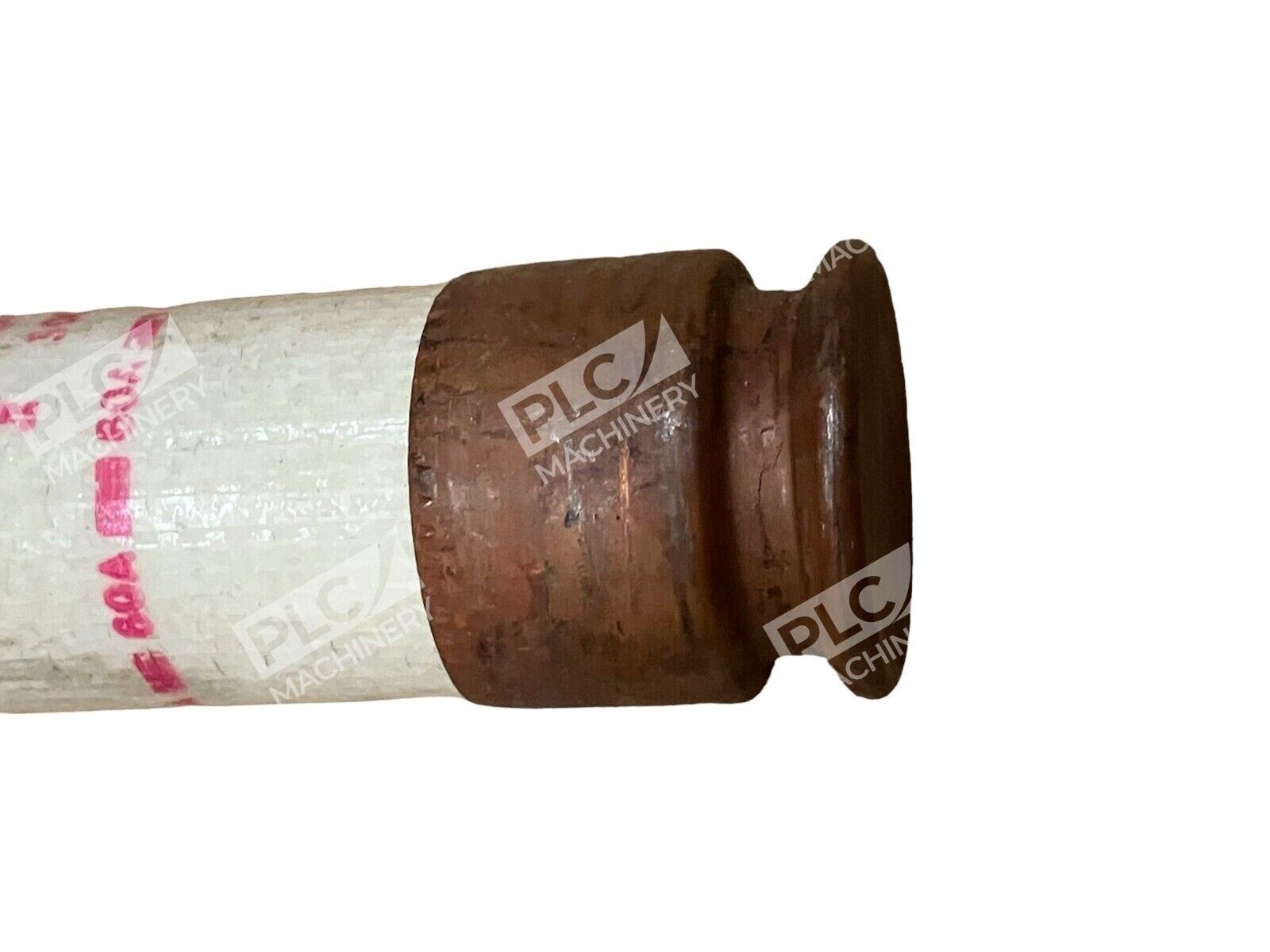

- Terminal Type: Ferrule Terminal
- Approvals: UL, CSA
- Weight: 5.6 oz
Typical Applications
The TRS60R fuse excels in demanding industrial environments. Its time-delay characteristic makes it ideal for motor soft-start scenarios where inrush currents are normal. Common applications include:
- AC induction motor circuits (5–15 hp range)
- Transformer primary protection
- Feeder and service entrance circuits
- General-purpose industrial equipment (pumps, compressors, fans)
- Branch circuits in manufacturing facilities
Compatibility & Replacements
Compatible With
- Standard cartridge fuse holders (ferrule terminal, 1.06″ diameter)
- Single-phase and three-phase motor circuits
- 120V–600V industrial control systems
- Panelboards and disconnect switches rated for Class RK5 fuses
- Transformers (primary and secondary side protection)
Replaces / Drop-In Replacement For
- Other Names: TRS60, TRS 60 Amp, TRS-60, TRS 60A, TRS60A, TRS-60A, TRS 60, TRS 60R, TRS-60R
- Mersen/Ferraz Shawmut TRS-R series 60A fuses
Works With
- Substitute parts: Bussmann FRS-R, Littelfuse FLSR
- Electrical distribution systems requiring UL and CSA-listed protection
- Equipment designed for Class RK5 current-limiting fuses
