Overview

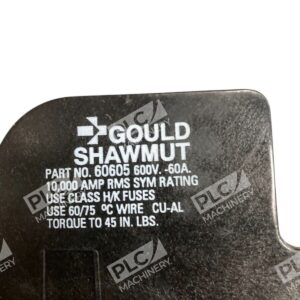

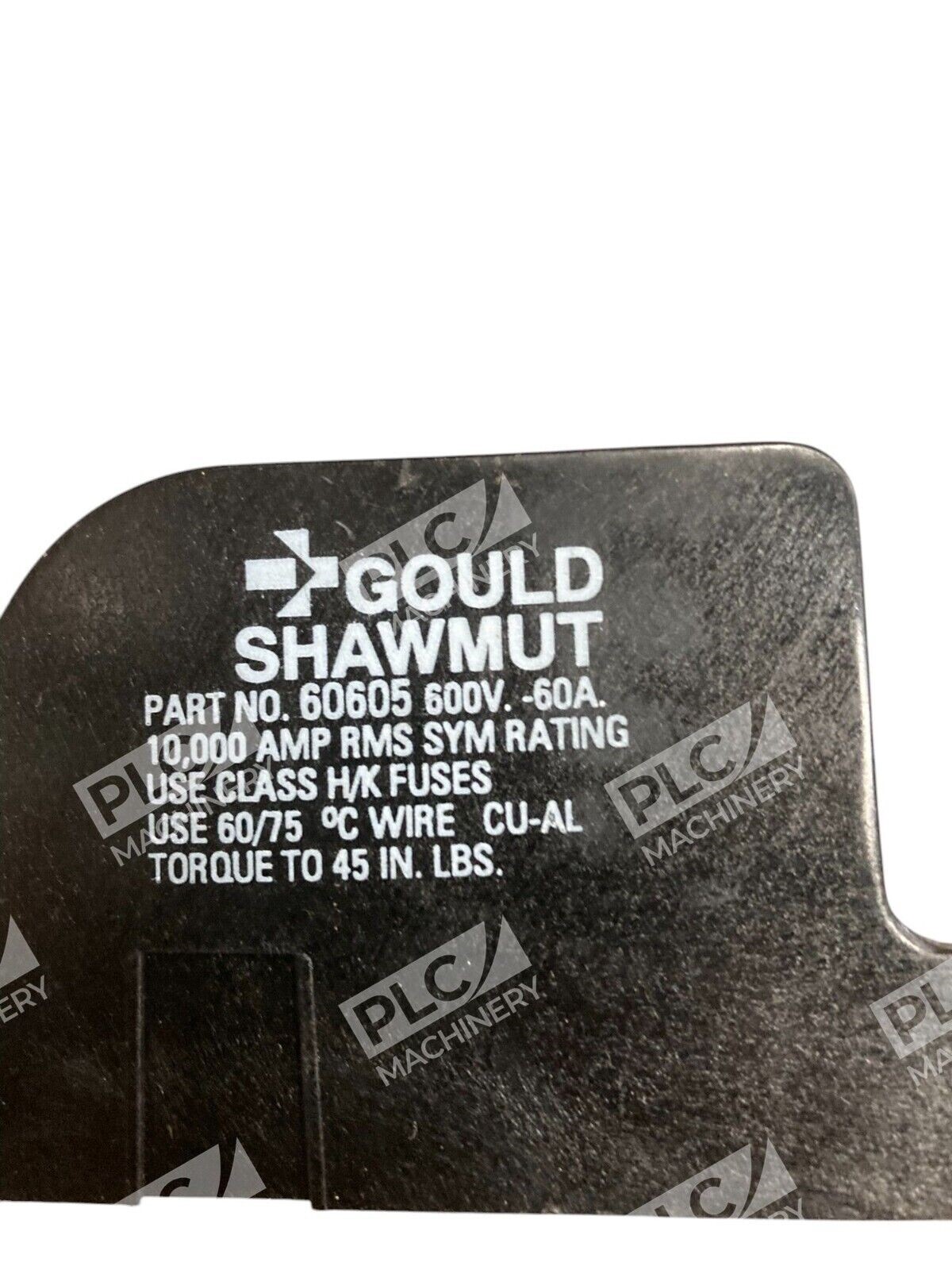

The Gould Shawmut 60605 is a 600V Class H/K fuse block designed for three-pole applications at 60 amperes. Manufactured by Mersen (Gould Shawmut division), this unit provides dependable circuit protection in industrial control panels, motor starters, and distribution systems. The block accommodates standard H and K class power fuses for applications up to 600 volts AC or DC.
Key Features
- Three-pole configuration for balanced three-phase circuit protection
- High-conductivity tinplated copper clips for optimal electrical contact and corrosion resistance
- Rated for both AC and DC operation at 600 volts
- Spring-reinforced clip design ensures secure fuse seating
- Accepts standard Class H and K power fuses
- UL listed and CSA certified for safety compliance
Technical Specifications
- Voltage Rating: 600 VAC / 600 VDC
- Current Rating: 60 Amperes
- Number of Poles: 3
- Fuse Class: H/K
- Clip Material: Tinplated copper, spring-reinforced
- Connector Type: Box lug or screw terminals
- Mounting Style: Panel or DIN rail mount
- Certifications: UL listed, CSA certified
- Insulation: Glass-filled polycarbonate or phenolic
Typical Applications
- Industrial motor starters and variable frequency drive protection
- Three-phase electrical distribution panels
- Machine tool and automation equipment circuits
- HVAC and compressor protection circuits
- Backup generation systems and secondary distribution
- Renewable energy and control system enclosures
Compatibility & Replacements
Compatible With
- Class H and Class K power fuses (all manufacturers)
- Industrial control panels and motor control centers
- Three-phase 600V AC/DC electrical systems
- DIN rail and panel-mount enclosures
Replaces / Drop-In Replacement For
- Original Gould Shawmut 60605 units
- Mersen 60605 Class H/K fuse blocks
- Ferraz Shawmut 60605 equivalent blocks
Works With
- Mersen/Shawmut fuse classes: H, K, R, and J (verify class compatibility)
- Standard 1/4″ hex lug terminal connectors
- Screw, pressure plate, and box lug terminals
- Glass-filled polycarbonate or phenolic insulation systems
