Overview

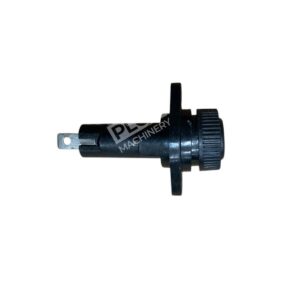

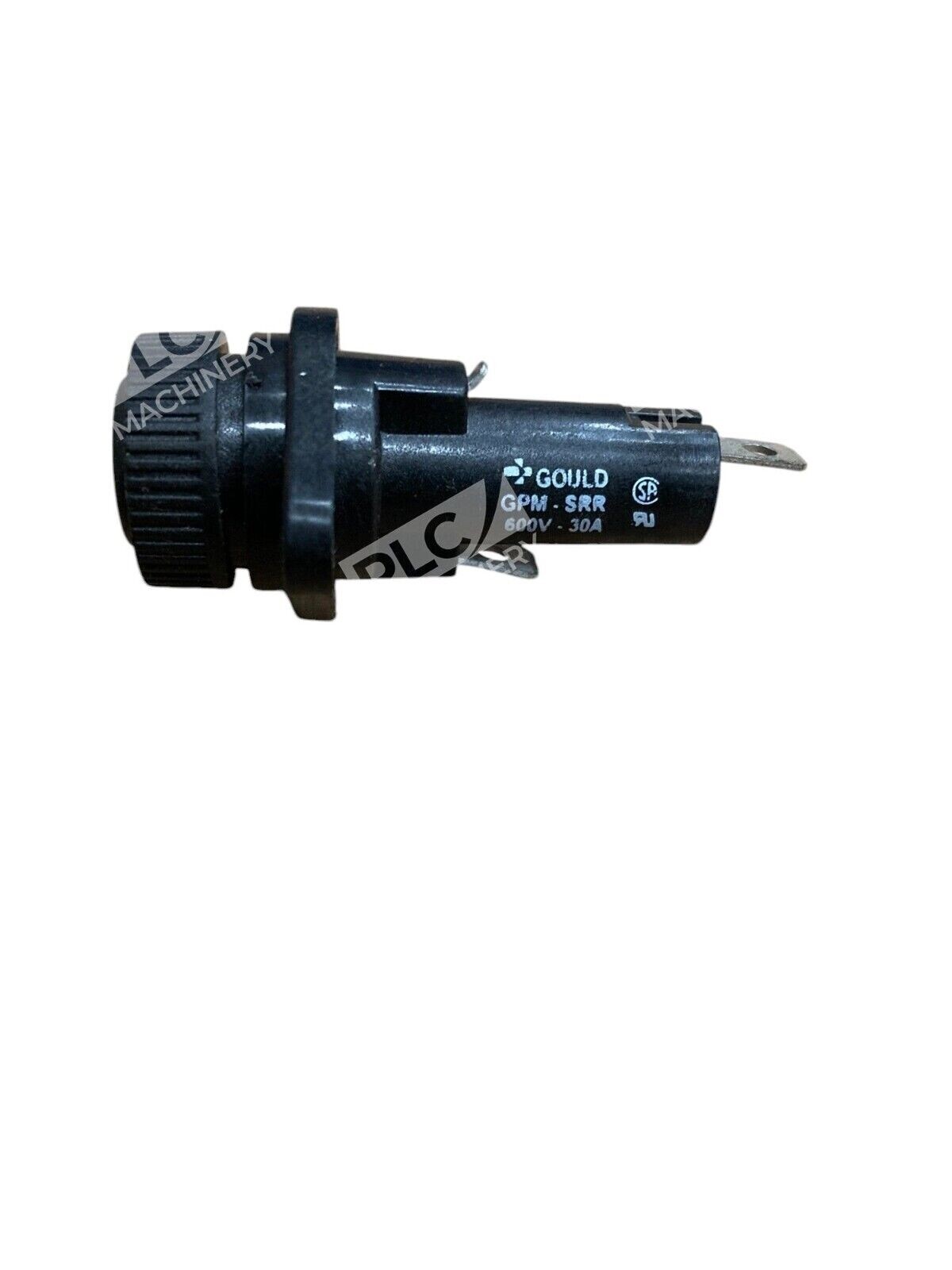

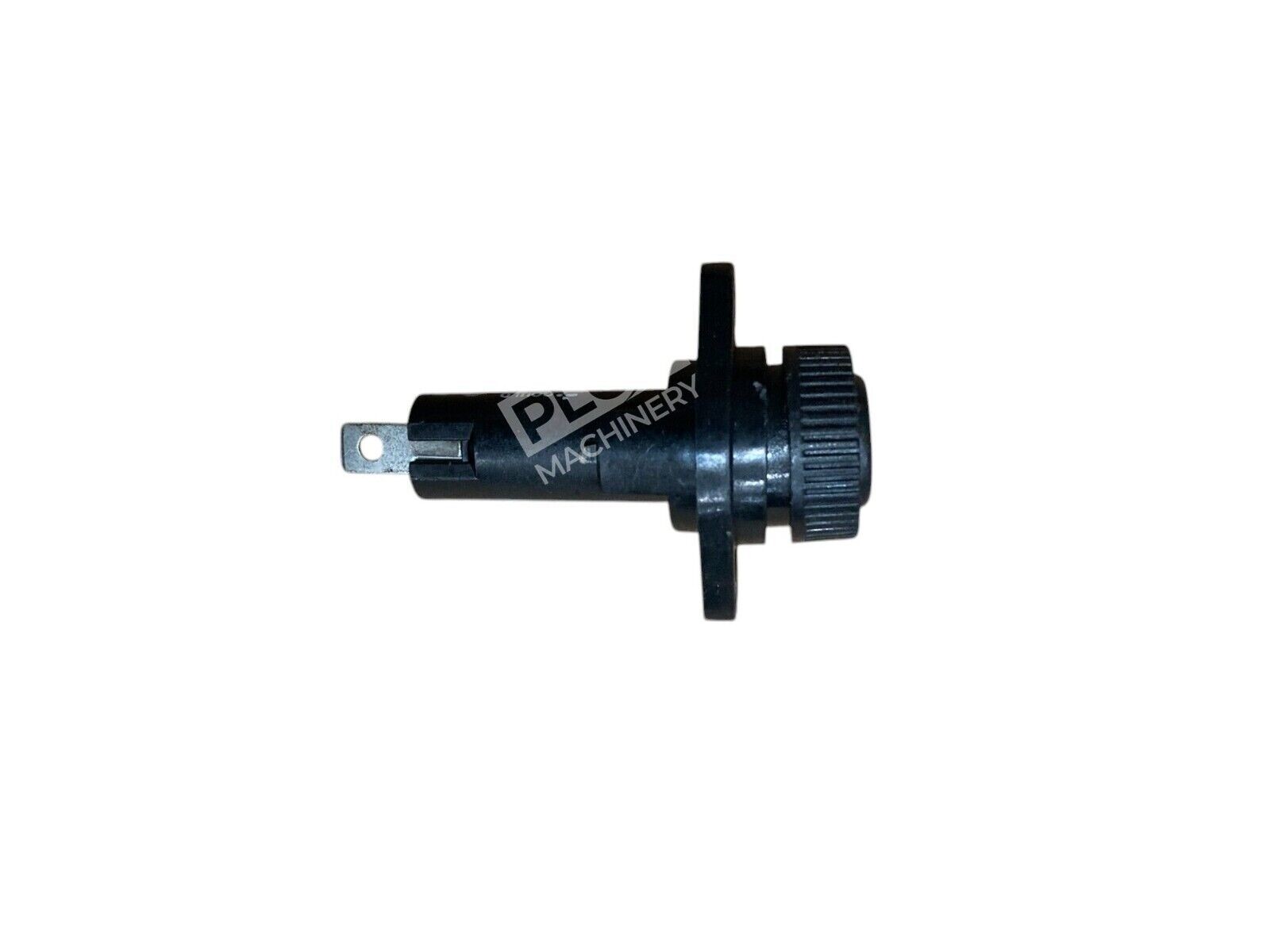

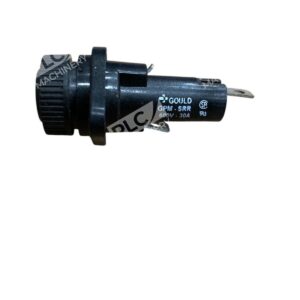

The Mersen GPM-SRR is a Class CC panel mount fuse holder rated for 30A at 600V AC/DC. This fuse holder accommodates Class CC fuses and features glass-filled polyester insulators for extra dependability and trouble-free installation. The GPM-SRR is a single-pole configuration suitable for industrial and commercial electrical panels requiring reliable overcurrent protection.
Key Features
- Patented design allows same body to accept screw or bayonet knob
- Flange design allows front or rear mounting
- 30A current rating at 600V AC/DC
- 1-pole configuration with quick-connect/solder terminal options
- Glass-filled polyester insulators for extra dependability
- Panel mount form factor for compact space-efficient installation
Technical Specifications
- Voltage Rating: 600V AC / 600V DC
- Current Rating: 30A
- Fuse Class: Class CC
- Mounting Type: Panel mount
- Poles: 1
- Terminal Type: 1/4″ Quick-Connect / Solder Screw Knob
- Insulation Material: Glass-filled polyester
- Knob Options: Screw or bayonet compatible
- Flange Design: Supports front or rear panel mounting
Typical Applications
The Mersen GPM-SRR is suitable for:
- Industrial control panels requiring Class CC fuse protection
- Commercial electrical distribution systems and sub-panels
- Motor control centers and soft-start circuits
- Low-voltage signal conditioning circuits
- Equipment protection in HVAC, process automation, and manufacturing environments
Compatibility & Replacements
Compatible With
- Class CC fuses (1/4″ × 1-1/4″ cartridge fuses)
- Standard industrial electrical panels rated 600V
- Control systems requiring reliable overcurrent protection
- Both screw and bayonet fuse knob styles
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Mersen GPM-SRR is the direct successor to legacy Gould and Ferraz Shawmut panel mount fuse holders. Consult distributor or manufacturer documentation for confirmed cross-reference models.
Works With
- Class CC rejection-style fuses
- Standard 600V AC/DC industrial electrical panels
- OEM equipment and retrofit applications requiring Class CC protection
- Compliant with electrical codes for industrial power distribution
