Overview

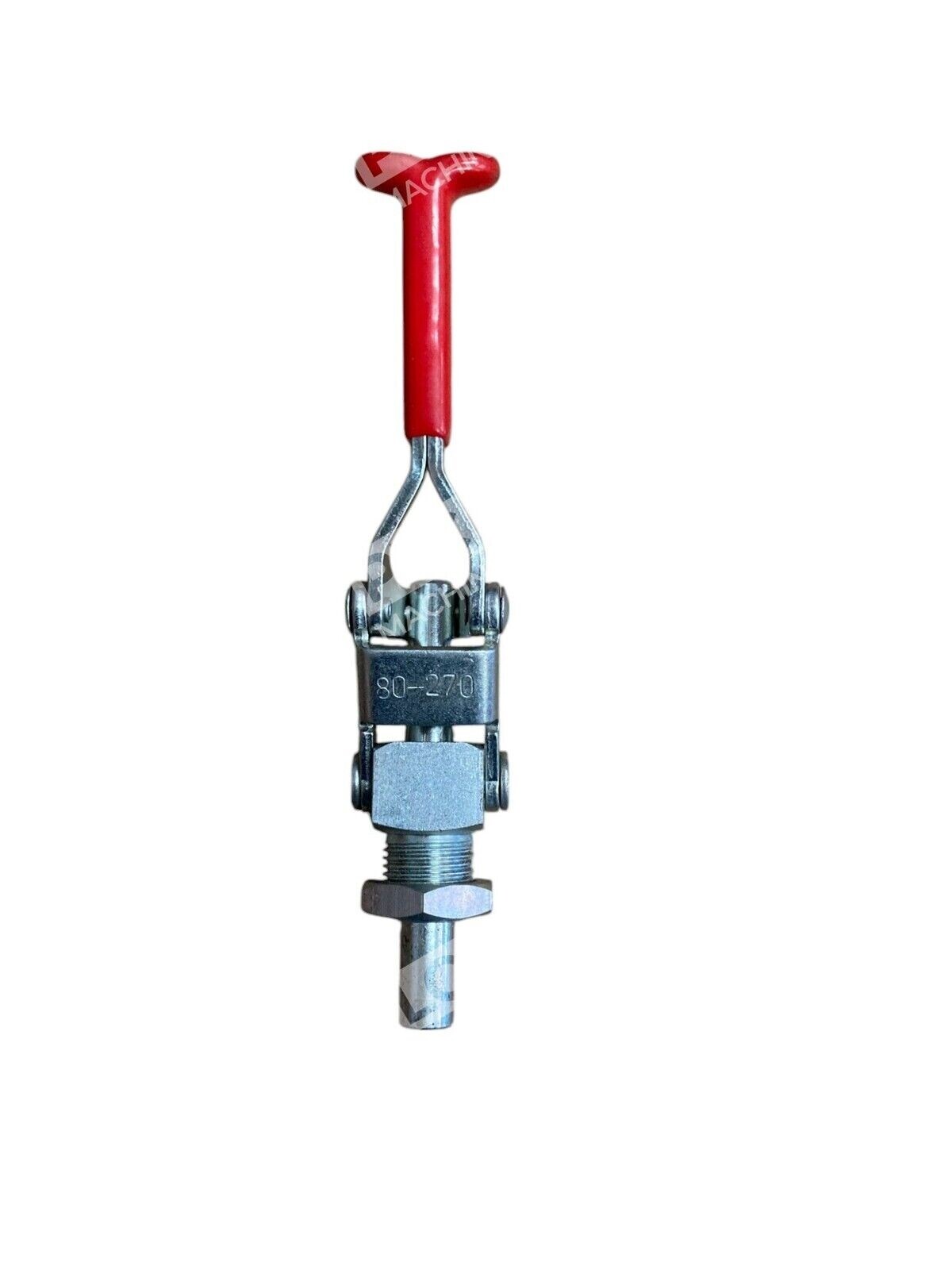

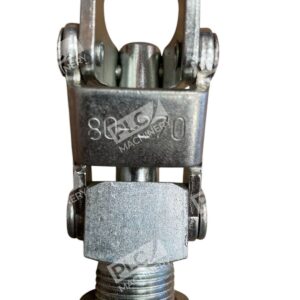

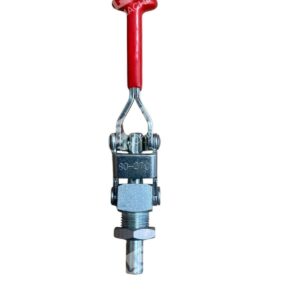

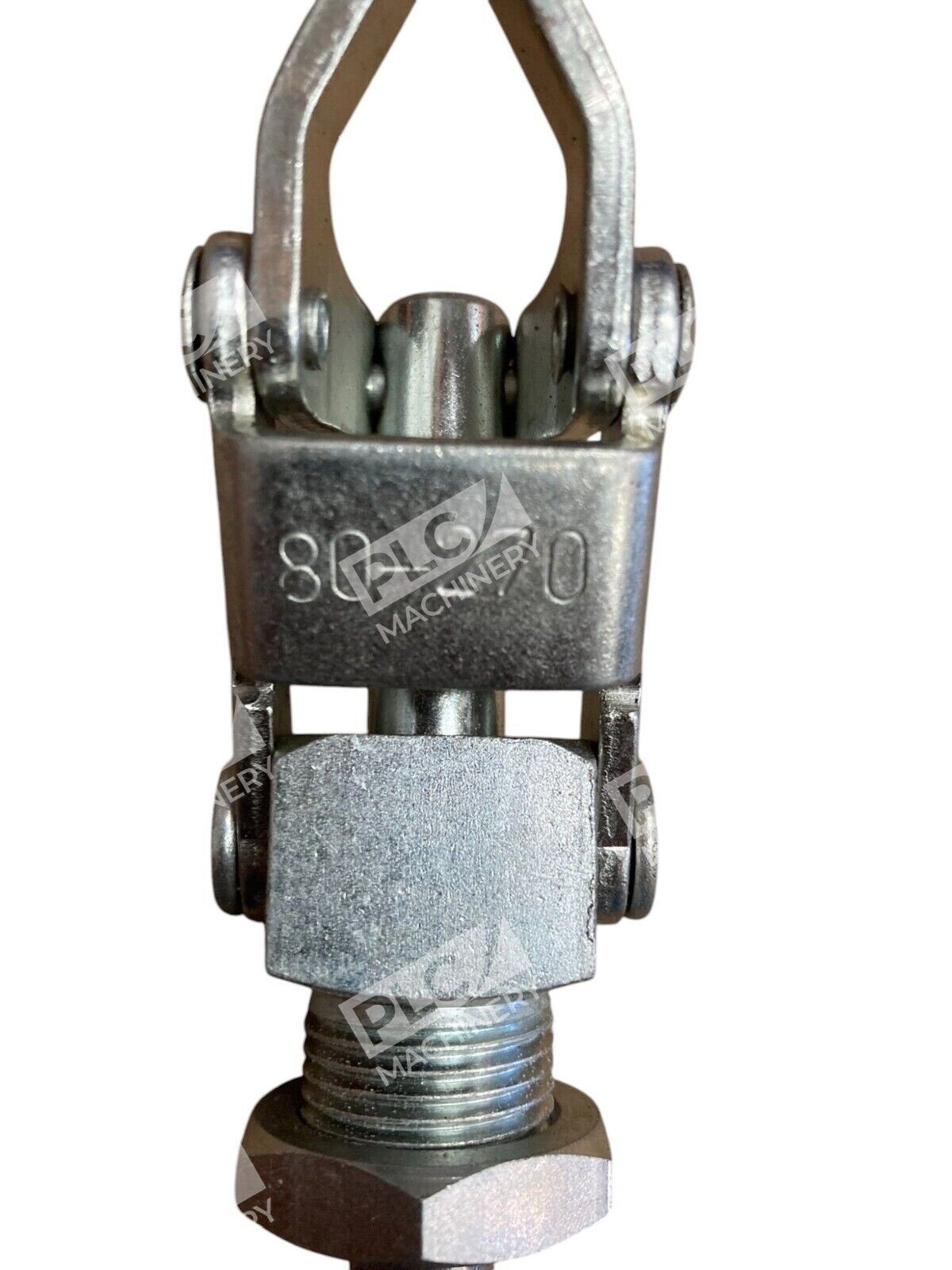

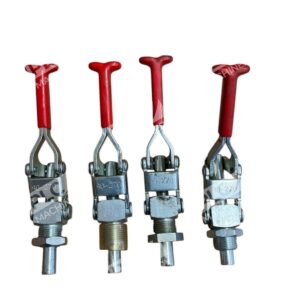

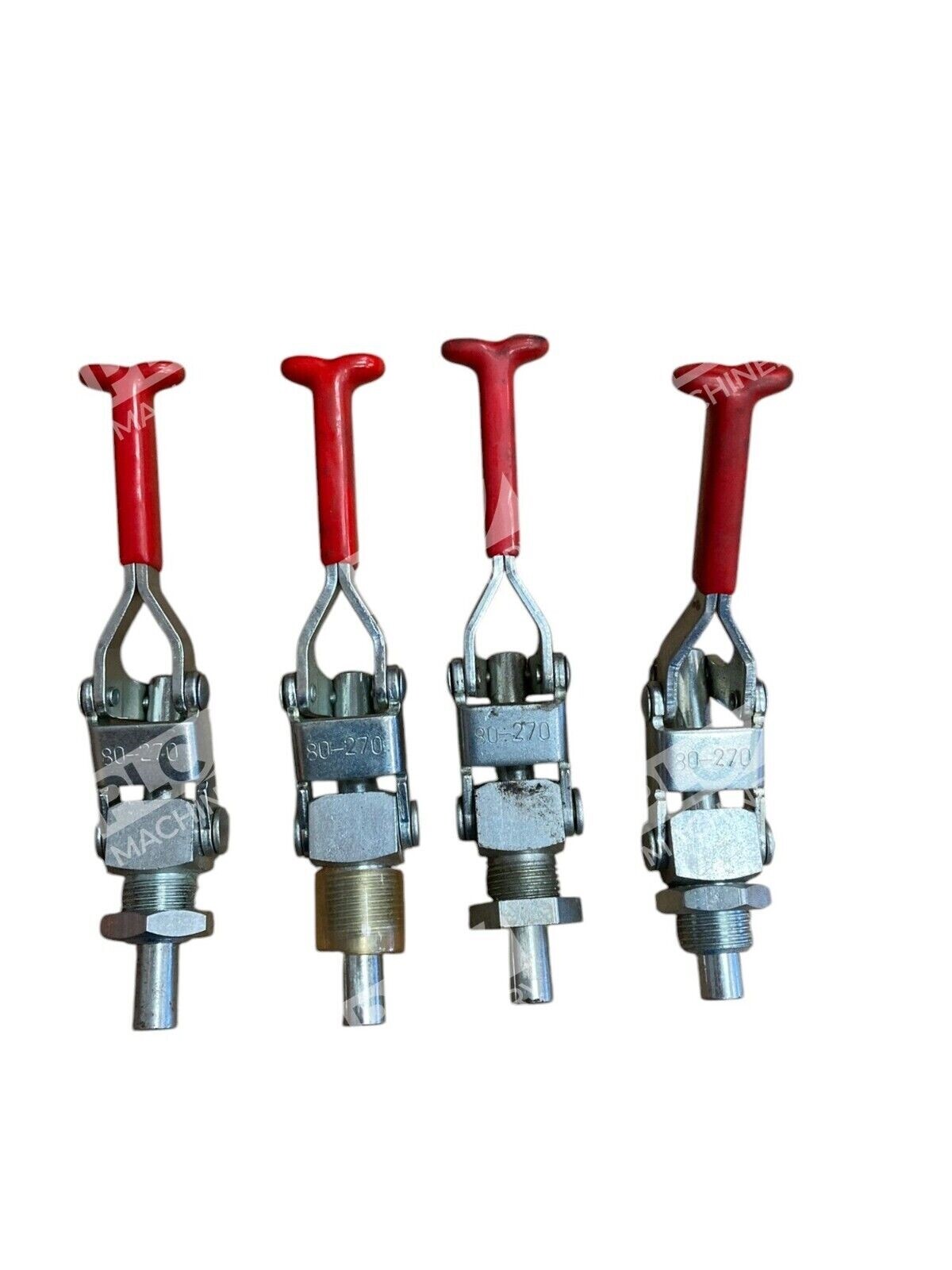

The Good Hand GH-36202 toggle clamp is a professional-grade straight-line action clamping tool designed for jigs, fixtures, and workholding applications. With 200 lbs (approximately 91 kg) holding capacity and 0.75 inch plunger stroke, this quick-clamping clamp delivers reliable workpiece lock and release for manufacturing, assembly, and repair operations.
Key Features
- Straight-line action mechanism for smooth, predictable clamping motion
- Instant lock and release toggle design eliminates handling delays
- 200 lbs holding capacity suitable for light to medium workholding
- Threaded collar for mounting in threaded or through holes
- Jam nut included on work side for secure installation
- Compact, lightweight construction (0.29 lbs) for space-constrained fixtures
Technical Specifications
- Holding Capacity: 200 lbs (approximately 91 kg)
- Plunger Stroke: 0.75 inch (19 mm)
- Weight: 0.29 lbs (0.13 kg)
- Mounting Type: Threaded collar for threaded or through holes
- Package Dimensions: 3.15 × 3.15 × 1.18 inches
- Action Type: Push-pull straight-line
- Included Components: Jam nut on work side, thin lock nuts
- Manufacturer: Good Hand Enterprise Co., Ltd. (Taiwan)
Typical Applications
The GH-36202 is widely used in:
- Jig and fixture assembly for manufacturing and prototyping
- Woodworking and furniture assembly operations
- Light mechanical assembly and sub-assembly workholding
- Precision grinding and machining fixture setup
- Equipment maintenance and component replacement tasks
- Custom tooling and workholding system design
Compatibility & Replacements
Compatible With
- Custom jig and fixture frames with threaded holes or through-hole mounting
- Standard industrial workholding tables and base plates
- Light-duty manufacturing and assembly fixtures
- Quick-change fixture systems supporting M6 or equivalent metric fastening
Replaces / Drop-In Replacement For
- De-Sta-Co Series 201-U equivalent workholding clamps
- Other straight-line push-pull toggle clamps in the 200 lbs capacity range
- Verify exact compatibility with your fixture design before ordering
Works With
- Standard ISO 4014 hex bolts and metric fasteners (M6 and larger)
- Modular fixture plate systems and T-slot aluminum extrusion frames
- Quick-change or fixed mounting plate systems
- Manual and semi-automated assembly workstations
