Overview

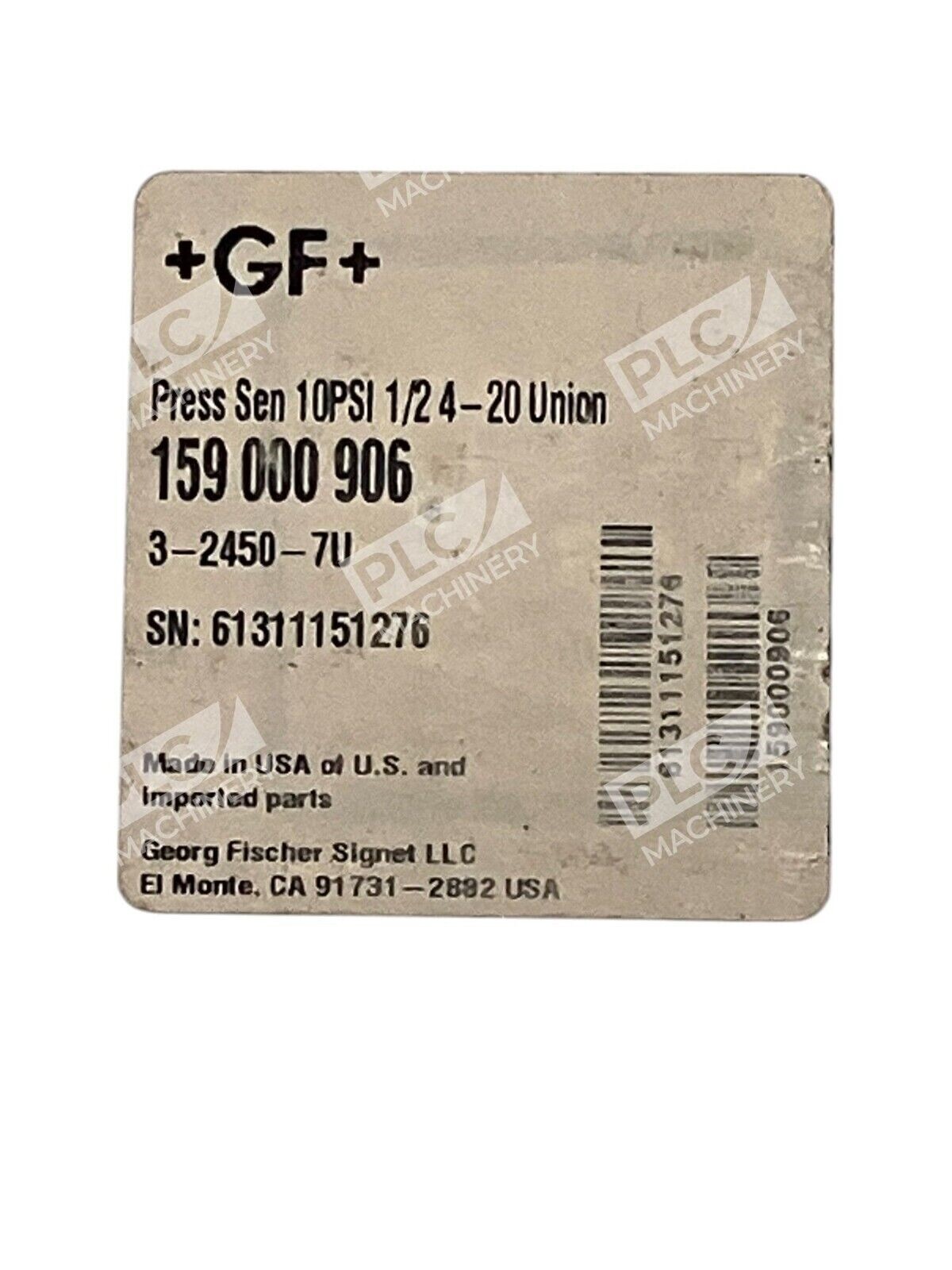

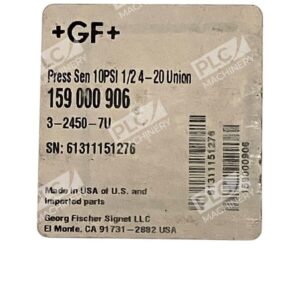

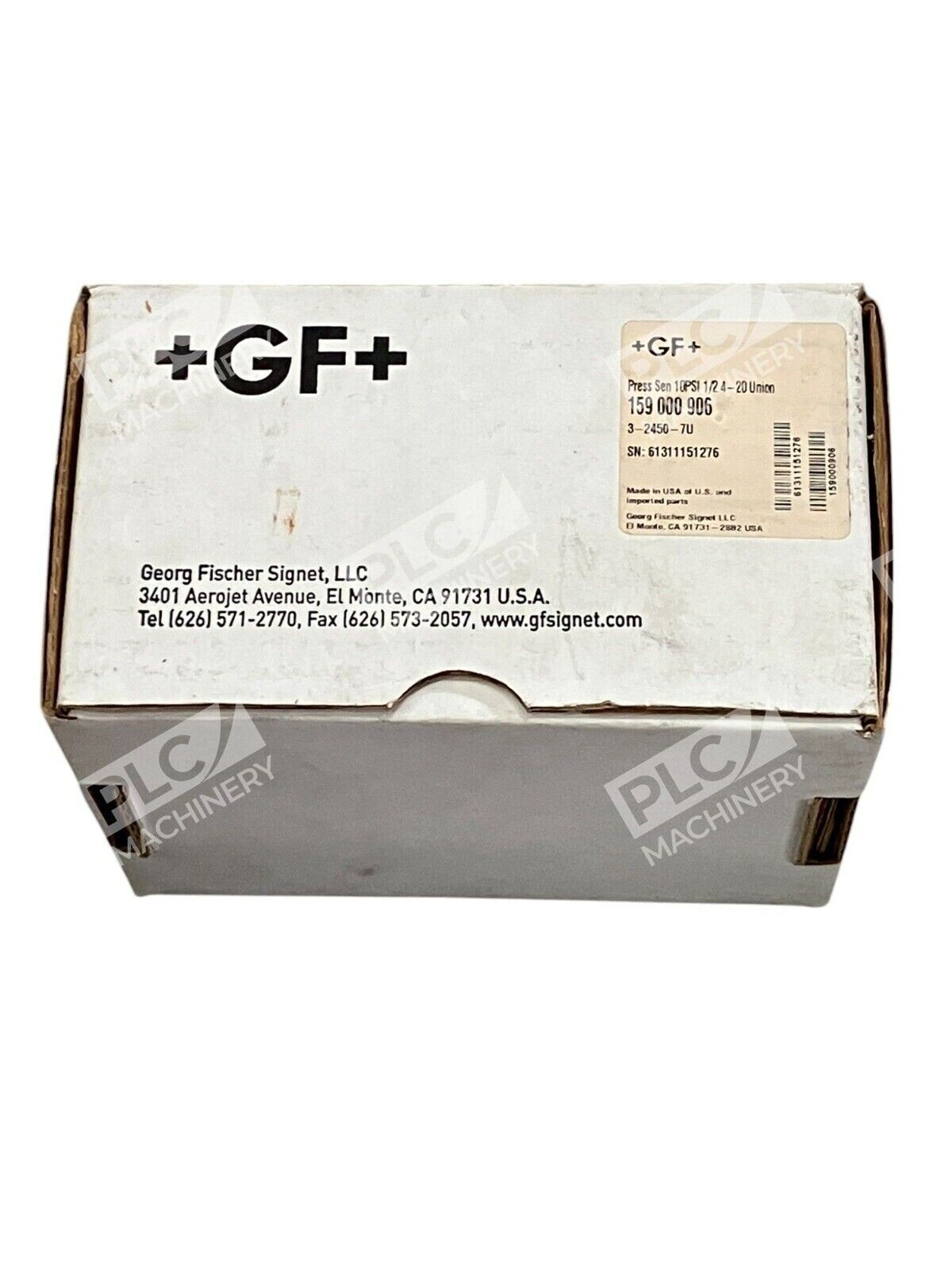

The Georg Fischer 3-2450-7U (part number 159000906) is a Signet 2450 series pressure sensor designed for reliable pressure monitoring in industrial process control and fluid management applications. This sensor combines corrosion-resistant construction with accurate, drift-free measurement in a compact union-mounted package.
Key Features
- One-piece injection-molded PVDF body with ceramic diaphragm for superior chemical resistance
- Solid-state circuitry eliminates internal drift (no potentiometers to calibrate)
- Built-in temperature compensation for consistent accuracy across -15°C to +85°C operating range
- Industry-standard 4-20mA analog output for direct PLC/data acquisition integration
- 1/2″ threaded male union process connection allows quick, field-serviceable installation
- Pre-wired with 15ft (4.6m) shielded 3-core 22AWG cable with flying leads
Technical Specifications
- Pressure Range: 0–10 PSI (-0.1 to +0.7 bar)
- Proof Pressure: 20 PSI (1.4 bar)
- Supply Voltage: 10.8–26.4 VDC (nominal 12–24 VDC)
- Analog Output: 4–20 mA
- Process Connection: 1/2″ NPT threaded male union
- Cable: 15ft pre-wired, 3-conductor shielded, 22AWG with bare lead termination
- Operating Temperature: -15°C to +85°C (process); -5°F to +185°F
- Body Material: PVDF (Polyvinylidene fluoride)
- Diaphragm: Ceramic
- Weight: 2.0 lbs
Typical Applications
- HVAC and chilled water system monitoring
- Scrubber and pump protection systems
- Water management and irrigation pressure regulation
- Wastewater and chemical processing plants
- Level sensing in closed vessels
- In-line and submersion pressure monitoring
Compatibility & Replacements
Compatible With
- Standard 4–20 mA analog input modules on Allen-Bradley, Siemens, Omron, and Mitsubishi PLCs
- Data acquisition systems and field-mounted pressure transmitters
- SCADA and building automation systems with 4–20 mA sensor inputs
- Process control panels with analog instrumentation
- 12–24 VDC power supplies and battery-backed systems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering.
Works With
- Studio 5000, TIA Portal, and standard IEC 61131-3 analog input programming
- 4–20 mA loop-powered instrumentation networks
- Fieldbus and Industrial Ethernet systems via external 4–20 mA gateways
- Allen-Bradley 1756-NI16, Siemens S7-1200/1500, and equivalent analog input modules
