Overview

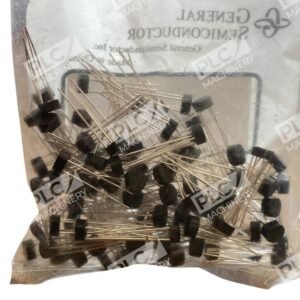

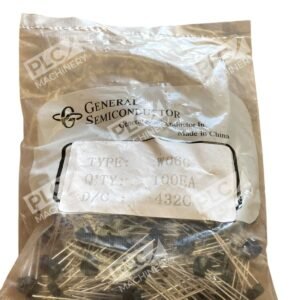

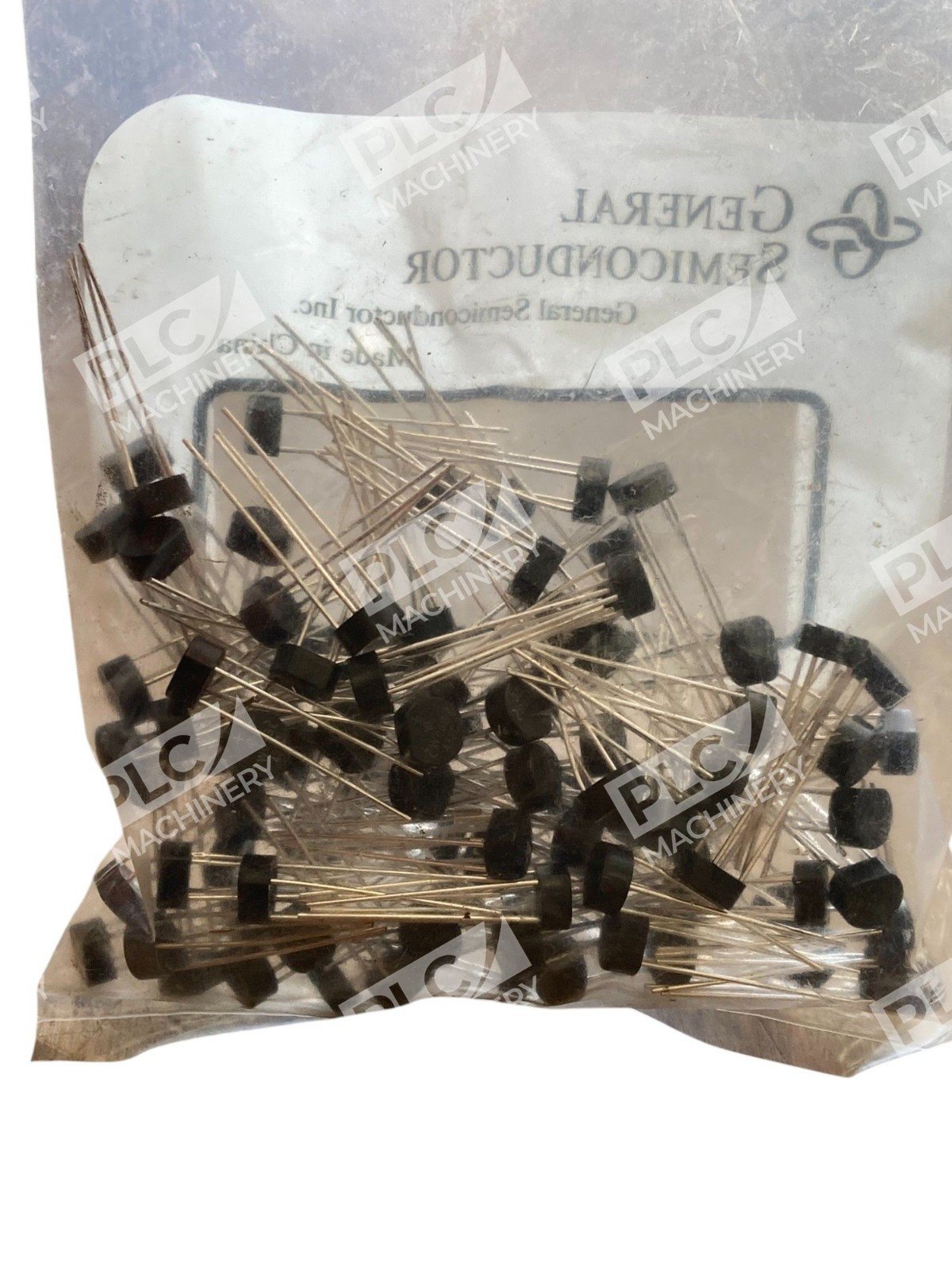

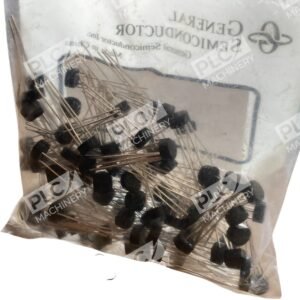

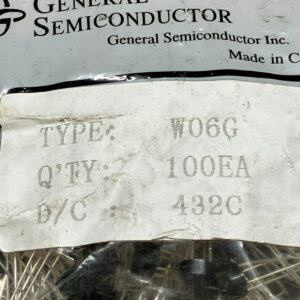

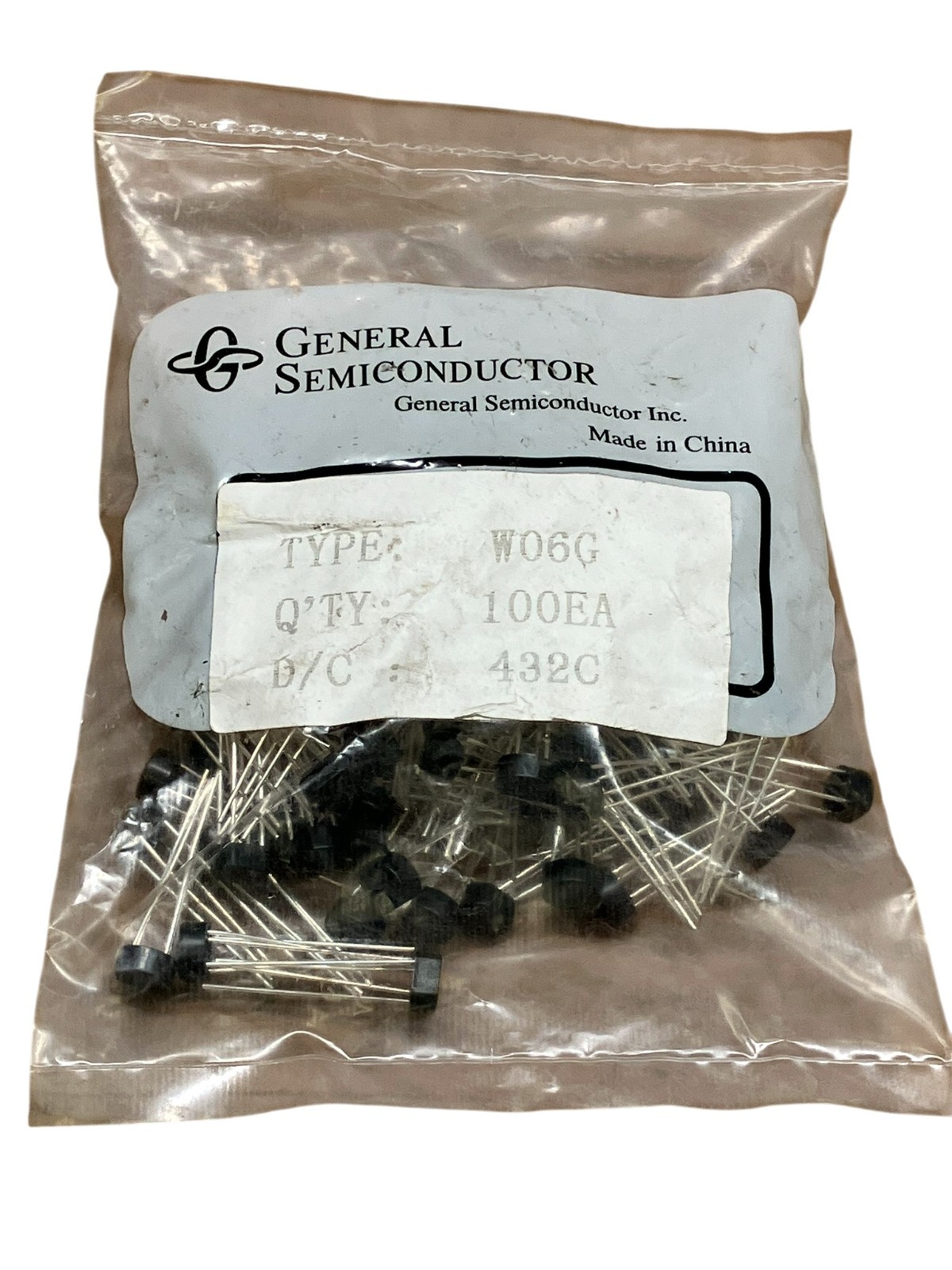

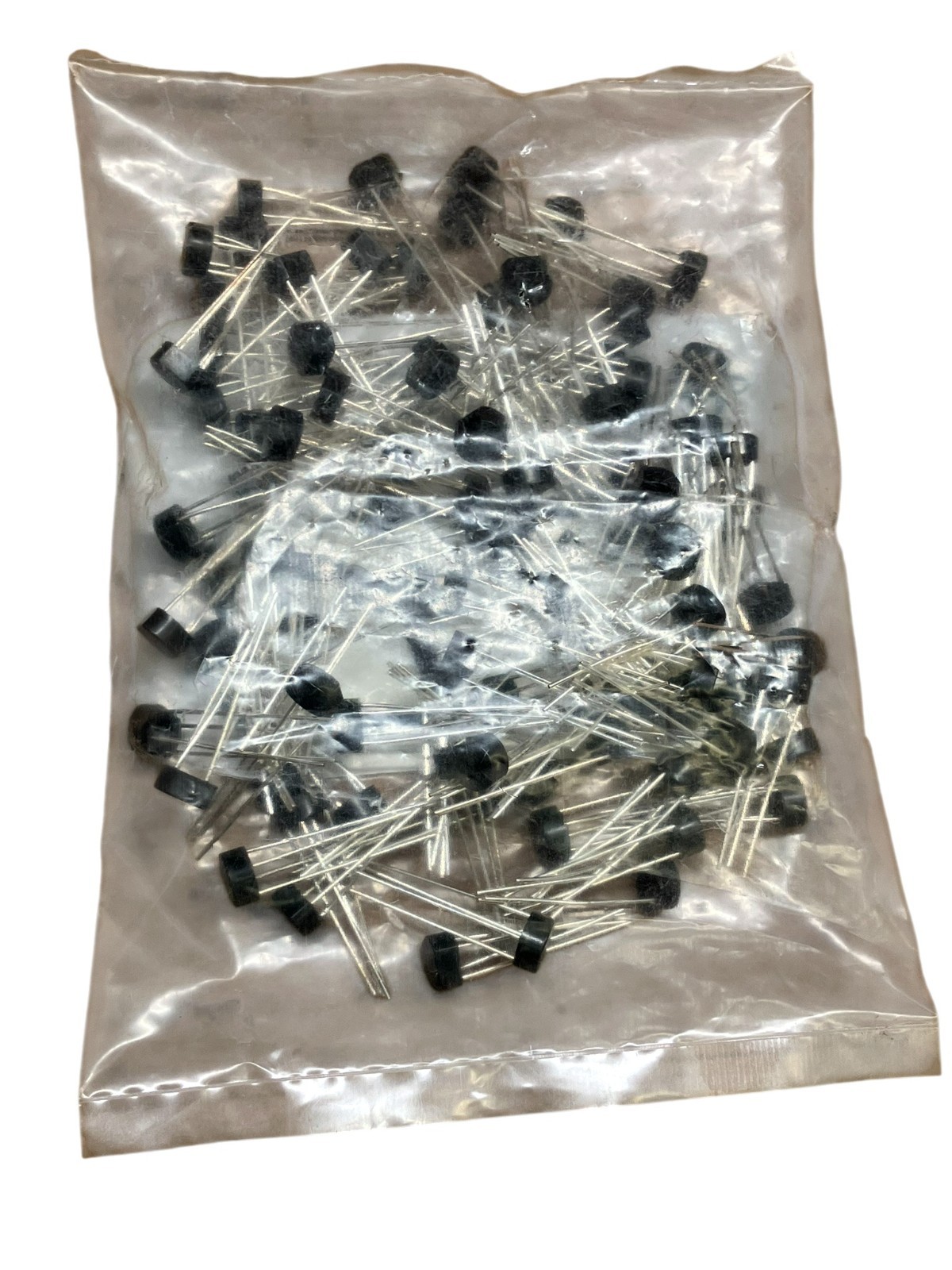

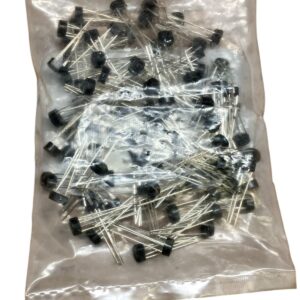

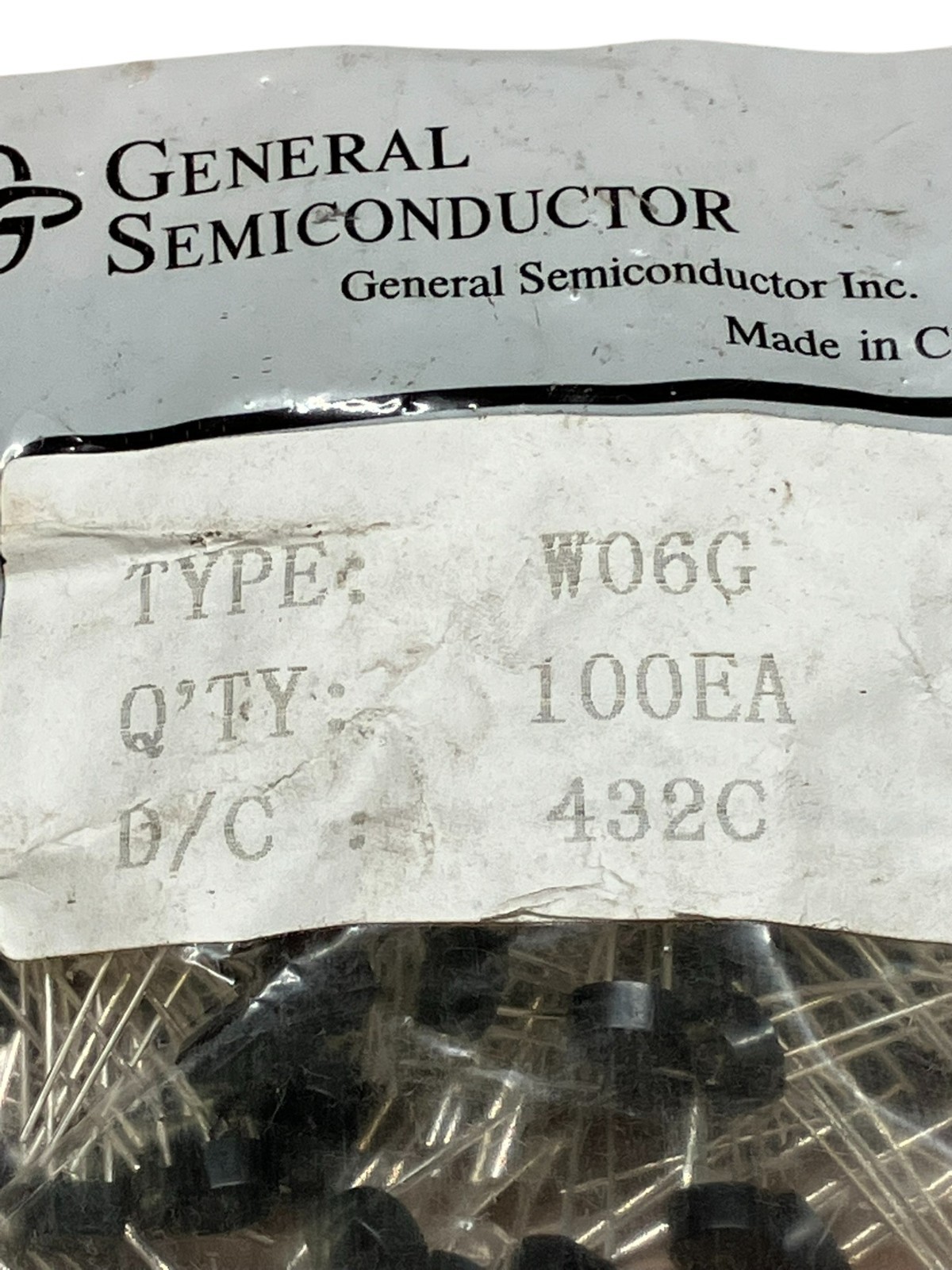

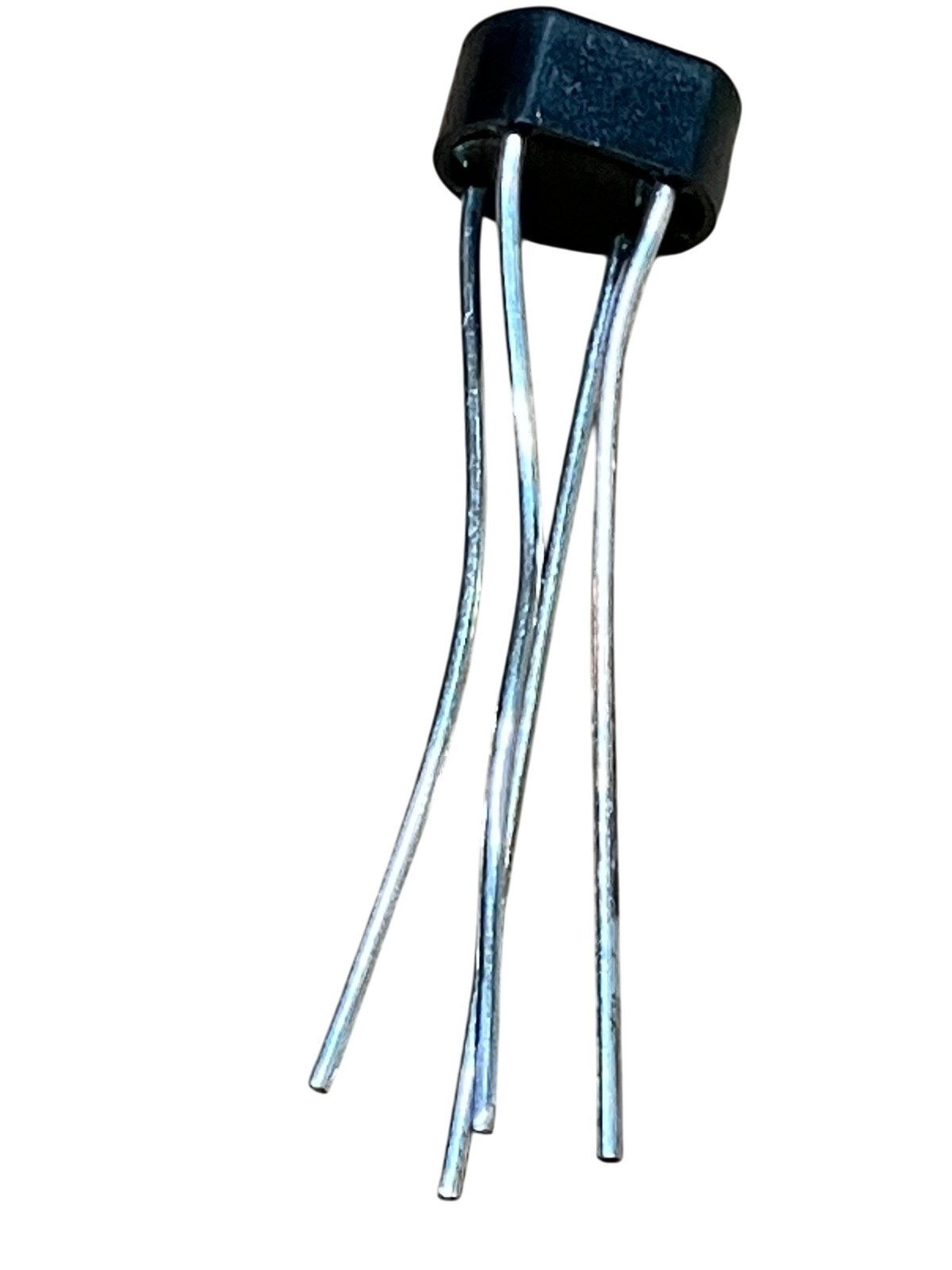

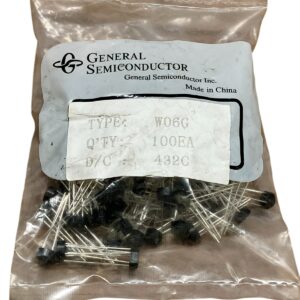

The General Semiconductor W06G is a glass passivated single-phase bridge rectifier designed for reliable AC-to-DC conversion in industrial and consumer applications. Each bag contains 100 units, providing cost-effective component availability for high-volume production, repair, and replacement projects. The W06G features a proven design with UL recognition and is ideal for power supplies, battery chargers, lighting ballasts, and general rectification circuits.
Key Features
- Glass passivated construction for reliability and low leakage current
- UL recognized (file number E54214)
- Solder-dip compatible for automated assembly
- Low reverse leakage: typical 0.1 μA at rated voltage
- High surge current capability: 50A peak non-repetitive

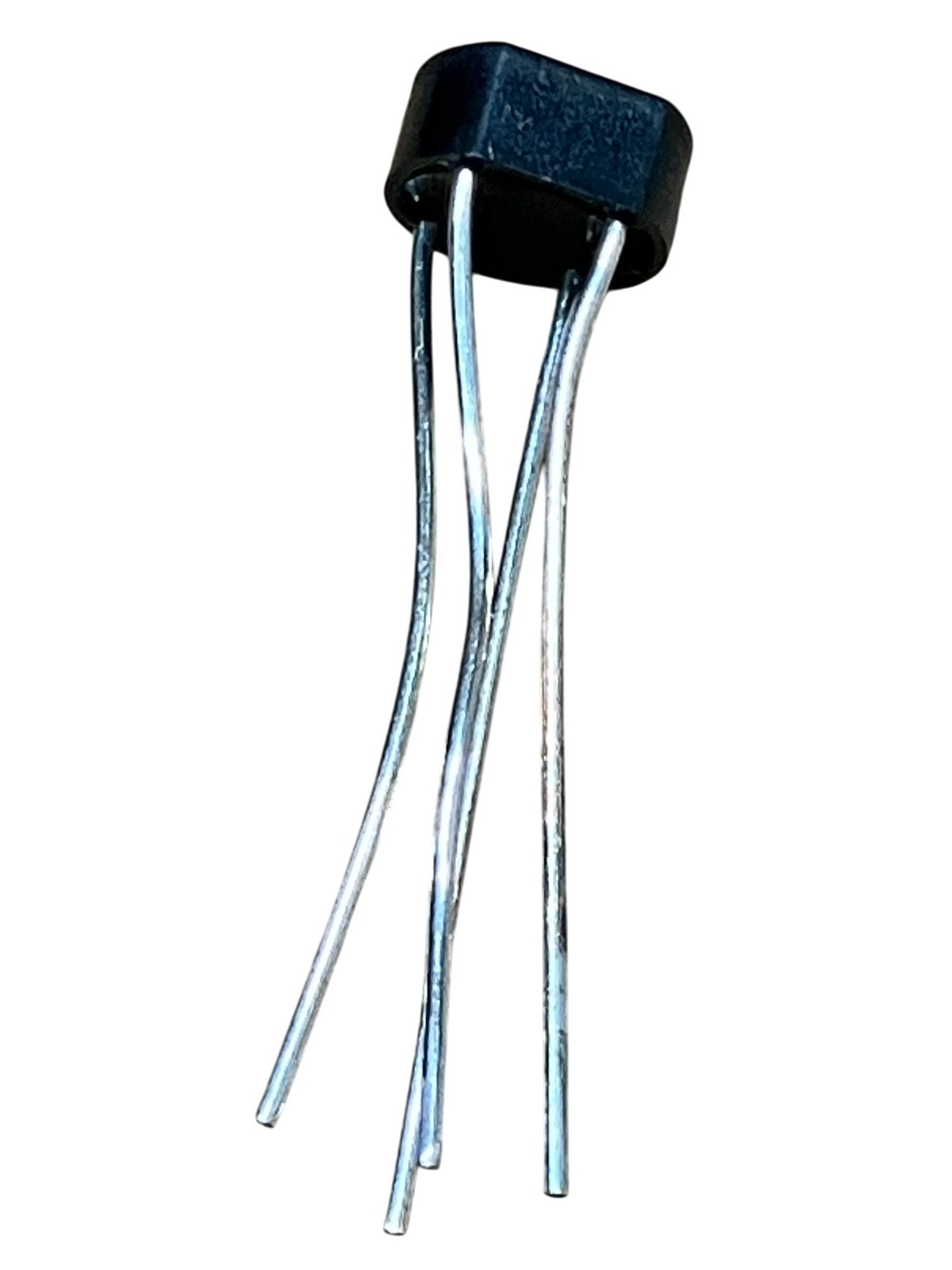

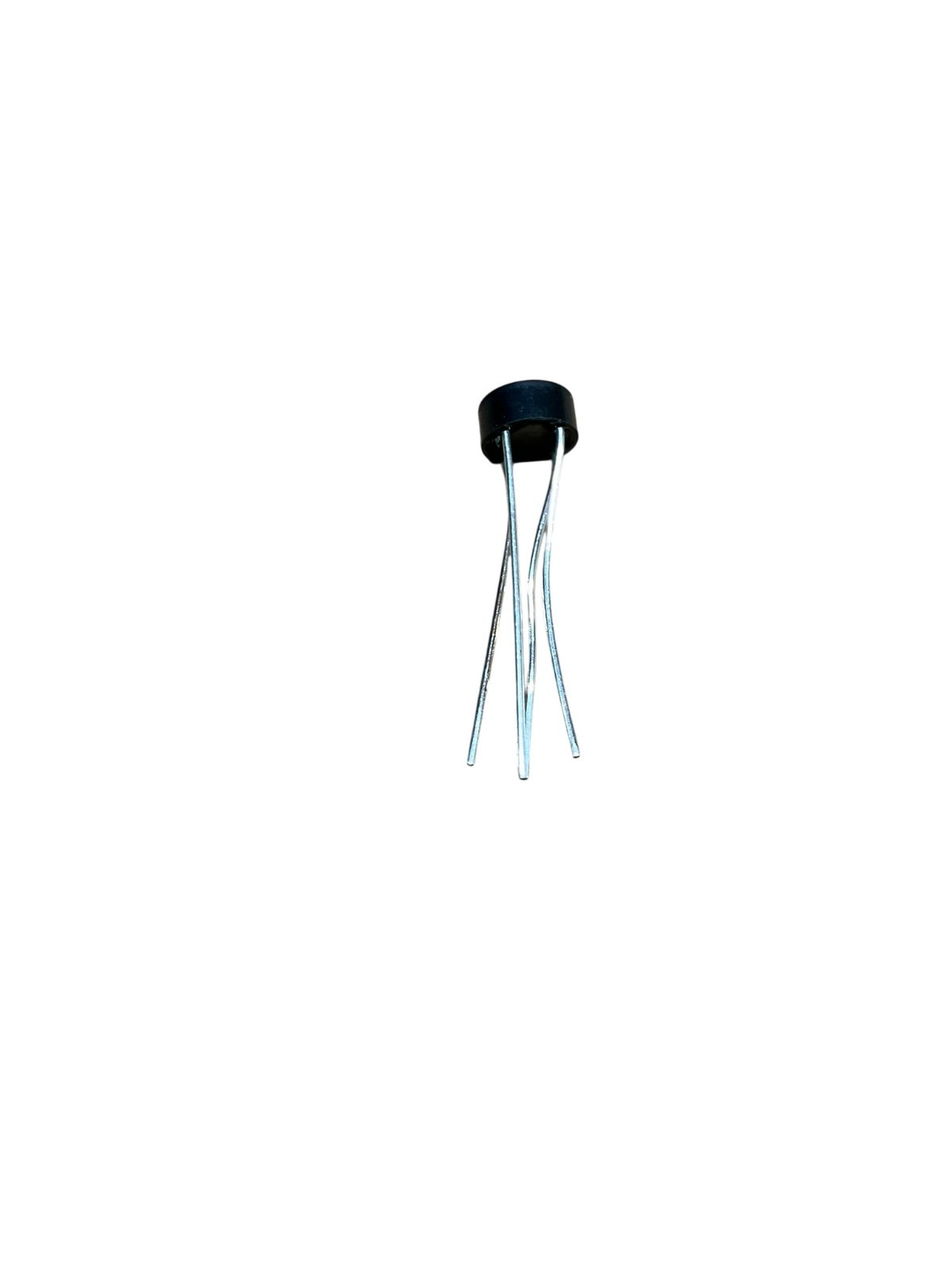

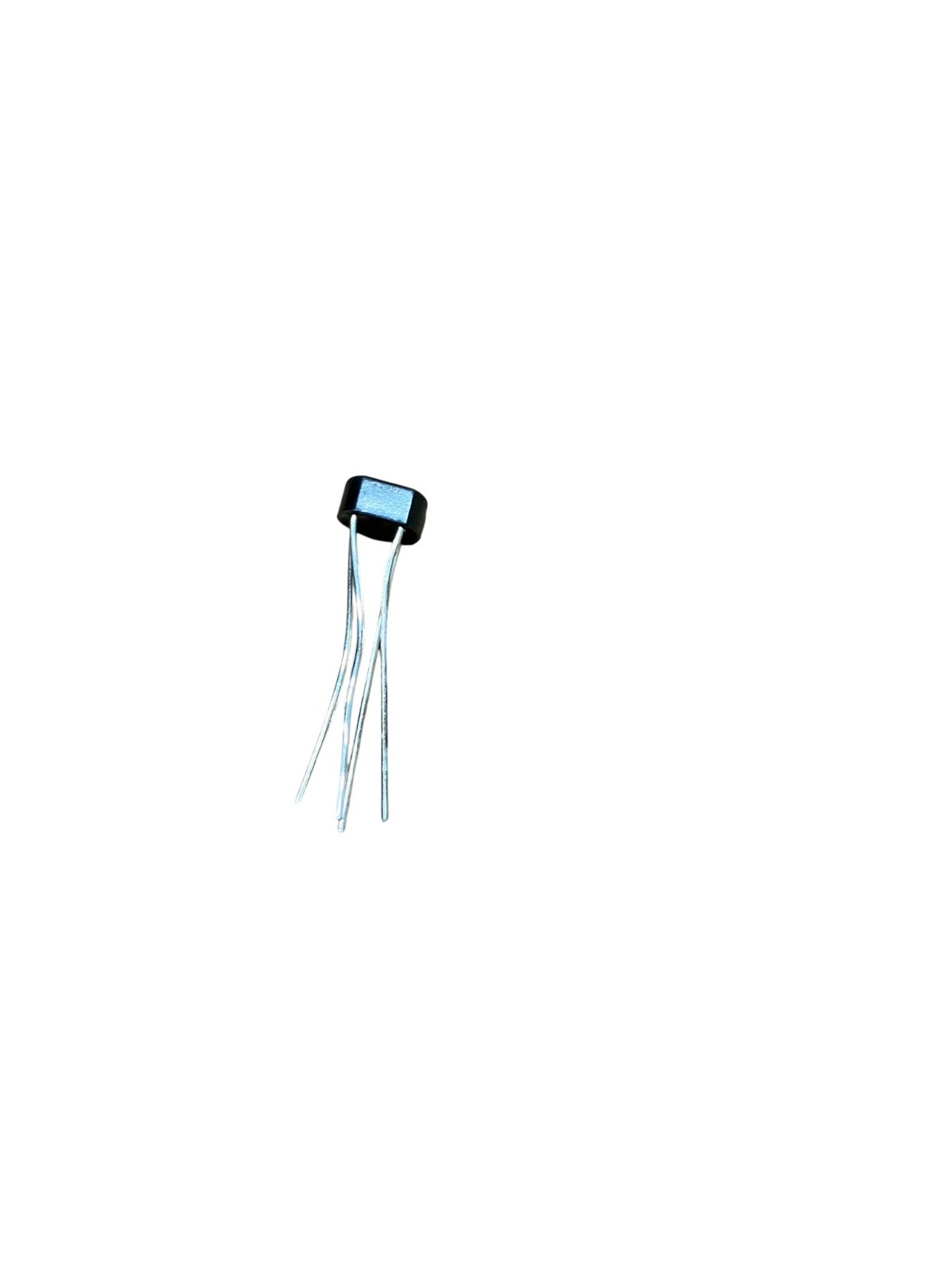

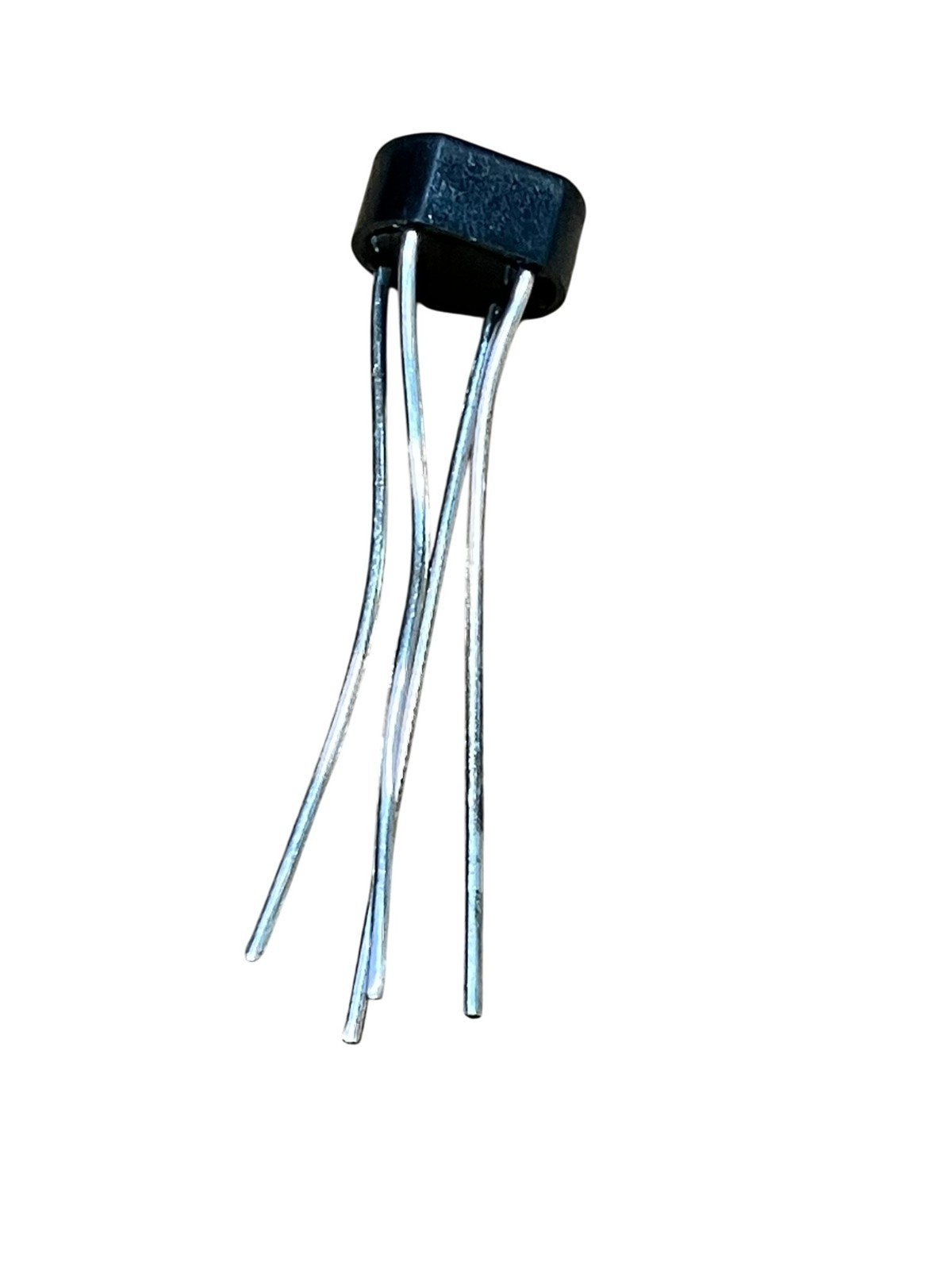

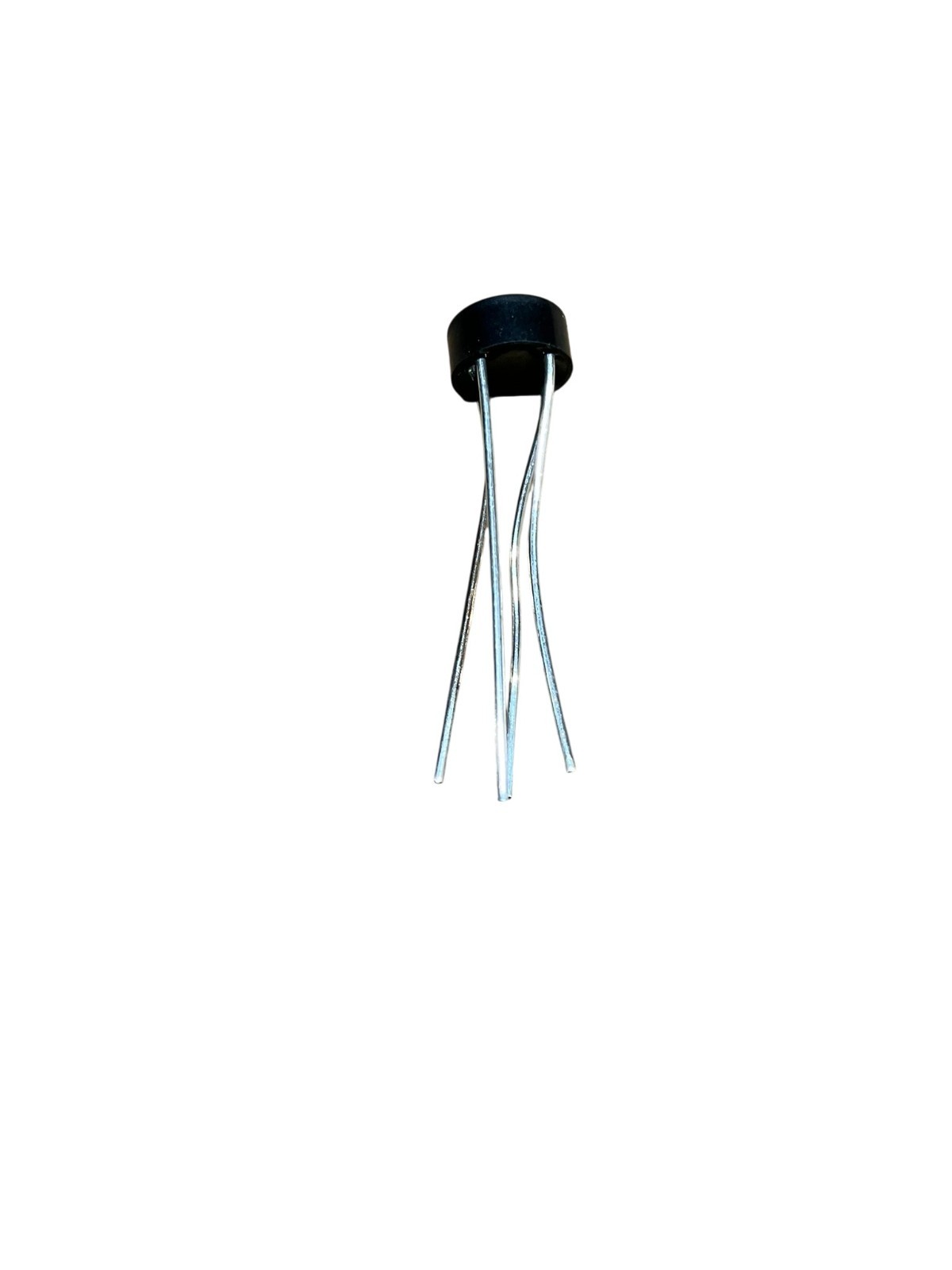

- 4-pin through-hole package (WOG) for standard PCB mounting
Technical Specifications
- Peak Reverse Repetitive Voltage (Vrrm): 600V
- Forward Current (If): 1.5A maximum average
- Peak Forward Voltage Drop (Vf): 1.0V per diode
- Peak Reverse Current (Ir): 5 μA @ 25°C
- Peak Non-Repetitive Surge Current: 50A (single sine-wave)
- Maximum RMS Voltage: 420V
- Operating Temperature Range: -55°C to +150°C
- Package Type: WOG (4-pin through-hole)
- Dimensions: 9.86mm (L) × 8.84mm (W) × 5.6mm (H)
- Configuration: Single-phase bridge (4-pin)
- Solder Compatibility: 260°C for 40 seconds maximum
Typical Applications
- Industrial AC-to-DC power supply rectification
- Consumer and home appliance adapters
- Battery charging circuits
- Lighting ballast circuits
- Printed circuit board (PCB) assembly
- General-purpose full-wave bridge rectification
Compatibility & Replacements
Compatible With
- Standard single-phase AC power sources (50/60 Hz)
- PCB-mounted rectifier applications
- Automotive and industrial battery charger designs
- Consumer electronics power supply circuits
Replaces / Drop-In Replacement For
- Vishay Siliconix W06G
- Diodes Incorporated W06G
- HY Electronic Corp W06G
- Other 600V/1.5A single-phase bridge rectifiers in WOG package
Works With
- Standard PCB solder assembly equipment
- Wave soldering and reflow processes
- Industrial and consumer power supply designs
- Any circuit requiring single-phase AC-to-DC bridge rectification
