Overview

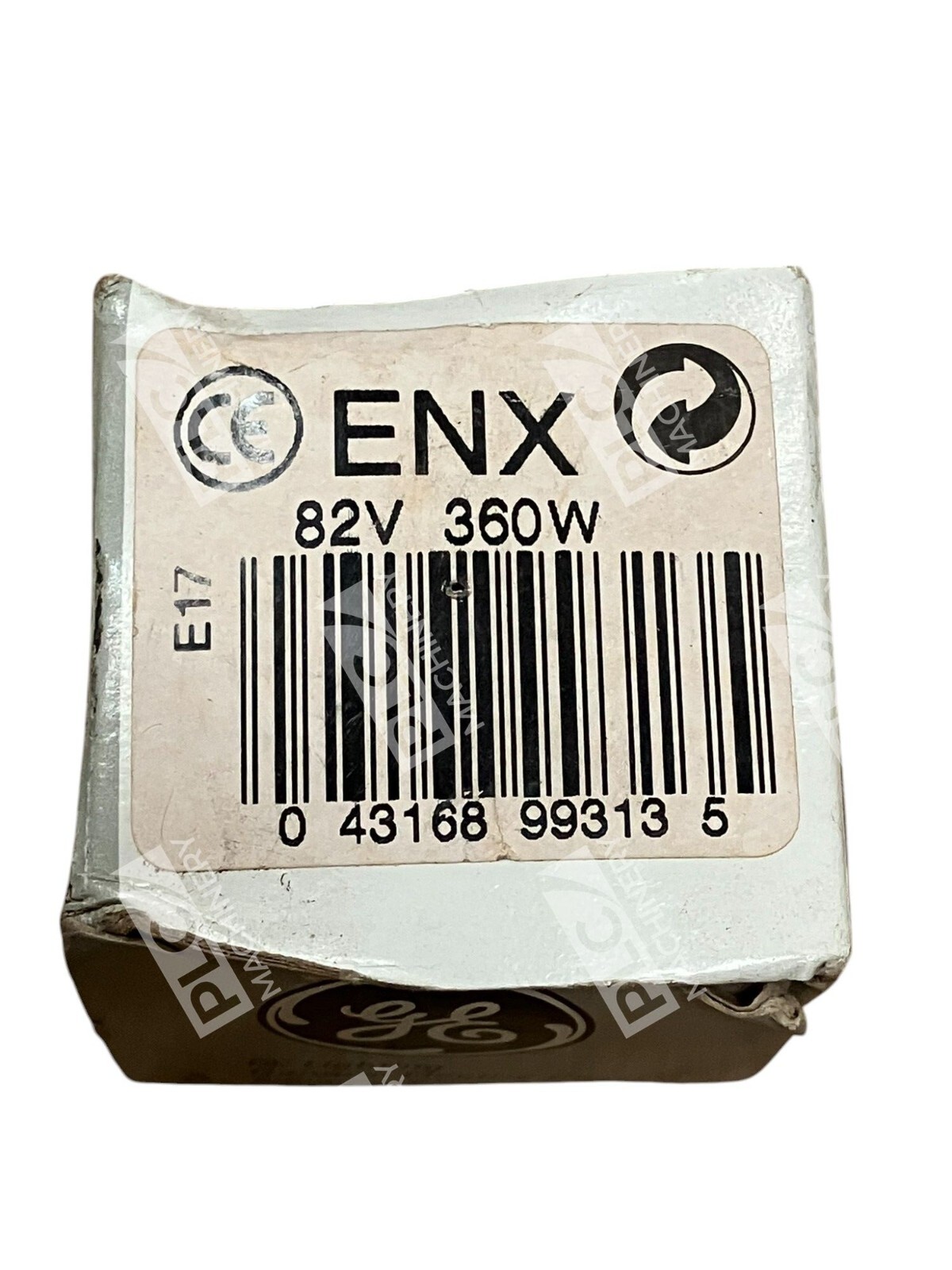

The General Electric ENX 82V 360W is a professional-grade MR16 quartz halogen lamp designed for overhead projectors, slide projectors, and specialized projection equipment. With Quartzline® precision engineering, this bulb delivers consistent high-output illumination with a 540-lumen output and exceptional color accuracy (CRI 100). The 75-hour rated lamp life and universal burn position make it a reliable choice for film photography studios, educational institutions, and theatrical applications.
Key Features
- MR16 form factor with high-stability CC-8 filament design
- 540 lumens initial output with 3300K color temperature for warm, natural-looking projection
- 75-hour average rated lamp life for cost-effective operation
- GY5.3 2-pin base for universal compatibility with 82V projection systems
- 100 CRI (Color Rendering Index) for accurate color reproduction
- Universal burn position (Base Down/Horizontal) for flexible mounting
Technical Specifications
- Wattage: 360W
- Voltage: 82V AC
- Base Type: GY5.3 2-Pin
- Bulb Type: MR16
- Filament Type: CC-8
- Color Temperature: 3300K
- Initial Lumens: 540 lm
- Rated Life: 75 hours
- Diameter: 1.99"
- Overall Length (MOL): 1.75"
- Burn Position: Universal (Base Down/Horizontal)
- Working Distance: 11.64" (296mm)
Typical Applications
- Professional overhead projectors and document cameras
- Slide and film projection systems
- Theater lighting and followspot fixtures (Altman Luminator, Lycian Clubspot)
- Specialized studio lighting and photography equipment
- Educational presentation systems
Compatibility & Replacements
Compatible With
- 3M 1711, 1720, 1730, 1740, 1760, 1780, 1810, 1820, 1830, 1880, 1881, 9050 projectors
- Elmo HP-L355, L290, HP-L3550, L2900, HP-3K, 3KDX, HP-254S, L14 Series projectors
- Altman Luminator Followspot
- Lycian Clubspot Followspot
- Any 82V-compatible projection equipment with GY5.3 socket
Replaces / Drop-In Replacement For
- GE part number 41705
- Ushio model 1000337
- Sylvania/Osram ENX equivalents
- Impact ENX 360W/82V
Works With
- Professional projection systems requiring 82V, 360W halogen lamps
- Specialized studio and theatrical lighting equipment with GY5.3 sockets
- Equipment supporting MR16 lamp format and CC-8 filament specifications
