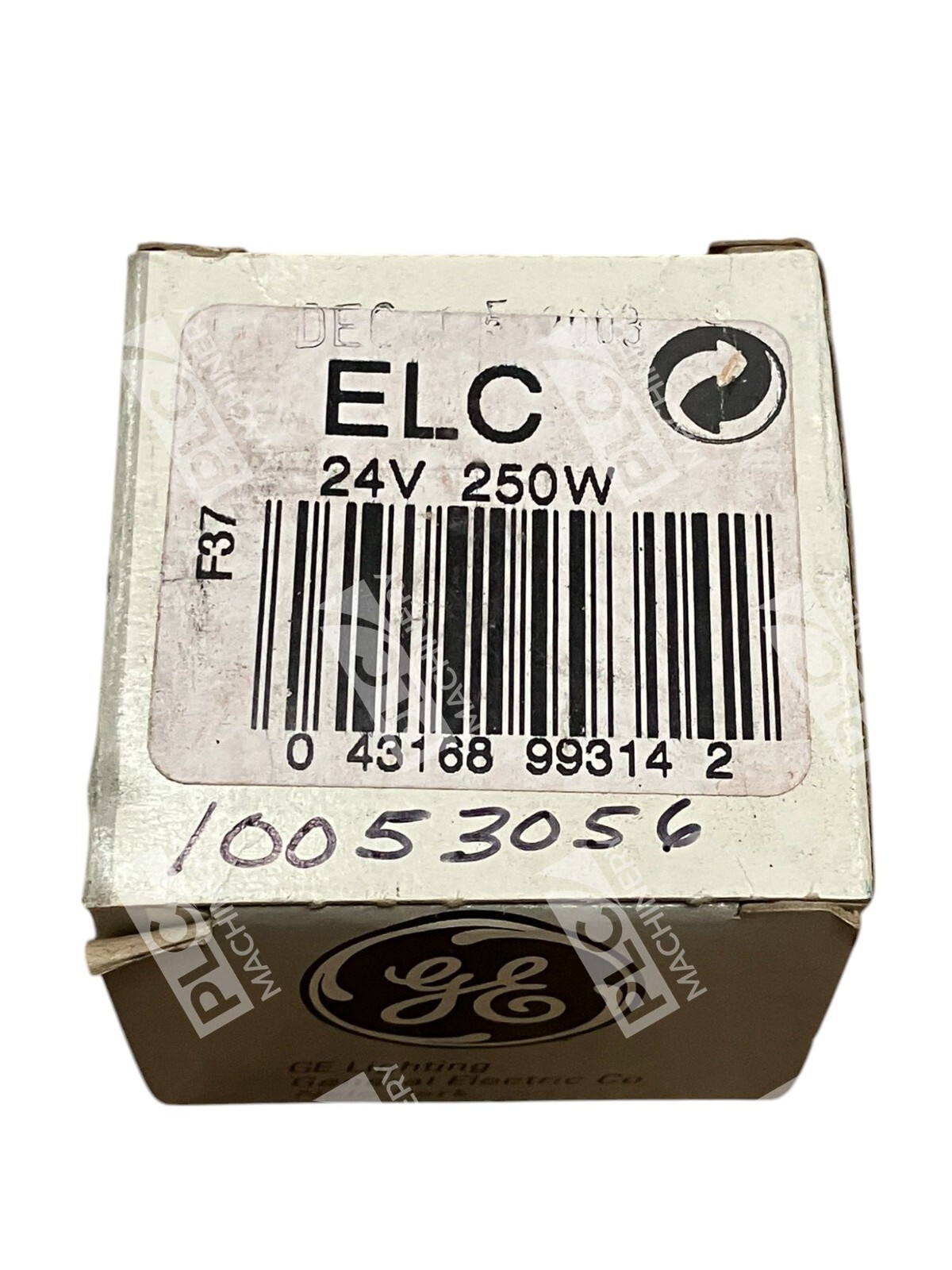

General Electric ELC 24V 250W halogen projection lamp — a specialty lighting component designed for critical imaging and projection applications. This ANSI ELC-coded lamp delivers consistent 3350K color temperature and 500-hour average rated life, making it a reliable choice for replacement across multiple equipment types.
Overview
The General Electric ELC 24V 250W is a halogen MR16 projection lamp engineered to exacting ANSI standards. Its compact design, 3350K warm color temperature, and proven 500-hour lifespan make it a trusted replacement component in projectors, film equipment, enlargers, and precision lighting systems. The lamp operates at 24V DC with a 2-pin GX5.3 base (CC-6 filament configuration), designed for horizontal ±15° or base-down burn position.
Key Features
- ANSI ELC designation ensures compatibility with standard replacement lamp specifications
- MR16 reflector bulb design with efficient light beam concentration
- GX5.3 2-pin base for secure, straightforward mounting
- 500-hour average rated life with consistent 3350K color temperature
- Compact form factor: 1.750″ overall length × 2.0″ diameter
- Suitable for horizontal or base-down burn orientation
Technical Specifications
- Wattage: 250W nominal
- Voltage: 24V nominal
- Lamp Type: Halogen, MR16 bulb
- Base Type: GX5.3 2-pin
- Filament Type: CC-6
- Color Temperature: 3350K nominal
- Rated Life: 500 hours average
- Overall Length (MOL): 1.750″ (44.4 mm)
- Bulb Diameter: 2.000″ (50.8 mm)
- Light Center Length (LCL): 1.375″ (34.9 mm)
- Burn Position: Horizontal ±15° or base down
- Typical Working Distance: 1.25″
- Condition: New in box
Typical Applications
- Film and slide projectors
- Photographic enlargers
- Dental and medical imaging equipment
- Scientific instrumentation and microscopy
- Stage lighting and entertainment projection
- Industrial inspection and measurement systems
Compatibility & Replacements
Compatible With
- Any equipment requiring ANSI ELC-coded halogen lamps
- MR16 GX5.3 lamp sockets (24V DC systems)
- Projectors, enlargers, and film equipment with standard reflector lamp mounts
- Medical, dental, and laboratory lighting fixtures
Replaces / Drop-In Replacement For
- GE 37462 ELC 250W 24V
- GE 15377 250W 24V ELC-500
- OSRAM ELC 24V 250W
- Other ANSI ELC-designated halogen lamps with GX5.3 base
Works With
- 24V DC power supplies and transformers
- MR16 reflector lamp fixtures and housings
- GX5.3 lamp socket assemblies
- Standard halogen lamp ballasts (where applicable)
